8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#24082) — 70 parça

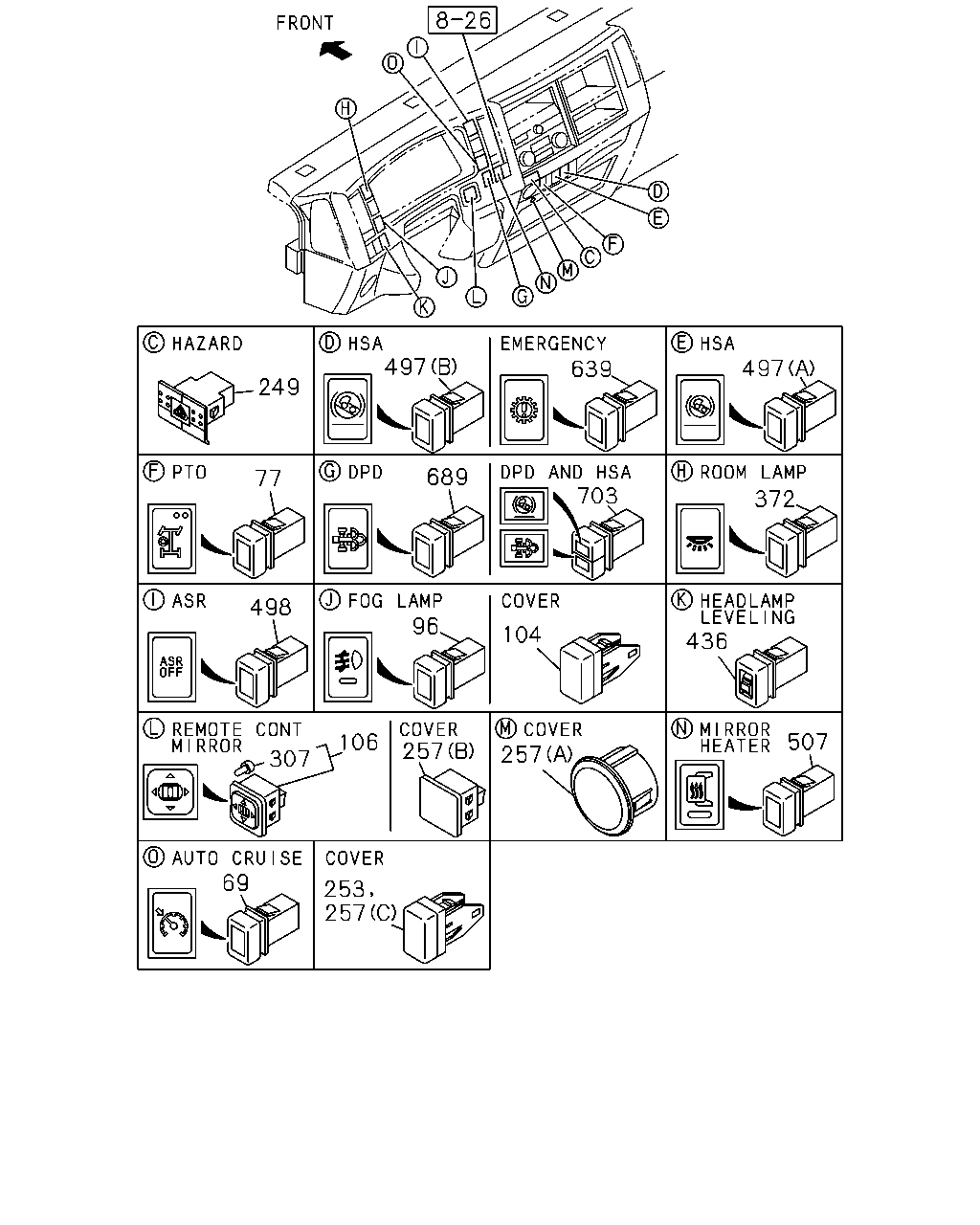

çizim 144477
639 497 497 249 703 372 689 77 436 96 498 104 257 257 507 106 307 69 253 257
BalonParca AdiParca NoAdetTipApplied Date
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 0803-
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 0803-
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-488-2 01 1 0803-
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 0803-
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 0803-
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 0803-
249 SWITCH; HAZARD 8-97386-922-1 01 1 0803-
253 COVER; SW HOLE 8-98025-954-1 02 1 0803-
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 0803-
253 COVER; SW HOLE
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98025-954-1 01 1 0803-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0803-
257 COVER; HOLE,SW
(A) 		8-98070-401-2 01 1 0803-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 0803-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0803-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0803-
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0803-
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0803-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0803-
307 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 0803-
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 0803-
436 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 0803-
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) 		8-97386-967-2 01 1 0803-0806
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) 		8-98119-947-1 01 1 0807-
497 SWITCH; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97386-985-1 01 1 0803-0806
497 SWITCH; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98119-946-0 01 1 0807-
498 SWITCH; ASR
THROTTLE CONTROL SYSTEM(6XH) 		8-97386-920-2 01 1 0803-
507 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97386-924-3 01 1 0803-
639 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97387-000-2 01 1 0803-0806
639 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 0807-
689 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 0803-
703 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 0803-
çizim 144786
164
BalonParca AdiParca NoAdetTipApplied Date
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-

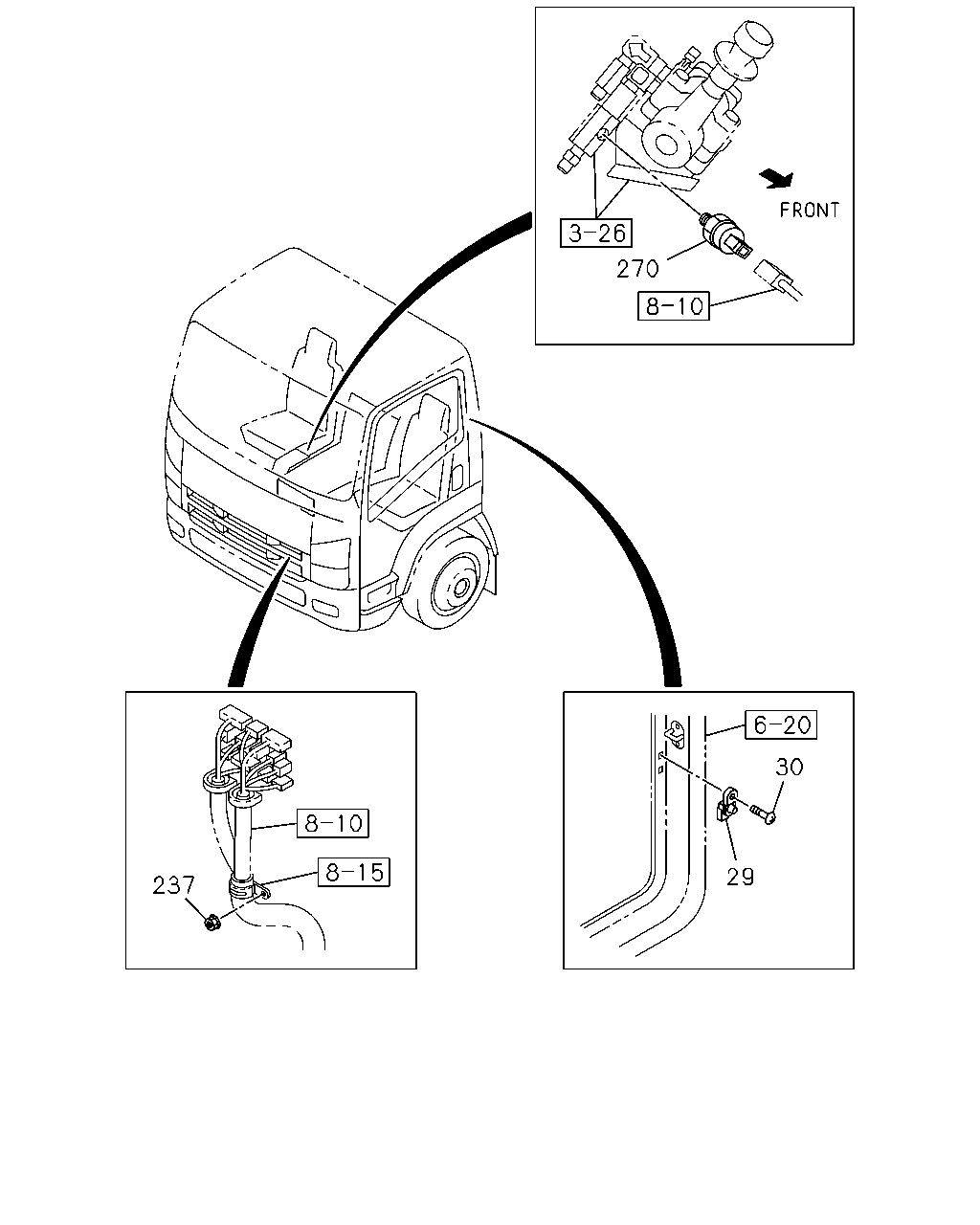

çizim 144793
270 30 29 237
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0803-
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0803-
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0803-
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0803-
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 0803-
270 SWITCH; PRESS,WHEEL PARKING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 2.0 		8-98010-856-2 01 1 0803-
çizim 144799
606 317 610 99 12 606 164
BalonParca AdiParca NoAdetTipApplied Date
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0803-
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-
317 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-0806
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0807-
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0806
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0806
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 0807-
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 10A PANASONIC 		8-97173-035-1 01 1 0807-
610 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-

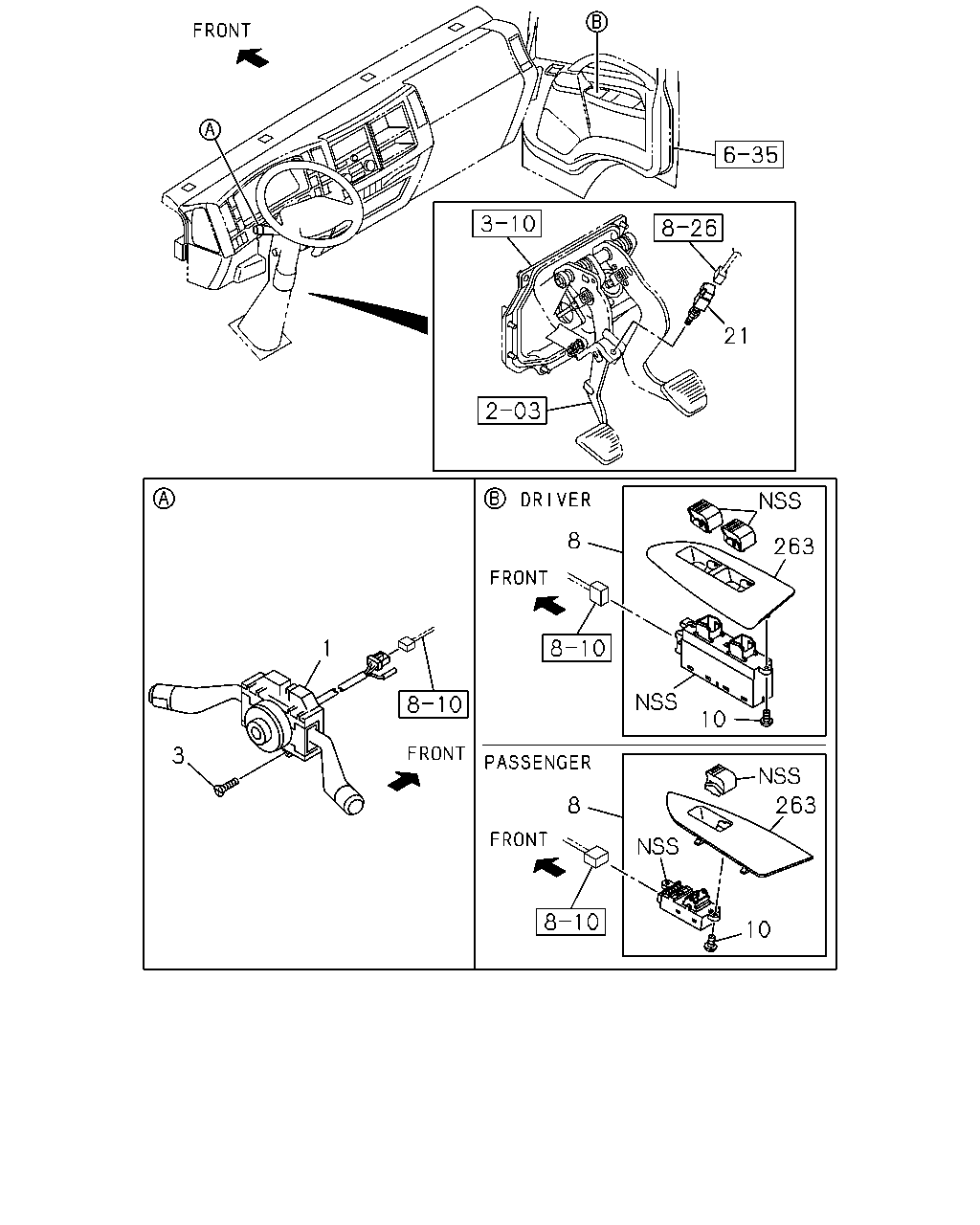

çizim 144811
21 8 263 1 10 3 263 8 10
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98042-673-1 01 1 0803-0905
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98146-625-0 01 1 0906-1210
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98217-829-0 01 1 1211-1310
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98243-711-0 01 1 1311-
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98064-765-1 01 1 0803-0905
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98146-623-0 01 1 0906-1210
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98217-827-0 01 1 1211-1310
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98243-710-0 01 1 1311-
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0803-
8 SWITCH; POWER WINDOW
PASSENGER 		8-98001-737-2 01 1 0803-1509
8 SWITCH; POWER WINDOW
PASSENGER 		8-98298-751-0 01 1 1510-
8 SWITCH; POWER WINDOW
DRIVER 		8-98003-784-1 01 1 0803-0809
8 SWITCH; POWER WINDOW
DRIVER 		8-98129-845-0 01 1 0810-1001
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-544-0 01 1 1002-1509
8 SWITCH; POWER WINDOW
DRIVER 		8-98316-418-0 01 1 1510-
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 0803-
21 SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94337-761-0 01 1 0803-
21 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 0803-
263 COVER; SW
DRIVER 		8-98153-838-0 01 1 0803-
263 COVER; SW
PASSENGER 		8-98153-843-0 01 1 0803-
