◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11137 - FRR-LHD(EU)SPACE EU4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#24079) — 530 parça

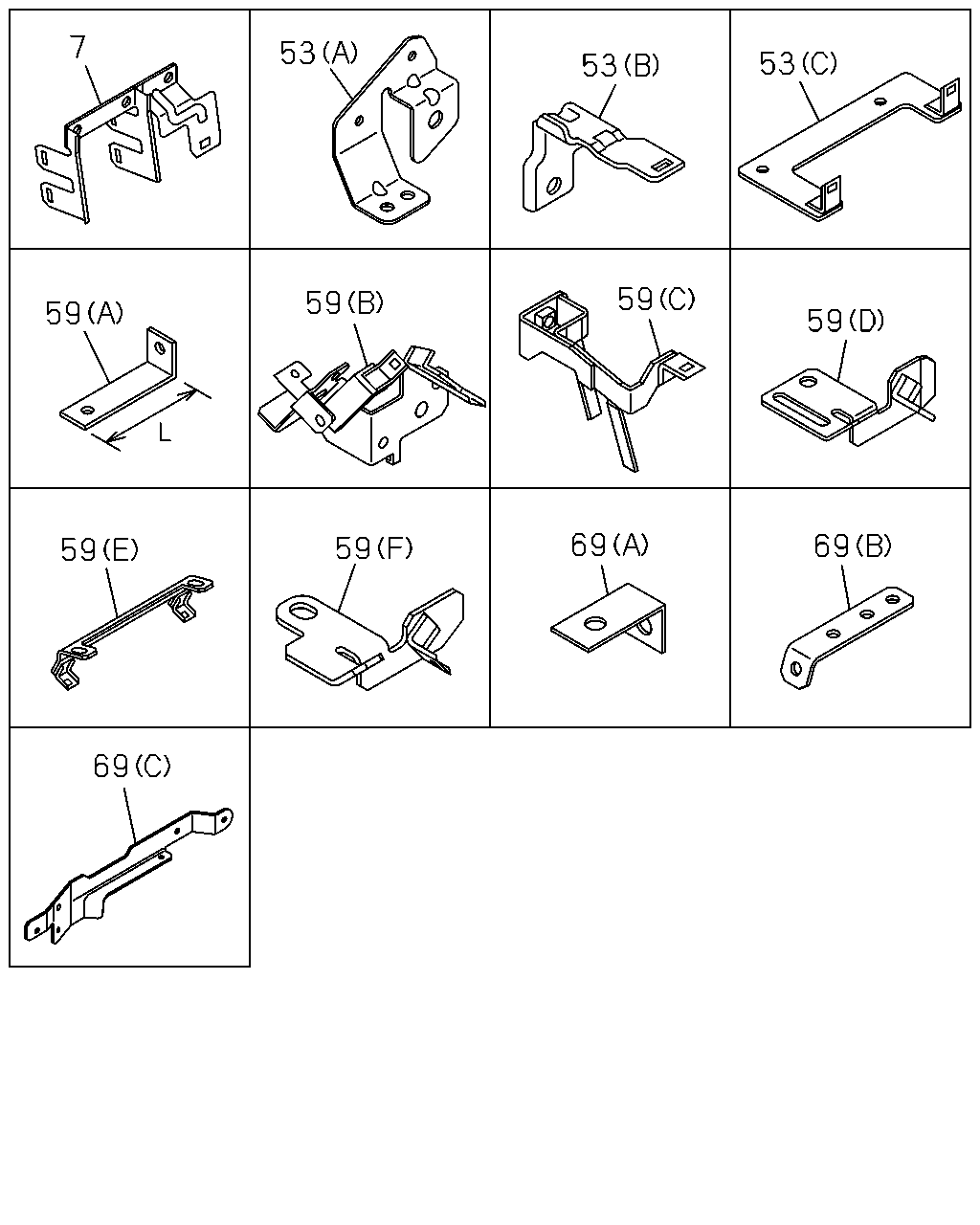

çizim 144496
7 53 53 53 59 59 59 59 59 59 69 69 69
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 0803-
53 BRACKET; HARNESS
(C) 		8-98125-300-1 01 1 0806-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 0803-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) 		8-98084-699-0 01 1 0803-
59 BRACKET; FRAME HARNESS
KD PREPARATORY PACK<6HF> (A) L=55 		1-47475-304-0 01 1 0812-0901
59 BRACKET; FRAME HARNESS
(A) L=55 		1-47475-304-0 01 1 0803-0807
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0803-1502
59 BRACKET; FRAME HARNESS
(F) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(E) 		8-97619-533-0 01 1 0803-
59 BRACKET; FRAME HARNESS
(B) 		8-97619-535-0 01 1 0803-
59 BRACKET; FRAME HARNESS
(C) 		8-98099-963-0 01 1 0803-
69 BRACKET; CLIP
(C) 		8-97614-738-0 01 1 0803-
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=55 		1-47475-304-0 01 1 0803-0803
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-82698-167-0 01 1 0804-0807
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=95 		1-82699-085-0 01 1 0808-

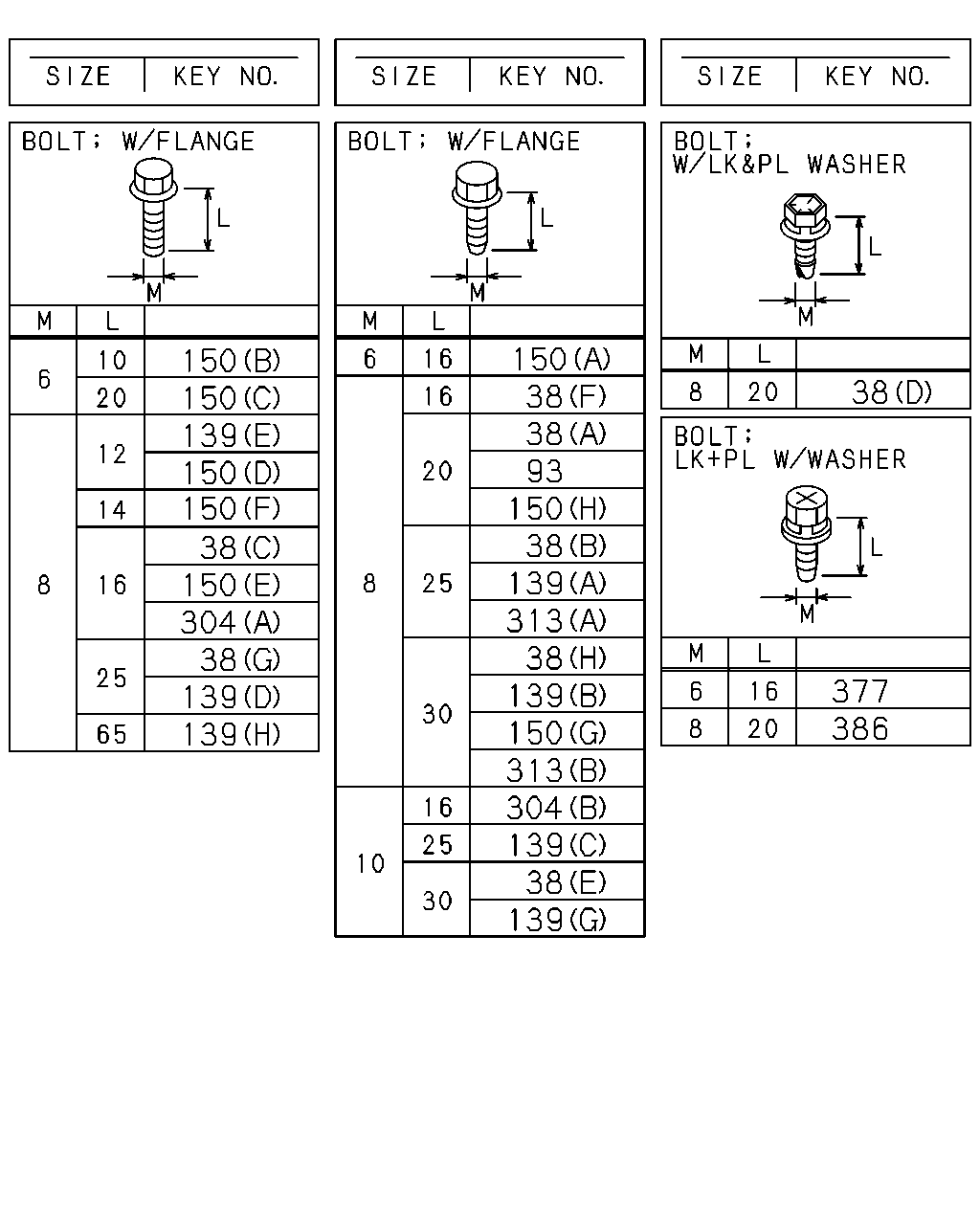

çizim 144751
150 150 139 150 150 38 150 304 38 139 139 150 38 38 93 150 38 139 313 38 139 150 313 304 139 38 139 377 386 38
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0803-
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28050-825-0 01 1 0803-0805
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0806-0808
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0809-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0809-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28650-830-0 05 1 0803-0805
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0806-0808
38 BOLT; CLIP,HARNESS
(E) M10X30 FLANGE 		0-28651-030-0 01 1 0803-
38 BOLT; CLIP,HARNESS
(D) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0803-1201
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
38 BOLT; CLIP,HARNESS
(F) M8X16 FLANGE 		8-98076-109-0 01 1 0803-0807
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0803-0805
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0803-0805
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0808
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0803-
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE 		1-09044-072-1 01 1 0809-
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 01 1 0806-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0807
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0807
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0808-0811
139 BOLT; BRKT
KD PREPARATORY PACK<6HF> (A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0901
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0901
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0902-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0803-
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0803-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0803-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0803-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0803-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0803-0805
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0803-0805
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0806-
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 01 1 0803-
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 01 1 0803-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-
150 BOLT; CLIP
(G) M8X30 FLANGE 		0-28650-830-0 02 1 0806-0806
150 BOLT; CLIP
(H) M8X20 FLANGE 		0-28650-820-0 02 1 0807-
150 BOLT; CLIP
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0803-0803
150 BOLT; CLIP
(F) M8X14 FLANGE 		0-28080-814-0 01 1 0803-0803
150 BOLT; CLIP
(C) M6X20 FLANGE 		0-28050-620-0 01 1 0803-1004
150 BOLT; CLIP
(C) M6X20 FLANGE 		0-28050-620-0 02 1 1005-
150 BOLT; CLIP
(D) M8X12 FLANGE 		0-28050-812-0 01 1 0803-
150 BOLT; CLIP
(E) M8X16 FLANGE 		0-28050-816-0 01 1 0803-
150 BOLT; CLIP
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0803-
304 BOLT; ENG HARNESS CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0803-0803
304 BOLT; ENG HARNESS CLIP
(B) M10X16 FLANGE 		0-28151-016-0 01 1 0803-0803
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0806-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0803-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0803-
386 BOLT; GRAND HARNESS
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0803-1202
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-

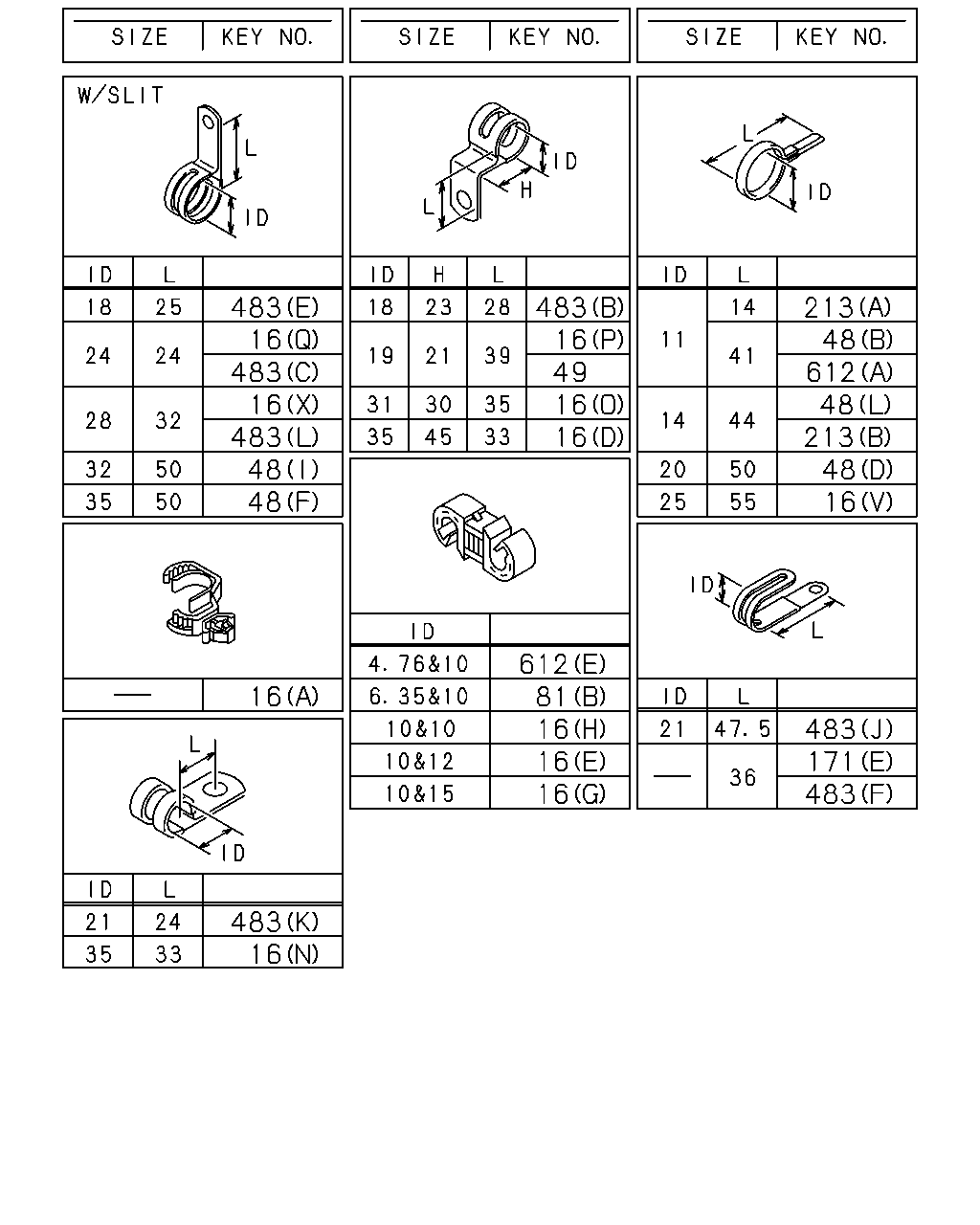

çizim 144753
483 16 483 16 483 48 48 483 16 49 16 16 213 48 612 48 213 48 16 612 81 16 16 16 16 483 171 483 483 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 02 1 0806-0808
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 03 1 0809-0907
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 02 1 0908-
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (N) ID=35 L=33 		1-09700-945-0 01 1 0803-0808
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=35 H=45 L=33 		1-09701-047-0 01 1 0803-
16 CLIP; HARNESS
(I) ID=11 L=16 		0-95235-025-0 02 1 0803-
16 CLIP; HARNESS
(M) ID=11 L=60 		0-95235-096-0 01 1 0803-0807
16 CLIP; HARNESS
(J) ID=11X2 L=16 		1-09700-734-0 01 1 0803-
16 CLIP; HARNESS
(P) ID=19 L=39 H=21 		1-09700-972-1 01 1 0803-0807
16 CLIP; HARNESS
(Q) ID=24 L=24 		1-09701-001-1 01 1 0803-0808
16 CLIP; HARNESS
(Q) ID=24 L=24 		1-09701-001-1 02 1 0809-1007
16 CLIP; HARNESS
(X) ID=28 L=32 		1-09701-107-1 02 1 1008-
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 02 1 0803-0809
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 01 1 0810-
16 CLIP; HARNESS
(E) ID=10 & 12 		1-09709-278-1 02 1 0803-0811
16 CLIP; HARNESS
(G) ID=10 & 15 		1-09709-279-1 03 1 0803-0811
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 0803-
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 0803-
16 CLIP; HARNESS
(T) ID=19 H=21 L=24 		5-09700-360-0 01 1 0803-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0803-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0803-
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0803-
16 CLIP; HARNESS
(V) ID=25 L=55 		9-09917-573-0 01 1 0803-0811
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6 		1-09709-178-0 01 1 0803-
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=31 L=30 		1-09700-969-0 01 1 0803-0808
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (O) ID=31 H=30 L=35 		1-09700-994-0 01 1 0803-
16 CLIP; HARNESS
(R) L=250 		1-09707-126-0 01 1 0803-0806
16 CLIP; HARNESS
(R) L=250 		1-09707-126-0 02 1 0807-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0803-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1003-
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 13 1 0810-0901
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 15 1 0902-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (L) ID=14 L=44 		9-09917-427-0 15 1 1008-
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM(34W) (D) ID=20 L=50 		9-09917-430-0 05 1 0803-0901
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM(34W) (D) ID=20 L=50 		9-09917-430-0 07 1 0902-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM(34W) (L) ID=14 L=44 		9-09917-427-0 07 1 1008-
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 08 1 0803-0901
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 10 1 0902-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (L) ID=14 L=44 		9-09917-427-0 10 1 1008-
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=35 L=50 		1-09701-214-0 01 1 0803-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0803-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 03 1 0803-
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0803-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 0803-0901
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0902-1201
48 CLIP; FRAME HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 1202-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0803-1002
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0803-1002
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003-
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=32 L=50 		1-09701-055-1 01 1 0803-
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 12 1 0803-0804
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 12 1 0805-0808
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 12 1 0809-0809
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 12 1 0810-0901
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 14 1 0902-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (L) ID=14 L=44 		9-09917-427-0 14 1 1008-
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (J) ID=13-18 L=22 		1-09709-292-0 01 1 0805-0808
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 11 1 0805-0808
48 CLIP; FRAME HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (K) L=180 		1-09707-162-1 01 1 0807-0809
48 CLIP; FRAME HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0807-0809
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 0808-
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0803-0901
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0803-1011
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 1012-
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0803-
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0803-0803
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-1102
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1103-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 0803-0803
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0804-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0807-
213 CLIP; END CROSS HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0902-
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 09 1 0803-0901
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 07 1 0902-

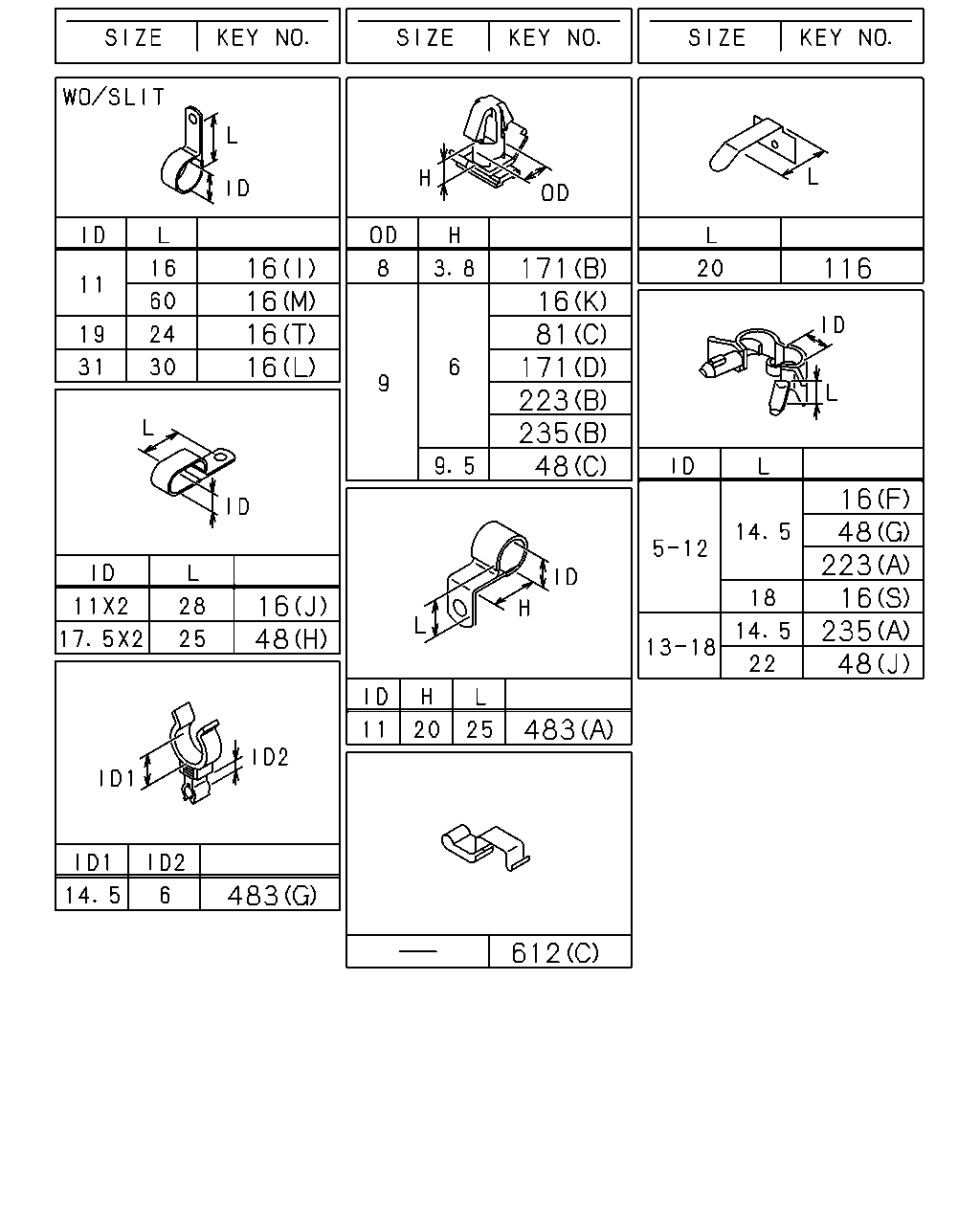

483 CLIP; ENG HARNESS
(K) ID=21 L=24 		1-09701-201-0 01 1 1005-
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0803-0803
483 CLIP; ENG HARNESS
(H) 		1-09701-124-0 01 1 0803-0803
483 CLIP; ENG HARNESS
(G) ID=14.5 & 6 		8-94312-791-0 01 1 0803-0803
483 CLIP; ENG HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0803-
483 CLIP; ENG HARNESS
(C) ID=24 L=24 		1-09701-001-1 01 1 0803-1007
483 CLIP; ENG HARNESS
(L) ID=28 L=32 		1-09701-107-1 01 1 1008-
483 CLIP; ENG HARNESS
(I) 		1-09987-281-0 01 1 0803-
483 CLIP; ENG HARNESS
(D) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0803-
483 CLIP; ENG HARNESS
(E) ID=18 L=25 		8-94121-004-1 01 1 0803-
483 CLIP; ENG HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 01 1 0803-
483 CLIP; ENG HARNESS
(F) L=36 		8-94224-891-1 01 1 0803-
612 CLIP; HARNESS DPD
(C) T=9 & 10.5 		8-97371-949-0 03 1 0803-0804
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0803-
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0803-
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0803-
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0803-
çizim 144757
139 84 184 524 219 294 515 525 219 294 524 47
BalonParca AdiParca NoAdetTipApplied Date
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
84 WASHER; LK BRKT,HARNESS
ID=14.2 		0-91510-814-0 02 1 0803-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0803-
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE 		1-09044-072-1 01 1 0809-
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 01 1 0806-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0807
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0807
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0808-0811
139 BOLT; BRKT
KD PREPARATORY PACK<6HF> (A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0901
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0901
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0902-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0803-
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0803-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0803-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0803-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0803-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0803-0805
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0803-0805
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0806-
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 01 1 0803-
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 01 1 0803-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0806-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0803-0808
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0805
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0806-0808
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0806-0808
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0803-0805
219 NUT
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE 		0-91180-210-0 01 1 0807-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 0803-1010
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1011-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1011-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0803-0901
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0803-0901
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0902-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0901
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0901
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0803-0901
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0803-0901
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0912
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0912
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0912
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1001-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1001-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0803-
524 NUT; HARNESS
(B) M10 FLANGE 		0-91180-110-0 01 1 0809-
524 NUT; HARNESS
(A) M6 FLANGE 		0-91180-106-0 04 1 0803-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0806-0901
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0902-0905
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0906-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803-0803
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0803-0805
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0806-0901

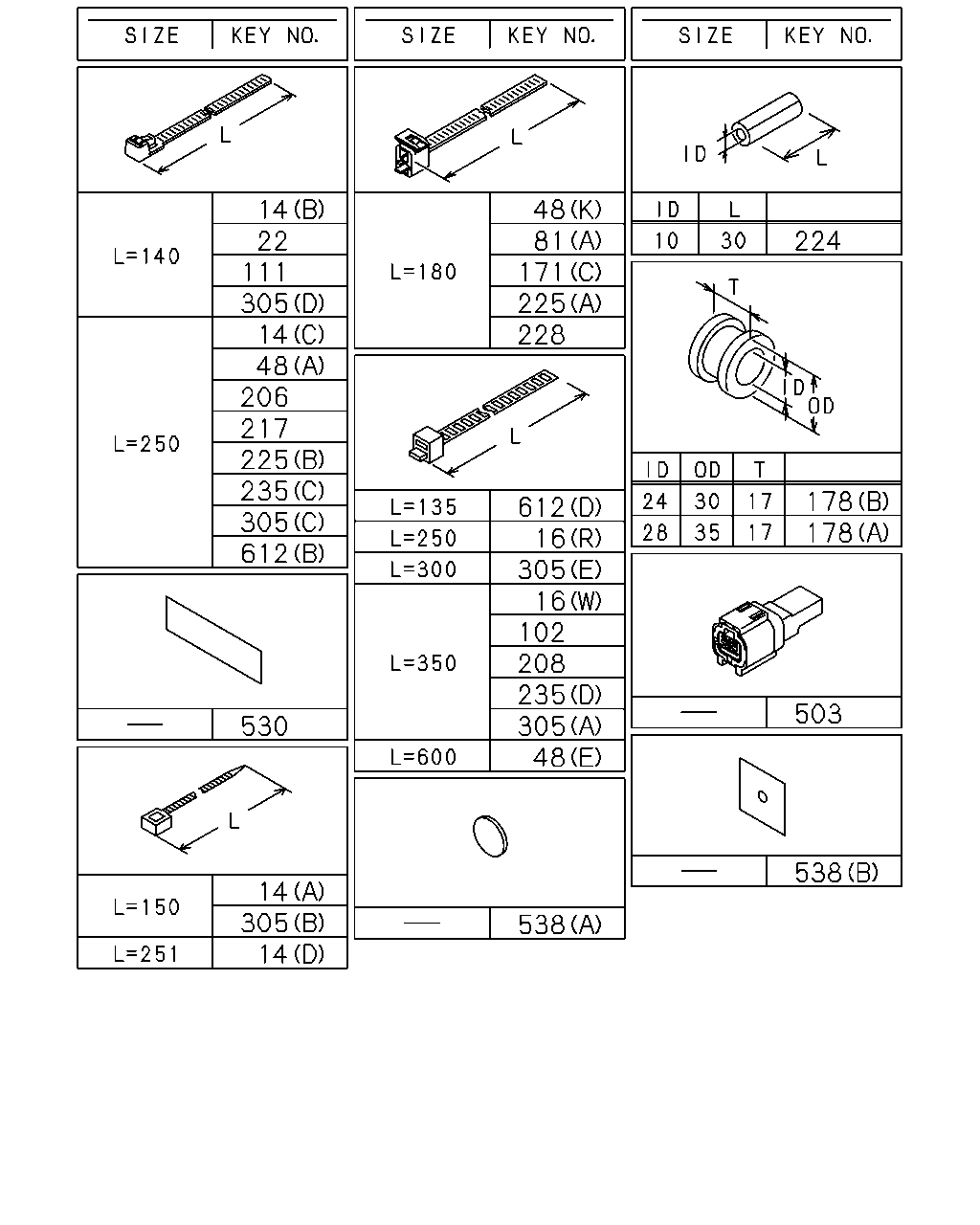

çizim 144764
14 22 111 305 14 48 206 217 225 235 305 612 48 81 171 225 228 224 178 178 612 16 305 16 102 208 235 305 48 503 530 538 14 305 14 538
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 02 1 0803-
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 01 1 0803-
14 CLIP; BAND,HARNESS
KD PREPARATORY PACK<6HF> (C) L=250 		5-09707-030-1 15 1 0803-0806
14 CLIP; BAND,HARNESS
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) L=250 		5-09707-030-1 15 1 0807-0812
14 CLIP; BAND,HARNESS
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) L=250 		5-09707-030-1 30 1 0901-
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 01 1 0803-1109
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 0803-0808
14 CLIP; BAND,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 02 1 0809-1107
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1108-
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 0803-
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 03 1 0803-0803
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 04 1 0804-
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 02 1 0806-0808
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 03 1 0809-0907
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 02 1 0908-
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (N) ID=35 L=33 		1-09700-945-0 01 1 0803-0808
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=35 H=45 L=33 		1-09701-047-0 01 1 0803-
16 CLIP; HARNESS
(I) ID=11 L=16 		0-95235-025-0 02 1 0803-
16 CLIP; HARNESS
(M) ID=11 L=60 		0-95235-096-0 01 1 0803-0807
16 CLIP; HARNESS
(J) ID=11X2 L=16 		1-09700-734-0 01 1 0803-
16 CLIP; HARNESS
(P) ID=19 L=39 H=21 		1-09700-972-1 01 1 0803-0807
16 CLIP; HARNESS
(Q) ID=24 L=24 		1-09701-001-1 01 1 0803-0808
16 CLIP; HARNESS
(Q) ID=24 L=24 		1-09701-001-1 02 1 0809-1007
16 CLIP; HARNESS
(X) ID=28 L=32 		1-09701-107-1 02 1 1008-
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 02 1 0803-0809
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 01 1 0810-
16 CLIP; HARNESS
(E) ID=10 & 12 		1-09709-278-1 02 1 0803-0811
16 CLIP; HARNESS
(G) ID=10 & 15 		1-09709-279-1 03 1 0803-0811
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 0803-
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 0803-
16 CLIP; HARNESS
(T) ID=19 H=21 L=24 		5-09700-360-0 01 1 0803-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0803-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0803-
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0803-
16 CLIP; HARNESS
(V) ID=25 L=55 		9-09917-573-0 01 1 0803-0811
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6 		1-09709-178-0 01 1 0803-
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=31 L=30 		1-09700-969-0 01 1 0803-0808
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (O) ID=31 H=30 L=35 		1-09700-994-0 01 1 0803-
16 CLIP; HARNESS
(R) L=250 		1-09707-126-0 01 1 0803-0806
16 CLIP; HARNESS
(R) L=250 		1-09707-126-0 02 1 0807-
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 03 1 0803-0803
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 0804-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0803-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1003-
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 13 1 0810-0901
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 15 1 0902-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (L) ID=14 L=44 		9-09917-427-0 15 1 1008-
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM(34W) (D) ID=20 L=50 		9-09917-430-0 05 1 0803-0901
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM(34W) (D) ID=20 L=50 		9-09917-430-0 07 1 0902-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM(34W) (L) ID=14 L=44 		9-09917-427-0 07 1 1008-
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 08 1 0803-0901
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 10 1 0902-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (L) ID=14 L=44 		9-09917-427-0 10 1 1008-
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=35 L=50 		1-09701-214-0 01 1 0803-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0803-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 03 1 0803-
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0803-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 0803-0901
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0902-1201
48 CLIP; FRAME HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 1202-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0803-1002
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0803-1002
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003-
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=32 L=50 		1-09701-055-1 01 1 0803-
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 12 1 0803-0804
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 12 1 0805-0808
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 12 1 0809-0809
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 12 1 0810-0901
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 14 1 0902-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (L) ID=14 L=44 		9-09917-427-0 14 1 1008-
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (J) ID=13-18 L=22 		1-09709-292-0 01 1 0805-0808
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 11 1 0805-0808
48 CLIP; FRAME HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (K) L=180 		1-09707-162-1 01 1 0807-0809
48 CLIP; FRAME HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0807-0809
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0803-0901
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0803-1011
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 1012-
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0803-
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 0803-0809
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 0810-0911
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 0810-0911
102 CLIP; BAND
L=350 		1-09707-183-0 02 1 0912-
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 03 1 0803-0807
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0803-0803
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-1102
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1103-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 0803-0803
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0804-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0807-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0803-0811
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0812-
178 GROMMET; HARNESS
WHEEL BASE 3400MM(34W) (B) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0812-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0803-0811
178 GROMMET; HARNESS
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0812-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 0803-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0803-0810
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 03 1 0811-
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0803-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1101-
217 CLIP; RR BODY HARNESS
EXC. REVERSING WARNING BUZZER<YM9> L=250 		5-09707-030-1 01 1 0812-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0803-0901
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0803-0803
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0803-
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 0803-0811
228 CLIP; COOLER HARNESS
L=180 		1-09707-162-1 01 1 0803-0803
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) L=250 		5-09707-030-1 01 1 0808-0808
235 CLIP; HARNESS,SPD SENSOR,SSPS
FRONT STABILIZER SHAFT<F59> (D) L=350 		1-09707-183-0 01 1 0809-0907
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 02 1 0803-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0803-
305 CLIP; ENG HARNESS
(A) L=350 		8-94152-256-1 01 1 0803-0905
305 CLIP; ENG HARNESS
(E) L=300 		1-09707-001-1 01 1 0906-
305 CLIP; ENG HARNESS
(B) L=150 		8-97355-273-0 01 1 0803-0905
305 CLIP; ENG HARNESS
(D) L=140 		5-09707-031-1 01 1 0906-
305 CLIP; ENG HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=140 		5-09707-031-1 01 1 0803-0803
305 CLIP; ENG HARNESS
MZX6P M/T(RSW) (C) L=250 		5-09707-030-1 01 1 0804-0809
305 CLIP; ENG HARNESS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=250 		5-09707-030-1 01 1 0810-
305 CLIP; ENG HARNESS
(C) L=250 		5-09707-030-1 01 1 0803-0803
305 CLIP; ENG HARNESS
(D) L=140 		5-09707-031-1 01 1 0804-0804
305 CLIP; ENG HARNESS
(D) L=140 		5-09707-031-1 01 1 0805-0905
305 CLIP; ENG HARNESS
(D) L=140 		5-09707-031-1 01 1 0805-0905
305 CLIP; ENG HARNESS
(D) L=140 		5-09707-031-1 02 1 0906-
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82691-191-0 01 1 0803-
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0803-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 15 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0803-1305
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1306-
538 SEAL; HOLE
(A) OD=25 BLACK 		1-76798-019-0 01 1 0803-
538 SEAL; HOLE
(B) 25X25 		8-94272-533-0 01 1 0803-0807
612 CLIP; HARNESS DPD
(C) T=9 & 10.5 		8-97371-949-0 03 1 0803-0804
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0803-
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0803-
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0803-
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0803-
çizim 144770
16 16 16 16 171 16 81 171 223 235 48 116 16 48 223 16 235 48 16 48 483 483 612
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 02 1 0806-0808
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 03 1 0809-0907
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 02 1 0908-
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (N) ID=35 L=33 		1-09700-945-0 01 1 0803-0808
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=35 H=45 L=33 		1-09701-047-0 01 1 0803-
16 CLIP; HARNESS
(I) ID=11 L=16 		0-95235-025-0 02 1 0803-
16 CLIP; HARNESS
(M) ID=11 L=60 		0-95235-096-0 01 1 0803-0807
16 CLIP; HARNESS
(J) ID=11X2 L=16 		1-09700-734-0 01 1 0803-
16 CLIP; HARNESS
(P) ID=19 L=39 H=21 		1-09700-972-1 01 1 0803-0807
16 CLIP; HARNESS
(Q) ID=24 L=24 		1-09701-001-1 01 1 0803-0808
16 CLIP; HARNESS
(Q) ID=24 L=24 		1-09701-001-1 02 1 0809-1007
16 CLIP; HARNESS
(X) ID=28 L=32 		1-09701-107-1 02 1 1008-
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 02 1 0803-0809
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 01 1 0810-
16 CLIP; HARNESS
(E) ID=10 & 12 		1-09709-278-1 02 1 0803-0811
16 CLIP; HARNESS
(G) ID=10 & 15 		1-09709-279-1 03 1 0803-0811
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 0803-
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 0803-
16 CLIP; HARNESS
(T) ID=19 H=21 L=24 		5-09700-360-0 01 1 0803-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0803-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0803-
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0803-
16 CLIP; HARNESS
(V) ID=25 L=55 		9-09917-573-0 01 1 0803-0811
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6 		1-09709-178-0 01 1 0803-
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=31 L=30 		1-09700-969-0 01 1 0803-0808
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (O) ID=31 H=30 L=35 		1-09700-994-0 01 1 0803-
16 CLIP; HARNESS
(R) L=250 		1-09707-126-0 01 1 0803-0806
16 CLIP; HARNESS
(R) L=250 		1-09707-126-0 02 1 0807-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0803-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1003-
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 13 1 0810-0901
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 15 1 0902-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (L) ID=14 L=44 		9-09917-427-0 15 1 1008-
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM(34W) (D) ID=20 L=50 		9-09917-430-0 05 1 0803-0901
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM(34W) (D) ID=20 L=50 		9-09917-430-0 07 1 0902-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM(34W) (L) ID=14 L=44 		9-09917-427-0 07 1 1008-
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 08 1 0803-0901
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 10 1 0902-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (L) ID=14 L=44 		9-09917-427-0 10 1 1008-
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=35 L=50 		1-09701-214-0 01 1 0803-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0803-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 03 1 0803-
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0803-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 0803-0901
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0902-1201
48 CLIP; FRAME HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 1202-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0803-1002
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0803-1002
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003-
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=32 L=50 		1-09701-055-1 01 1 0803-
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 12 1 0803-0804
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 12 1 0805-0808
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 12 1 0809-0809
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 12 1 0810-0901
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 14 1 0902-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (L) ID=14 L=44 		9-09917-427-0 14 1 1008-
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (J) ID=13-18 L=22 		1-09709-292-0 01 1 0805-0808
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 11 1 0805-0808
48 CLIP; FRAME HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (K) L=180 		1-09707-162-1 01 1 0807-0809
48 CLIP; FRAME HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0807-0809
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0803-0901
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0803-1011
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 1012-
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0803-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0803-
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0803-0803
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-1102
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1103-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 0803-0803
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0804-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0807-
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 1002-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 0803-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) L=250 		5-09707-030-1 01 1 0808-0808
235 CLIP; HARNESS,SPD SENSOR,SSPS
FRONT STABILIZER SHAFT<F59> (D) L=350 		1-09707-183-0 01 1 0809-0907
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 02 1 0803-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0803-
483 CLIP; ENG HARNESS
(K) ID=21 L=24 		1-09701-201-0 01 1 1005-
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0803-0803
483 CLIP; ENG HARNESS
(H) 		1-09701-124-0 01 1 0803-0803
483 CLIP; ENG HARNESS
(G) ID=14.5 & 6 		8-94312-791-0 01 1 0803-0803
483 CLIP; ENG HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0803-
483 CLIP; ENG HARNESS
(C) ID=24 L=24 		1-09701-001-1 01 1 0803-1007
483 CLIP; ENG HARNESS
(L) ID=28 L=32 		1-09701-107-1 01 1 1008-
483 CLIP; ENG HARNESS
(I) 		1-09987-281-0 01 1 0803-
483 CLIP; ENG HARNESS
(D) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0803-
483 CLIP; ENG HARNESS
(E) ID=18 L=25 		8-94121-004-1 01 1 0803-
483 CLIP; ENG HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 01 1 0803-
483 CLIP; ENG HARNESS
(F) L=36 		8-94224-891-1 01 1 0803-
612 CLIP; HARNESS DPD
(C) T=9 & 10.5 		8-97371-949-0 03 1 0803-0804
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0803-
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0803-
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0803-
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0803-

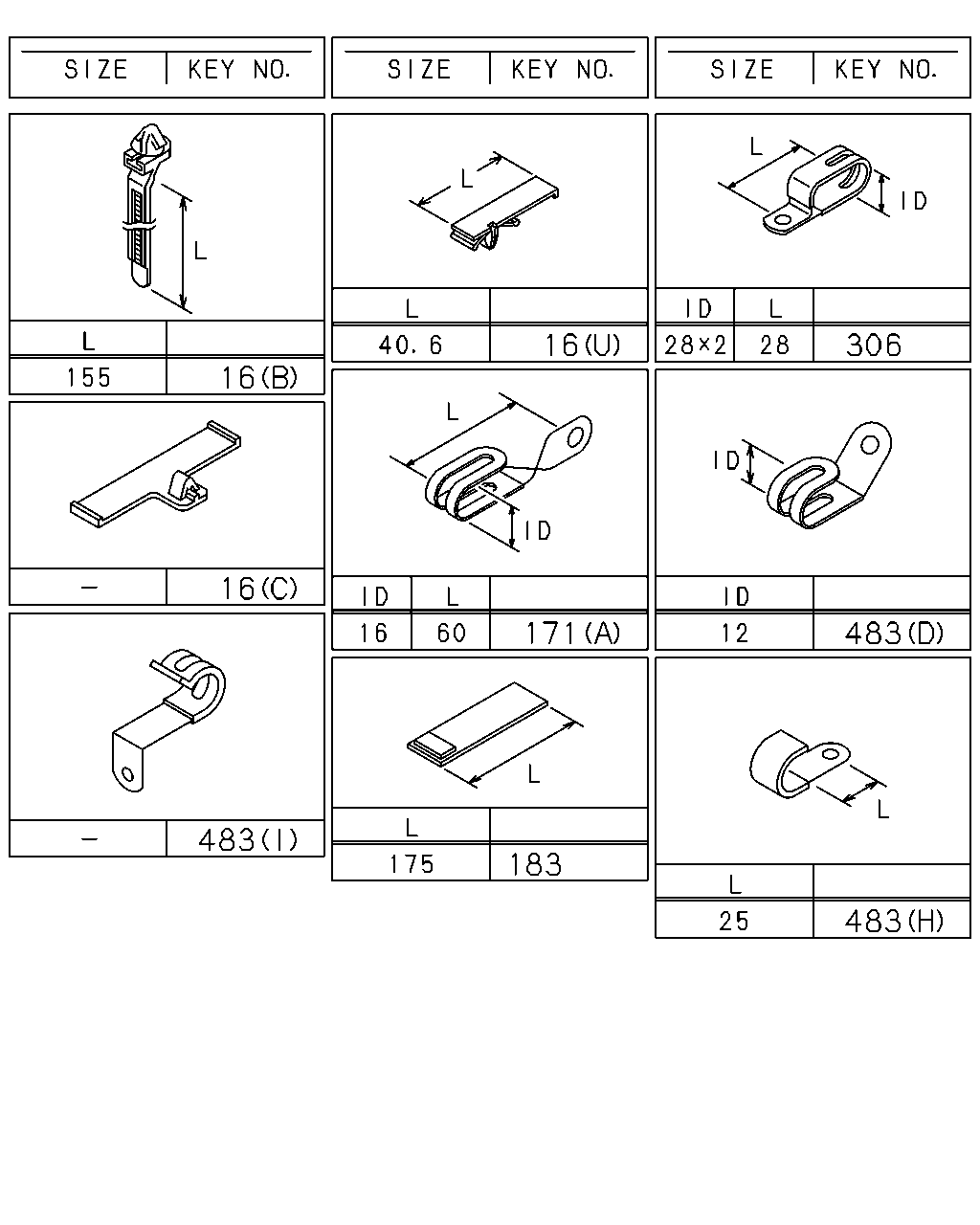

çizim 144781
16 306 16 16 171 483 483 183 483
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 02 1 0806-0808
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 03 1 0809-0907
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 02 1 0908-
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (N) ID=35 L=33 		1-09700-945-0 01 1 0803-0808
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=35 H=45 L=33 		1-09701-047-0 01 1 0803-
16 CLIP; HARNESS
(I) ID=11 L=16 		0-95235-025-0 02 1 0803-
16 CLIP; HARNESS
(M) ID=11 L=60 		0-95235-096-0 01 1 0803-0807
16 CLIP; HARNESS
(J) ID=11X2 L=16 		1-09700-734-0 01 1 0803-
16 CLIP; HARNESS
(P) ID=19 L=39 H=21 		1-09700-972-1 01 1 0803-0807
16 CLIP; HARNESS
(Q) ID=24 L=24 		1-09701-001-1 01 1 0803-0808
16 CLIP; HARNESS
(Q) ID=24 L=24 		1-09701-001-1 02 1 0809-1007
16 CLIP; HARNESS
(X) ID=28 L=32 		1-09701-107-1 02 1 1008-
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 02 1 0803-0809
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 01 1 0810-
16 CLIP; HARNESS
(E) ID=10 & 12 		1-09709-278-1 02 1 0803-0811
16 CLIP; HARNESS
(G) ID=10 & 15 		1-09709-279-1 03 1 0803-0811
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 0803-
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 0803-
16 CLIP; HARNESS
(T) ID=19 H=21 L=24 		5-09700-360-0 01 1 0803-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0803-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0803-
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0803-
16 CLIP; HARNESS
(V) ID=25 L=55 		9-09917-573-0 01 1 0803-0811
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6 		1-09709-178-0 01 1 0803-
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=31 L=30 		1-09700-969-0 01 1 0803-0808
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (O) ID=31 H=30 L=35 		1-09700-994-0 01 1 0803-
16 CLIP; HARNESS
(R) L=250 		1-09707-126-0 01 1 0803-0806
16 CLIP; HARNESS
(R) L=250 		1-09707-126-0 02 1 0807-
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0803-0803
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-1102
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1103-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 0803-0803
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0804-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0807-
183 CLIP; CONNECTOR
L=175 		1-09707-178-0 01 1 0803-0803
306 CLIP; HARNESS,ELEC GOV
ID=28X2 L=28 		1-09701-302-0 05 1 0803-0805
306 CLIP; HARNESS,ELEC GOV
ID=28X2 L=28 		1-09701-302-0 01 1 0806-
483 CLIP; ENG HARNESS
(K) ID=21 L=24 		1-09701-201-0 01 1 1005-
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0803-0803
483 CLIP; ENG HARNESS
(H) 		1-09701-124-0 01 1 0803-0803
483 CLIP; ENG HARNESS
(G) ID=14.5 & 6 		8-94312-791-0 01 1 0803-0803
483 CLIP; ENG HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0803-
483 CLIP; ENG HARNESS
(C) ID=24 L=24 		1-09701-001-1 01 1 0803-1007
483 CLIP; ENG HARNESS
(L) ID=28 L=32 		1-09701-107-1 01 1 1008-
483 CLIP; ENG HARNESS
(I) 		1-09987-281-0 01 1 0803-
483 CLIP; ENG HARNESS
(D) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0803-
483 CLIP; ENG HARNESS
(E) ID=18 L=25 		8-94121-004-1 01 1 0803-
483 CLIP; ENG HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 01 1 0803-
483 CLIP; ENG HARNESS
(F) L=36 		8-94224-891-1 01 1 0803-

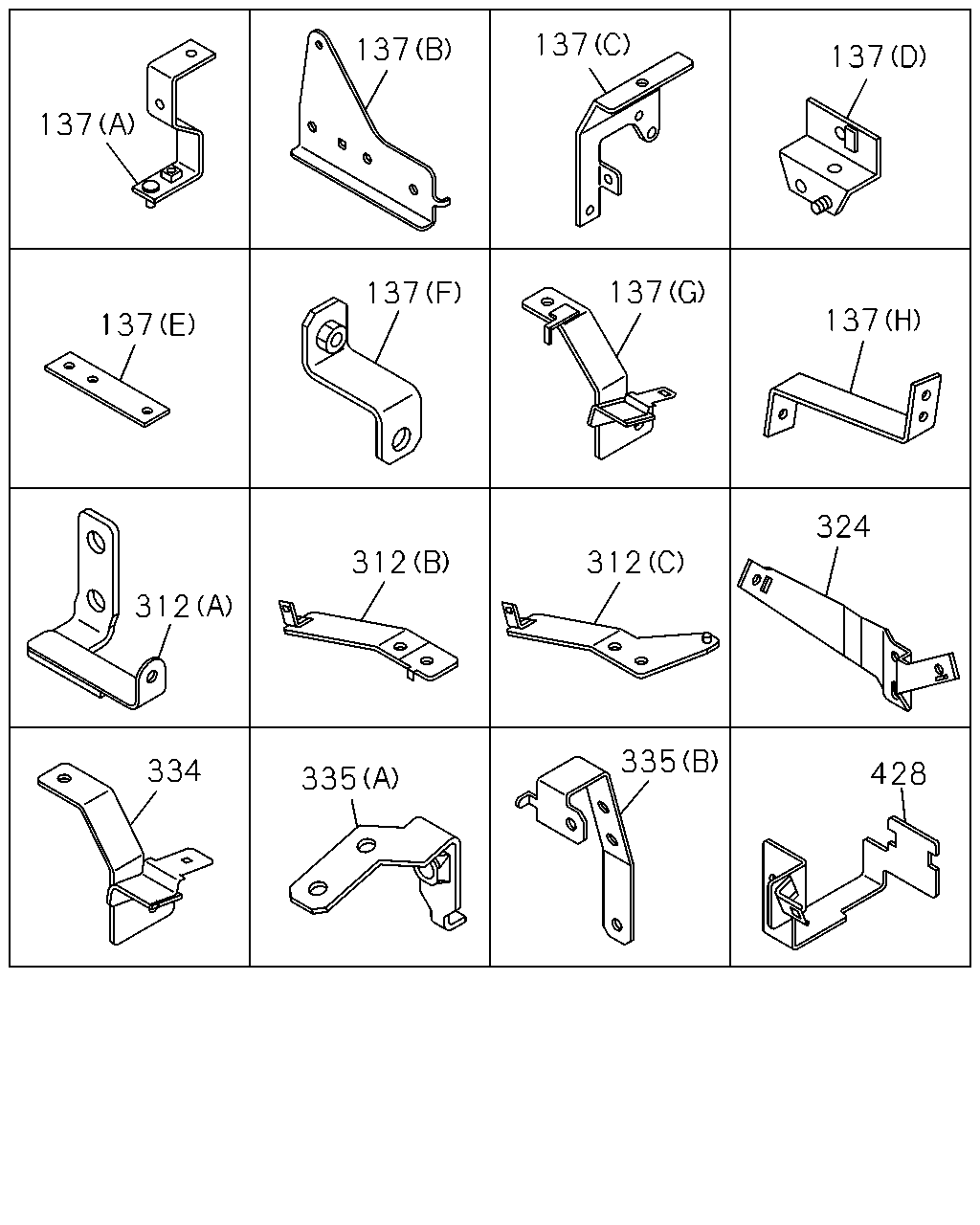

çizim 460098
137 137 137 137 137 137 137 137 312 312 312 324 334 335 335 428
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; HARNESS CLAMP
(E) L=105 		1-47477-409-0 01 1 0803-0805
137 BRACKET; HARNESS CLAMP
(G) 		8-98108-911-1 01 1 0806-1007
137 BRACKET; HARNESS CLAMP
(H) 		8-98170-409-0 01 1 1008-
137 BRACKET; HARNESS CLAMP
(F) 		1-47478-113-0 01 1 0803-0805
137 BRACKET; HARNESS CLAMP
(C) 		8-97618-098-2 01 1 0803-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-016-0 01 1 0803-
137 BRACKET; HARNESS CLAMP
(D) 		8-98058-354-1 01 1 0803-
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 0803-
312 BRACKET; CLIP HARNESS
(A) 		8-98125-301-0 01 1 0806-0904
312 BRACKET; CLIP HARNESS
(C) 		8-98143-865-0 01 1 0905-
312 BRACKET; CLIP HARNESS
(B) 		8-98094-804-0 01 1 0803-
324 BRACKET; CLIP 8-98061-653-2 01 1 0803-
324 BRACKET; CLIP 8-98061-654-2 01 1 0803-
334 BRACKET 8-98108-911-0 01 1 0803-0805
335 BRACKET; CONNECTOR
WHEEL BASE 3400MM(34W) (A) 		8-97619-478-1 01 1 0803-
335 BRACKET; CONNECTOR
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-97619-097-1 01 1 0803-
428 BRACKET 8-98090-951-0 01 1 0803-0806
428 BRACKET 8-98116-461-0 01 1 0807-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
