Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#24078) — 302 parça

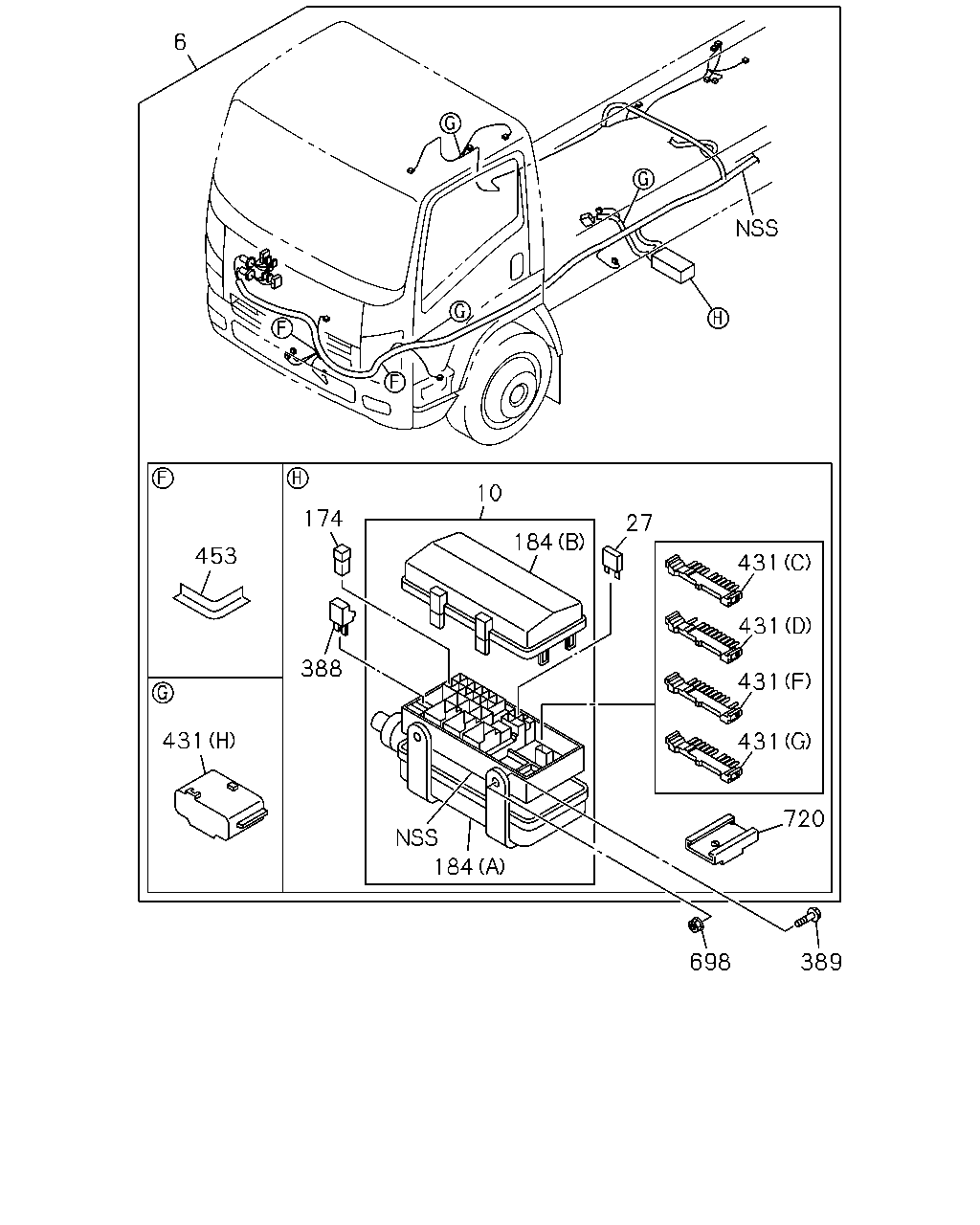

6 10 174 27 184 453 431 431 388 431 431 431 720 184 698 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-299-7	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-300-6	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-304-7	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-305-6	01	1	0803-
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	0803-
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	0803-
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	0803-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1107-
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	0803-
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	02	1	0803-
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	0803-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	03	1	0803-1106
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1107-
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	0803-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	0803-
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	0803-
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	0803-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0803-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0803-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0803-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0803-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0803-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0803-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0803-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0803-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0803-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0803-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0803-
453	PROTECTOR; HARNESS	1-82699-709-0	01	1	0803-
698	NUT; COVER,RELAY BOX M8 FLANGE	0-91180-108-0	02	1	0803-0808
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	0803-

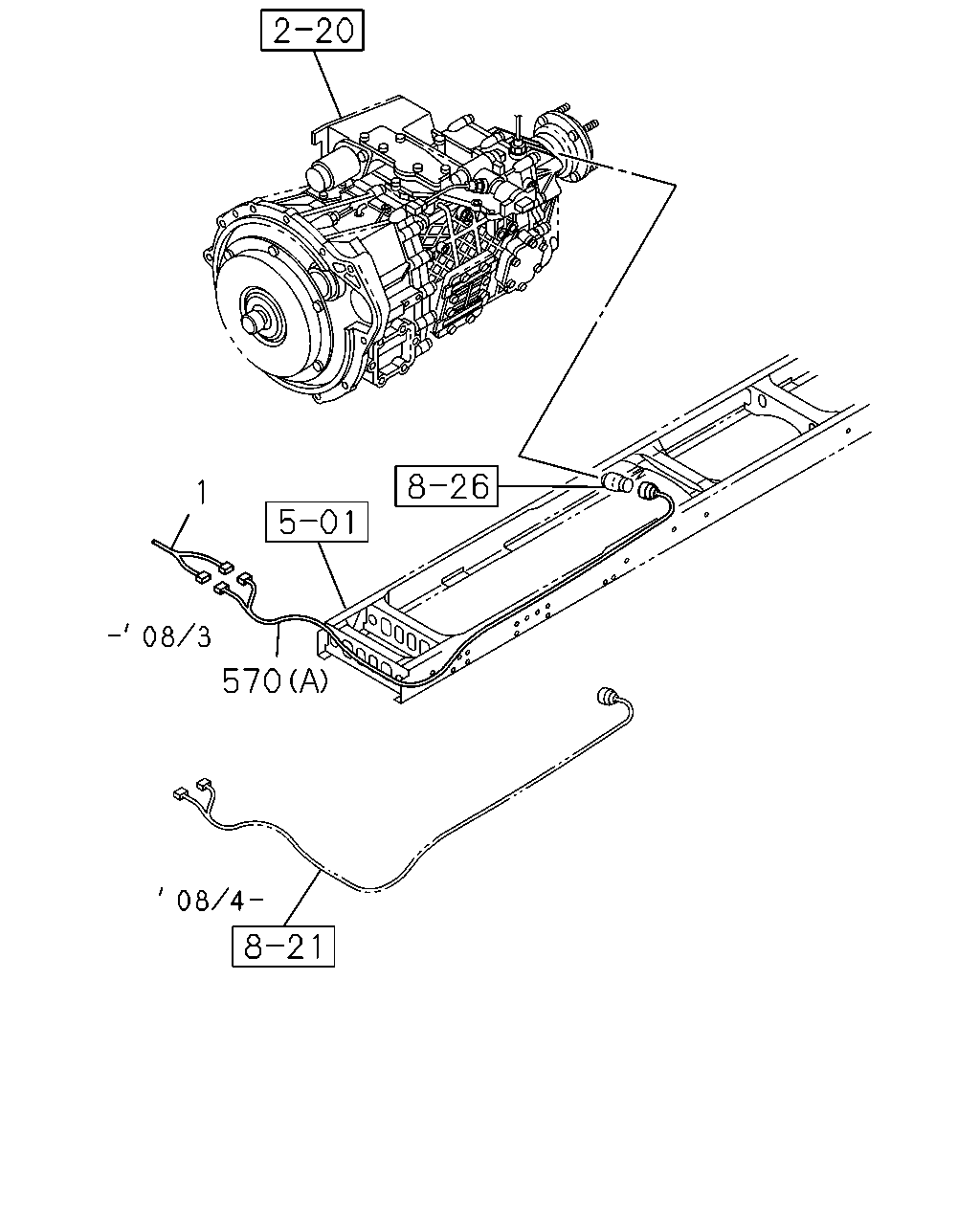

1 570

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1510-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-010-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-010-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-006-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-006-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-011-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-011-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-007-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-007-4	01	1	1112-1209
570	HARNESS; SPEED SENSOR KD PREPARATORY PACK<6HF> (A)	8-98035-237-0	01	1	0803-0803
570	HARNESS; SPEED SENSOR EXC. KD PREPARATORY PACK<6HF> (B)	8-98058-327-1	01	1	0803-0803
570	HARNESS; SPEED SENSOR MZX6P M/T(RSW) (B)	8-98058-327-1	01	1	0804-0806
570	HARNESS; SPEED SENSOR MZX6P M/T(RSW),MLD6S M/T(X7W) (B)	8-98058-327-1	01	1	0807-

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0803-
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0803-

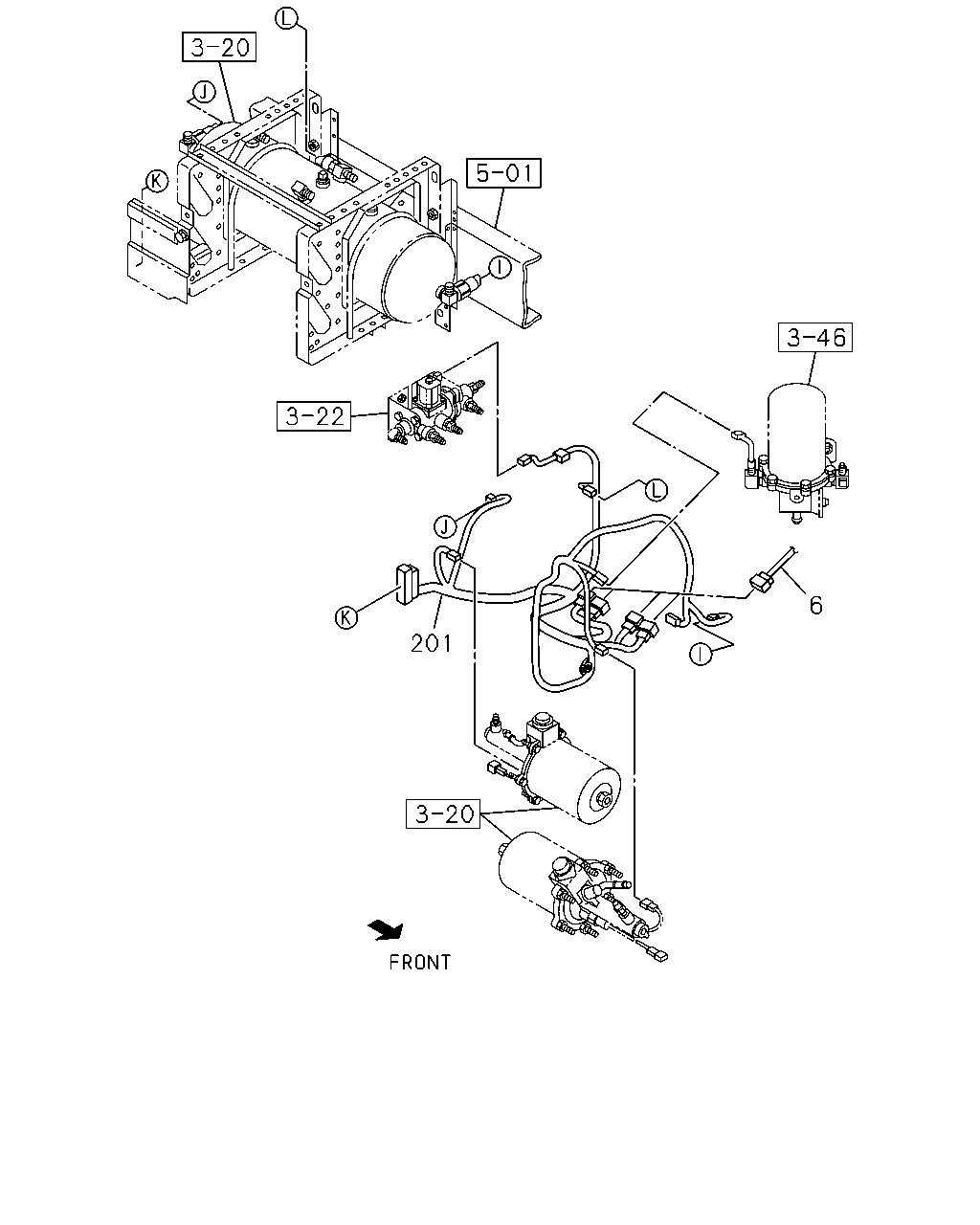

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-299-7	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-300-6	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-304-7	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-305-6	01	1	0803-
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98064-339-2	01	1	0803-1001
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98156-704-2	01	1	1002-
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98090-507-1	01	1	0803-1001
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-705-2	01	1	1002-
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98107-559-0	01	1	0803-1001
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98156-707-2	01	1	1002-
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH)	8-98107-561-0	01	1	0803-1001
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH)	8-98156-709-2	01	1	1002-

1 2 2 314 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1510-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-010-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-010-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-006-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-006-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-011-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-011-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-007-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-007-4	01	1	1112-1209
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	0803-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0803-
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	0803-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0803-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0803-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0803-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0803-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0803-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0803-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0803-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0803-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0803-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0803-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0803-

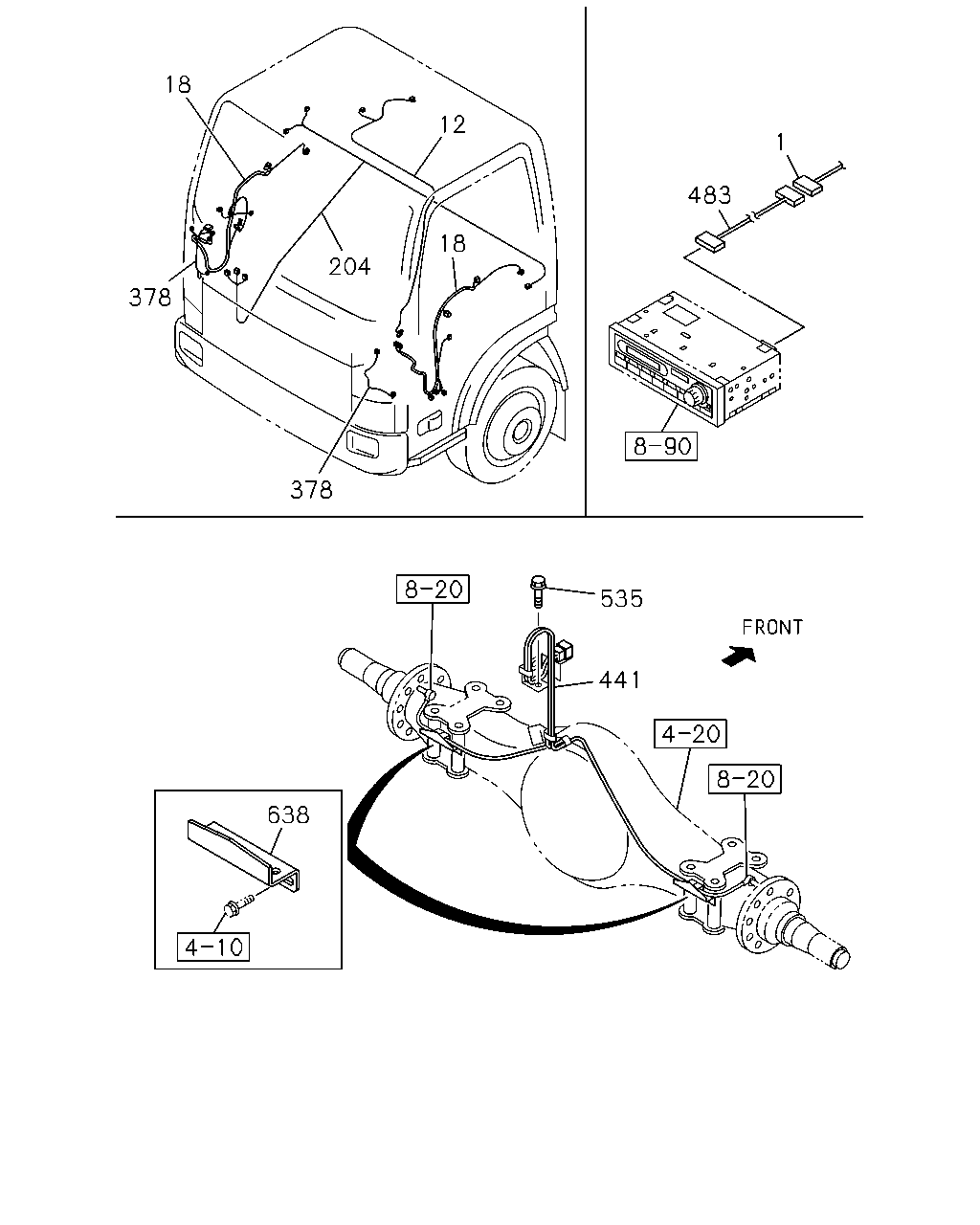

18 12 1 483 18 204 378 378 535 441 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1510-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-010-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-010-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-006-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-006-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-011-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-011-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-007-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-007-4	01	1	1112-1209
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98079-073-2	01	1	0803-
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98084-249-1	01	1	0803-
18	HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98178-803-0	01	1	1203-
18	HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98178-804-0	01	1	1203-
18	HARNESS; DOOR	8-98080-127-3	01	1	0803-1202
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98080-127-3	01	1	1203-
18	HARNESS; DOOR	8-98080-128-3	01	1	0803-1202
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98080-128-3	01	1	1203-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-224-0	01	1	0803-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-218-0	01	1	0803-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-225-1	01	1	0803-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-219-1	01	1	0803-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-226-0	01	1	0803-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-221-0	01	1	0803-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-227-1	01	1	0803-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-222-1	01	1	0803-
204	HARNESS; CABLE,FLOOR AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98084-217-1	01	1	0803-
378	HARNESS; EXT,MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWEXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98125-654-0	02	1	0807-0807
378	HARNESS; EXT,MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWEXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. ISRAEL COUNTRY(CV4)	8-98125-654-0	02	1	0808-
378	HARNESS; EXT,MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98056-541-0	02	1	0803-0806
378	HARNESS; EXT,MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98125-653-0	02	1	0807-0807
378	HARNESS; EXT,MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. ISRAEL COUNTRY(CV4)	8-98125-653-0	02	1	0808-
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	0803-
483	HARNESS; EXT,RADIO	8-98116-875-0	01	1	0805-
535	BOLT; BRKT FIX M8X10 W/LK WASHER	8-98029-928-0	02	1	0803-
638	BRACKET; SPD SENSOR	8-98012-580-1	02	1	0803-

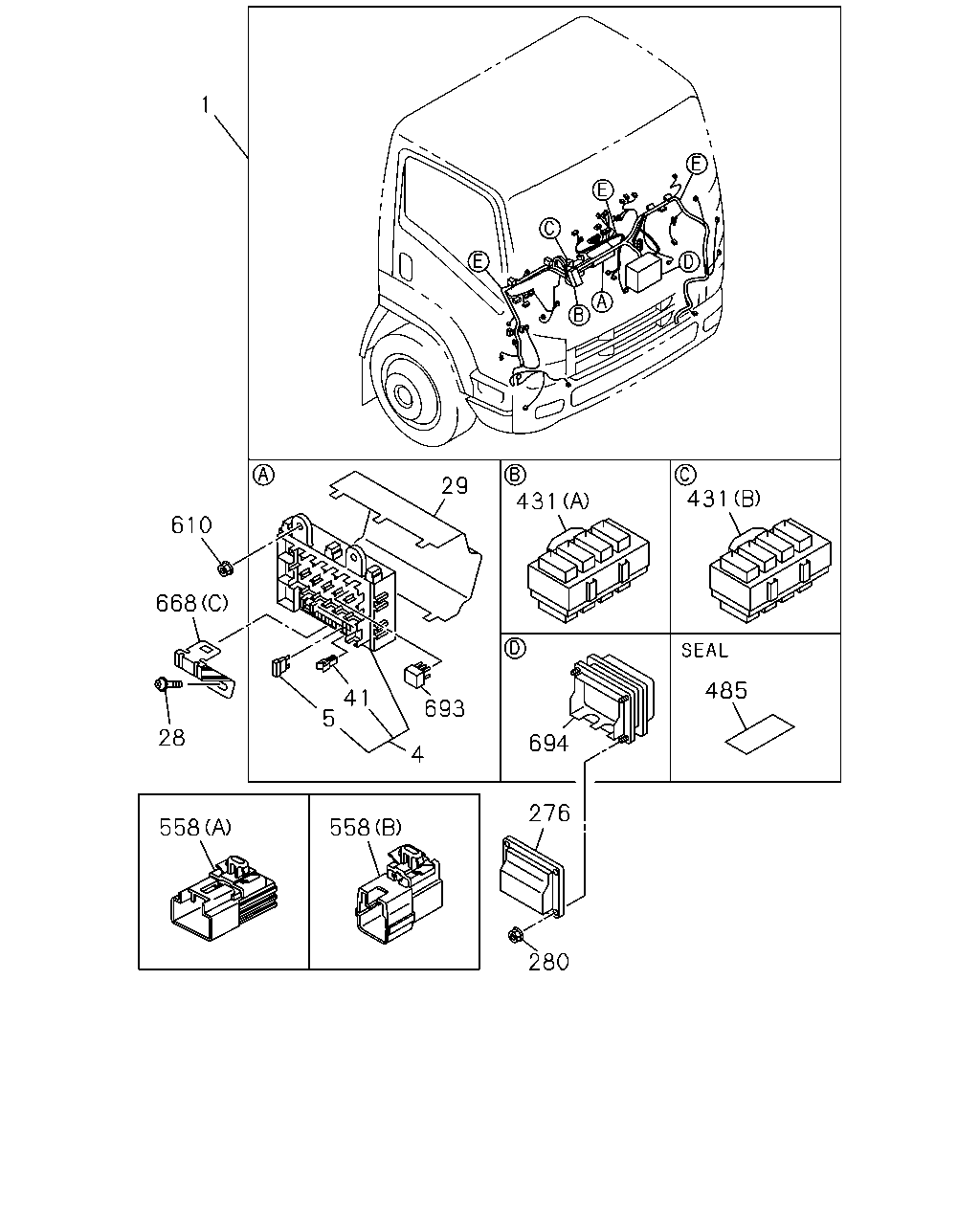

1 610 29 431 431 485 694 693 41 5 4 558 668 28 558 276 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1510-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-010-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-010-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-006-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-006-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-011-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-011-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-007-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-007-4	01	1	1112-1209
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0803-
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0803-
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0803-
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0803-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	01	1	0803-
28	SCREW; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M6X16 FLANGE	0-28650-616-0	01	1	0909-
28	SCREW; FUSE BOX T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	0803-0908
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	0909-
29	COVER; FUSE BOX	8-98056-968-0	01	1	0803-
41	PULLER; FUSE	8-98054-260-0	01	1	0803-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	0803-
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	0803-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0803-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0803-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0803-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0803-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0803-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0803-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0803-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0803-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0803-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0803-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0803-
485	SEAL; CONNECTOR 180X40	1-72498-019-1	01	1	0909-
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-82690-668-0	01	1	0809-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A)	8-98108-678-0	01	1	0803-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-98108-679-0	01	1	0803-
610	NUT; BRKT,FUSE BOX M6 FLANGE	0-91180-106-0	04	1	0803-0807
668	BRACKET; HARNESS (B)	8-97379-783-1	01	1	0803-0803
668	BRACKET; HARNESS (D)	8-98001-095-0	01	1	0803-
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	0803-1408
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	0803-
668	BRACKET; HARNESS (G)	8-98022-106-2	01	1	0803-1004
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	0803-
668	BRACKET; HARNESS (C)	8-98111-712-1	01	1	0803-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0803-
694	BOX ASM; CONNECTOR	8-98063-269-1	01	1	0803-

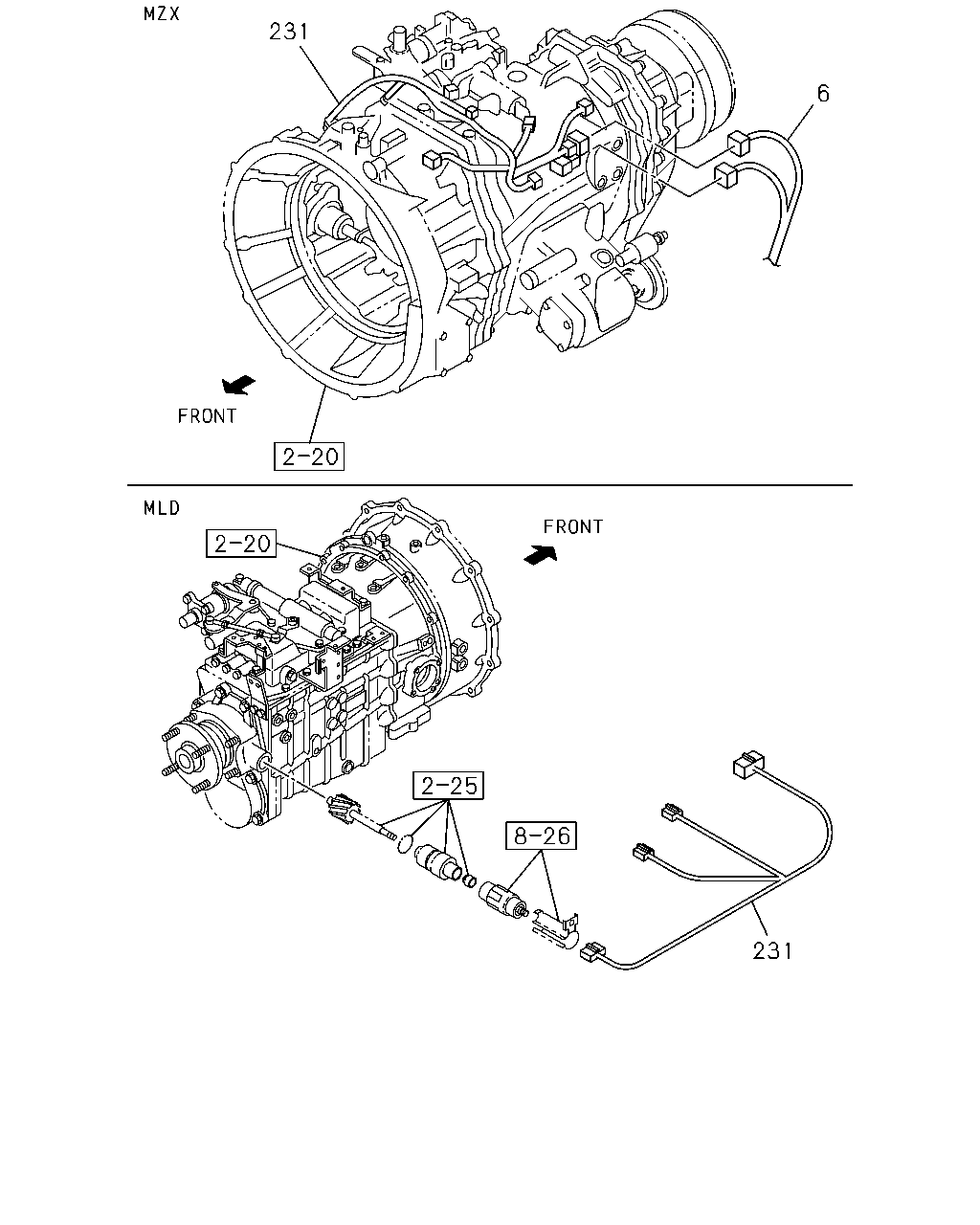

231 6 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-299-7	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-300-6	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-304-7	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-305-6	01	1	0803-
231	HARNESS; TRANS MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97620-317-3	01	1	0803-
231	HARNESS; TRANS MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97618-933-1	01	1	0803-0908
231	HARNESS; TRANS MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98151-320-1	01	1	0909-
231	HARNESS; TRANS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98114-228-1	01	1	0807-

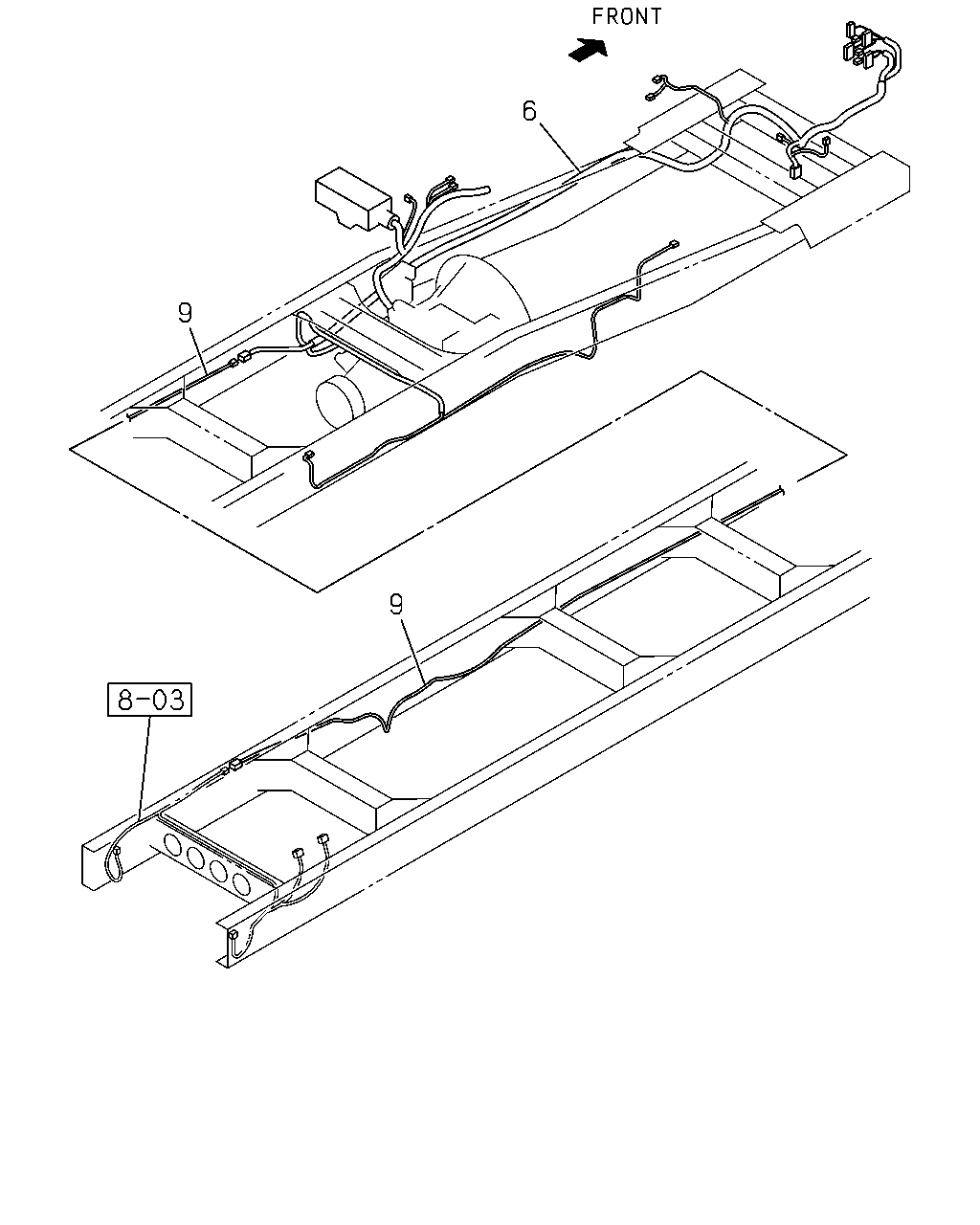

6 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-299-7	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-300-6	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-304-7	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-305-6	01	1	0803-
9	HARNESS; FRAME,RR WHEEL BASE 3400MM(34W)	8-98114-789-1	01	1	0803-1007
9	HARNESS; FRAME,RR WHEEL BASE 3400MM(34W)	8-98168-611-0	01	1	1008-
9	HARNESS; FRAME,RR WHEEL BASE 4000MM(40W)	8-98114-791-1	01	1	0803-1007
9	HARNESS; FRAME,RR WHEEL BASE 4000MM(40W)	8-98168-613-0	01	1	1008-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98114-792-2	01	1	0803-1007
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98168-614-0	01	1	1008-
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W)	8-98114-793-2	01	1	0803-1007
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W)	8-98168-615-0	01	1	1008-

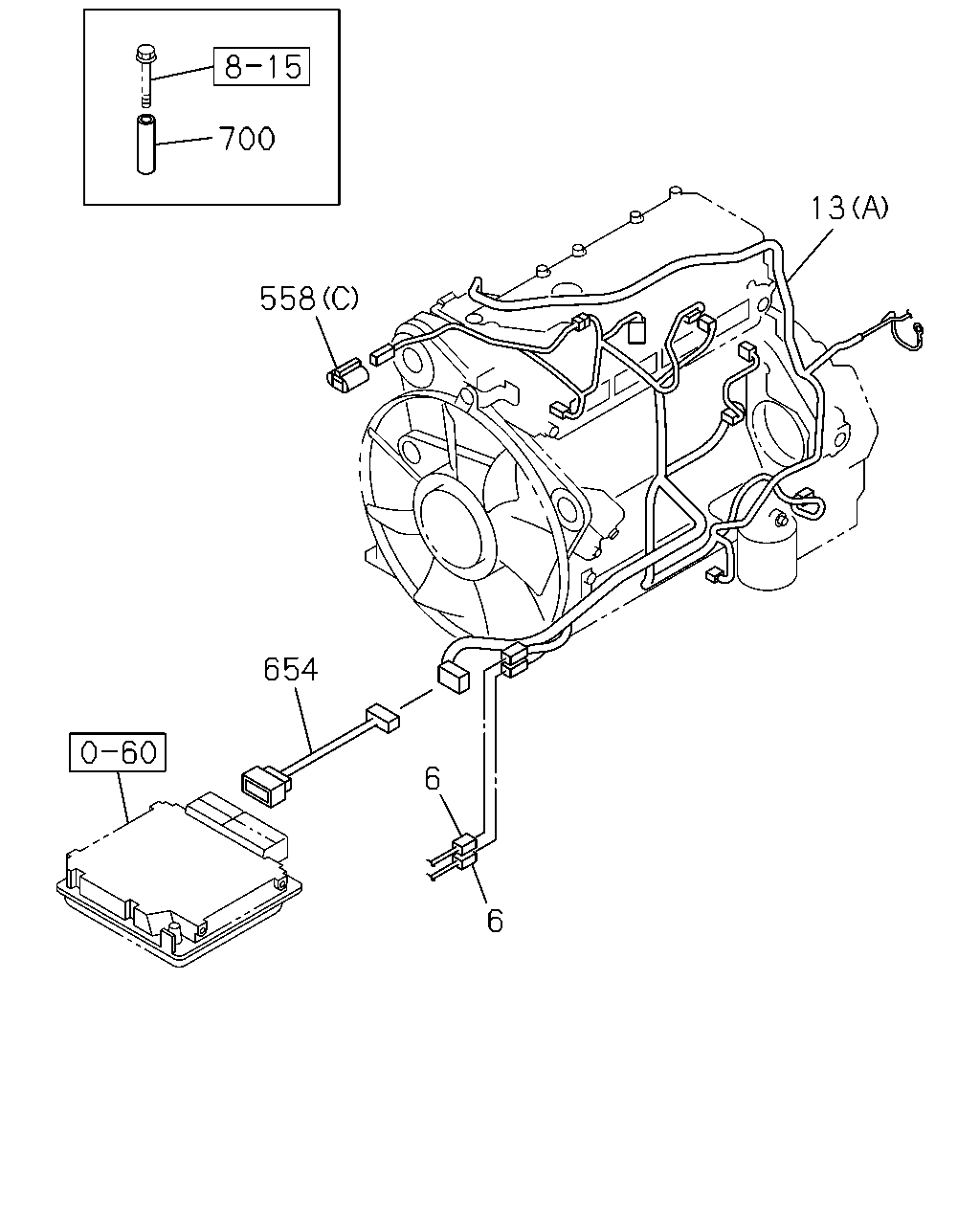

700 13 558 654 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-299-7	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-300-6	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-304-7	01	1	0803-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98064-305-6	01	1	0803-
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98095-266-1	01	1	0803-1004
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98162-650-0	01	1	1005-1007
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98171-160-1	01	1	1008-1405
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-026-0	01	1	1406-
13	HARNESS; ENG (B)	8-97332-133-3	01	1	0803-1007
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1008-
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98095-265-1	01	1	0803-1004
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98162-649-0	01	1	1005-1007
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98171-159-1	01	1	1008-1405
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98274-025-0	01	1	1406-
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-82690-668-0	01	1	0809-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A)	8-98108-678-0	01	1	0803-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-98108-679-0	01	1	0803-
654	HARNESS; EXT,ENG	8-98095-508-1	01	1	0803-0804
654	HARNESS; EXT,ENG	8-98119-769-1	01	1	0805-1007
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51	1-11369-157-0	01	1	0809-

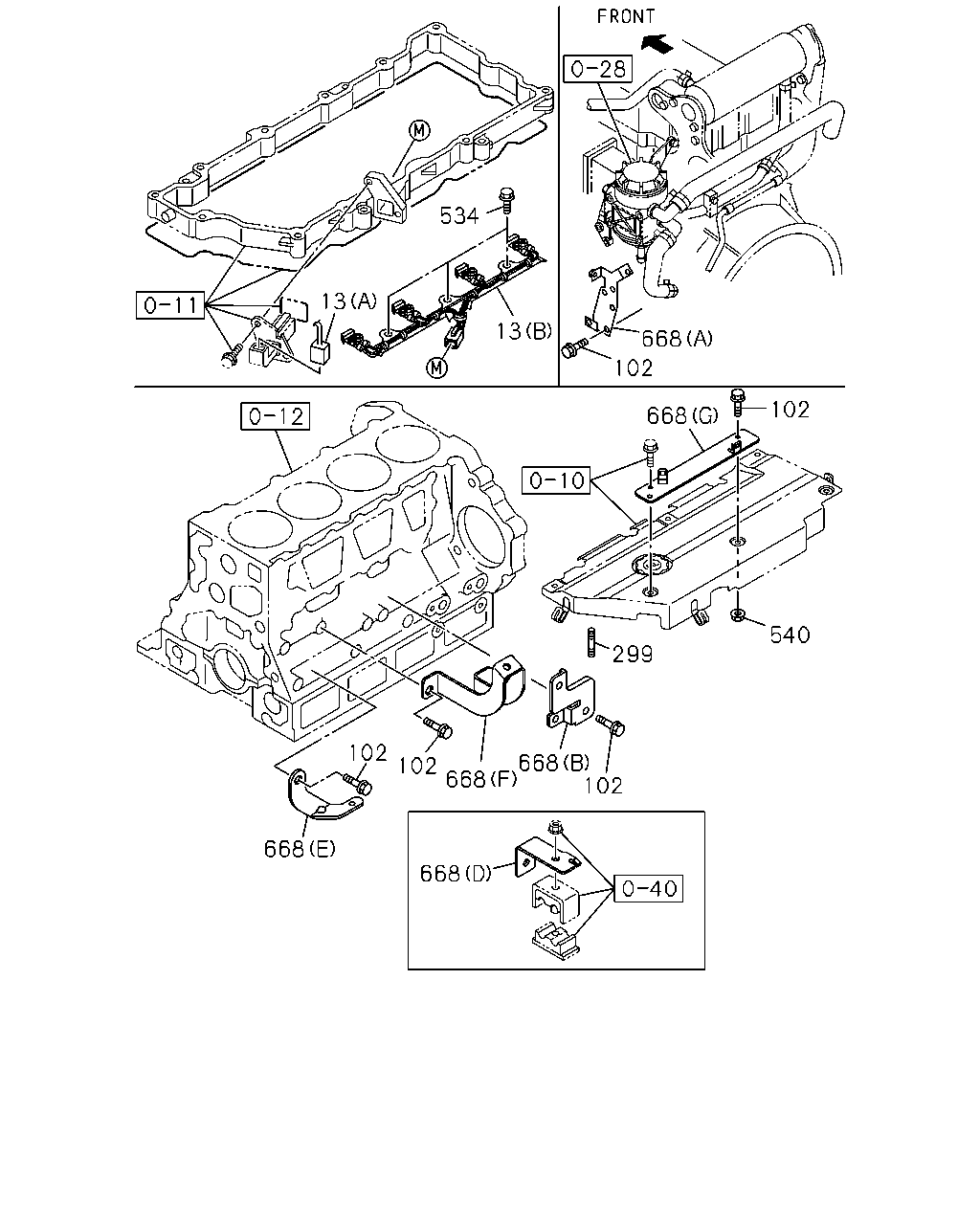

534 13 13 668 102 102 668 540 299 102 102 668 668 102 668 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98095-266-1	01	1	0803-1004
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98162-650-0	01	1	1005-1007
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98171-160-1	01	1	1008-1405
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-026-0	01	1	1406-
13	HARNESS; ENG (B)	8-97332-133-3	01	1	0803-1007
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1008-
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98095-265-1	01	1	0803-1004
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98162-649-0	01	1	1005-1007
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98171-159-1	01	1	1008-1405
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98274-025-0	01	1	1406-
102	BOLT; BRKT,HARNESS CONNECTOR M8X12 FLANGE	0-28050-812-0	01	1	0803-0803
102	BOLT; BRKT,HARNESS CONNECTOR M6X25 FLANGE	0-28050-625-0	01	1	0803-1004
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE	0-28050-816-0	03	1	0803-
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	0803-
299	STUD; BRKT M6X20 L=28	0-41010-620-0	02	1	1110-1110
534	BOLT M10X55 FLANGE	8-94399-863-1	03	1	0803-0805
534	BOLT M10X55 FLANGE	8-97365-449-0	03	1	0806-
540	NUT; BRKT FIX M6 FLANGE	0-91180-106-0	01	1	0803-
668	BRACKET; HARNESS (B)	8-97379-783-1	01	1	0803-0803
668	BRACKET; HARNESS (D)	8-98001-095-0	01	1	0803-
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	0803-1408
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	0803-
668	BRACKET; HARNESS (G)	8-98022-106-2	01	1	0803-1004
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	0803-
668	BRACKET; HARNESS (C)	8-98111-712-1	01	1	0803-

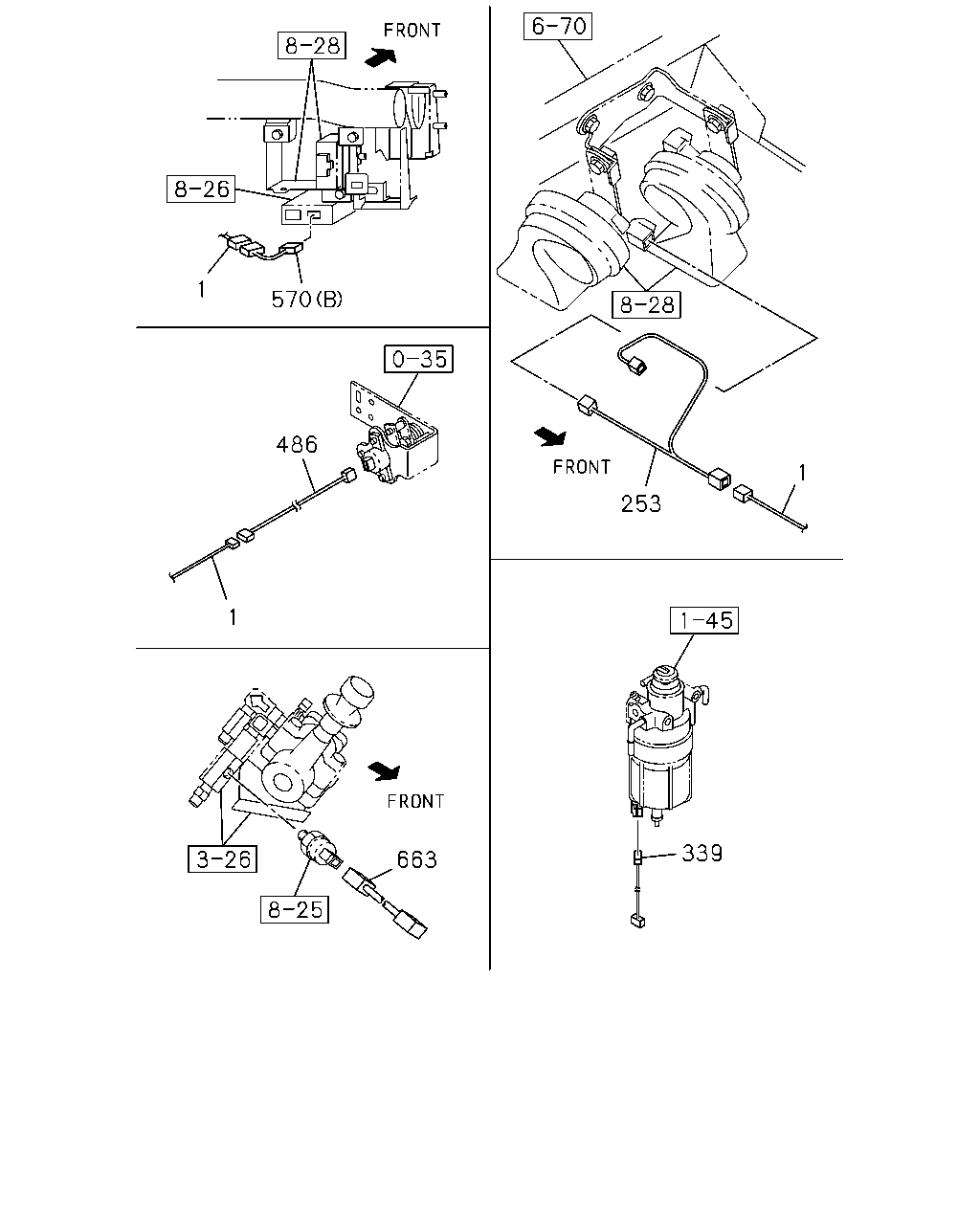

1 570 486 1 253 1 339 663

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-942-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-938-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-943-0	01	1	1510-
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1210-1509
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-939-0	01	1	1510-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-010-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-010-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-006-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-006-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-011-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-011-4	01	1	1112-1209
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-007-4	01	1	0803-1111
1	HARNESS; CAB MZX6P M/T(RSW),MLD6S M/T(X7W) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-007-4	01	1	1112-1209
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	0803-
339	HARNESS; EXT,FUEL WHEEL BASE 4600MM(46W)	8-98118-196-0	01	1	0804-0804
339	HARNESS; EXT,FUEL WHEEL BASE 4900MM(49W)	8-98118-331-0	01	1	0804-0804
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>	1-82675-898-0	01	1	0803-
570	HARNESS; SPEED SENSOR KD PREPARATORY PACK<6HF> (A)	8-98035-237-0	01	1	0803-0803
570	HARNESS; SPEED SENSOR EXC. KD PREPARATORY PACK<6HF> (B)	8-98058-327-1	01	1	0803-0803
570	HARNESS; SPEED SENSOR MZX6P M/T(RSW) (B)	8-98058-327-1	01	1	0804-0806
570	HARNESS; SPEED SENSOR MZX6P M/T(RSW),MLD6S M/T(X7W) (B)	8-98058-327-1	01	1	0807-
663	HARNESS; EXTENSION,RR WHEEL PARKING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98126-779-2	01	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
