Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#24072) — 382 parça

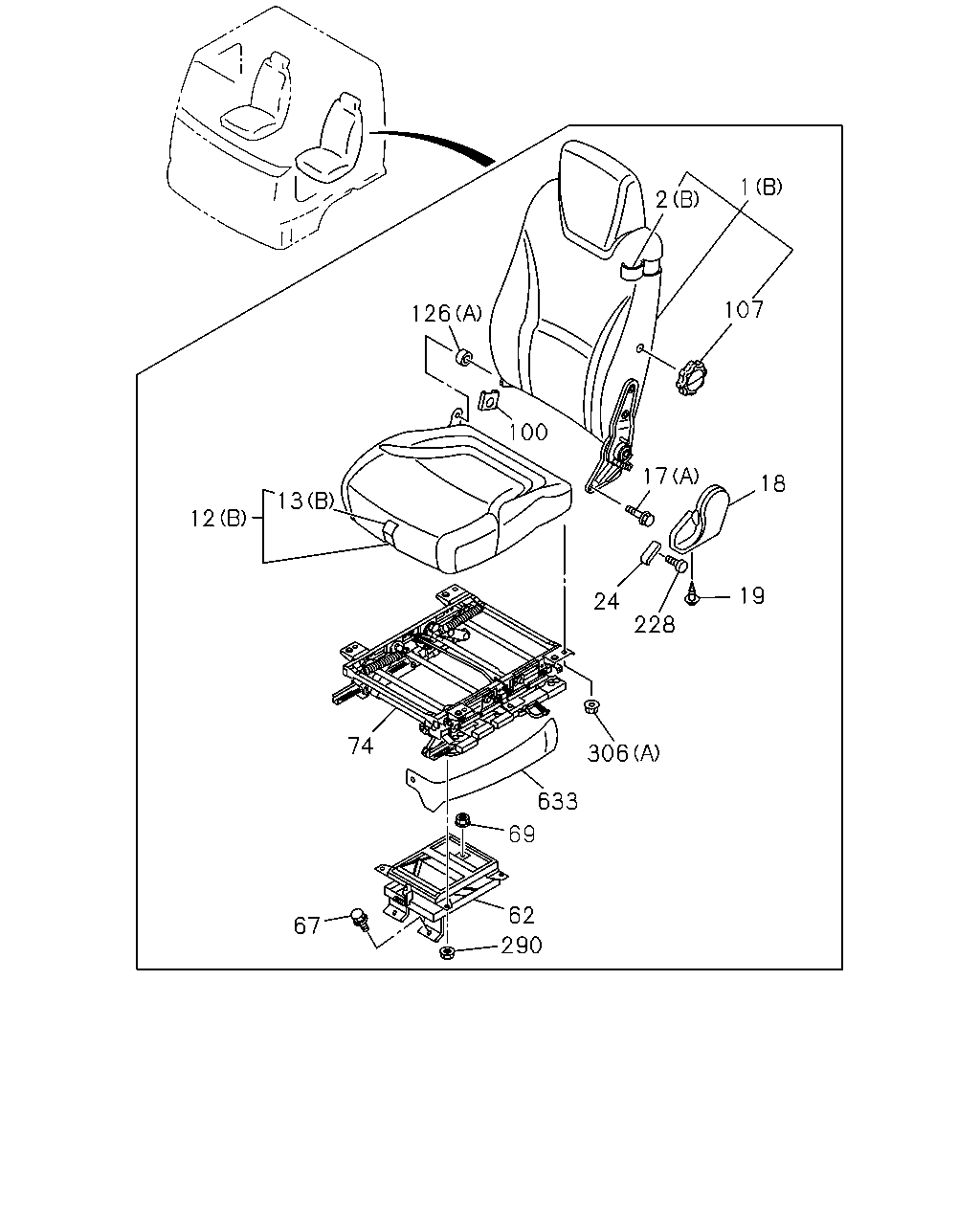

1 2 107 18 17 19 228 24 306 633 69 62 290 67 74 12 13 126 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-116-2	01	1	0803-0902
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-203-0	01	1	0903-1009
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1010-1506
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1510-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-962-0	01	1	0803-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-961-0	01	1	0803-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-117-1	01	1	0803-0902
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-208-0	01	1	0903-1009
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1010-1506
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-965-0	01	1	0803-1212
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98232-352-0	01	1	1301-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B)	8-97414-133-0	01	1	0803-0902
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-214-1	01	1	0903-1009
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-1	01	1	1010-1506
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-2	01	1	1510-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-006-0	01	1	0803-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-134-0	01	1	0803-0902
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-217-0	01	1	0903-1009
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-1	01	1	1010-1506
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-2	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-007-0	01	1	0803-
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	0803-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	0803-1506
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	04	1	0803-1203
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1204-
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-361-0	01	1	0803-1506
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-361-0	01	1	1510-
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5	8-98062-663-0	01	1	0803-1506
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-362-0	01	1	0803-1506
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-362-0	01	1	1510-

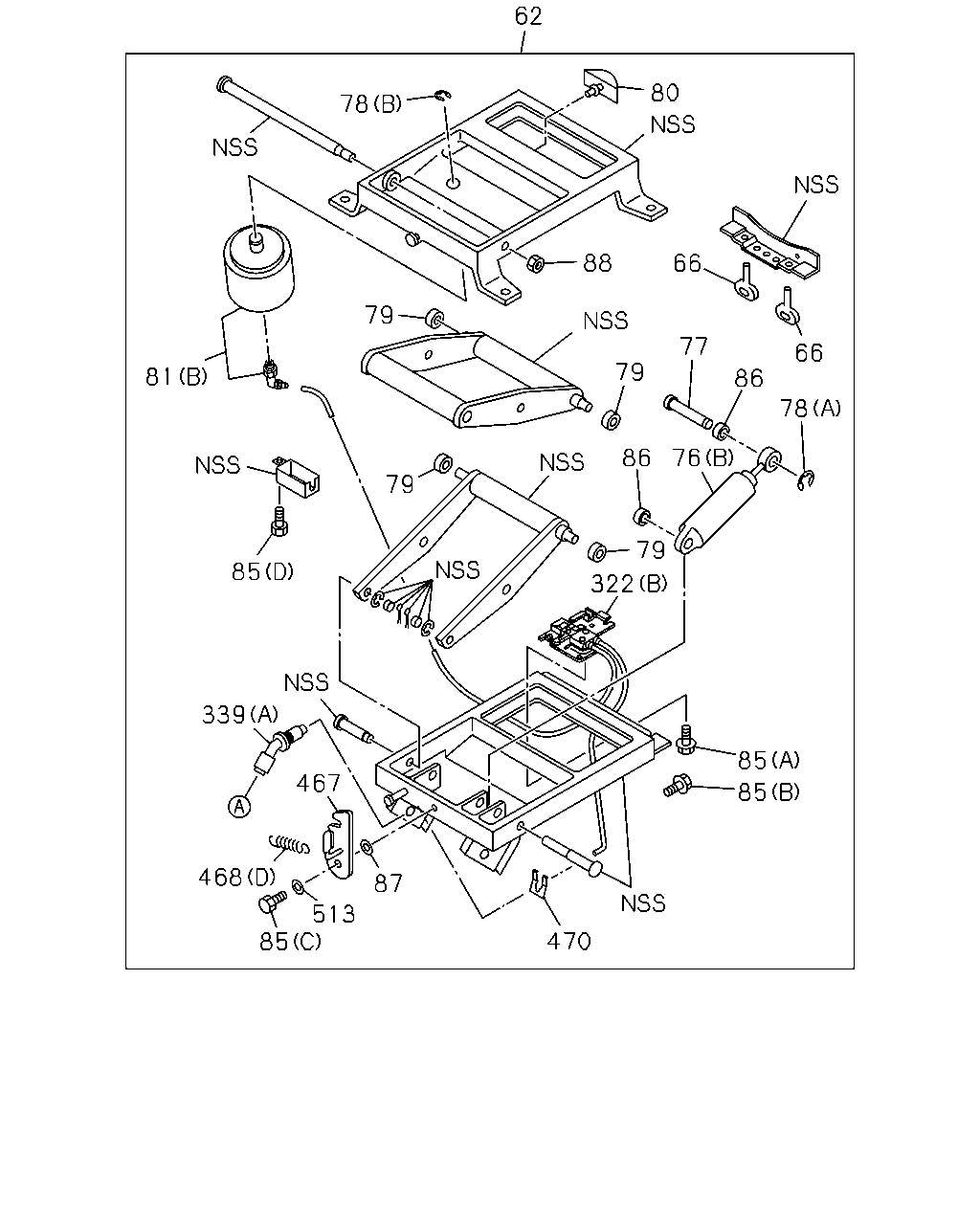

62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0803-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-1506
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1510-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0803-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0803-

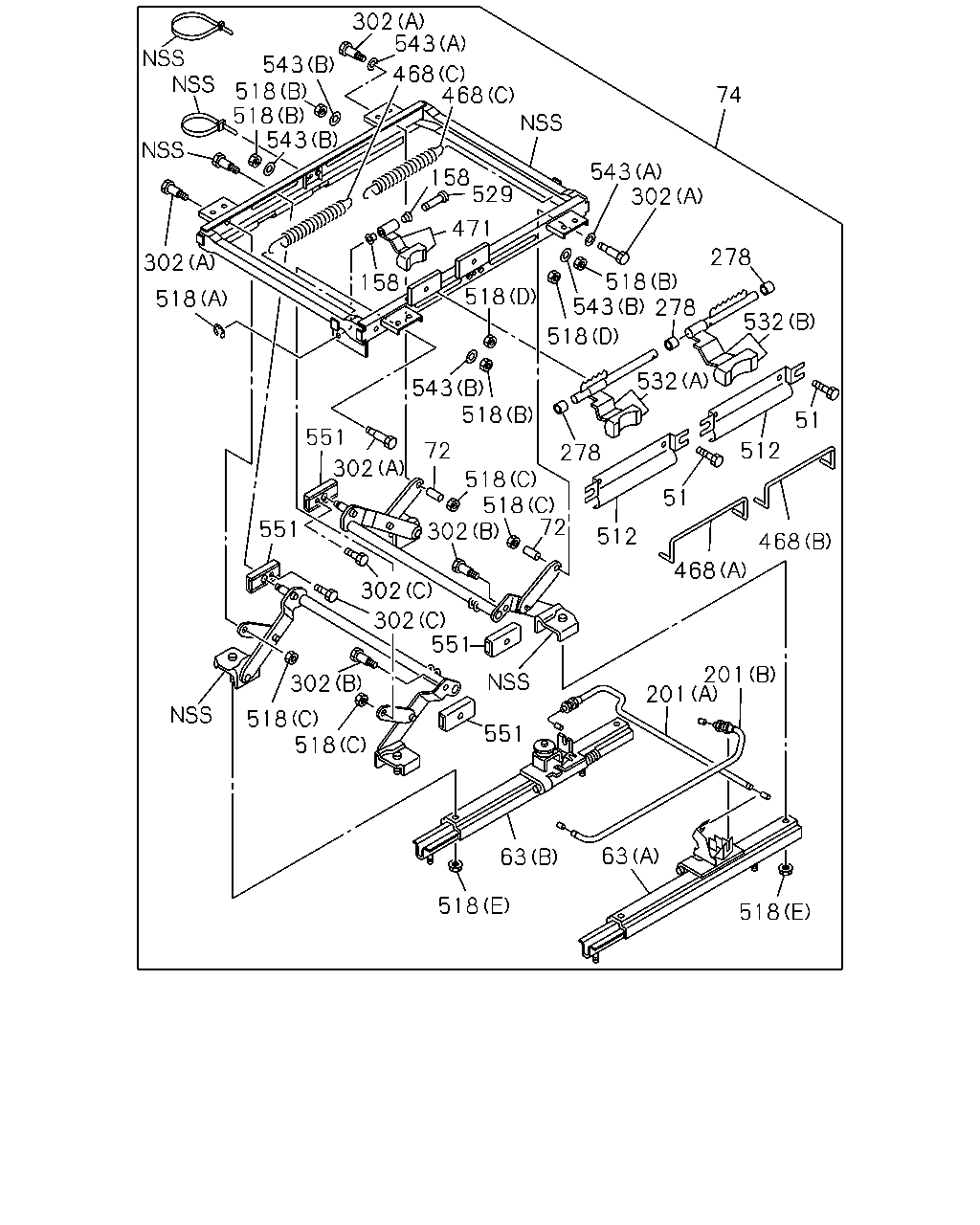

74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	0803-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1510-
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>	8-98203-070-0	01	1	1110-1506
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>	8-98203-070-0	01	1	1510-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	0803-1506
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	1510-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	0803-1506
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	1510-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0803-
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4	8-98062-662-0	01	1	0803-1506
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	0803-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1510-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0803-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0803-
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97414-118-0	01	1	0803-1506
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97414-118-0	01	1	1510-

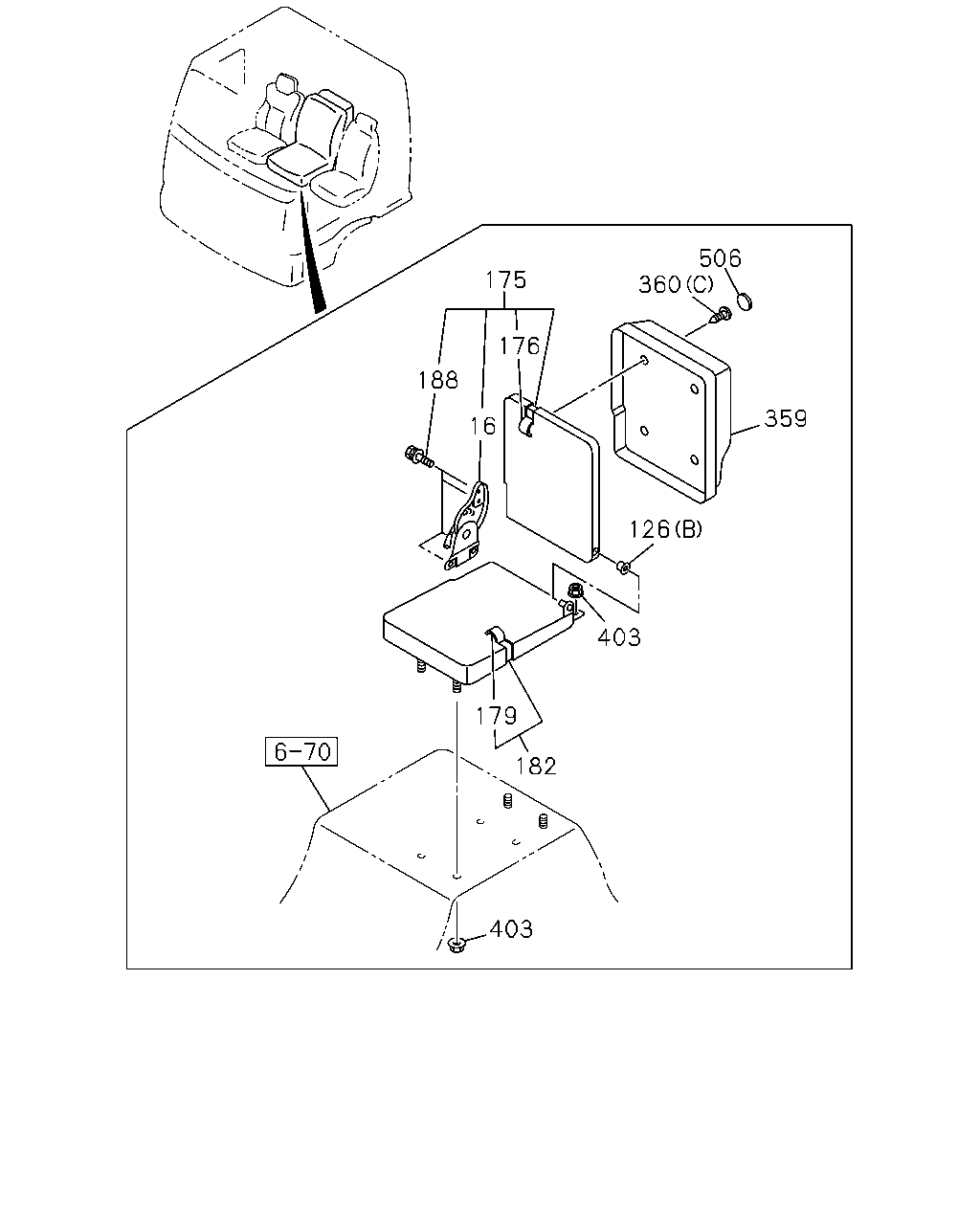

359 126 403 179 182 403 188 16 176 175 360 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	0803-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	0803-1506
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	1510-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0803-
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-984-0	01	1	0803-0902
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-233-0	01	1	0903-1009
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-434-1	01	1	1010-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-985-0	01	1	0803-0902
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-234-0	01	1	0903-1009
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-435-1	01	1	1010-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-691-0	01	1	0803-0902
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-238-0	01	1	0903-1009
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-433-1	01	1	1010-
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-131-0	01	1	0803-0902
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-236-0	01	1	0903-1009
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-431-3	01	1	1010-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	0803-
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0803-1006
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0803-1009
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0803-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0803-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0803-1009
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	0803-
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	04	1	0803-1006
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1007-

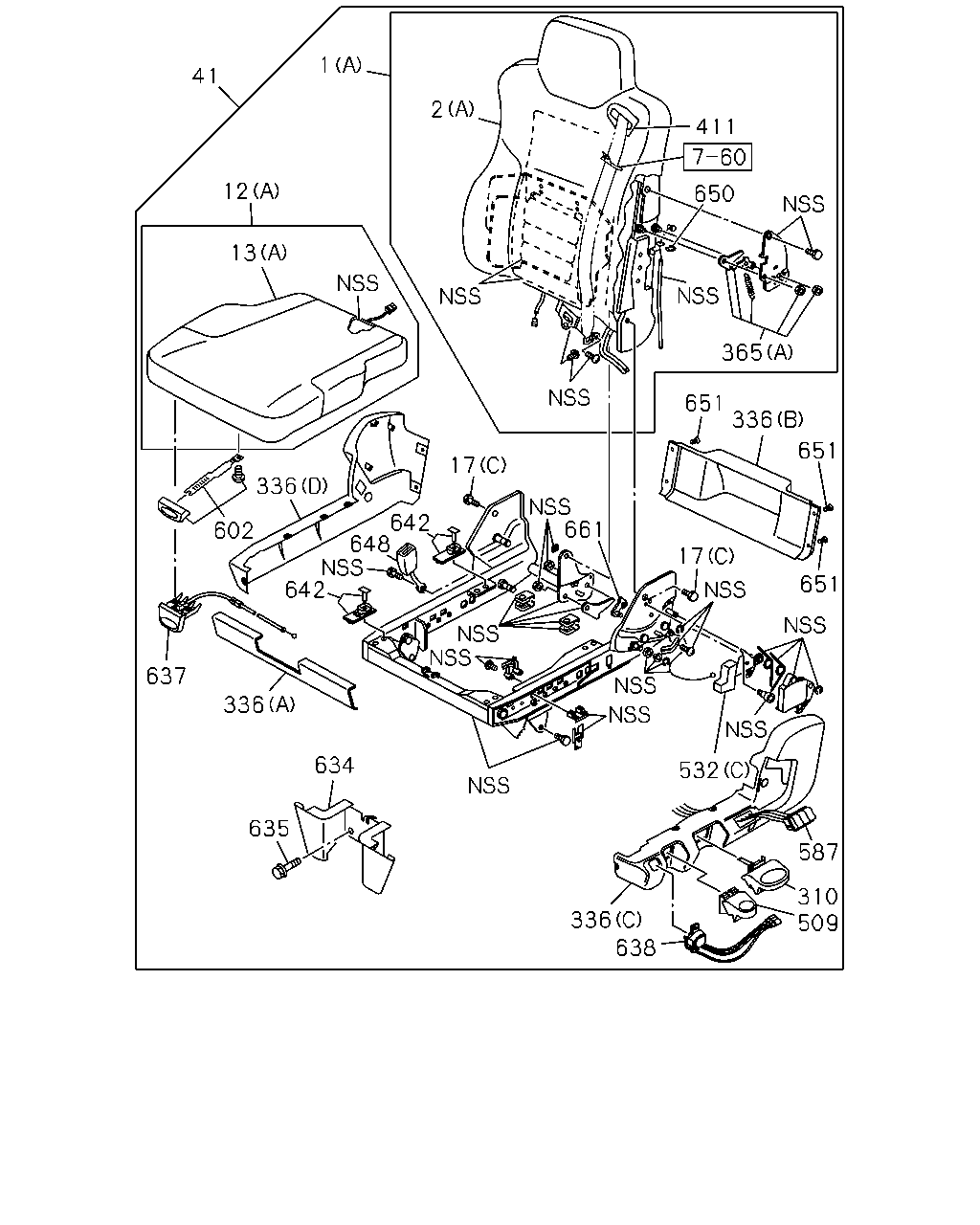

41 1 2 411 650 365 651 336 17 661 17 336 602 13 12 651 651 642 648 642 336 637 634 635 532 587 310 509 336 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-116-2	01	1	0803-0902
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-203-0	01	1	0903-1009
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1010-1506
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1510-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-962-0	01	1	0803-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-961-0	01	1	0803-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-117-1	01	1	0803-0902
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-208-0	01	1	0903-1009
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1010-1506
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-965-0	01	1	0803-1212
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98232-352-0	01	1	1301-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B)	8-97414-133-0	01	1	0803-0902
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-214-1	01	1	0903-1009
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-1	01	1	1010-1506
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-2	01	1	1510-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-006-0	01	1	0803-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-134-0	01	1	0803-0902
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-217-0	01	1	0903-1009
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-1	01	1	1010-1506
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-2	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-007-0	01	1	0803-
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	0803-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	0803-1506
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	04	1	0803-1203
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1204-

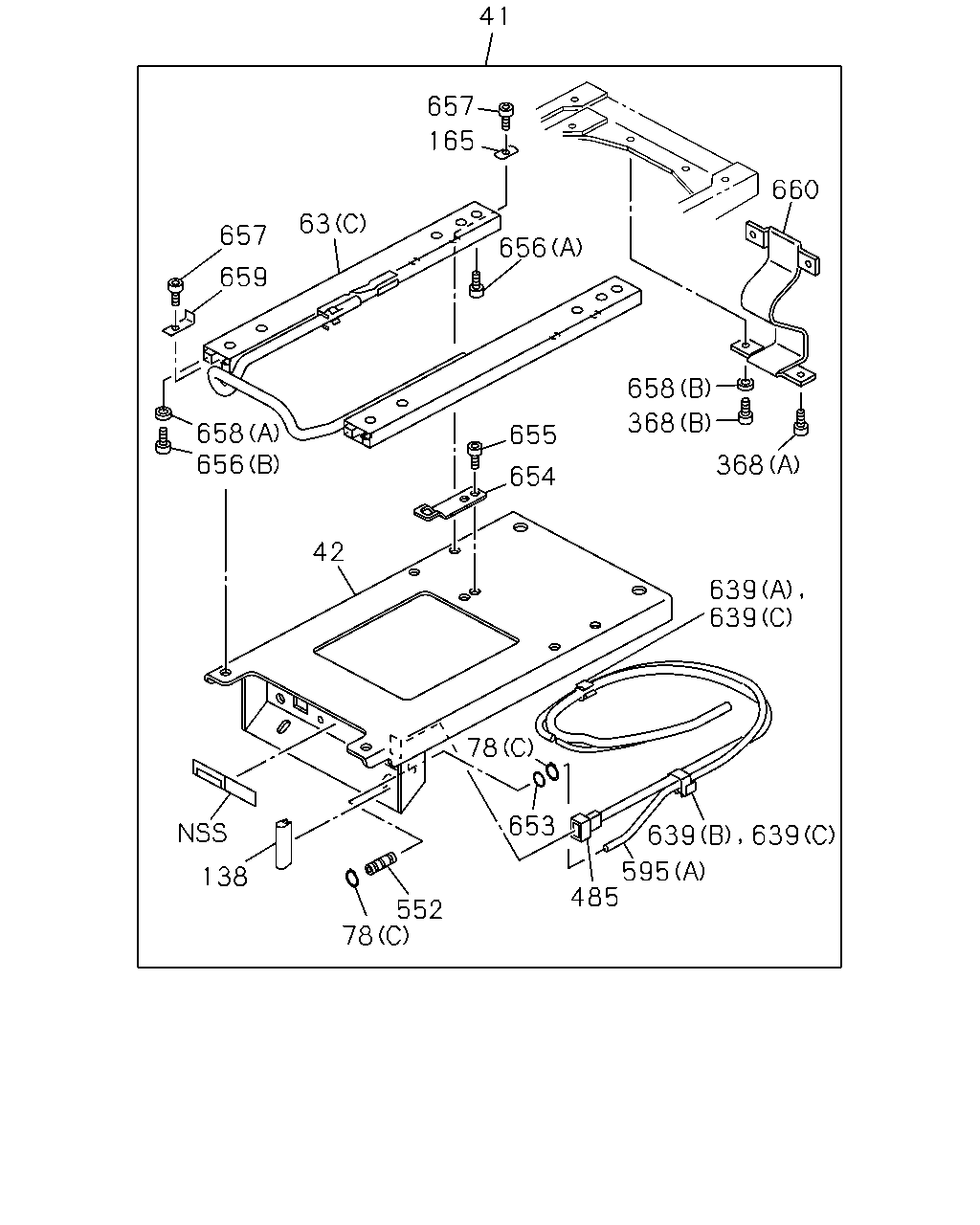

41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-985-2	01	1	0803-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-065-1	01	1	1301-
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-537-2	01	1	0803-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-064-1	01	1	1301-
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-991-0	01	1	0803-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (D)	8-98097-977-0	01	1	0803-1508
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (D)	8-98333-916-0	01	1	1509-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-983-0	01	1	0803-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-995-0	01	1	0803-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98097-996-0	01	1	0803-
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-972-0	01	1	0803-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	0803-
411	GUIDE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-967-0	01	1	0803-
509	LEVER; DAMPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-987-0	01	1	0803-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	0803-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	0803-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1510-
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-981-0	01	1	0803-
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-985-0	01	1	0803-
602	KNOB; ADJ,SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-008-0	01	1	0803-
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98088-279-0	01	1	0803-
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT<SJA> M6X16	0-52000-616-0	02	1	0803-
637	LEVER; SLOPE ADJ DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-989-0	01	1	0803-
638	VALVE; LOWERING DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-993-0	01	1	0803-
642	SLIDER; CUSHION DRIVER ISRINGHAUSEN SEAT<SJA>	8-98192-932-0	04	1	0803-
648	BUCKLE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-976-0	01	1	0803-
650	CABLE DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-973-0	01	1	0803-1212
650	CABLE DRIVER ISRINGHAUSEN SEAT<SJA>	8-98232-354-0	01	1	1301-
651	RIVET DRIVER ISRINGHAUSEN SEAT<SJA>	8-98194-075-0	04	1	0803-
661	LOCK ASM; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-979-0	01	1	0803-

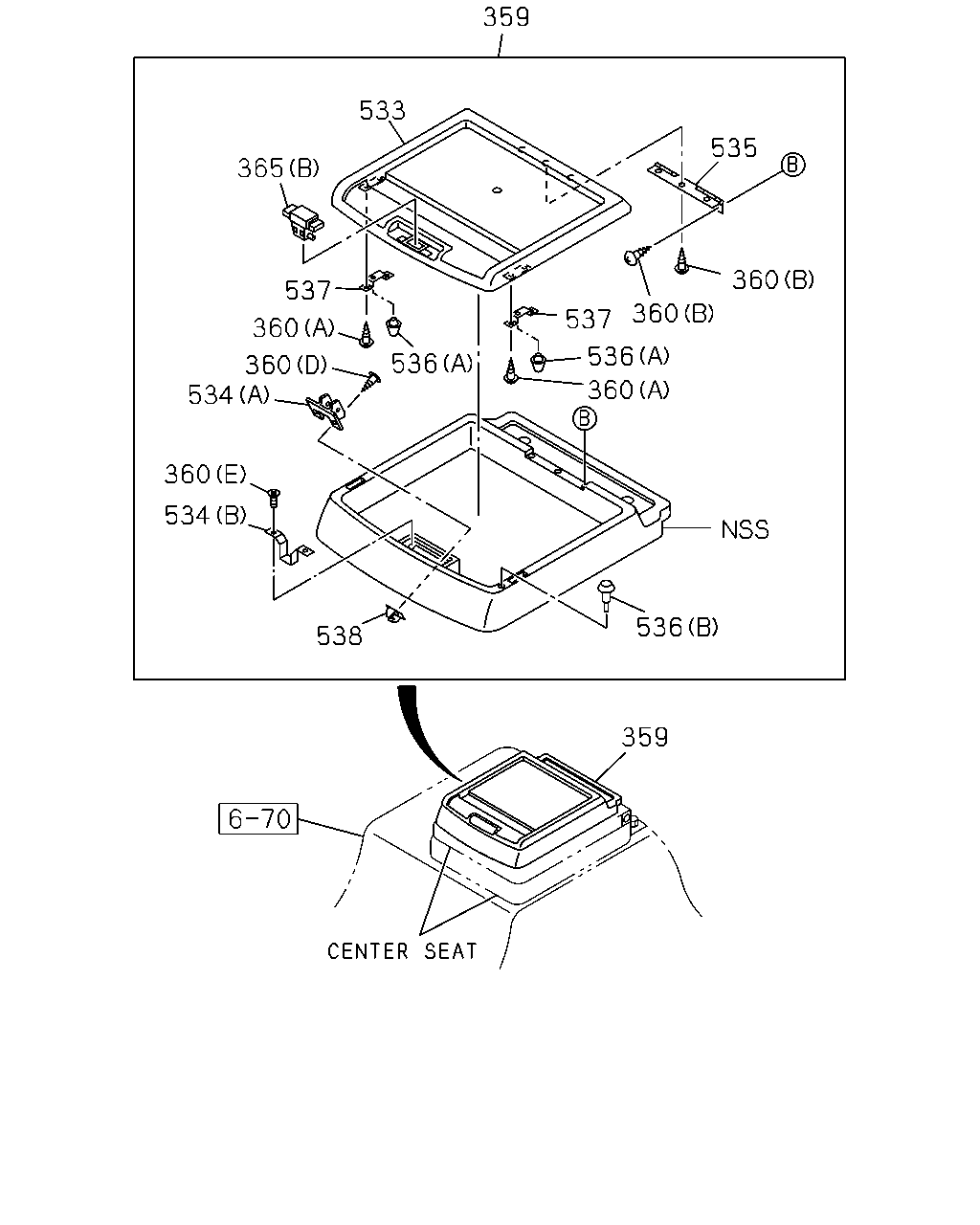

359 533 365 537 360 536 360 534 360 534 538 359 536 360 536 537 360 360 535

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0803-1006
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0803-1009
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0803-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0803-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0803-1009
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-972-0	01	1	0803-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	0803-
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-979-1	01	1	0803-1006
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1007-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (A)	1-72538-181-0	01	1	0803-1009
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1010-
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	0803-
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (A)	5-09983-002-1	02	1	0803-1009
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1010-
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC>	1-72548-057-1	02	1	0803-1009
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC>	1-09983-165-0	02	1	0803-1009

41 657 660 165 656 63 657 658 659 658 42 655 368 654 368 639 639 78 656 138 78 653 552 485 639 639 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-985-2	01	1	0803-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-065-1	01	1	1301-
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-537-2	01	1	0803-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-064-1	01	1	1301-
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-346-0	01	1	0803-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	0803-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	0803-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1510-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98098-005-0	01	1	0803-
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98101-900-0	02	1	0803-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0803-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	0803-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1510-
138	PROTECTOR; SEAT STAND DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-351-0	01	1	0803-
165	WASHER; PL DRIVER ISRINGHAUSEN SEAT<SJA>	1-75590-086-0	04	1	0803-
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-353-0	03	1	0803-
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-358-0	01	1	0803-
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-360-0	01	1	0803-
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-361-0	01	1	0803-
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT<SJA>	8-98101-902-0	01	1	0803-1508
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT<SJA>	8-98308-101-0	01	1	1509-
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-348-0	01	1	0803-
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98067-762-0	01	1	0803-
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-350-0	01	1	0803-1508
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-349-0	01	1	0803-1508
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98308-100-0	02	1	1509-
653	GASKET DRIVER ISRINGHAUSEN SEAT<SJA>	8-98101-901-0	01	1	0803-
654	HOOK; STOPPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-352-0	01	1	0803-
655	BOLT; HOOK DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-353-0	02	1	0803-
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	1-75590-085-0	04	1	0803-
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-354-0	02	1	0803-
657	BOLT; SLIDER TO STAND DRIVER ISRINGHAUSEN SEAT<SJA>	1-75590-085-0	06	1	0803-
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-355-0	02	1	0803-
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-359-0	01	1	0803-
659	STOPPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-356-0	02	1	0803-
660	BELT; TETHER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-357-0	01	1	0803-

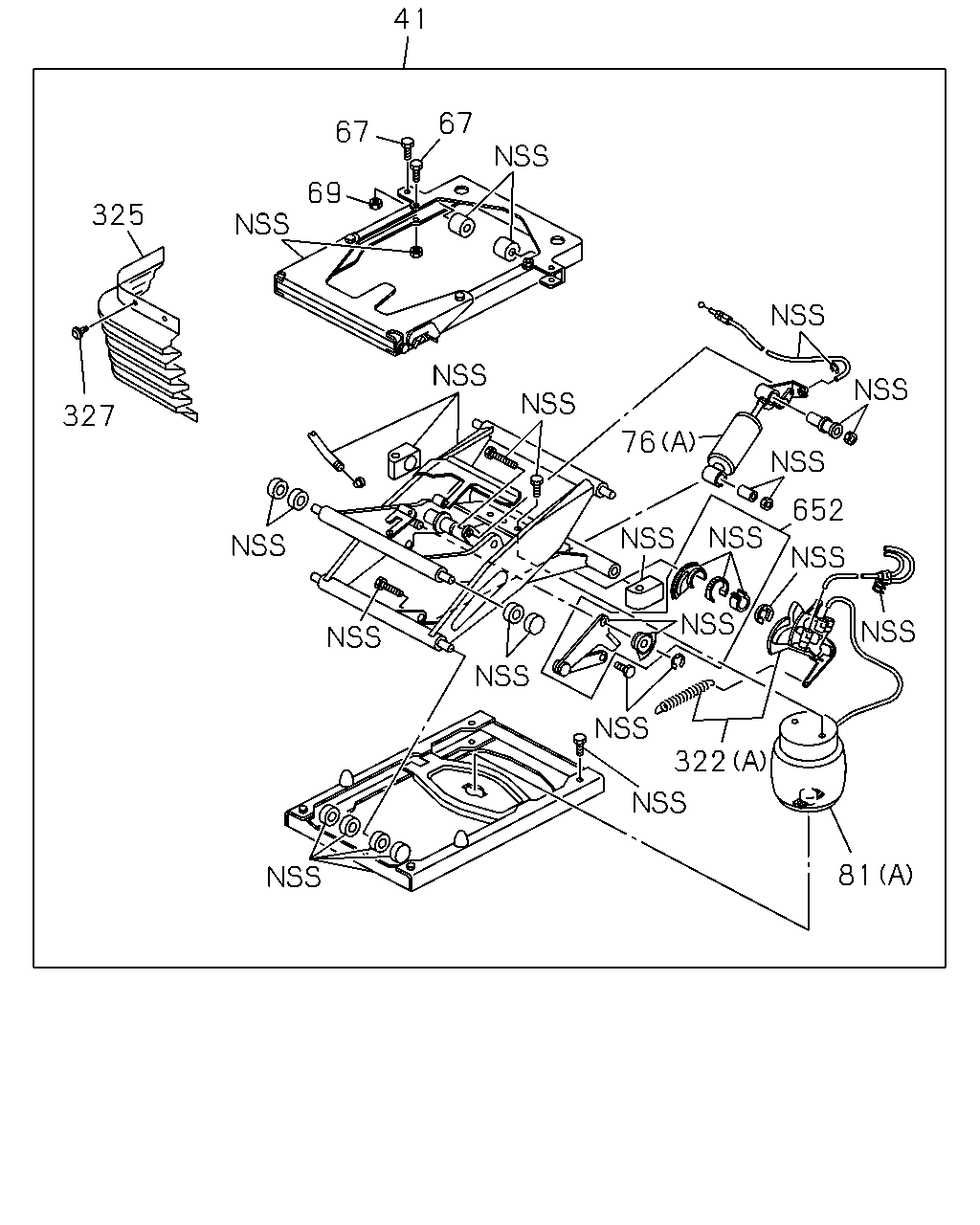

67 67 325 327 69 76 652 322 81 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-985-2	01	1	0803-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-065-1	01	1	1301-
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-537-2	01	1	0803-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-064-1	01	1	1301-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0803-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0803-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	0803-1506
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1510-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-999-0	01	1	0803-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	0803-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-1506
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1510-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-000-0	01	1	0803-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	0803-1506
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1510-
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-001-0	01	1	0803-1508
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98331-314-0	01	1	1509-
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-003-0	01	1	0803-
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-004-0	01	1	0803-
652	LOCK ASM; HEIGHT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-002-0	01	1	0803-

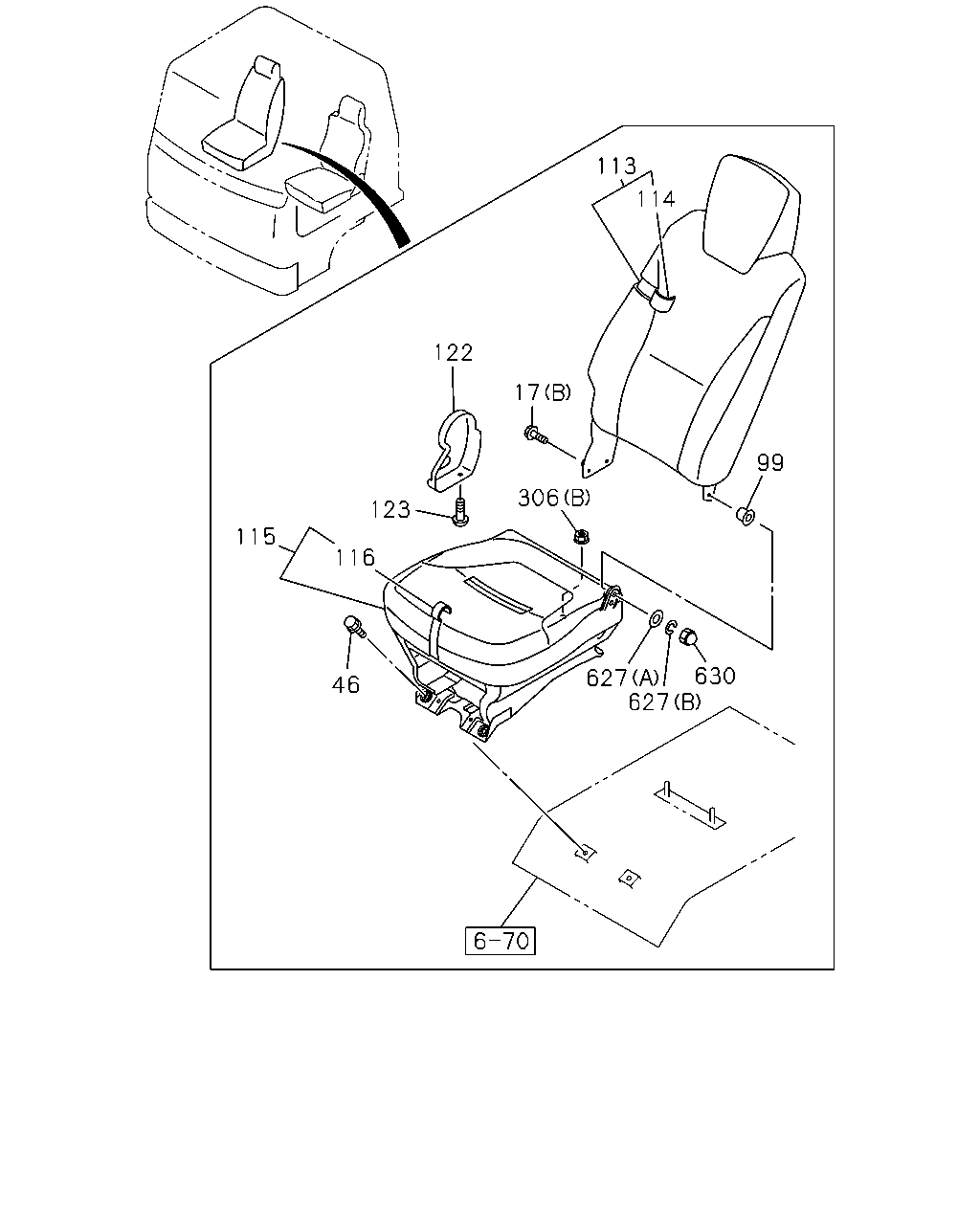

113 114 122 17 306 99 630 627 627 46 115 116 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	0803-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	0803-1506
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	04	1	0803-1203
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1204-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0803-
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	0803-1009
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1010-
113	BACK ASM; SEAT DARK GRAY	8-97414-126-0	01	1	0803-0902
113	BACK ASM; SEAT DARK GRAY	8-97416-222-0	01	1	0903-1009
113	BACK ASM; SEAT DARK GRAY	8-97421-423-0	01	1	1010-
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97414-127-0	01	1	0803-0902
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97416-224-0	01	1	0903-1009
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-425-0	01	1	1010-
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97414-124-0	01	1	0803-0902
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97416-226-0	01	1	0903-1009
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-419-1	01	1	1010-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97414-125-0	01	1	0803-0902
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97416-228-0	01	1	0903-1009
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-421-0	01	1	1010-
122	COVER; ADJ,RECLINING GRAY	8-97414-043-0	01	1	0803-
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	0803-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0803-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0803-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0803-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0803-
630	NUT; CAP M8	8-98063-225-0	01	1	0803-

62 80 78 88 66 66 86 79 77 79 81 79 86 79 322 85 339 467 87 470 85 85 513 468 85 78 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0803-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-1506
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1510-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	0803-1506
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1510-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	0803-1506
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1510-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-999-0	01	1	0803-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	0803-1506
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1510-
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98101-900-0	02	1	0803-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0803-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	0803-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1510-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	0803-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-1506
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1510-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	0803-1506
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1510-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	0803-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-1506
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1510-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-000-0	01	1	0803-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	0803-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	0803-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0803-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1510-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0803-1506
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1510-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	0803-1506
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	0803-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1510-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	0803-1506
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1510-
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-001-0	01	1	0803-1508
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98331-314-0	01	1	1509-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	0803-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98014-971-0	01	1	0803-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	0803-1506
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	0803-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	0803-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	0803-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0803-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1510-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	0803-1506
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1510-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	0803-1506
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1510-

74 302 543 468 468 543 302 278 518 543 518 518 529 158 543 518 518 543 302 518 551 158 471 543 518 72 302 551 518 302 518 72 302 302 551 551 302 518 518 518 63 63 201 201 518 468 512 278 51 512 468 51 532 532 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	0803-1506
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	0803-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	0803-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1510-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98098-005-0	01	1	0803-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	0803-1502
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1503-1506
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	0803-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1510-
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>	1-75518-209-0	02	1	0803-1506
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>	1-75518-209-0	02	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-288-0	01	1	0803-1506
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-289-1	01	1	0803-1506
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-289-1	01	1	1510-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	0803-1506
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	0803-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	0803-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1503-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	0803-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	0803-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	0803-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	0803-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0803-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1510-
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-870-0	01	1	0803-1506
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-870-0	01	1	1510-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	0803-1506
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	0803-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	0803-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	0803-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	0803-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	0803-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>	1-75518-262-0	01	1	0803-1506
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>	1-75518-262-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	0803-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	0803-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1510-
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-981-0	01	1	0803-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	0803-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	0803-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1510-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	0803-1506
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1510-

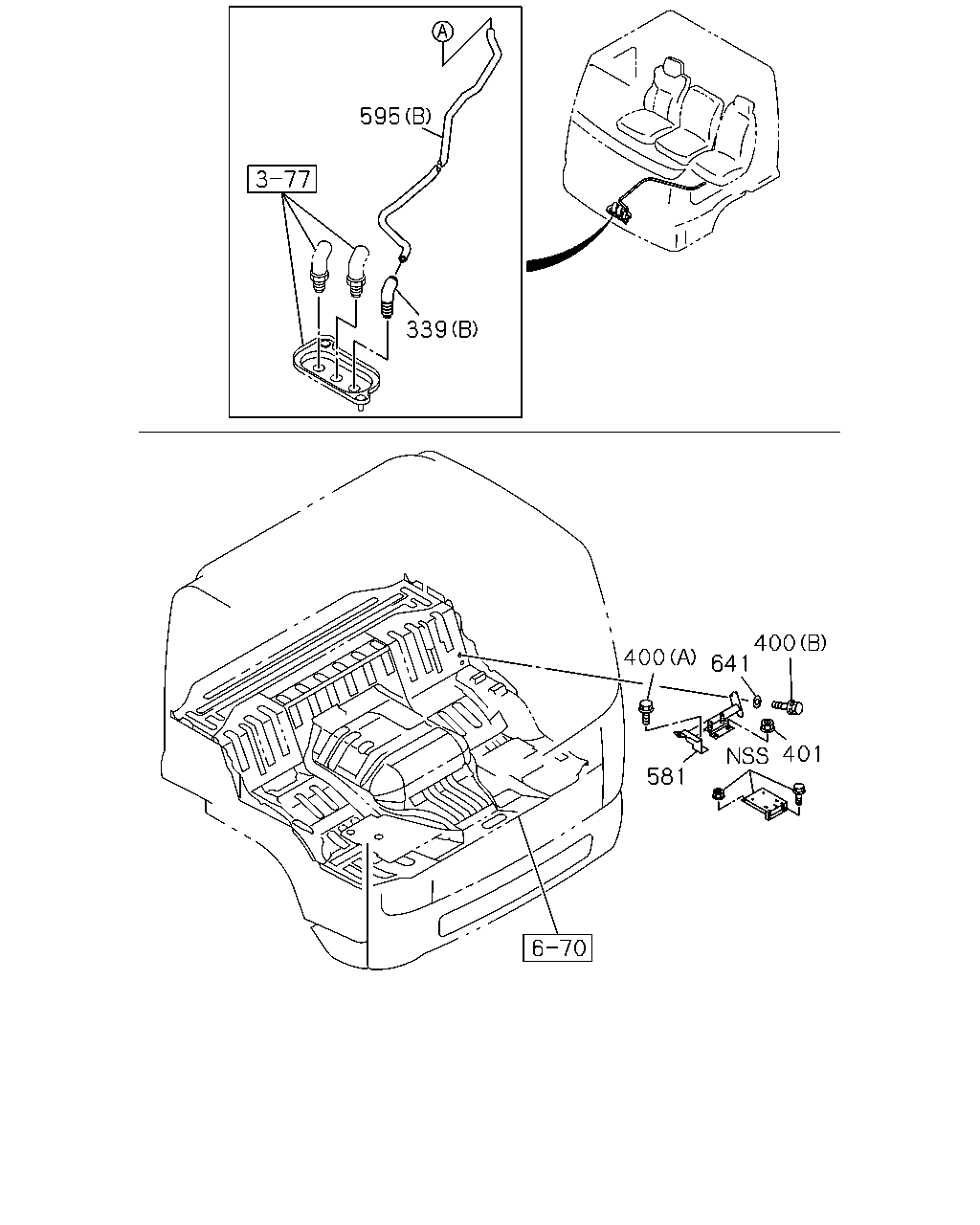

595 339 400 641 400 401 581

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	0803-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98014-971-0	01	1	0803-
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98098-996-0	02	1	0803-
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> M10 FLANGE	0-91180-110-0	02	1	0803-
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98049-531-3	01	1	0803-
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-348-0	01	1	0803-
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98067-762-0	01	1	0803-
641	WASHER; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98099-007-0	02	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
