◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11137 - FRR-LHD(EU)SPACE EU4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#24065) — 19 parça
çizim 144720
35 140 49 9 228 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-437-0 01 1 0803-
9 PLATE; NAME,SPD RANGE
AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 6 PER 1 SHEET 		8-98115-618-1 01 1 0806-0806
9 PLATE; NAME,SPD RANGE
AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4) 6 PER 1 SHEET 		8-98115-618-1 01 1 0807-
9 PLATE; NAME,SPD RANGE
AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 6 PER 1 SHEET 		8-98115-616-1 01 1 0806-0806
9 PLATE; NAME,SPD RANGE
AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY(CV4) 6 PER 1 SHEET 		8-98115-616-1 01 1 0807-
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-617-1 01 1 0806-0806
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4),AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-617-1 01 1 0807-
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-615-1 01 1 0806-0806
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY(CV4),AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-615-1 01 1 0807-
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 0803-
49 PLATE; CAUTION,FUSE BOX 8-98111-970-0 01 1 0803-0805
49 PLATE; CAUTION,FUSE BOX 8-98122-354-0 01 1 0806-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 0803-
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0803-1001

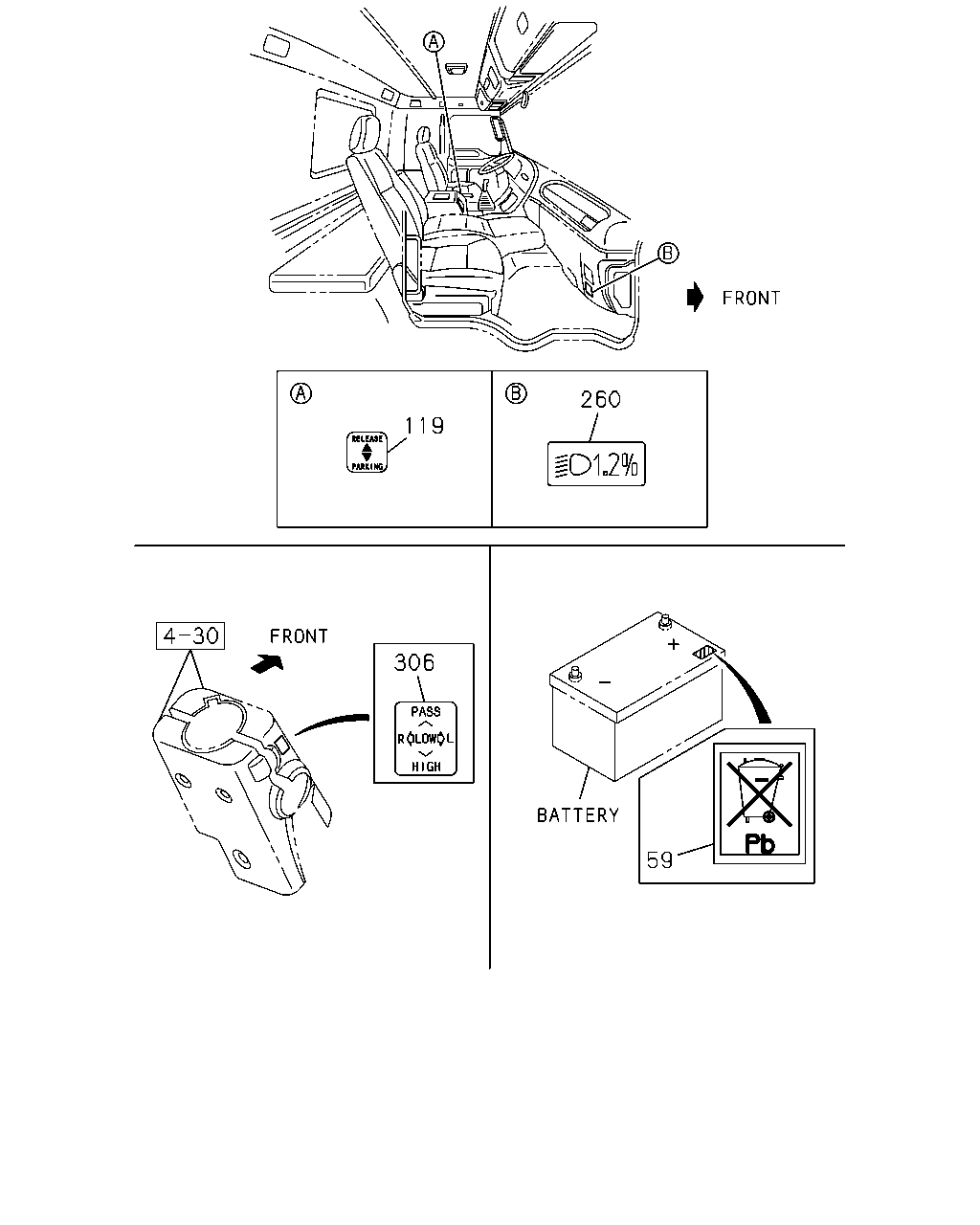

çizim 144731
260 119 306 59
BalonParca AdiParca NoAdetTipApplied Date
59 PLATE; CAUTION,BATTERY
10 PER 1 SHEET 		8-97116-760-0 02 1 0803-0805
59 PLATE; CAUTION,BATTERY
EXC. KD PREPARATORY PACK<6HF> 10 PER 1 SHEET 		8-97116-760-0 02 1 0806-
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 0803-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0803-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0803-
