Isuzu WW
▶
TRUCKS
▶
FRR
▶
11137 - FRR-LHD(EU)SPACE EU4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

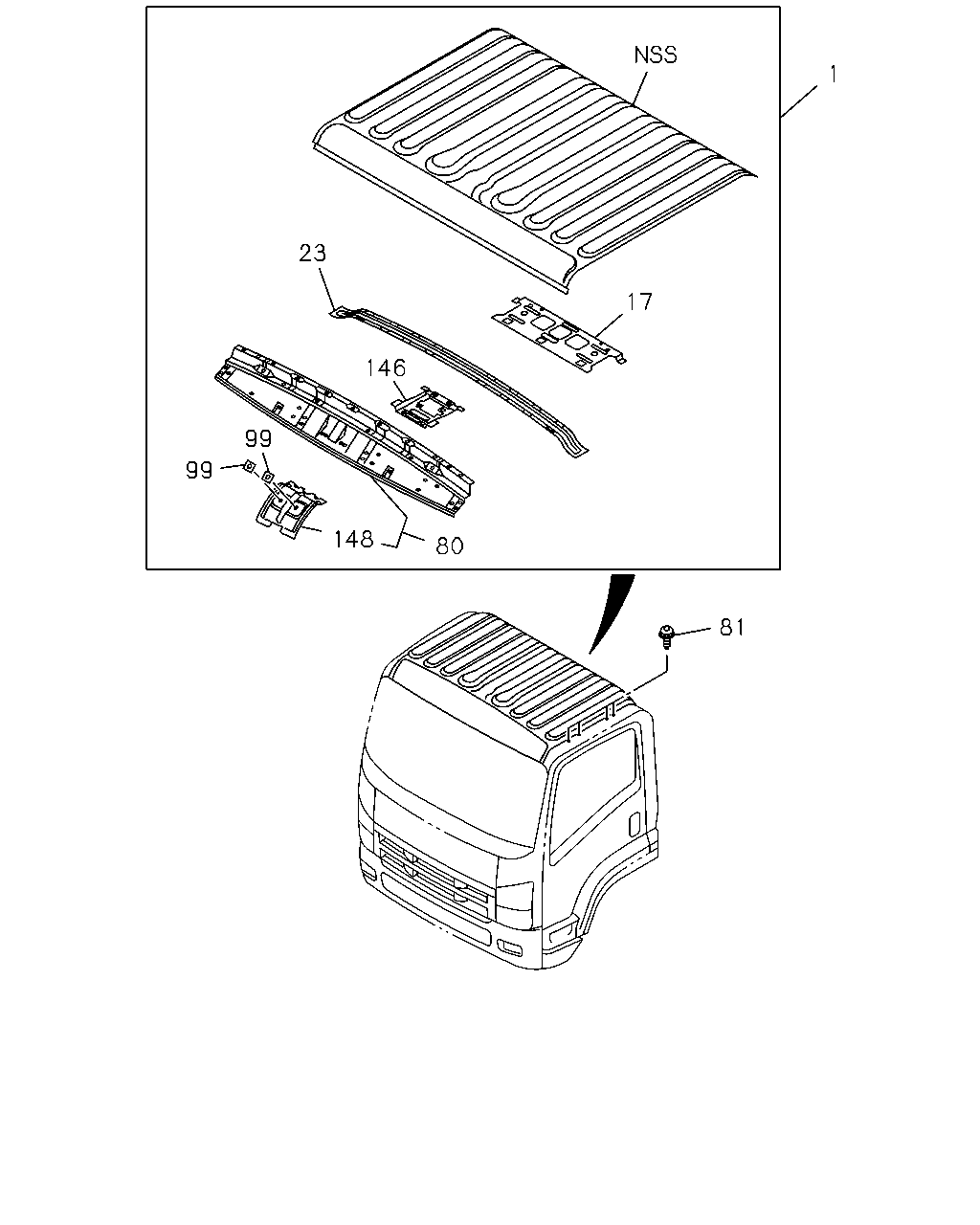

6-60 — ROOF PANEL
(#24054) — 12 parça
1
23
17
146
99
99
148
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-98158-312-1
01
1
1002-
1
PANEL; ROOF
8-98056-962-2
01
1
0803-1001
1
PANEL; ROOF
FLUORESCENT LAMP<6UC>
8-98056-962-3
01
1
1002-
17
REINFORCEMENT; ROOF PNL CENTER
8-97584-203-5
01
1
0803-1001
17
REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC>
8-97584-203-5
01
1
1002-
23
REINFORCEMENT; ROOF PANEL,FRT
8-98019-310-0
01
1
0803-
80
PANEL; HEADER,ROOF
8-98047-270-2
01
1
0803-
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98028-744-0
08
1
0803-0910
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
0911-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
02
1
0803-
146
REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
0803-
148
REINFORCEMENT; MIRROR
8-97411-013-0
01
1
0803-
