0-41A — FUEL FILTER AND BRACKET (#2405) — 22 parça

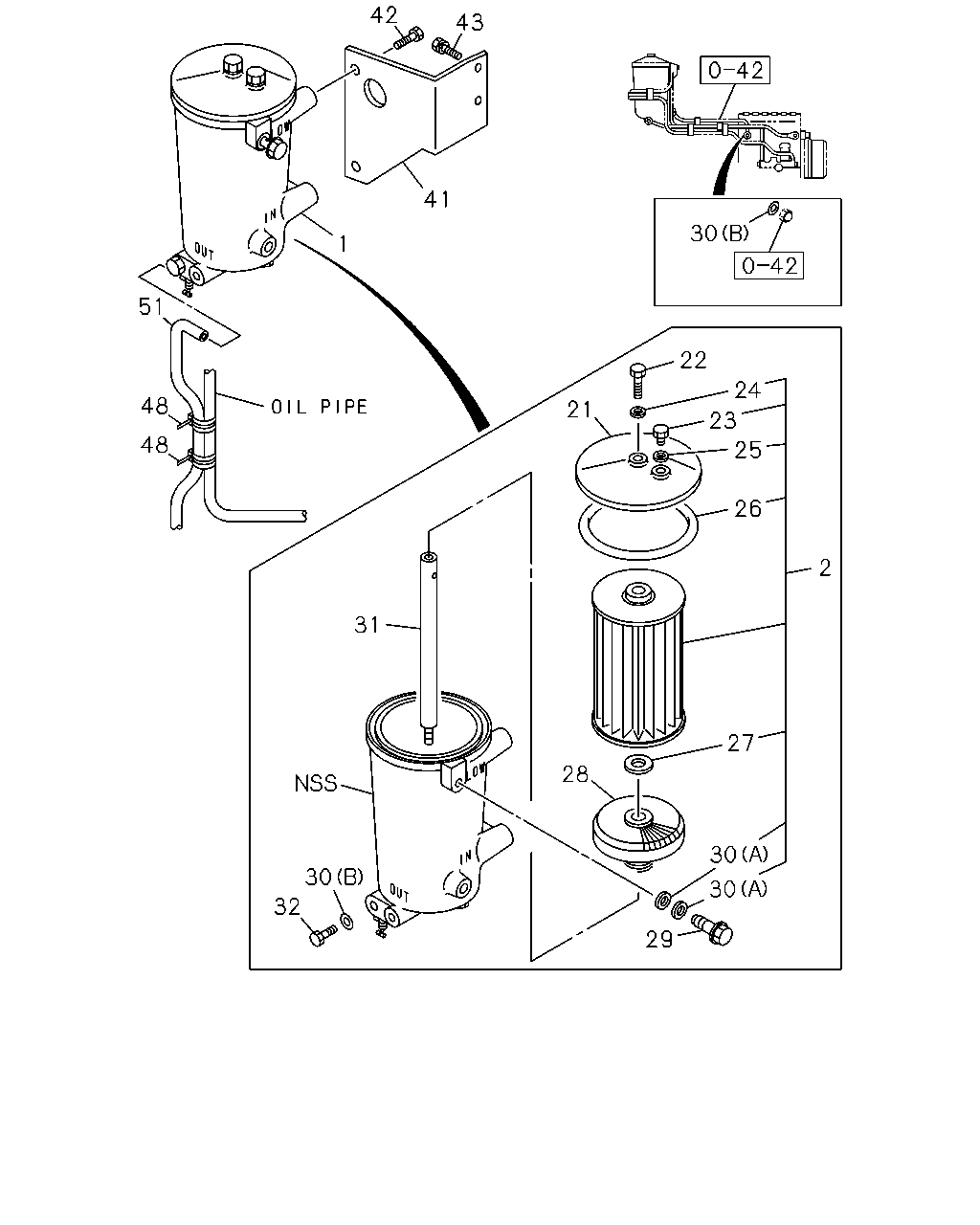

çizim 95393
42 43 41 30 1 51 22 24 48 21 23 48 25 26 2 31 27 28 30 30 30 32 29
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FILTER ASM; FUEL 1-13200-825-2 01 1 9002- ● ● ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 9002- ● ● ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 9002- ● ● ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 9002- ● ● ●
23 PLUG; COVER 1-13219-074-0 01 1 9002- ● ● ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9002- ● ● ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9002- ● ● ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 9002- ● ● ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 9002- ● ● ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 9002- ● ● ●
29 VALVE; OVERFLOW 1-13260-085-0 01 1 9002- ● ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9410- ● ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=16.2 		1-09630-086-0 02 1 9002-9409 ● ● ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 9002- ● ● ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 9002- ● ● ●
41 BRACKET; FUEL FILTER 1-13219-118-1 01 1 9002- ● ● ●
42 BOLT; FUEL FILTER
M10X20 W/LK WASHER 		9-01911-020-0 04 1 9002-9002 ● ●
42 BOLT; FUEL FILTER
M10X20 W/LK WASHER 		0-50041-020-0 04 1 9003- ● ● ●
43 BOLT; BRKT
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ●
43 BOLT; BRKT
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003- ● ● ●
48 CLIP; VINYL PIPE
L=140 		5-09707-031-0 02 1 9002- ● ● ●
51 PIPE; VINYL
L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 9002- ● ● ●
