◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 10945 - GXZ(THAI)EURO2 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#24047) — 10 parça
çizim 83129
55
BalonParca AdiParca NoAdetTipApplied Date
55 GROMMET; CABLE 1-09983-068-0 01 1 0407-

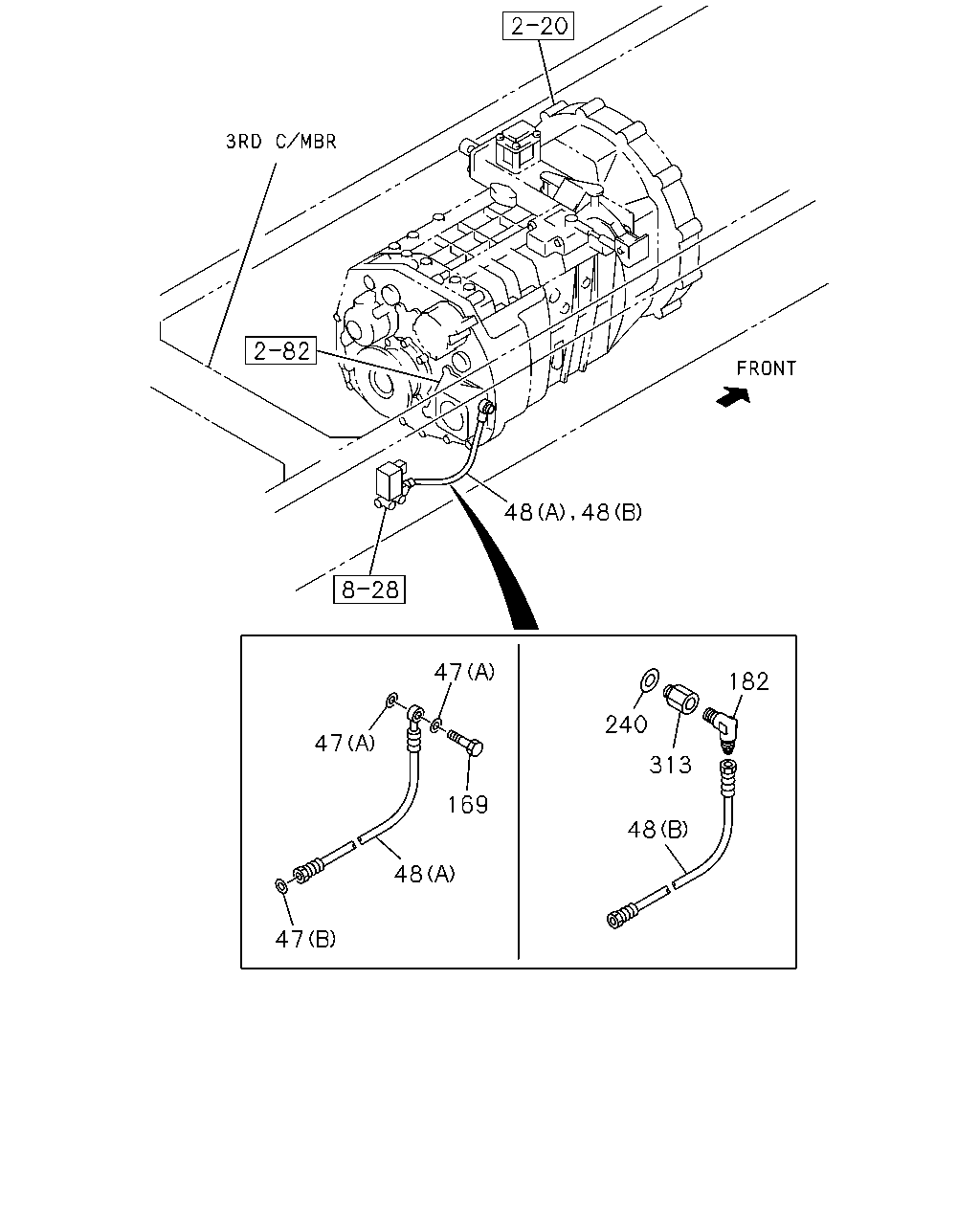

çizim 83426
48 48 47 182 240 47 313 169 48 48 47
BalonParca AdiParca NoAdetTipApplied Date
47 GASKET; FLEX HOSE
PTO ZF TRANS RR<BDM> (A) ID=12.2 		9-09572-012-0 02 1 0407-0407
47 GASKET; FLEX HOSE
PTO ZF TRANS RR<BDM> (B) ID=11 OD=18 		9-09572-510-0 01 1 0407-0407
48 HOSE; FLEX,PTO
PTO ZF TRANS RR<BDM> (A) L=260 		1-09363-592-0 01 1 0407-0407
48 HOSE; FLEX,PTO
PTO ZF TRANS RR<BDM> (B) L=230 		1-09363-784-0 01 1 0407-0409
48 HOSE; FLEX,PTO
PTO ZF TRANS RR<BDM> (B) L=250 		1-09363-618-0 01 1 0410-
169 BOLT; EYE
PTO ZF TRANS RR<BDM> M12X24 EYE-BOLT 		1-09675-229-0 01 1 0407-0407
182 CONNECTOR; FLARE
PTO ZF TRANS RR<BDM> M12 & PT1/4 ELBOW THA 		1-09650-430-0 01 1 0409-
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR<BDM> ID=12.2 		1-09630-084-0 01 1 0409-
313 ADAPTER
PTO ZF TRANS RR<BDM> 		1-09654-396-0 01 1 0409-
