0-40B — FUEL INJECTION SYSTEM (#2404) — 124 parça

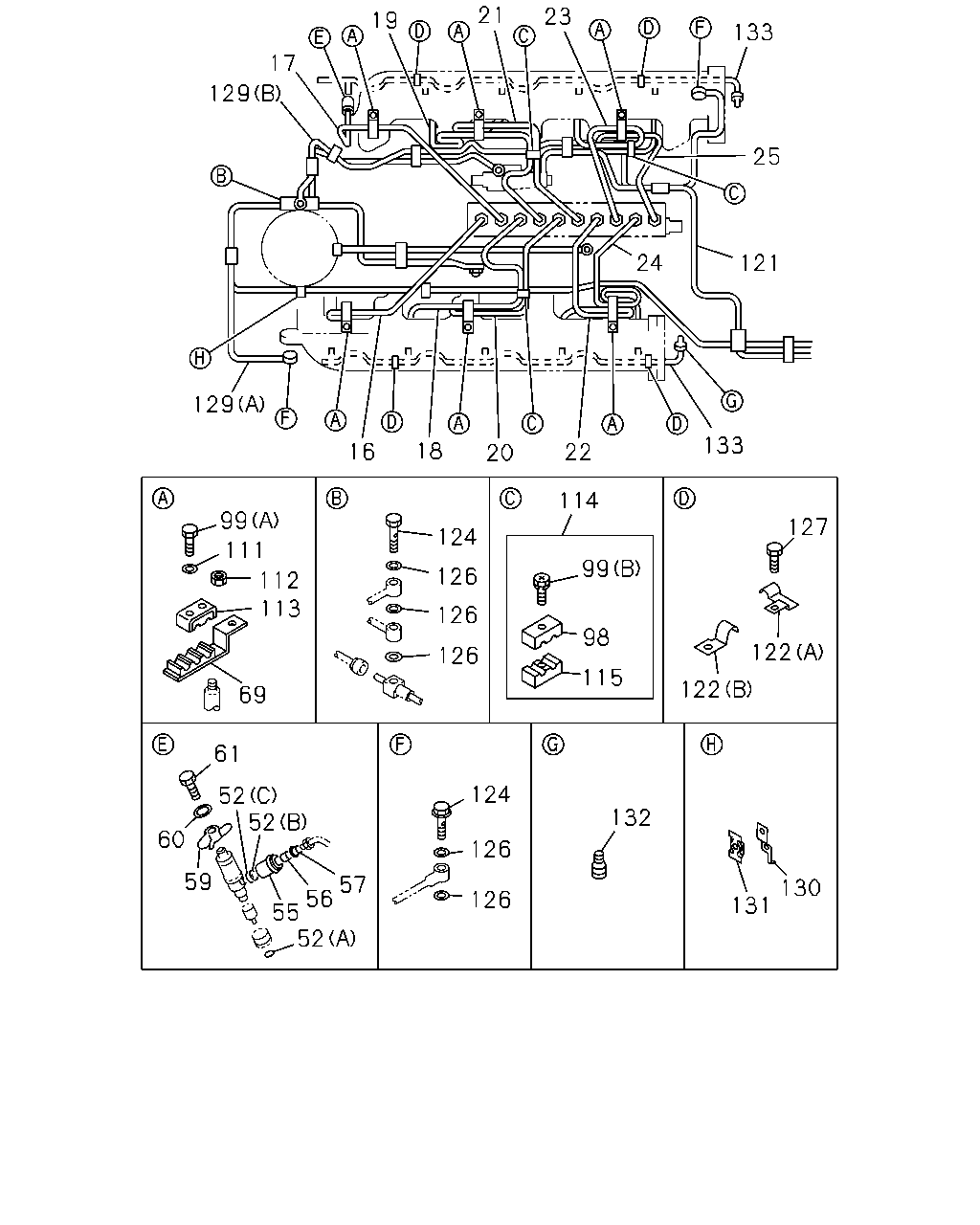

21 23 19 133 17 129 25 24 121 129 133 18 16 22 20 114 99 127 124 111 99 126 112 113 126 98 122 126 115 122 69 61 124 52 52 132 60 126 59 57 56 55 52 130 126 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PIPE; INJ NO.1	1-15414-631-0	01	1	9002-9410
16	PIPE; INJ NO.1 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-631-0	01	1	9411-
16	PIPE; INJ NO.1 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-058-0	01	1	9411-
17	PIPE; INJ NO.2	1-15414-632-0	01	1	9002-9410
17	PIPE; INJ NO.2 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-632-0	01	1	9411-
17	PIPE; INJ NO.2 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-059-0	01	1	9411-
18	PIPE; INJ NO.3	1-15414-633-0	01	1	9002-9410
18	PIPE; INJ NO.3 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-633-0	01	1	9411-
18	PIPE; INJ NO.3 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-060-1	01	1	9411-
19	PIPE; INJ NO.4	1-15414-634-0	01	1	9002-9410
19	PIPE; INJ NO.4 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-634-0	01	1	9411-
19	PIPE; INJ NO.4 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-061-1	01	1	9411-
20	PIPE; INJ NO.5	1-15414-635-0	01	1	9002-9410
20	PIPE; INJ NO.5 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-635-0	01	1	9411-
20	PIPE; INJ NO.5 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-062-1	01	1	9411-
21	PIPE; INJ NO.6	1-15414-636-0	01	1	9002-9410
21	PIPE; INJ NO.6 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-636-0	01	1	9411-
21	PIPE; INJ NO.6 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-063-1	01	1	9411-
22	PIPE; INJ NO.7	1-15414-637-0	01	1	9002-9410
22	PIPE; INJ NO.7 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-637-0	01	1	9411-
22	PIPE; INJ NO.7 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-869-0	01	1	9411-
23	PIPE; INJ NO.8	1-15414-638-0	01	1	9002-9410
23	PIPE; INJ NO.8 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-638-0	01	1	9411-
23	PIPE; INJ NO.8 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-065-1	01	1	9411-
24	PIPE; INJ NO.9	1-15414-639-0	01	1	9002-9410
24	PIPE; INJ NO.9 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-639-0	01	1	9411-
24	PIPE; INJ NO.9 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-066-0	01	1	9411-
25	PIPE; INJ NO.10	1-15414-640-0	01	1	9002-9410
25	PIPE; INJ NO.10 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-640-0	01	1	9411-
25	PIPE; INJ NO.10 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-067-1	01	1	9411-
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	9002-
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	10	1	9002-
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	10	1	9002-
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	9002-
56	COVER	1-15419-028-0	10	1	9002-
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	9002-
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	9002-
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	9002-
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	9002-
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	06	1	9002-
98	CLIP; "A",INJ PIPE	9-15419-613-0	03	1	9002-
99	BOLT; CLIP,INJ,PIPE (B) M5X20	9-09802-539-0	03	1	9002-
99	BOLT; CLIP,INJ,PIPE (A) M5X20	9-92050-520-0	08	1	9002-9005
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	08	1	9006-9306
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	06	1	9307-
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	08	1	9002-9306
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9307-
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	06	1	9002-
113	CLIP; INJ PIPE	1-15419-036-1	06	1	9002-
114	CLIP; INJ PIPE	9-15419-612-0	03	1	9307-
115	CLIP; "B",INJ PIPE	9-15419-614-0	03	1	9002-
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-551-1	01	1	9002-
122	CLIP; LEAK OFF PIPE (A) L=19	1-09709-104-0	04	1	9002-
122	CLIP; LEAK OFF PIPE (B) L=22	1-09709-156-0	02	1	9002-
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	02	1	9002-
124	BOLT; EYE LEAK OFF PIPE M8X30 FLANGE	1-09675-039-1	01	1	9002-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9002-
127	BOLT; CLIP LEAK OFF PIPE M8X18	0-28020-818-0	06	1	9002-9005
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9006-
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-074-1	01	1	9002-
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-075-1	01	1	9002-
130	BRACKET; OVERFLOW TO LEAK OFF	1-15419-189-0	01	1	9002-
131	CLIP; OVERFLOW LEAK OFF ID=10 & 6 L=20	1-09700-404-0	01	1	9002-
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	9002-
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	9002-

31 31 32 32 37 38 40 37 39 38 143 39 44 45 44 140 47 45 140 138 141 46 46 33 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NOZZLE ASM; INJ (A)	1-15300-231-1	10	1	9002-9504
31	NOZZLE ASM; INJ EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-15300-231-1	10	1	9505-
31	NOZZLE ASM; INJ EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	1-15300-204-1	10	1	9505-
32	HOLDER ASM; NOZZLE (A)	1-15330-048-1	10	1	9002-9504
32	HOLDER ASM; NOZZLE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-15330-048-1	10	1	9505-
32	HOLDER ASM; NOZZLE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	1-15330-089-1	10	1	9505-
33	NOZZLE; INJ (A)	1-15311-159-1	10	1	9002-9504
33	NOZZLE; INJ EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-15311-159-1	10	1	9505-
33	NOZZLE; INJ EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	1-15311-180-0	10	1	9505-
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	10	1	9002-
37	NUT; CAP,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	1-15334-015-0	10	1	9505-
37	NUT; CAP,NOZZLE HOLDER (A)	1-15334-016-0	10	1	9002-9504
37	NUT; CAP,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-15334-016-0	10	1	9505-
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	5-15339-060-0	10	1	9002-9504
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	5-15339-060-0	10	1	9505-
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	9-15339-056-0	10	1	9505-
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER (A)	1-15345-005-0	10	1	9002-9504
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-15345-005-0	10	1	9505-
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	1-15345-004-0	10	1	9505-
40	NUT; ADJ SCREW,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15332-011-0	10	1	9505-
44	SPRING; NOZZLE,NOZZLE HOLDER (A)	5-15343-005-0	10	1	9002-9504
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	5-15343-005-0	10	1	9505-
44	SPRING; NOZZLE,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	8-94246-531-0	10	1	9505-
45	ROD; PUSH,NOZZLE HOLDER (A)	8-94169-502-0	10	1	9002-9504
45	ROD; PUSH,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	8-94169-502-0	10	1	9505-
45	ROD; PUSH,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	1-15341-004-0	10	1	9505-
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	20	1	9002-
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15339-015-0	10	1	9505-
138	SPRING; NOZZLE LWR,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15343-001-0	10	1	9505-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.50	5-15339-007-0	AR	1	9505-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.60	5-15339-008-0	AR	1	9505-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.70	5-15339-009-0	AR	1	9505-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.80	5-15339-010-0	AR	1	9505-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.90	5-15339-011-0	AR	1	9505-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=1.00	5-15339-012-0	AR	1	9505-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.52	5-15339-018-0	AR	1	9505-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.54	5-15339-019-0	AR	1	9505-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.56	5-15339-020-0	AR	1	9505-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.58	5-15339-021-0	AR	1	9505-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.10	8-94128-982-0	AR	1	9505-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.20	8-94128-983-0	AR	1	9505-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.30	8-94128-984-0	AR	1	9505-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.40	8-94128-985-0	AR	1	9505-
141	ROD; PUSH,UPR,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15341-005-0	10	1	9505-
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15345-003-0	10	1	9505-

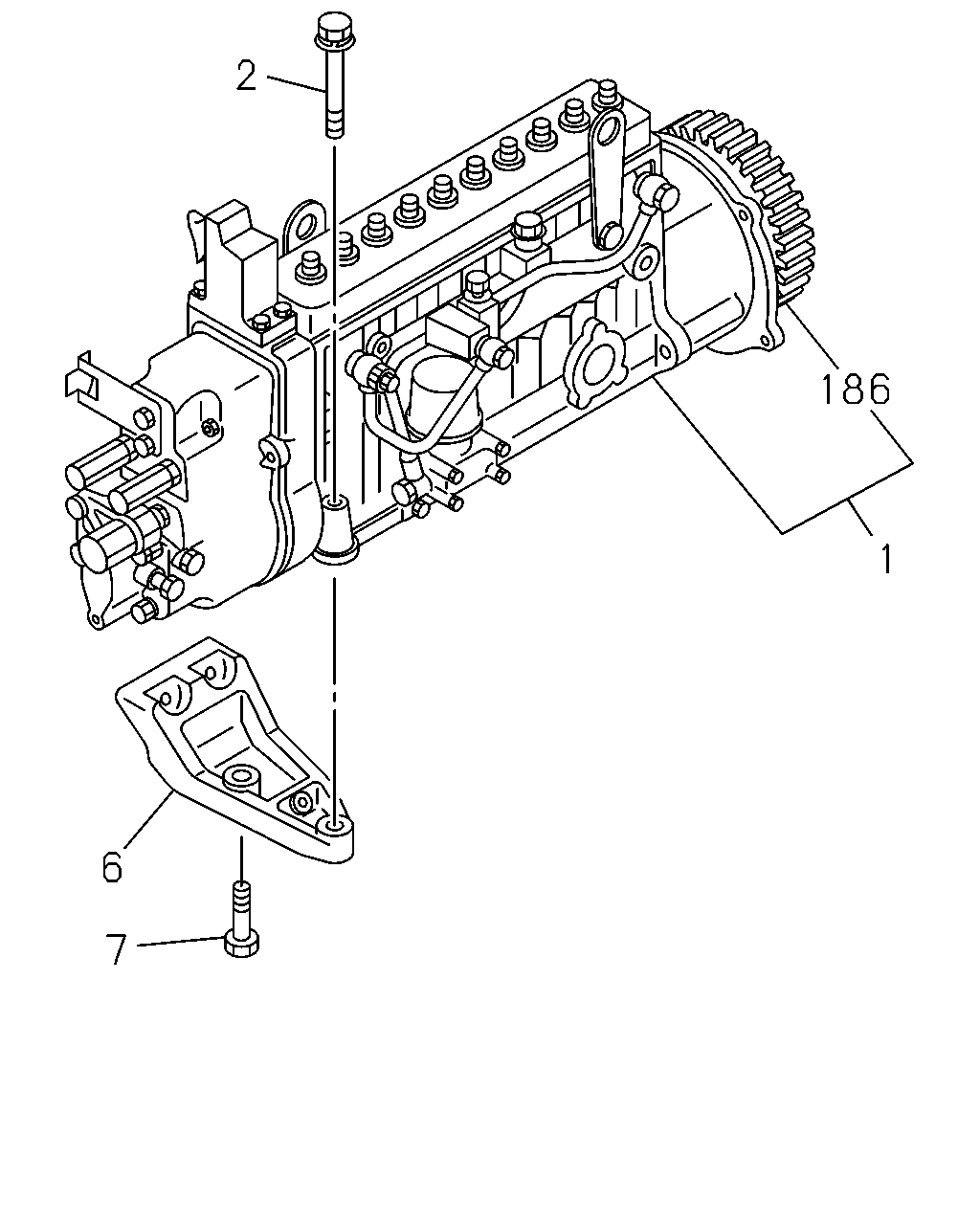

2 186 1 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUTO ENG SHUTOFF(KB6)	1-15602-922-0	01	1	9307-9410
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUTO ENG SHUTOFF(KB6) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15602-993-1	01	1	9411-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AUTO ENG SHUTOFF(KB6),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15602-434-7	01	1	9002-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15603-021-3	01	1	9411-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15602-599-2	01	1	9002-
2	BOLT; INJ PUMP	8-94399-730-1	04	1	9002-9101
2	BOLT; INJ PUMP M10X80 FLANGE	0-28181-080-0	04	1	9102-
6	BRACKET; INJ PUMP TO C/BL	1-19751-051-0	01	1	9002-
7	BOLT; INJ PUMP BRKT M10X40	0-28021-040-0	01	1	9002-9110
7	BOLT; INJ PUMP BRKT M10X40 FLANGE	0-28181-040-0	01	1	9111-
7	BOLT; INJ PUMP BRKT M10X22	0-28121-022-0	01	1	9002-9002
7	BOLT; INJ PUMP BRKT M10X22 FLANGE	0-28181-022-0	01	1	9003-
7	BOLT; INJ PUMP BRKT M10X95 FLANGE	8-94397-027-1	02	1	9002-
186	GEAR; INJ PUMP	1-12524-034-0	01	1	9307-
