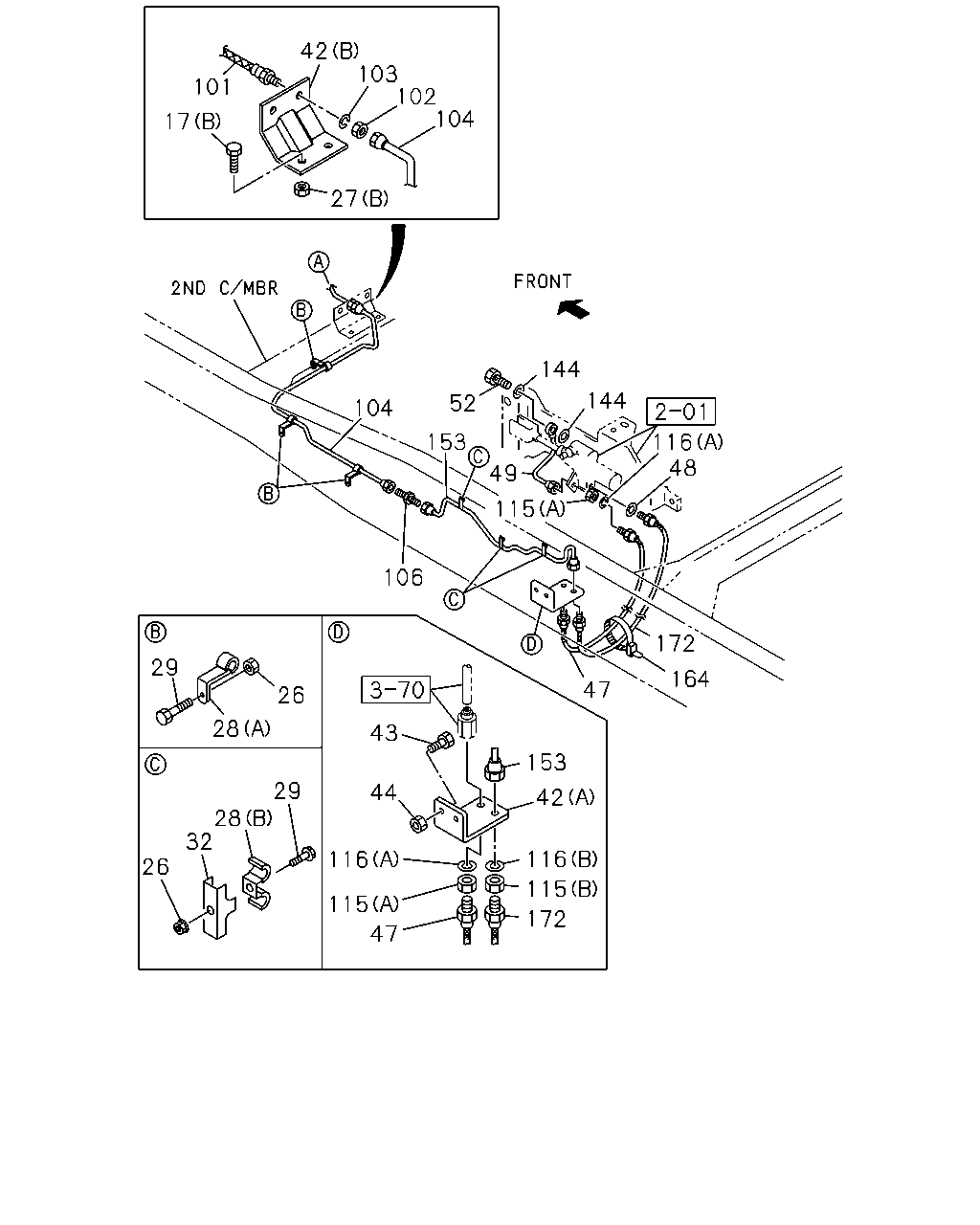

17 |
BOLT; BRKT
(A)
M6X19.5 W/LK&PL WASHER
THA
|
8-94279-201-0 |
02 |
1 |
0407- |
| |
17 |
BOLT; BRKT
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0407-0611 |
| |
17 |
BOLT; BRKT
(B)
M8X25 FLANGE
THA
|
0-28650-825-0 |
02 |
1 |
0612- |
| |
26 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0407- |
| |
26 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0407- |
| |
27 |
NUT; BRKT
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0407- |
| |
27 |
NUT; BRKT
(A)
M6 FLANGE W/RUBBER
|
1-09984-180-0 |
02 |
1 |
0407- |
| |
28 |
CLIP; OIL PIPE
(A)
ID=8 H=20 L=20
THA
|
1-09700-604-0 |
03 |
1 |
0407- |
| |
28 |
CLIP; OIL PIPE
(B)
ID=7 & 9 L=17.5 & 17.5
THA
|
1-09700-746-0 |
03 |
1 |
0407- |
| |
29 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0407-0611 |
| |
29 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
THA
|
0-28650-825-0 |
01 |
1 |
0612- |
| |
29 |
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0407-0611 |
| |
29 |
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
THA
|
0-28650-830-0 |
02 |
1 |
0612- |
| |
32 |
BRACKET; CLIP OIL PIPE
|
1-47475-427-1 |
02 |
1 |
0407- |
| |
42 |
BRACKET; FLEX HOSE,CLU CONT
(B)
THA
|
1-47476-781-0 |
01 |
1 |
0407- |
| |
42 |
BRACKET; FLEX HOSE,CLU CONT
(A)
|
1-47477-944-0 |
01 |
1 |
0407- |
| |
43 |
BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE
|
0-28680-835-0 |
02 |
1 |
0407-0611 |
| |
43 |
BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE
THA
|
0-28650-835-0 |
02 |
1 |
0612- |
| |
44 |
NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0407- |
| |
47 |
HOSE; FLEX,CLU CONT
L=520
|
1-09363-657-0 |
01 |
1 |
0407- |
| |
48 |
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
THA
|
9-09571-410-0 |
01 |
1 |
0407- |
| |
49 |
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
|
1-49113-615-0 |
01 |
1 |
0407- |
| |
52 |
BOLT; EYE,AIR PIPE
M14X27 FLANGE
|
1-09675-086-0 |
01 |
1 |
0407- |
| |

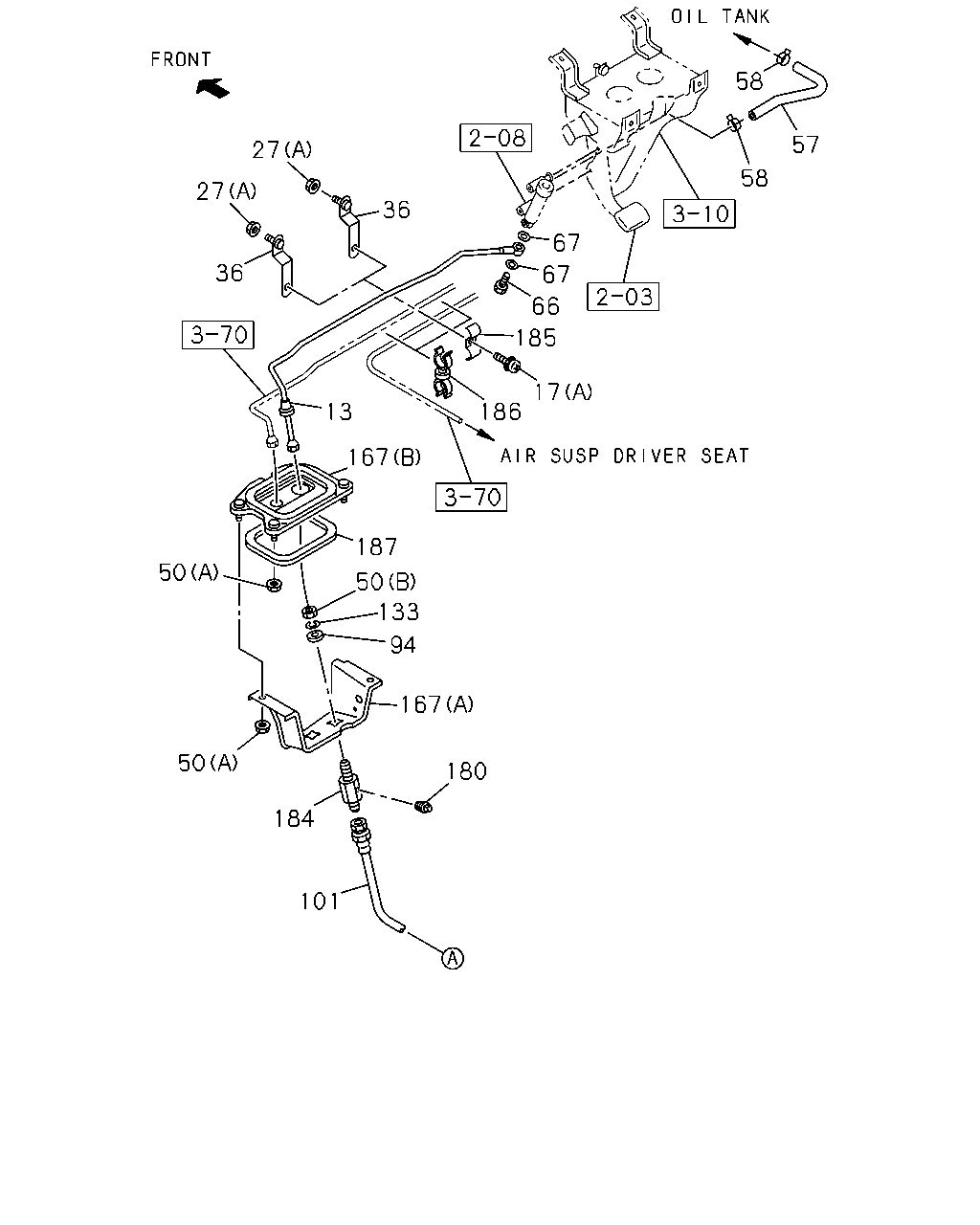

101 |
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430
|
1-09364-859-1 |
01 |
1 |
0407-0703 |
| |
101 |
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430
|
8-98072-326-0 |
01 |
1 |
0704- |
| |
102 |
NUT; FLEX HOSE,CLU CONT
M14
|
9-99111-414-0 |
01 |
1 |
0407-0512 |
| |
102 |
NUT; FLEX HOSE,CLU CONT
M14
|
0-91111-514-0 |
01 |
1 |
0601- |
| |
103 |
WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2
|
9-09150-514-0 |
01 |
1 |
0407-0603 |
| |
103 |
WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2
|
0-91510-514-0 |
01 |
1 |
0604- |
| |
104 |
PIPE; OIL,FLEX HOSE TO CONNECTOR
THA
|
8-97917-648-0 |
01 |
1 |
0407- |
| |
106 |
UNION; OIL PIPE
M14 STRAIGHT
|
9-09223-008-1 |
01 |
1 |
0407-0607 |
| |
106 |
UNION; OIL PIPE
M14 STRAIGHT
|
0-92113-008-0 |
01 |
1 |
0608- |
| |
115 |
NUT; FLEX HOSE,CLU CONT
(A)
M12
|
9-09840-280-0 |
02 |
1 |
0407- |
| |
115 |
NUT; FLEX HOSE,CLU CONT
(B)
M14
|
9-99111-414-0 |
01 |
1 |
0407-0512 |
| |
115 |
NUT; FLEX HOSE,CLU CONT
(B)
M14
|
0-91111-514-0 |
01 |
1 |
0601- |
| |
116 |
WASHER; FLEX HOSE,CLU CONT
(A)
ID=12.2
|
9-09150-512-0 |
02 |
1 |
0407-0603 |
| |
116 |
WASHER; FLEX HOSE,CLU CONT
(A)
ID=12.2
|
0-91510-512-0 |
02 |
1 |
0604- |
| |
116 |
WASHER; FLEX HOSE,CLU CONT
(B)
ID=14.2
|
9-09150-514-0 |
01 |
1 |
0407-0603 |
| |
116 |
WASHER; FLEX HOSE,CLU CONT
(B)
ID=14.2
|
0-91510-514-0 |
01 |
1 |
0604- |
| |
144 |
GASKET; AIR PIPE
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
0407- |
| |
153 |
PIPE ASM; CLU,UNION TO FLEX
THA
|
8-97922-172-0 |
01 |
1 |
0407- |
| |
164 |
CLIP; BAND,FLEX HOSE
L=140
|
5-09707-031-1 |
01 |
1 |
0407- |
| |
172 |
HOSE; FLEX,CLU BOOSTER
L=430
|
1-09364-725-0 |
01 |
1 |
0407- |
