Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10945 - GXZ(THAI)EURO2
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#24032) — 58 parça
◀

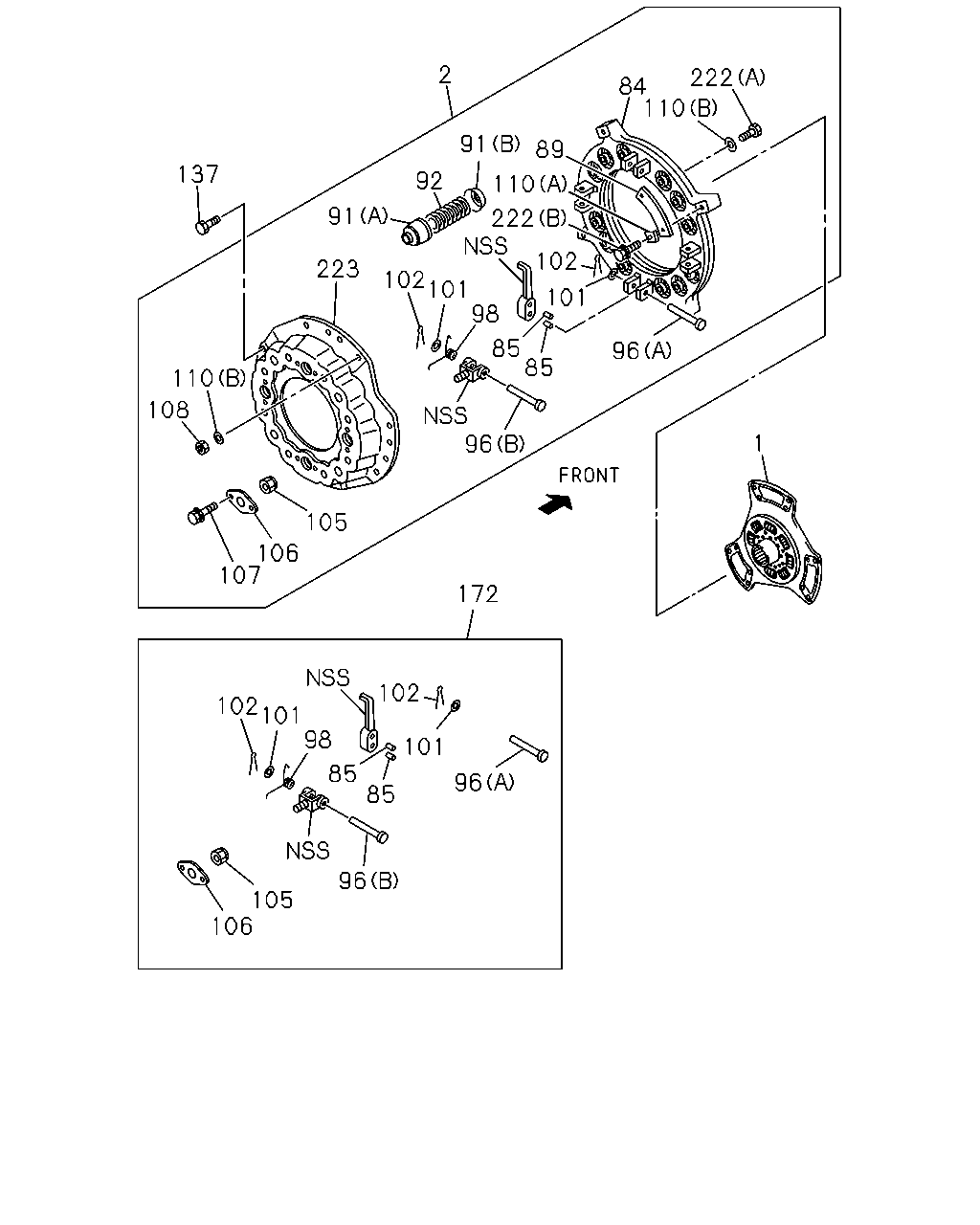

[201A] DISC AND PLATE (29 parça)
[201A] BOOSTER FIXING (29 parça)
▶
2
222
84
110
91
89
137
92
110
91
222
102
223
102
101
98
101
85
85
96
110
108
96
1
105
106
107
172
102
102
101
98
101
85
85
96
96
105
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
6SD1 TCN ENG<31L> 15"
1-31240-735-2
01
1
0407-
1
DISC; CLUTCH
6SD1 TCS ENG<83L> 15"
1-31240-893-0
01
1
0407-
2
PLATE ASM; PRESSURE,CLU
6SD1 TCN ENG<31L>
1-31220-380-2
01
1
0407-
2
PLATE ASM; PRESSURE,CLU
6SD1 TCS ENG<83L>
1-31220-344-2
01
1
0407-
84
PLATE; PRESSURE
6SD1 TCN ENG<31L> 15"
1-31221-100-0
01
1
0407-
84
PLATE; PRESSURE
6SD1 TCS ENG<83L>
1-31221-127-0
01
1
0407-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
0407-
89
PLATE; STRAP
1-31229-050-0
16
1
0407-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
0407-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
0407-
92
SPRING; CLU
6SD1 TCN ENG<31L>
1-31214-053-0
12
1
0407-
92
SPRING; CLU
6SD1 TCS ENG<83L>
1-31214-074-0
12
1
0407-
96
PIN; RELEASE LEVER
(B) L=49.0
1-31232-005-0
04
1
0407-
96
PIN; RELEASE LEVER
(A) L=57.0
1-31232-014-0
04
1
0407-
98
SPRING; RETURN
1-31233-003-0
04
1
0407-
101
WASHER; RELEASE LEVER
1-31239-058-0
08
1
0407-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08103-022-0
08
1
0407-
105
NUT; SUPPORT
1-31235-014-0
04
1
0407-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
0407-
107
BOLT; LK PLATE
1-31239-061-0
08
1
0407-
108
NUT; STRAP
1-09449-036-0
04
1
0407-
110
WASHER; SPECIAL,STRAP
(A) T=1.2
1-31229-009-0
04
1
0407-
110
WASHER; SPECIAL,STRAP
(B) T=3.2
8-97374-512-0
08
1
0407-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28181-020-0
12
1
0407-0512
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
0601-
172
LEVER KIT; RELEASE,CLU
1-87831-172-1
01
1
0407-
222
BOLT; STRAP
(B) M10X23.2
1-09040-042-0
04
1
0407-
222
BOLT; STRAP
(A) M10X26 HEX SOCKET
1-09040-043-0
04
1
0407-
223
COVER; CLU
1-31211-019-1
01
1
0407-
170
155
155
220
155
157
170
157
148
122
157
154
149
164
166
128
128
123
116
125
118
122
120
119
130
57
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
FORK; SHIFT,CLU
1-31341-036-0
01
1
0407-
116
BLOCK; SHIFT,CLU
1-31321-086-0
01
1
0407-
118
BEARING; CLU RELEASE
1-09820-117-0
01
1
0407-
119
SPRING; SHIFT FORK
1-31329-014-0
01
1
0407-
119
SPRING; SHIFT FORK
1-31329-015-0
01
1
0407-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=360
1-09364-881-0
01
1
0407-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 L=23
1-09660-710-0
01
1
0407-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW
9-09031-210-0
01
1
0407-0512
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW
0-90301-610-0
01
1
0601-
123
CLIP; FLEX HOSE,SHIFT BLOCK
8-97010-484-0
01
1
0407-
125
SHAFT; CLU
1-31342-276-1
01
1
0407-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
0407-
130
SCREW; SHIFT FORK
9-06120-816-0
01
1
0407-
131
WASHER; LK,SHIFT FORK
ID=8.2
9-09150-508-0
01
1
0407-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
0407-
149
EYE; SPRING,RETURN SPRING
1-31426-041-0
01
1
0407-
154
PIN; JAW JOINT
1-31424-009-0
01
1
0407-
155
BRACKET; MINIPACK
(C)
1-31429-289-1
01
1
0407-
155
BRACKET; MINIPACK
(A)
1-31429-354-0
01
1
0407-
155
BRACKET; MINIPACK
(B)
1-31429-355-0
01
1
0407-
157
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
01
1
0407-
157
BOLT; BRKT
M10X25 FLANGE
0-28181-025-0
03
1
0407-0512
157
BOLT; BRKT
M10X25 FLANGE THA
0-28151-025-0
03
1
0601-
157
BOLT; BRKT
M12X20 FLANGE
0-28181-220-0
03
1
0407-0512
157
BOLT; BRKT
M12X20 FLANGE
0-28151-220-0
03
1
0601-
164
EYE; SPRING
1-31426-050-0
01
1
0407-
166
NUT; SPRING EYE
M10 FLANGE
0-91150-210-0
01
1
0407-
170
NUT; BOOSTER FIX
M10 FLANGE
0-91150-210-0
03
1
0407-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-387-3
01
1
0407-
