0-40A — FUEL INJECTION SYSTEM (#2403) — 257 parça

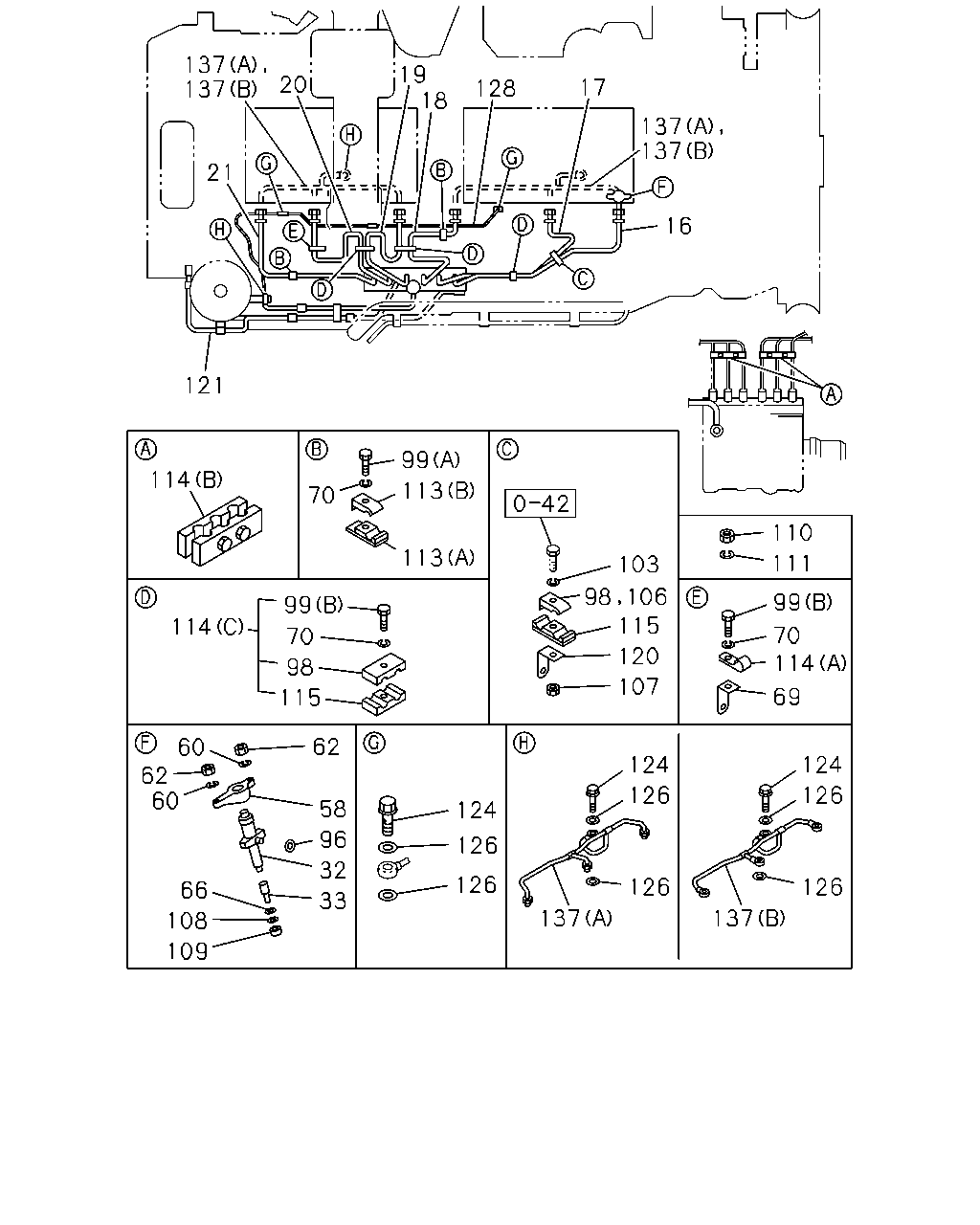

137 137 19 18 20 17 128 137 137 21 16 121 99 114 113 70 110 113 111 103 115 99 99 114 70 114 70 120 98 107 69 115 62 60 124 124 62 60 126 126 58 124 96 126 32 126 126 126 66 33 137 137 108 109 98 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	PIPE; INJ NO.1	1-15413-041-0	01	1	9002-9401	●	●	●
16	PIPE; INJ NO.1	1-15413-041-0	01	1	9402-	●
16	PIPE; INJ NO.1 EXH HEAT WARNING<W50>	1-15413-041-0	01	1	9402-			●
16	PIPE; INJ NO.1 EXC. EXH HEAT WARNING<W50>	1-15415-733-1	01	1	9402-			●
17	PIPE; INJ NO.2	1-15413-042-0	01	1	9002-9401	●	●	●
17	PIPE; INJ NO.2	1-15413-042-0	01	1	9402-	●
17	PIPE; INJ NO.2 EXH HEAT WARNING<W50>	1-15413-042-0	01	1	9402-			●
17	PIPE; INJ NO.2 EXC. EXH HEAT WARNING<W50>	1-15415-734-2	01	1	9402-			●
18	PIPE; INJ NO.3	1-15413-043-0	01	1	9002-9401	●	●	●
18	PIPE; INJ NO.3	1-15413-043-0	01	1	9402-	●
18	PIPE; INJ NO.3 EXH HEAT WARNING<W50>	1-15413-043-0	01	1	9402-			●
18	PIPE; INJ NO.3 EXC. EXH HEAT WARNING<W50>	1-15415-735-0	01	1	9402-			●
19	PIPE; INJ NO.4	1-15413-044-0	01	1	9002-9401	●	●	●
19	PIPE; INJ NO.4	1-15413-044-0	01	1	9402-	●
19	PIPE; INJ NO.4 EXH HEAT WARNING<W50>	1-15413-044-0	01	1	9402-			●
19	PIPE; INJ NO.4 EXC. EXH HEAT WARNING<W50>	1-15415-736-0	01	1	9402-			●
20	PIPE; INJ NO.5	1-15413-045-0	01	1	9002-9401	●	●	●
20	PIPE; INJ NO.5	1-15413-045-0	01	1	9402-	●
20	PIPE; INJ NO.5 EXH HEAT WARNING<W50>	1-15413-045-0	01	1	9402-			●
20	PIPE; INJ NO.5 EXC. EXH HEAT WARNING<W50>	1-15415-737-0	01	1	9402-			●
21	PIPE; INJ NO.6	1-15413-046-0	01	1	9002-9401	●	●	●
21	PIPE; INJ NO.6	1-15413-046-0	01	1	9402-	●
21	PIPE; INJ NO.6 EXH HEAT WARNING<W50>	1-15413-046-0	01	1	9402-			●
21	PIPE; INJ NO.6 EXC. EXH HEAT WARNING<W50>	1-15415-738-0	01	1	9402-			●
32	HOLDER ASM; NOZZLE	9-15330-085-3	06	1	9307-	●
32	HOLDER ASM; NOZZLE	1-15330-042-2	06	1	9307-9401		●	●
32	HOLDER ASM; NOZZLE EXH HEAT WARNING<W50>	1-15330-042-2	06	1	9402-			●
32	HOLDER ASM; NOZZLE EXC. EXH HEAT WARNING<W50>	1-15330-086-1	06	1	9402-			●
32	HOLDER ASM; NOZZLE	9-15330-085-2	06	1	9002-9306	●	●
32	HOLDER ASM; NOZZLE	1-15330-042-1	06	1	9012-9306			●
33	NOZZLE; INJ	1-15311-073-0	06	1	9307-	●
33	NOZZLE; INJ	1-15311-156-0	06	1	9307-9401		●	●
33	NOZZLE; INJ EXH HEAT WARNING<W50>	1-15311-156-0	06	1	9402-			●
33	NOZZLE; INJ EXC. EXH HEAT WARNING<W50>	1-15311-240-0	06	1	9402-			●
33	NOZZLE; INJ	1-15311-073-0	06	1	9002-9306	●	●
33	NOZZLE; INJ	1-15311-156-0	06	1	9012-9306			●
58	FLANGE; INJ,NOZZLE HOLDER	9-15337-017-0	06	1	9002-	●	●	●
60	WASHER; NOZZLE HOLDER ID=10	1-09503-033-1	06	1	9002-	●	●	●
60	WASHER; NOZZLE HOLDER ID=8.4 OD=16	1-09503-039-0	06	1	9002-	●	●	●
62	NUT; NOZZLE HOLDER M8	9-09110-408-0	06	1	9002-	●	●	●
62	NUT; NOZZLE HOLDER M10	9-09110-510-0	06	1	9002-	●	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.8 OD=18	9-15315-075-0	06	1	9002-	●	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-103-0	02	1	9002-9404	●	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-103-0	01	1	9405-	●	●	●
70	WASHER; LK,BRKT ID=5.1	9-09150-505-0	05	1	9002-	●	●	●
96	GASKET; HOLDER TO SLEEVE NUT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EXH HEAT WARNING<W50>	1-09639-019-0	06	1	9402-			●
96	GASKET; HOLDER TO SLEEVE NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09639-019-0	06	1	9002-9401	●	●	●
96	GASKET; HOLDER TO SLEEVE NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09639-019-0	06	1	9402-	●
96	GASKET; HOLDER TO SLEEVE NUT ALSO INCLUDED IN GASKET SET(ENGINE). EXH HEAT WARNING<W50>	1-09639-019-0	06	1	9402-			●
98	CLIP; "A",INJ PIPE	9-15419-613-0	01	1	9002-		●	●
98	CLIP; "A",INJ PIPE	9-15419-613-0	05	1	9002-	●
99	BOLT; CLIP,INJ,PIPE (A) M5X10	9-92050-510-0	01	1	9002-9005	●	●
99	BOLT; CLIP,INJ,PIPE (A) M5X10	0-20800-510-0	01	1	9006-	●	●	●
99	BOLT; CLIP,INJ,PIPE (B) M5X20	9-09802-539-0	01	1	9002-		●	●
99	BOLT; CLIP,INJ,PIPE (B) M5X20	9-09802-539-0	05	1	9002-	●
103	WASHER; LK,CLIP,INJ PIPE ID=5.1	9-09150-505-0	01	1	9002-	●	●	●
106	CLIP; INJ PIPE	9-15419-613-0	06	1	9002-	●	●
107	NUT; INJ PIPE CLIP M5	9-99110-405-0	04	1	9002-	●	●	●
108	GASKET; SLEEVE NUT TO HD ALSO INCLUDED IN GASKET SET(ENGINE).	1-09639-018-0	06	1	9002-	●	●	●
109	NUT; GASKET M18.5	9-15419-105-0	06	1	9002-	●	●	●
110	NUT; CLIP	9-09110-510-0	02	1	9002-9306		●
111	WASHER; LK,CLIP ID=10.2	9-09150-510-0	02	1	9002-9306		●
113	CLIP; INJ PIPE (A)	1-09700-110-0	02	1	9002-	●	●	●
113	CLIP; INJ PIPE (B)	1-15419-102-0	02	1	9002-	●	●	●
114	CLIP; INJ PIPE (B) ID=6	1-15419-099-0	02	1	9002-	●	●	●
114	CLIP; INJ PIPE (A) ID=7 L=20	9-09524-632-0	01	1	9002-	●	●	●
114	CLIP; INJ PIPE (C)	9-15419-612-0	01	1	9307-		●	●
114	CLIP; INJ PIPE (C)	9-15419-612-0	05	1	9307-	●
115	CLIP; "B",INJ PIPE	9-15419-614-0	01	1	9002-		●	●
115	CLIP; "B",INJ PIPE	9-15419-614-0	05	1	9002-	●
120	BRACKET; INJ PIPE	1-15419-103-0	01	1	9002-	●		●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-092-0	01	1	9002-	●	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	05	1	9002-	●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	10	1	9002-	●	●	●
128	PIPE ASM; INJ	1-15413-297-2	01	1	9002-	●	●	●
137	PIPE ASM; LEAK OFF (A)	9-15413-003-1	02	1	9002-9401	●	●	●
137	PIPE ASM; LEAK OFF (A)	9-15413-003-1	02	1	9402-	●
137	PIPE ASM; LEAK OFF EXH HEAT WARNING<W50> (A)	9-15413-003-1	02	1	9402-			●
137	PIPE ASM; LEAK OFF EXC. EXH HEAT WARNING<W50> (B)	1-15414-803-0	02	1	9402-			●

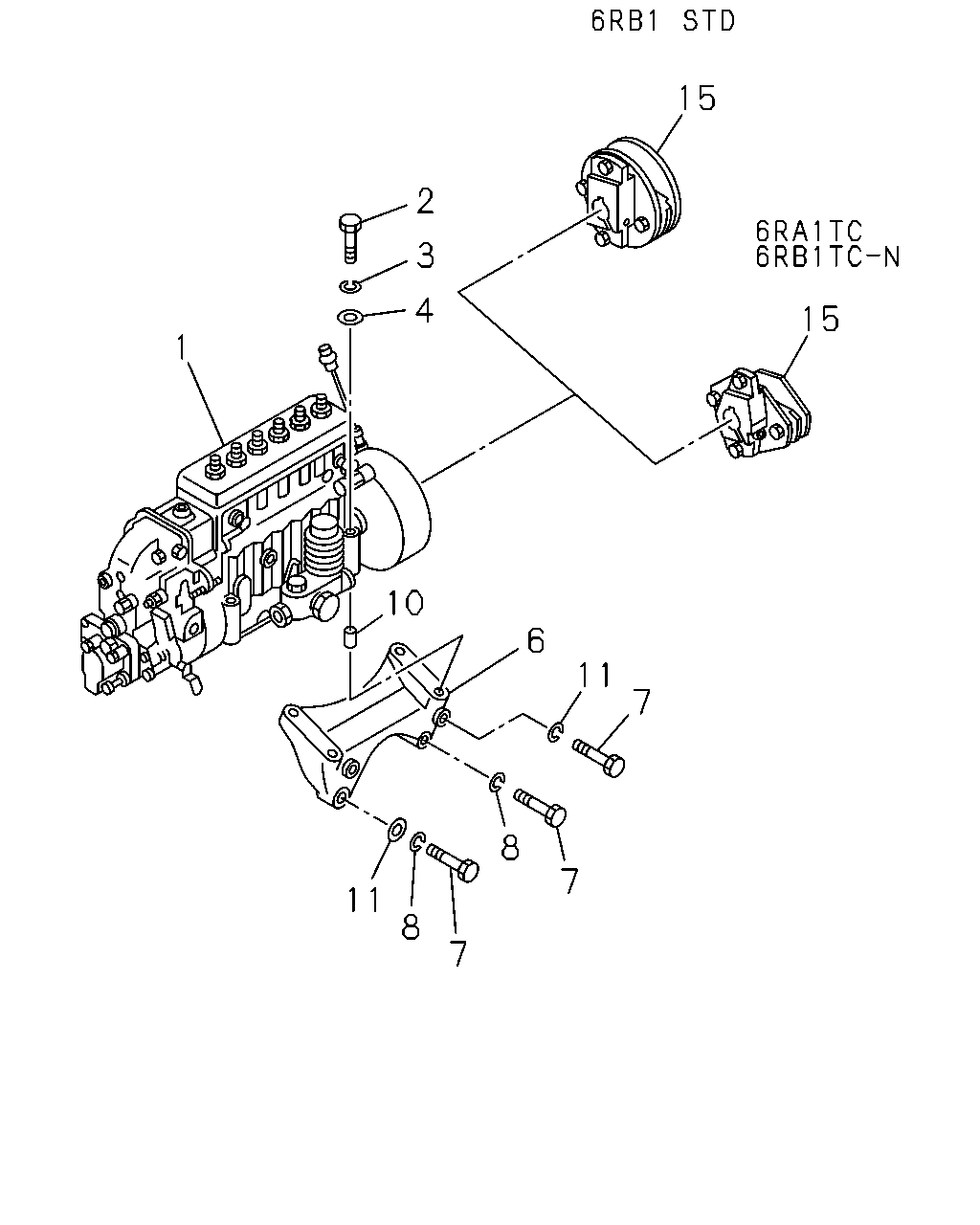

15 2 3 4 15 1 10 6 11 7 8 7 11 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15602-444-1	01	1	9002-9306		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15602-439-2	01	1	9002-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15602-438-2	01	1	9002-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15602-457-0	01	1	9012-9104			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HONG KONG EQUIPMENT(PQ1)	1-15602-457-1	01	1	9105-9306			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXH HEAT WARNING<W50>	1-15602-457-2	01	1	9307-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15602-949-1	01	1	9411-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1)	1-15602-734-2	01	1	9105-9306			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EXH HEAT WARNING<W50>	1-15602-734-3	01	1	9307-9401			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EXH HEAT WARNING<W50>	1-15602-950-1	01	1	9402-9410			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,EXH HEAT WARNING<W50>	1-15602-950-1	01	1	9411-			●
2	BOLT; INJ PUMP M10X90	9-01656-090-0	04	1	9002-9004	●	●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	9005-	●	●	●
3	WASHER; LK,INJ PUMP ID=10.2	9-09150-510-0	04	1	9002-	●	●	●
4	WASHER; INJ PUMP ID=10.5 OD=18	9-09160-510-0	04	1	9002-	●	●	●
6	BRACKET; INJ PUMP TO C/BL	9-19751-118-1	01	1	9002-	●	●	●
7	BOLT; INJ PUMP BRKT M10X80	9-01656-080-0	02	1	9002-9004	●	●
7	BOLT; INJ PUMP BRKT M10X80	0-16806-080-0	02	1	9005-	●	●	●
7	BOLT; INJ PUMP BRKT M10X40 W/LK WASHER	9-01931-040-0	01	1	9002-9002	●	●
7	BOLT; INJ PUMP BRKT M10X40 W/LK WASHER	0-50051-040-0	01	1	9003-	●	●	●
7	BOLT; INJ PUMP BRKT M14X55	9-91656-455-0	01	1	9002-9005	●	●
7	BOLT; INJ PUMP BRKT M14X55	0-16806-455-0	01	1	9006-	●	●	●
8	WASHER; LK,INJ PUMP BRKT ID=10.2	9-09150-510-0	02	1	9002-	●	●	●
8	WASHER; LK,INJ PUMP BRKT ID=14.2	9-09150-514-0	01	1	9002-	●	●	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9002-	●	●	●
11	WASHER; INJ PUMP BRKT ID=10.5 OD=18	9-09160-510-0	01	1	9002-	●	●	●
11	WASHER; INJ PUMP BRKT ID=15	9-09160-514-0	01	1	9002-	●	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-035-1	01	1	9002-		●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-020-2	01	1	9002-	●

31 32 34 36 36 140 138 37 45 38 39 40 143 46 44 33 141 35 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NOZZLE ASM; INJ EXC. EXH HEAT WARNING<W50>	1-15300-327-0	06	1	9402-			●
31	NOZZLE ASM; INJ	1-15300-041-2	06	1	9002-	●	●
31	NOZZLE ASM; INJ	1-15300-159-1	06	1	9012-9401			●
31	NOZZLE ASM; INJ EXH HEAT WARNING<W50>	1-15300-159-1	06	1	9402-			●
32	HOLDER ASM; NOZZLE	9-15330-085-3	06	1	9307-	●
32	HOLDER ASM; NOZZLE	1-15330-042-2	06	1	9307-9401		●	●
32	HOLDER ASM; NOZZLE EXH HEAT WARNING<W50>	1-15330-042-2	06	1	9402-			●
32	HOLDER ASM; NOZZLE EXC. EXH HEAT WARNING<W50>	1-15330-086-1	06	1	9402-			●
32	HOLDER ASM; NOZZLE	9-15330-085-2	06	1	9002-9306	●	●
32	HOLDER ASM; NOZZLE	1-15330-042-1	06	1	9012-9306			●
33	NOZZLE; INJ	1-15311-073-0	06	1	9307-	●
33	NOZZLE; INJ	1-15311-156-0	06	1	9307-9401		●	●
33	NOZZLE; INJ EXH HEAT WARNING<W50>	1-15311-156-0	06	1	9402-			●
33	NOZZLE; INJ EXC. EXH HEAT WARNING<W50>	1-15311-240-0	06	1	9402-			●
33	NOZZLE; INJ	1-15311-073-0	06	1	9002-9306	●	●
33	NOZZLE; INJ	1-15311-156-0	06	1	9012-9306			●
34	BOLT; EYE,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	1-15339-009-0	06	1	9402-			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-019-0	06	1	9307-9401	●	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-019-0	06	1	9402-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXH HEAT WARNING<W50>	1-15332-019-0	06	1	9402-			●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	1-15332-019-0	06	1	9402-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-15339-056-0	12	1	9307-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EXH HEAT WARNING<W50>	1-15339-010-0	12	1	9402-			●
37	NUT; CAP,NOZZLE HOLDER (D)	1-15332-002-0	06	1	9307-	●
37	NUT; CAP,NOZZLE HOLDER (A)	1-15334-001-1	06	1	9307-	●
37	NUT; CAP,NOZZLE HOLDER (B)	1-15334-011-0	06	1	9307-9401		●	●
37	NUT; CAP,NOZZLE HOLDER EXH HEAT WARNING<W50> (B)	1-15334-011-0	06	1	9402-			●
37	NUT; CAP,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> (C)	1-15334-010-0	06	1	9402-			●
37	NUT; CAP,NOZZLE HOLDER (A)	1-15334-001-0	06	1	9002-9306	●	●
37	NUT; CAP,NOZZLE HOLDER (B)	1-15334-011-0	06	1	9012-9306			●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9307-9401		●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXH HEAT WARNING<W50>	5-15339-060-0	06	1	9402-			●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EXH HEAT WARNING<W50>	9-15339-056-0	06	1	9402-			●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	06	1	9002-9306	●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9012-9306			●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	9-15343-011-0	06	1	9307-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	5-15345-005-0	06	1	9307-9401		●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXH HEAT WARNING<W50>	5-15345-005-0	06	1	9402-			●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	1-15345-004-0	06	1	9402-			●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	9-15343-011-0	06	1	9002-9306	●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	5-15345-005-0	06	1	9012-9306			●
40	NUT; ADJ SCREW,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	1-15332-011-0	06	1	9402-			●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	8-94246-531-0	06	1	9402-			●
44	SPRING; NOZZLE,NOZZLE HOLDER	9-15343-013-0	06	1	9002-9306	●	●
45	ROD; PUSH,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	1-15341-004-0	06	1	9402-			●
45	ROD; PUSH,NOZZLE HOLDER	9-15341-008-0	06	1	9002-9306	●	●
45	ROD; PUSH,NOZZLE HOLDER	5-15341-003-0	06	1	9012-9306			●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9307-9401	●	●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9402-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER EXH HEAT WARNING<W50>	9-15347-003-0	12	1	9402-			●
46	PIN; NOZZLE SET,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	9-15347-003-0	12	1	9402-			●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	9-15343-013-0	06	1	9307-	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	5-15343-005-0	06	1	9307-9401		●	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER EXH HEAT WARNING<W50>	5-15343-005-0	06	1	9402-			●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	1-15343-001-0	06	1	9402-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.50	5-15339-007-0	AR	1	9402-9504			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.50	5-15339-007-0	AR	1	9505-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.60	5-15339-008-0	AR	1	9402-9504			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.60	5-15339-008-0	AR	1	9505-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.70	5-15339-009-0	AR	1	9402-9504			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.70	5-15339-009-0	AR	1	9505-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.80	5-15339-010-0	AR	1	9402-9504			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.80	5-15339-010-0	AR	1	9505-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.90	5-15339-011-0	AR	1	9402-9504			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.90	5-15339-011-0	AR	1	9505-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=1.00	5-15339-012-0	AR	1	9402-9504			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=1.00	5-15339-012-0	AR	1	9505-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.52	5-15339-018-0	AR	1	9402-9504			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.52	5-15339-018-0	AR	1	9505-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.54	5-15339-019-0	AR	1	9402-9504			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.54	5-15339-019-0	AR	1	9505-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.56	5-15339-020-0	AR	1	9402-9504			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.56	5-15339-020-0	AR	1	9505-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.58	5-15339-021-0	AR	1	9402-9504			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.58	5-15339-021-0	AR	1	9505-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.10	8-94128-982-0	AR	1	9402-9504			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.10	8-94128-982-0	AR	1	9505-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.20	8-94128-983-0	AR	1	9402-9504			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.20	8-94128-983-0	AR	1	9505-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.30	8-94128-984-0	AR	1	9402-9504			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.30	8-94128-984-0	AR	1	9505-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.40	8-94128-985-0	AR	1	9402-9504			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> T=0.40	8-94128-985-0	AR	1	9505-			●
141	ROD; PUSH,UPR,NOZZLE HOLDER	9-15341-008-0	06	1	9307-	●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-003-0	06	1	9307-9401		●	●
141	ROD; PUSH,UPR,NOZZLE HOLDER EXH HEAT WARNING<W50>	1-15341-003-0	06	1	9402-			●
141	ROD; PUSH,UPR,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	1-15341-006-0	06	1	9402-			●
142	SPACER; PUSH ROD EXC. EXH HEAT WARNING<W50>	1-15339-093-0	06	1	9402-			●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	1-15345-003-0	06	1	9402-			●

31 31 37 36 38 37 32 38 36 38 32 39 39 138 139 45 141 138 44 45 46 33 46 33 35 35 37 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NOZZLE ASM; INJ EXC. EXH HEAT WARNING<W50>	1-15300-327-0	06	1	9402-			●
31	NOZZLE ASM; INJ	1-15300-041-2	06	1	9002-	●	●
31	NOZZLE ASM; INJ	1-15300-159-1	06	1	9012-9401			●
31	NOZZLE ASM; INJ EXH HEAT WARNING<W50>	1-15300-159-1	06	1	9402-			●
32	HOLDER ASM; NOZZLE	9-15330-085-3	06	1	9307-	●
32	HOLDER ASM; NOZZLE	1-15330-042-2	06	1	9307-9401		●	●
32	HOLDER ASM; NOZZLE EXH HEAT WARNING<W50>	1-15330-042-2	06	1	9402-			●
32	HOLDER ASM; NOZZLE EXC. EXH HEAT WARNING<W50>	1-15330-086-1	06	1	9402-			●
32	HOLDER ASM; NOZZLE	9-15330-085-2	06	1	9002-9306	●	●
32	HOLDER ASM; NOZZLE	1-15330-042-1	06	1	9012-9306			●
33	NOZZLE; INJ	1-15311-073-0	06	1	9307-	●
33	NOZZLE; INJ	1-15311-156-0	06	1	9307-9401		●	●
33	NOZZLE; INJ EXH HEAT WARNING<W50>	1-15311-156-0	06	1	9402-			●
33	NOZZLE; INJ EXC. EXH HEAT WARNING<W50>	1-15311-240-0	06	1	9402-			●
33	NOZZLE; INJ	1-15311-073-0	06	1	9002-9306	●	●
33	NOZZLE; INJ	1-15311-156-0	06	1	9012-9306			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-019-0	06	1	9307-9401	●	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-019-0	06	1	9402-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXH HEAT WARNING<W50>	1-15332-019-0	06	1	9402-			●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	1-15332-019-0	06	1	9402-			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-15339-056-0	12	1	9307-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EXH HEAT WARNING<W50>	1-15339-010-0	12	1	9402-			●
37	NUT; CAP,NOZZLE HOLDER (D)	1-15332-002-0	06	1	9307-	●
37	NUT; CAP,NOZZLE HOLDER (A)	1-15334-001-1	06	1	9307-	●
37	NUT; CAP,NOZZLE HOLDER (B)	1-15334-011-0	06	1	9307-9401		●	●
37	NUT; CAP,NOZZLE HOLDER EXH HEAT WARNING<W50> (B)	1-15334-011-0	06	1	9402-			●
37	NUT; CAP,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50> (C)	1-15334-010-0	06	1	9402-			●
37	NUT; CAP,NOZZLE HOLDER (A)	1-15334-001-0	06	1	9002-9306	●	●
37	NUT; CAP,NOZZLE HOLDER (B)	1-15334-011-0	06	1	9012-9306			●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9307-9401		●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXH HEAT WARNING<W50>	5-15339-060-0	06	1	9402-			●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EXH HEAT WARNING<W50>	9-15339-056-0	06	1	9402-			●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	06	1	9002-9306	●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9012-9306			●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	9-15343-011-0	06	1	9307-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	5-15345-005-0	06	1	9307-9401		●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXH HEAT WARNING<W50>	5-15345-005-0	06	1	9402-			●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	1-15345-004-0	06	1	9402-			●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	9-15343-011-0	06	1	9002-9306	●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	5-15345-005-0	06	1	9012-9306			●
40	NUT; ADJ SCREW,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	1-15332-011-0	06	1	9402-			●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	8-94246-531-0	06	1	9402-			●
44	SPRING; NOZZLE,NOZZLE HOLDER	9-15343-013-0	06	1	9002-9306	●	●
45	ROD; PUSH,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	1-15341-004-0	06	1	9402-			●
45	ROD; PUSH,NOZZLE HOLDER	9-15341-008-0	06	1	9002-9306	●	●
45	ROD; PUSH,NOZZLE HOLDER	5-15341-003-0	06	1	9012-9306			●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9307-9401	●	●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9402-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER EXH HEAT WARNING<W50>	9-15347-003-0	12	1	9402-			●
46	PIN; NOZZLE SET,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	9-15347-003-0	12	1	9402-			●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	9-15343-013-0	06	1	9307-	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	5-15343-005-0	06	1	9307-9401		●	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER EXH HEAT WARNING<W50>	5-15343-005-0	06	1	9402-			●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	1-15343-001-0	06	1	9402-			●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER	9-15339-057-0	06	1	9307-	●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER	9-15339-057-0	06	1	9002-9306	●	●
141	ROD; PUSH,UPR,NOZZLE HOLDER	9-15341-008-0	06	1	9307-	●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-003-0	06	1	9307-9401		●	●
141	ROD; PUSH,UPR,NOZZLE HOLDER EXH HEAT WARNING<W50>	1-15341-003-0	06	1	9402-			●
141	ROD; PUSH,UPR,NOZZLE HOLDER EXC. EXH HEAT WARNING<W50>	1-15341-006-0	06	1	9402-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
