Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10945 - GXZ(THAI)EURO2
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶

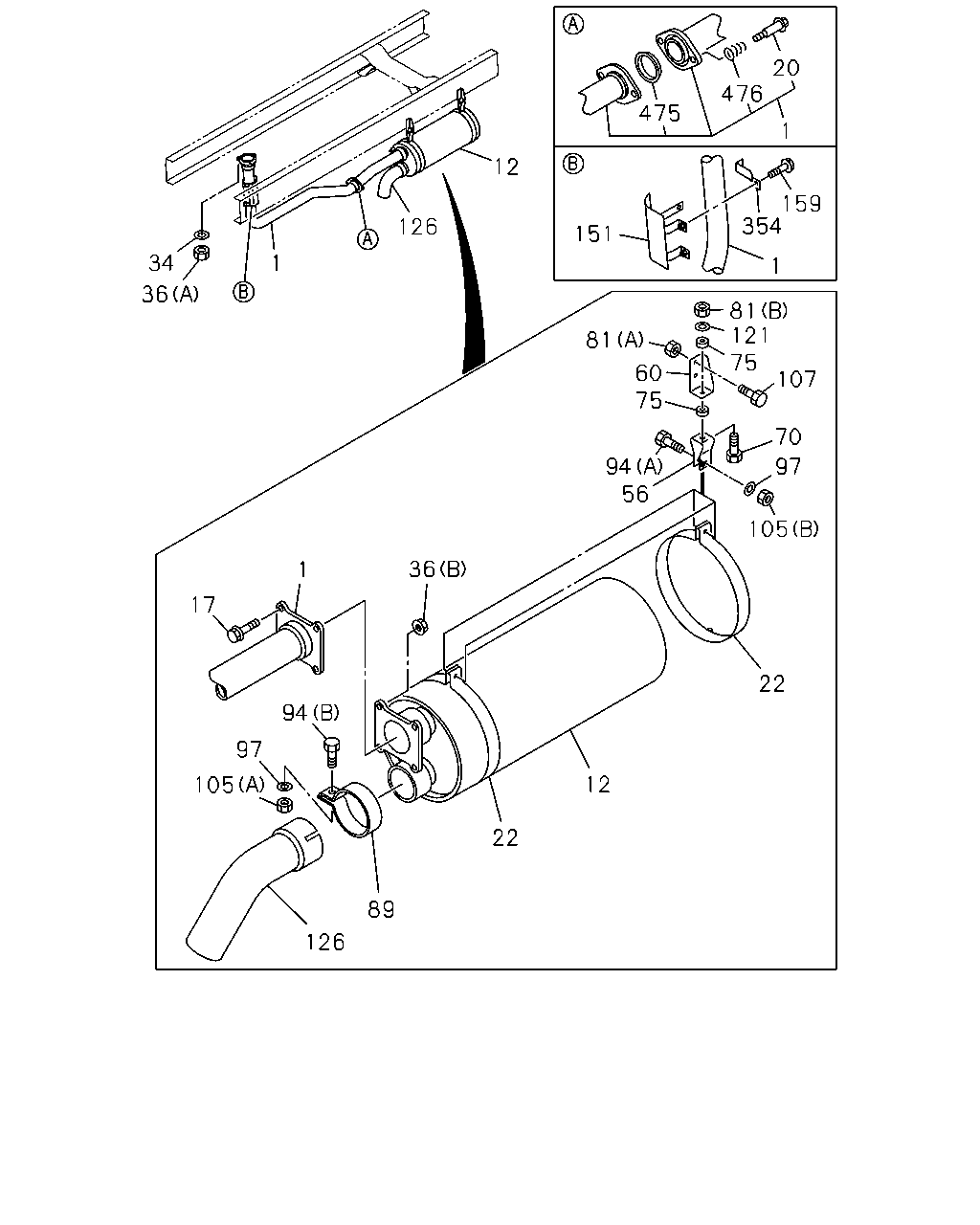

1-50 — EXHAUST PIPE AND SILENCER
(#24029) — 38 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 TCS ENG
20
476
475
1
12
159
354
126
151
34
1
1
36
81
121
75
81
60
75
107
70
94
56
97
105
36
1
17
22
94
97
12
105
22
89
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; EXH
THA
8-97918-324-2
01
1
0407-
●
1
PIPE; EXH
THA
8-97921-789-1
01
1
0407-
●
12
SILENCER ASM; EXH
THA
8-97918-326-1
01
1
0407-
●
●
17
BOLT; EXH PIPE
M12X25 FLANGE
1-09000-604-0
04
1
0407-
●
●
20
BOLT; FLANGE,EXH PIPE
M10X51.4 THA
8-94436-943-0
02
1
0407-
●
22
CLAMP; EXH PIPE
THA
8-97910-933-2
02
1
0407-
●
●
34
WASHER; EXH PIPE
ID=13 OD=24 DISH
1-09500-030-0
03
1
0407-
●
●
36
NUT; EXH PIPE
(A) M12
1-09400-010-0
03
1
0407-
●
●
36
NUT; EXH PIPE
(B) M12
9-99110-512-0
04
1
0407-0512
●
●
36
NUT; EXH PIPE
(B) M12
0-91110-512-0
04
1
0601-
●
●
56
BRACKET; CLAMP,EXH PIPE
THA
8-97915-975-2
02
1
0407-
●
●
60
BRACKET; FRAME TO BRKT
THA
8-97917-949-0
02
1
0407-
●
●
70
BOLT; BRKT
M10X50
0-10806-050-0
02
1
0503-0512
●
●
70
BOLT; BRKT
M10X50
0-10856-050-0
02
1
0601-
●
●
75
RUBBER; SUPPORT,BRKT
THA
8-97916-904-0
04
1
0407-
●
●
81
NUT; BRKT
(B) M10 LOCK NUT
9-09131-510-0
02
1
0503-0601
●
●
81
NUT; BRKT
(B) M10 LOCK NUT
0-91370-010-0
02
1
0602-
●
●
81
NUT; BRKT
(A) M10 FLANGE
0-91150-210-0
04
1
0407-
●
●
89
CLAMP; EXH SILENCER,RR
THA
8-97510-098-0
01
1
0407-
●
●
94
BOLT; CLAMP
(A) M10X50 FLANGE
0-28081-050-0
02
1
0503-0512
●
●
94
BOLT; CLAMP
(A) M10X50 FLANGE
0-28051-050-0
02
1
0601-
●
●
94
BOLT; CLAMP
(B) THA
8-97918-210-0
01
1
0407-
●
●
97
WASHER; PL,CLAMP
ID=10.5 OD=18
9-09160-510-0
01
1
0407-0611
●
●
97
WASHER; PL,CLAMP
ID=10.5
0-91610-510-0
01
1
0612-
●
●
105
NUT; CLAMP
(B) M10
9-09110-510-0
02
1
0503-0512
●
●
105
NUT; CLAMP
(B) M10 THA
0-91110-510-0
02
1
0601-
●
●
105
NUT; CLAMP
(A) THA
8-97916-605-0
01
1
0407-
●
●
107
BOLT; BRKT
M10X40 FLANGE
0-28681-040-0
04
1
0407-0512
●
●
107
BOLT; BRKT
M10X40 FLANGE THA
0-28651-040-0
04
1
0601-
●
●
121
WASHER; PL,BRKT
ID=10.5 OD=32
9-09164-810-0
02
1
0503-0605
●
●
121
WASHER; PL,BRKT
ID=10.5 OD=32
0-91614-810-0
02
1
0606-
●
●
126
PIPE; EXH,RR
THA
8-97510-095-0
01
1
0407-
●
●
151
PROTECTOR; HEAT,EXH PIPE
1-22119-438-0
01
1
0407-
●
159
BOLT; HEAT PROTECTOR
M8X25 FLANGE
0-28680-825-0
04
1
0407-0611
●
159
BOLT; HEAT PROTECTOR
M8X25 FLANGE THA
0-28650-825-0
04
1
0612-
●
354
CLAMP; HEAT PROTECTOR
1-22119-387-0
02
1
0407-
●
475
BEARING; SEAL,VIBNON,EXH PIPE
OD=112 THA
1-22119-294-0
01
1
0407-
●
476
SPRING; VIBNON,EXH PIPE
THA
8-94141-851-0
02
1
0407-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
