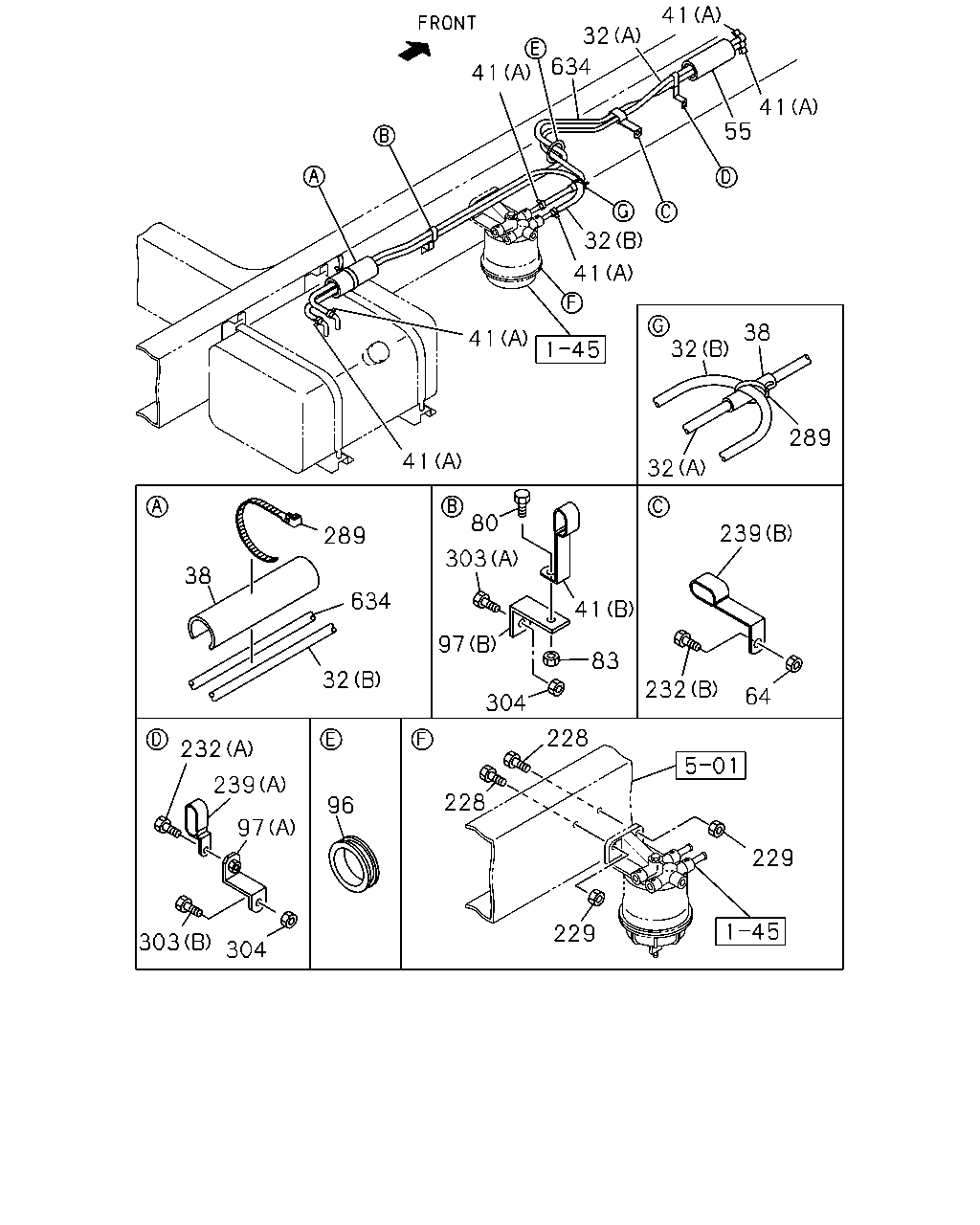

1-41 — FUEL PIPING; CHASSIS (#24027) — 38 parça
çizim 25946
41 32 634 41 41 55 32 41 32 38 41 289 41 32 80 239 289 303 38 634 41 97 83 32 232 64 304 228 232 239 228 96 97 229 229 303 304
BalonParca AdiParca NoAdetTipApplied Date A B
32 PIPE; DELIVERY,FUEL TANK
(B) THA 		8-97910-619-1 01 1 0407-0609 ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 400L<SDH> (B) THA 		8-97910-619-1 01 1 0610- ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) THA 		8-97910-625-0 01 1 0407-0609 ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 400L<SDH> (B) THA 		8-97910-625-0 01 1 0610- ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) THA 		8-97910-622-0 01 1 0407- ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0407- ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=500 SERVICED BY L=1300 		1-09360-677-1 01 1 0407- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=14X2 H=30 L=25 THA 		1-09701-101-0 01 1 0407- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 THA 		1-09704-102-0 06 1 0407- ● ●
55 COVER; PIPE,FUEL TANK
L=200 SERVICED BY L=1300 		1-09360-677-1 01 1 0407- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407- ● ●
80 BOLT; CLIP,FUEL TANK
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0611 ● ●
80 BOLT; CLIP,FUEL TANK
M8X16 FLANGE THA 		0-28050-816-0 01 1 0612- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91150-108-0 01 1 0407-0610 ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91150-108-0 01 1 0611- ● ●
96 GROMMET; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0407- ● ●
97 BRACKET; CLIP
(B) L=90 B=25 		1-47475-530-0 01 1 0407-0702 ● ●
97 BRACKET; CLIP
(B) 		1-47479-248-0 01 1 0703- ● ●
97 BRACKET; CLIP
(A) 		1-47476-200-0 01 1 0407- ● ●
228 BOLT; BRKT,SEDIMENTER
M10X45 FLANGE 		0-28081-045-0 02 1 0407-0611 ● ●
228 BOLT; BRKT,SEDIMENTER
M10X45 FLANGE THA 		0-28051-045-0 02 1 0612- ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0407- ● ●
232 BOLT; CLIP,PIPE
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0407-0611 ● ●
232 BOLT; CLIP,PIPE
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 0612- ● ●
232 BOLT; CLIP,PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0407-0611 ● ●
232 BOLT; CLIP,PIPE
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0612- ● ●
239 CLIP; FUEL PIPE
(A) H=15 ID=14 		1-09700-744-0 01 1 0407- ● ●
239 CLIP; FUEL PIPE
(B) ID=14X2 H=30 L=25 THA 		1-09701-101-0 01 1 0407- ● ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 02 1 0407- ● ●
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0407-0611 ● ●
303 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 0612- ● ●
303 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0407-0611 ● ●
303 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 0612- ● ●
304 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407- ● ●
634 HOSE; RUBBER RETURN
THA 		8-97910-623-0 01 1 0407-0609 ●
634 HOSE; RUBBER RETURN
EXC. FUEL TANK 400L<SDH> THA 		8-97910-623-0 01 1 0610- ● ●
634 HOSE; RUBBER RETURN
THA 		8-97921-838-0 01 1 0407-0609 ●
634 HOSE; RUBBER RETURN
FUEL TANK 400L<SDH> THA 		8-97921-838-0 01 1 0610- ● ●
