1-40 — FUEL TANK (#24026) — 68 parça

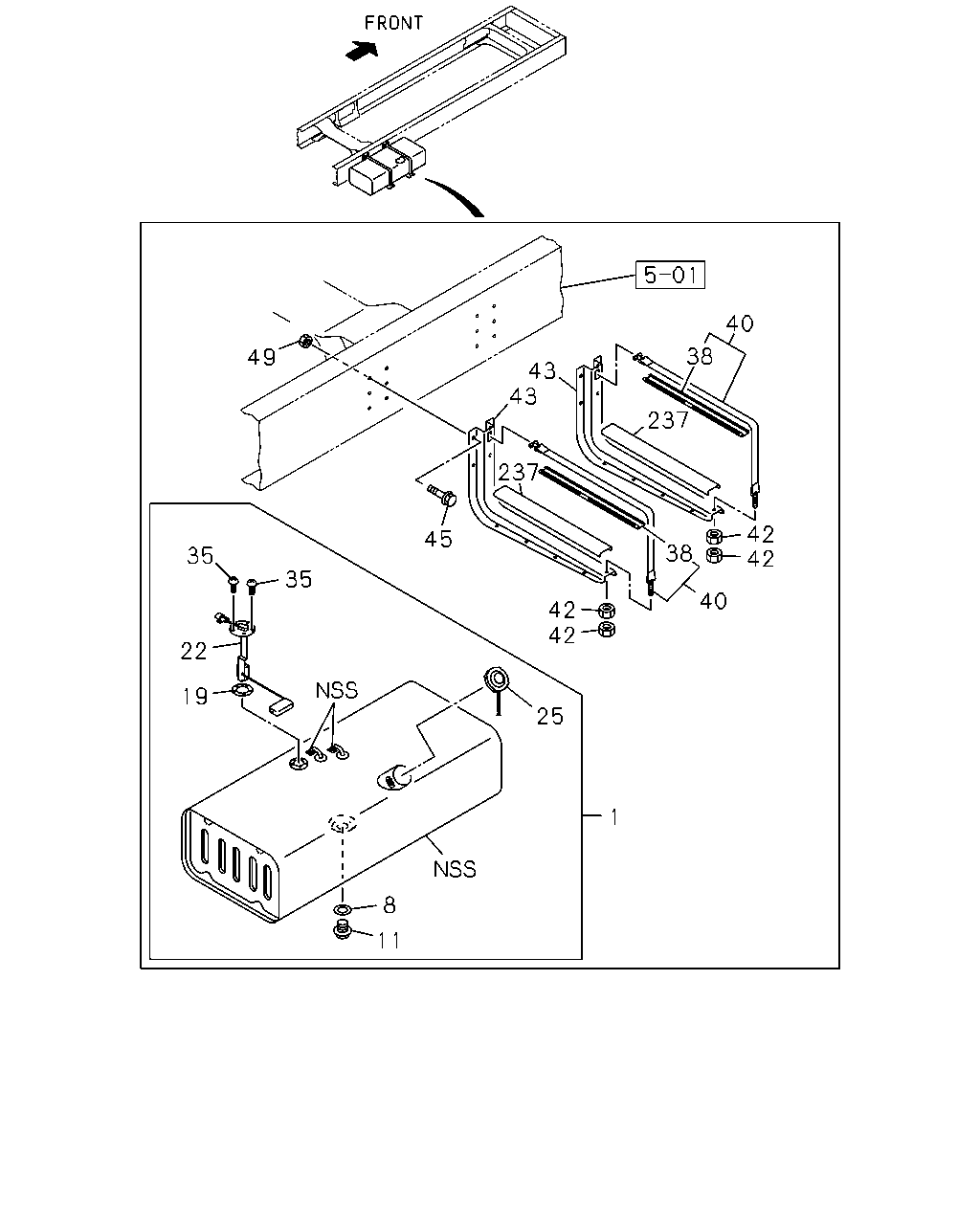

40 38 49 43 43 237 237 42 42 45 38 35 35 40 42 42 22 19 25 1 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L<SDH> 1275X603X503 370L THA	8-97922-054-2	01	1	0407-	●	●
1	TANK; FUEL EXC. FUEL TANK 400L<SDH> 1100X633X333 200L THA	8-97917-933-2	01	1	0407-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> THA	8-97913-627-0	01	1	0407-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 400L<SDH> THA	8-97917-956-0	01	1	0407-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> THA	8-97913-628-0	01	1	0407-	●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 400L<SDH> THA	8-97917-955-0	01	1	0407-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH>	1-83149-003-0	01	1	0407-	●	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH> ID=42 THA	9-83135-011-0	01	1	0407-	●	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-111-0	01	1	0407-	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 400L<SDH> THA	8-97915-996-0	01	1	0407-	●	●
25	CAP; FILLER,FUEL TANK THA	8-97917-957-0	01	1	0407-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 400L<SDH> THA	1-22419-012-0	05	1	0407-	●	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH> M5X10 W/LK WASHER	9-03910-510-0	05	1	0407-0604	●	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH> M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> THA	8-97922-175-0	02	1	0407-	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 400L<SDH> THA	8-97916-866-0	02	1	0407-0409	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 400L<SDH> THA	8-97922-749-0	02	1	0410-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> THA	8-97922-173-0	02	1	0407-0409	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> THA	8-97922-751-0	02	1	0410-	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 400L<SDH> THA	8-97917-657-0	02	1	0407-0409	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 400L<SDH> THA	8-97922-752-0	02	1	0410-	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0407-0512	●	●
42	NUT; SUPPORT BELT M10 THA	0-91110-510-0	04	1	0601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> THA	8-97921-801-1	02	1	0407-	●	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 400L<SDH> THA	8-97910-388-2	02	1	0407-	●	●
45	BOLT; BRKT,FUEL TANK M12X45 FLANGE	0-28081-245-0	12	1	0407-0512	●	●
45	BOLT; BRKT,FUEL TANK M12X45 FLANGE	0-28051-245-0	12	1	0601-	●	●
49	NUT; BRKT M12	9-99110-512-0	09	1	0407-0512	●	●
49	NUT; BRKT M12	0-91110-512-0	09	1	0601-	●	●
237	GASKET; BRKT TO FUEL TANK THA	8-97916-877-0	02	1	0407-	●	●

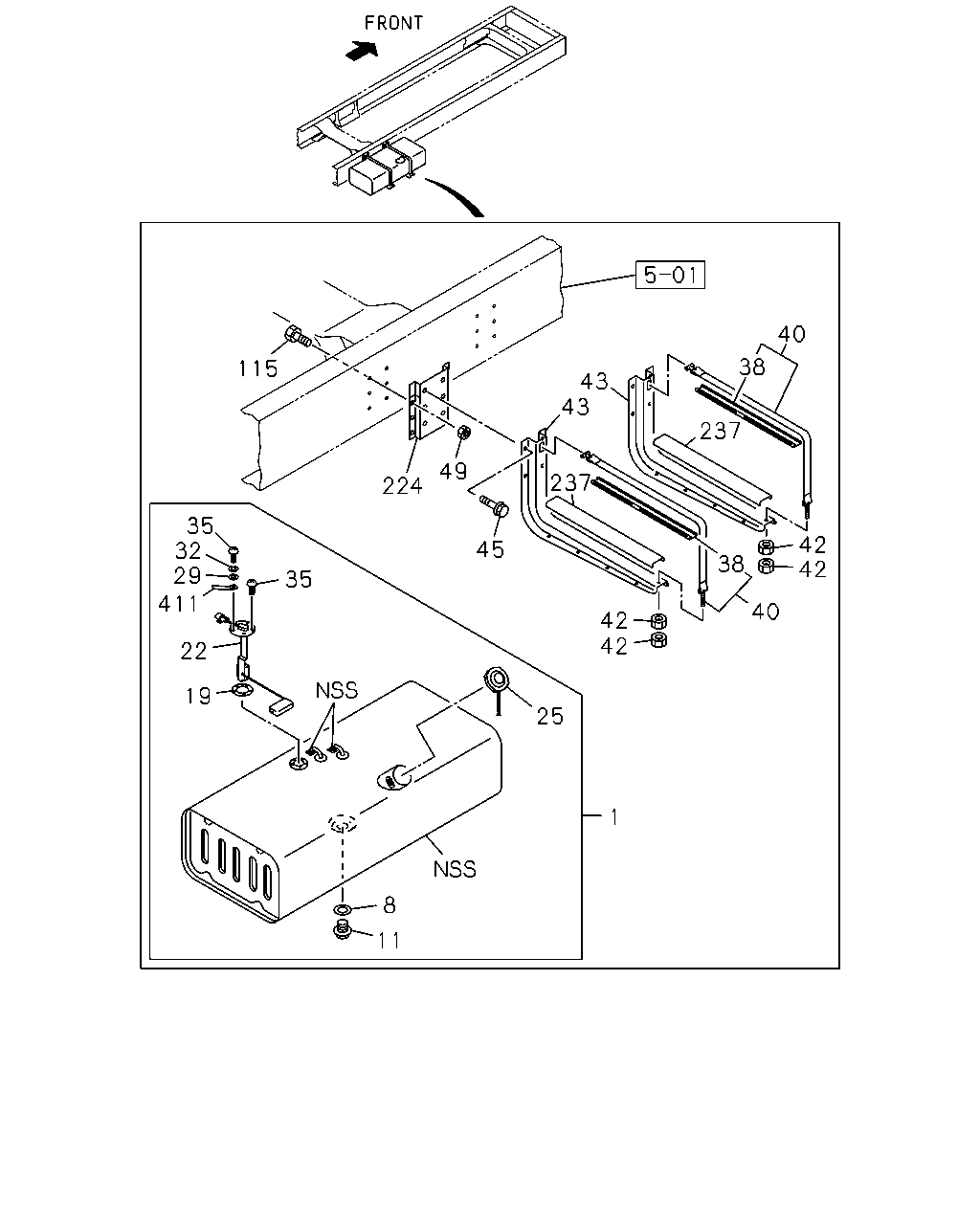

40 38 115 43 43 237 237 49 224 35 32 29 42 42 45 38 35 411 40 42 42 22 19 25 1 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L<SDH> 1275X603X503 370L THA	8-97922-054-2	01	1	0407-	●	●
1	TANK; FUEL EXC. FUEL TANK 400L<SDH> 1100X633X333 200L THA	8-97917-933-2	01	1	0407-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> THA	8-97913-627-0	01	1	0407-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 400L<SDH> THA	8-97917-956-0	01	1	0407-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> THA	8-97913-628-0	01	1	0407-	●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 400L<SDH> THA	8-97917-955-0	01	1	0407-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH>	1-83149-003-0	01	1	0407-	●	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH> ID=42 THA	9-83135-011-0	01	1	0407-	●	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-111-0	01	1	0407-	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 400L<SDH> THA	8-97915-996-0	01	1	0407-	●	●
25	CAP; FILLER,FUEL TANK THA	8-97917-957-0	01	1	0407-	●	●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 400L<SDH> ID=5.3	9-09160-505-0	01	1	0407-0605	●	●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 400L<SDH> ID=5.3	0-91610-505-0	01	1	0606-	●	●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 400L<SDH> ID=5.1	9-09150-505-0	01	1	0407-0501	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 400L<SDH> THA	1-22419-012-0	05	1	0407-	●	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH> M5X10 W/LK WASHER	9-03910-510-0	05	1	0407-0604	●	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH> M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> THA	8-97922-175-0	02	1	0407-	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 400L<SDH> THA	8-97916-866-0	02	1	0407-0409	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 400L<SDH> THA	8-97922-749-0	02	1	0410-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> THA	8-97922-173-0	02	1	0407-0409	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> THA	8-97922-751-0	02	1	0410-	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 400L<SDH> THA	8-97917-657-0	02	1	0407-0409	●	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 400L<SDH> THA	8-97922-752-0	02	1	0410-	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0407-0512	●	●
42	NUT; SUPPORT BELT M10 THA	0-91110-510-0	04	1	0601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> THA	8-97921-801-1	02	1	0407-	●	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 400L<SDH> THA	8-97910-388-2	02	1	0407-	●	●
45	BOLT; BRKT,FUEL TANK M12X45 FLANGE	0-28081-245-0	12	1	0407-0512	●	●
45	BOLT; BRKT,FUEL TANK M12X45 FLANGE	0-28051-245-0	12	1	0601-	●	●
49	NUT; BRKT M12	9-99110-512-0	09	1	0407-0512	●	●
49	NUT; BRKT M12	0-91110-512-0	09	1	0601-	●	●
115	BOLT; BRKT EXC. FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0407-0512	●	●
115	BOLT; BRKT EXC. FUEL TANK 400L<SDH> M12X45 FLANGE	0-28051-245-0	12	1	0601-	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME EXC. FUEL TANK 400L<SDH> THA	8-97910-886-0	02	1	0407-0609	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME EXC. FUEL TANK 400L<SDH> THA	8-97910-886-0	04	1	0610-	●	●
237	GASKET; BRKT TO FUEL TANK THA	8-97916-877-0	02	1	0407-	●	●
411	CLIP; FUEL TANK UNIT HARNESS EXC. FUEL TANK 400L<SDH> L=50 THA	1-09700-416-0	01	1	0407-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
