◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 10945 - GXZ(THAI)EURO2 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#24021) — 56 parça

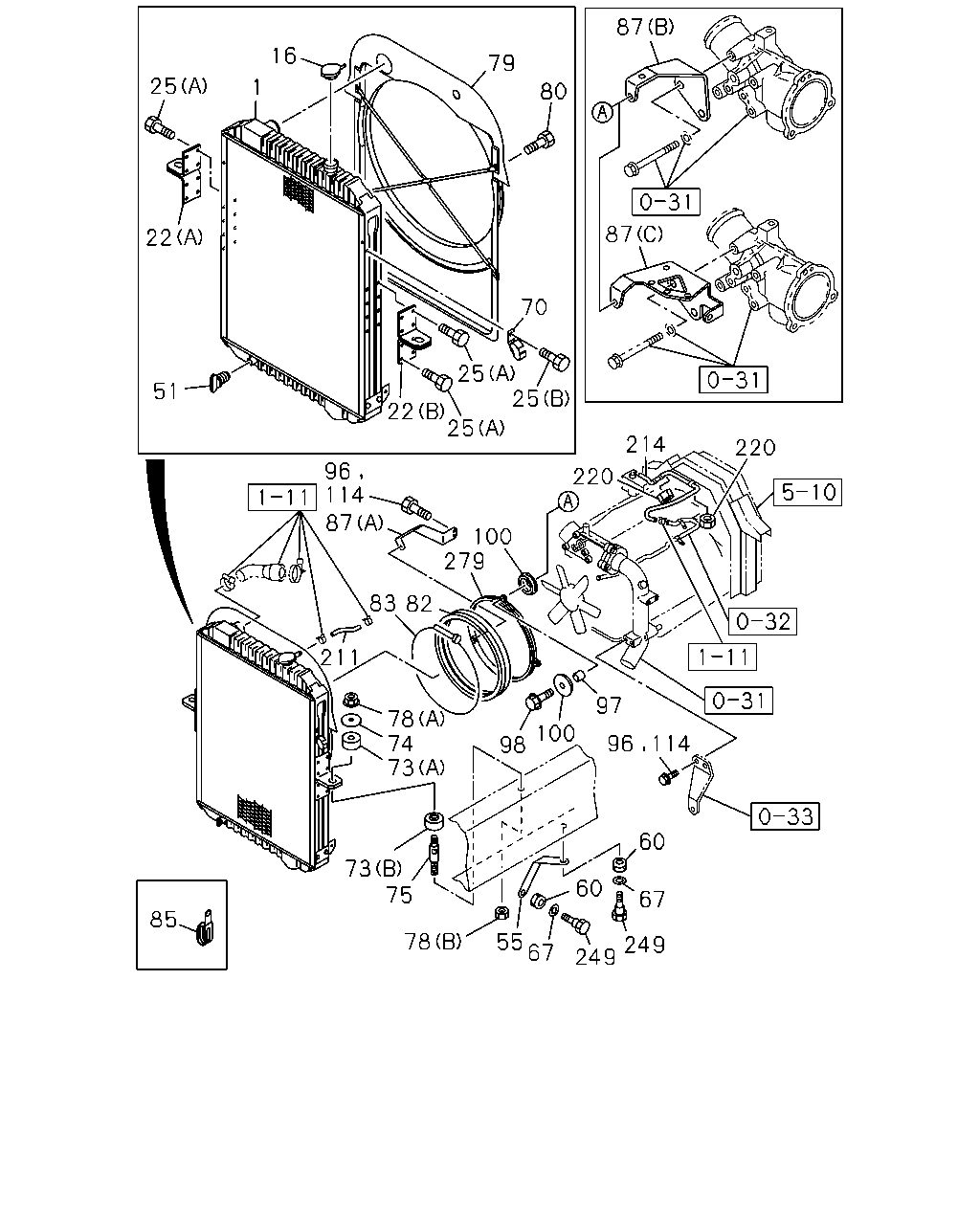

çizim 24652
87 16 79 25 1 80 87 22 70 25 25 51 22 25 214 220 96 114 220 87 100 279 83 82 211 97 78 74 73 100 98 60 73 75 60 67 85 78 55 67 249 249 96 114
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
THA 		8-97918-364-0 01 1 0407- ●
1 RADIATOR ASM
THA 		8-97922-186-0 01 1 0407- ●
16 CAP; RAD
THA 		8-97918-146-0 01 1 0407- ● ●
22 BRACKET; RAD MTG
(B) THA 		8-97918-478-0 01 1 0407- ●
22 BRACKET; RAD MTG
(B) THA 		8-97922-177-0 01 1 0407- ●
22 BRACKET; RAD MTG
(A) THA 		8-97918-479-0 01 1 0407- ● ●
25 BOLT; BRKT
(A) M8X15 THA 		8-97918-357-0 15 1 0407- ● ●
25 BOLT; BRKT
(B) M8X20 THA 		8-97918-405-0 01 1 0407- ● ●
51 PLUG; DRAIN
THA 		8-97918-361-0 01 1 0407- ● ●
55 STAY; RAD TO UPR MBR 1-21464-456-0 01 1 0407- ●
55 STAY; RAD TO UPR MBR 1-21464-457-0 01 1 0407- ●
55 STAY; RAD TO UPR MBR 1-21464-631-0 01 1 0407- ●
55 STAY; RAD TO UPR MBR 1-21464-632-0 01 1 0407- ●
60 GROMMET 1-09332-117-0 04 1 0407- ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0407-0605 ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ● ●
70 STAY; RAD
THA 		1-83571-875-0 01 1 0407- ●
70 STAY; RAD
THA 		8-97918-369-0 01 1 0407- ●
73 RUBBER; CUSHION,RAD MTG
(A) THA 		8-97916-015-0 02 1 0407- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) THA 		8-97916-016-0 02 1 0407- ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0407- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0407- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0407- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0407-0605 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE THA 		0-91180-212-0 02 1 0606- ● ●
79 GUIDE; FAN,RAD
THA 		8-97918-367-0 01 1 0407- ●
79 GUIDE; FAN,RAD
THA 		8-97922-176-0 01 1 0407- ●
80 BOLT; FAN GUIDE
THA 		8-97918-359-0 04 1 0407- ● ●
82 COVER; FAN,RAD 1-21559-397-0 01 1 0407- ●
82 COVER; FAN,RAD 1-21559-469-0 01 1 0407- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0407- ●
83 CLIP; FAN COVER 1-09707-192-1 01 1 0407- ●
85 CLIP
ID=18 L=44 THA 		8-94225-185-0 01 1 0407-0801 ●
85 CLIP
ID=18 L=44 		8-97367-985-1 01 1 0802- ●
87 STAY; FAN GUIDE
(A) 		1-21559-373-0 01 1 0407- ●
87 STAY; FAN GUIDE
(B) 		1-21559-379-0 01 1 0407- ●
87 STAY; FAN GUIDE
(C) 		1-21559-467-0 01 1 0407- ●
87 STAY; FAN GUIDE
(A) 		1-21559-468-0 01 1 0407- ●
96 BOLT; STAY FIX
M8X40 FLANGE 		0-28680-840-0 02 1 0407-0512 ●
96 BOLT; STAY FIX
M8X40 FLANGE THA 		0-28650-840-0 02 1 0601- ●
96 BOLT; STAY FIX
M8X16 FLANGE 		0-28080-816-0 02 1 0407-0512 ● ●
96 BOLT; STAY FIX
M8X16 FLANGE THA 		0-28050-816-0 02 1 0601- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0407- ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0407-0611 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE THA 		0-28650-830-0 03 1 0612- ● ●
100 RUBBER; MTG 8-94395-766-0 06 1 0407- ● ●
114 BOLT; STAY
M8X16 FLANGE 		0-28080-816-0 02 1 0407- ●
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03557-300-0 01 1 0407- ●
211 HOSE; RAD TO PIPE
L=260 SERVICED BY L=3000 		0-03557-300-0 01 1 0407- ●
214 HOSE; PIPE TO RESERVE TANK
L=1150 SERVICED BY L=3000 		0-03557-300-0 01 1 0407- ●
214 HOSE; PIPE TO RESERVE TANK
L=740 SERVICED BY L=3000 		0-03557-300-0 01 1 0407- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0407- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0407- ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 0407- ● ●
279 BELL MOUTH 1-21551-395-0 01 1 0407- ●
279 BELL MOUTH 1-21551-527-0 01 1 0407- ●
