◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39B - AIR COMPRESSOR; BRAKE ▶
0-39B — AIR COMPRESSOR; BRAKE (#2402) — 198 parça

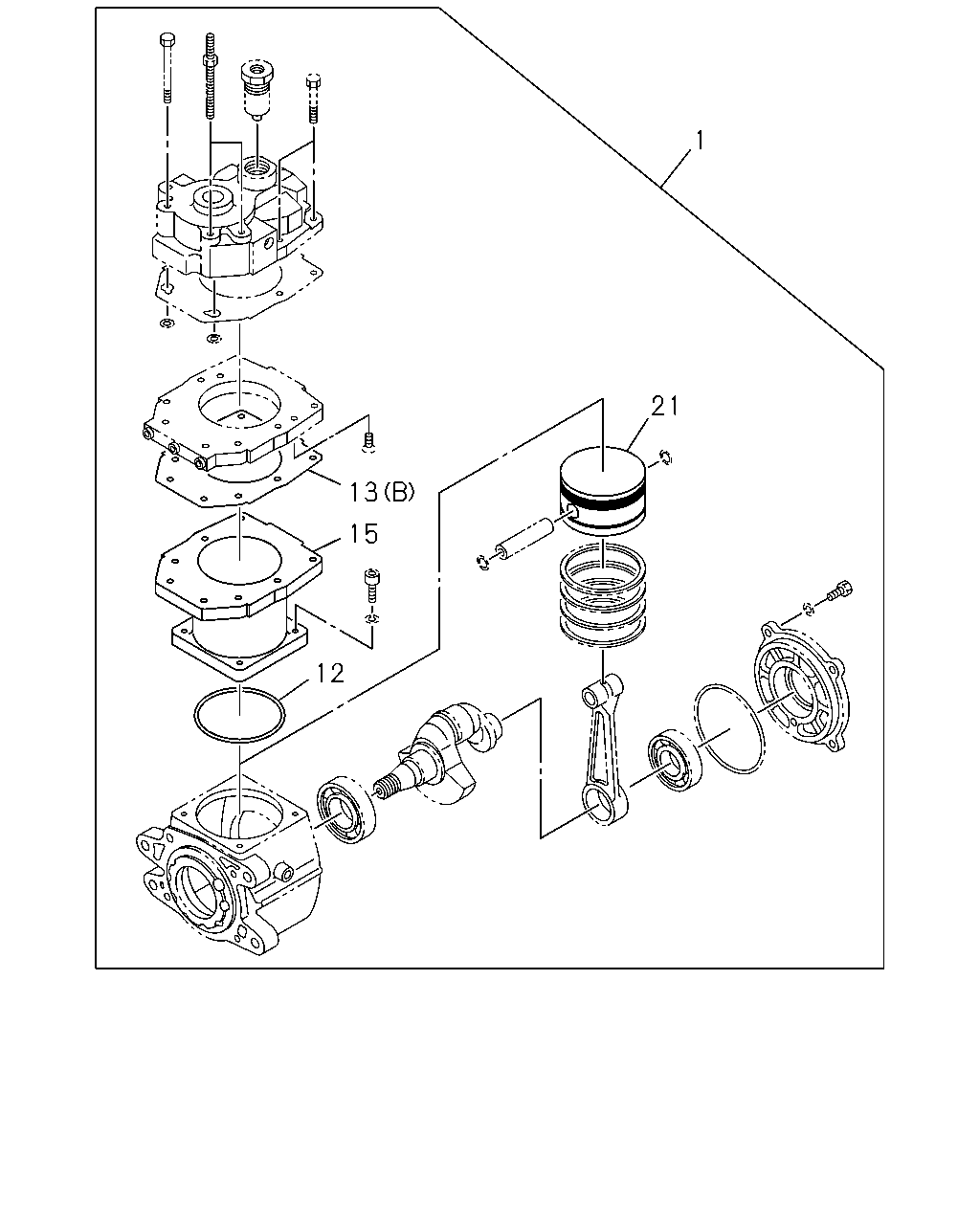

çizim 28776
1 21 13 15 12
BalonParca AdiParca NoAdetTipApplied Date
1 LINER KIT; CYL,AIR CMPR 1-19163-032-0 01 1 9002-9306
1 LINER KIT; CYL,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19163-032-0 01 1 9307-9307
1 LINER KIT; CYL,AIR CMPR 1-19163-032-0 01 1 9308-9405
1 LINER KIT; CYL,AIR CMPR 1-19163-056-0 01 1 9406-
1 LINER KIT; CYL,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19163-019-0 01 1 9307-9307
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9002-
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9002-9306
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9002-9306
13 GASKET; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) (A) 		1-19139-007-0 01 1 9307-9307
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9308-
13 GASKET; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) (B) 		1-19139-009-0 01 1 9307-9307
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9308-
13 GASKET; AIR CMPR
AUTO ENG SHUTOFF(KB6) (C) ID=14.5 		1-19139-003-0 01 1 9307-9307
13 GASKET; AIR CMPR
AUTO ENG SHUTOFF(KB6) (D) T=0.8 		1-19139-004-0 02 1 9307-9307
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9002-9306
15 CYLINDER; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19151-236-0 01 1 9307-9307
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9308-
15 CYLINDER; AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19151-219-0 01 1 9307-9307
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9002-9306
21 PISTON; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19161-014-0 01 1 9307-9307
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9308-
21 PISTON; AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19161-009-0 01 1 9307-9307

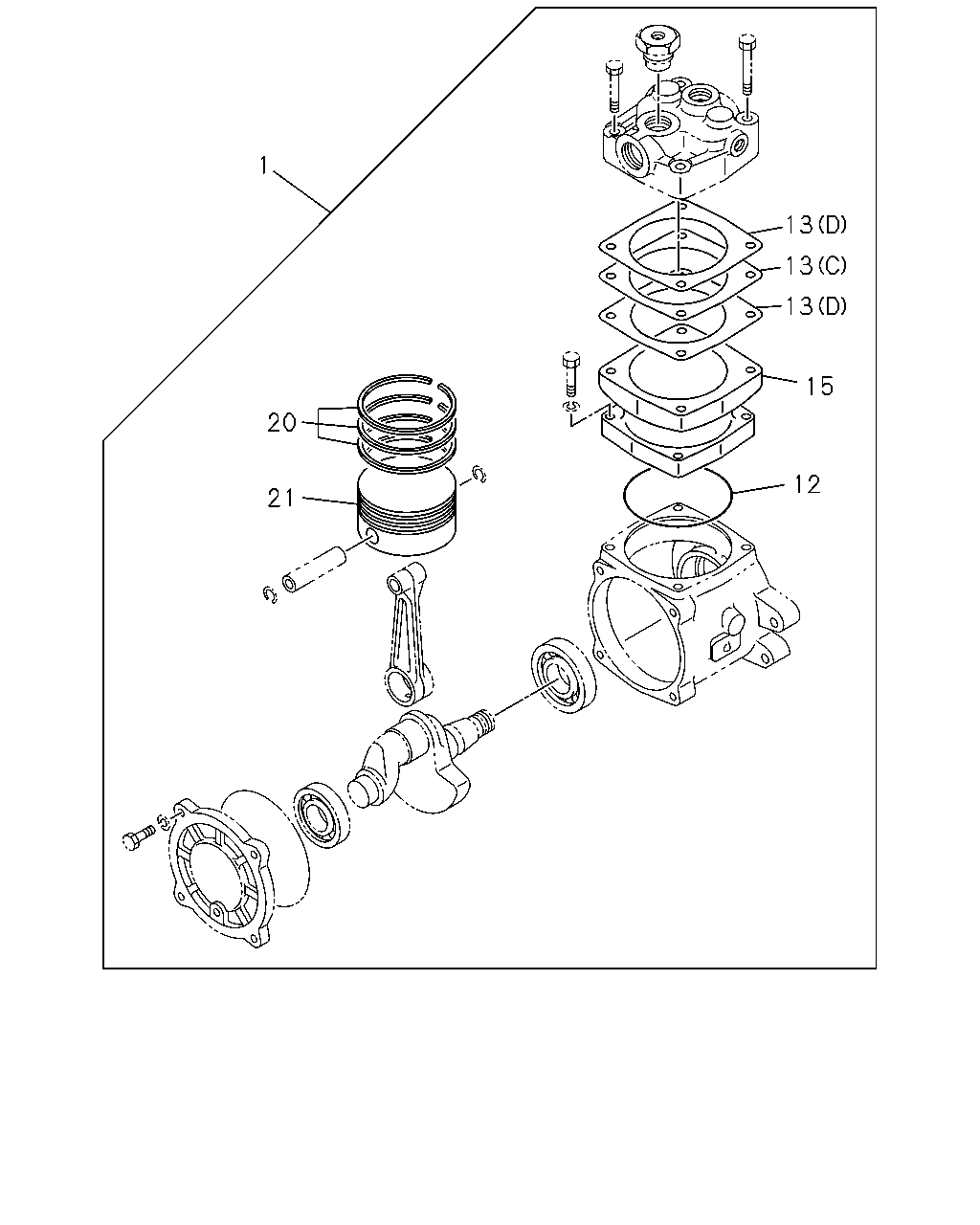

çizim 93641
1 13 13 13 15 20 12 21
BalonParca AdiParca NoAdetTipApplied Date
1 LINER KIT; CYL,AIR CMPR 1-19163-032-0 01 1 9002-9306
1 LINER KIT; CYL,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19163-032-0 01 1 9307-9307
1 LINER KIT; CYL,AIR CMPR 1-19163-032-0 01 1 9308-9405
1 LINER KIT; CYL,AIR CMPR 1-19163-056-0 01 1 9406-
1 LINER KIT; CYL,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19163-019-0 01 1 9307-9307
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9002-
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9002-9306
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9002-9306
13 GASKET; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) (A) 		1-19139-007-0 01 1 9307-9307
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9308-
13 GASKET; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) (B) 		1-19139-009-0 01 1 9307-9307
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9308-
13 GASKET; AIR CMPR
AUTO ENG SHUTOFF(KB6) (C) ID=14.5 		1-19139-003-0 01 1 9307-9307
13 GASKET; AIR CMPR
AUTO ENG SHUTOFF(KB6) (D) T=0.8 		1-19139-004-0 02 1 9307-9307
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9002-9306
15 CYLINDER; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19151-236-0 01 1 9307-9307
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9308-
15 CYLINDER; AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19151-219-0 01 1 9307-9307
20 RING KIT; PISTON,AIR CMPR 1-19163-029-0 01 1 9002-9306
20 RING KIT; PISTON,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19163-029-0 01 1 9307-9307
20 RING KIT; PISTON,AIR CMPR 1-19163-029-0 01 1 9308-9405
20 RING KIT; PISTON,AIR CMPR 1-19163-055-0 01 1 9406-
20 RING KIT; PISTON,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19163-021-0 01 1 9307-9307
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9002-9306
21 PISTON; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19161-014-0 01 1 9307-9307
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9308-
21 PISTON; AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19161-009-0 01 1 9307-9307

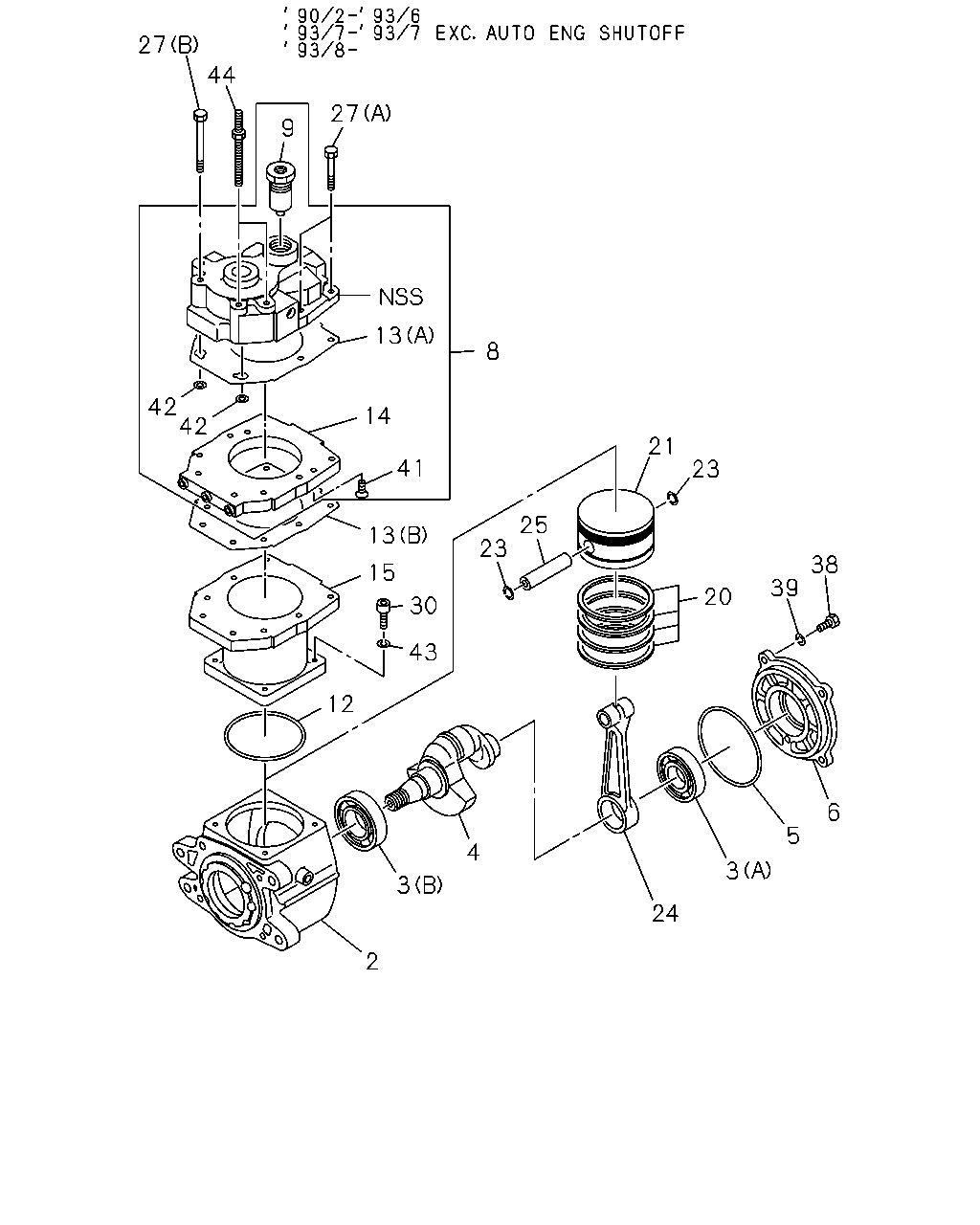

çizim 93691
27 44 27 9 13 8 42 42 14 21 41 23 25 13 23 38 15 39 20 30 43 12 6 5 4 3 3 24 2
BalonParca AdiParca NoAdetTipApplied Date
2 CRANKCASE; AIR CMPR 1-19151-238-0 01 1 9002-9306
2 CRANKCASE; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19151-238-0 01 1 9307-9307
2 CRANKCASE; AIR CMPR 1-19151-238-0 01 1 9308-
2 CRANKCASE; AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19151-220-0 01 1 9307-9307
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 9002-
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 9002-
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 9002-9111
4 CRANKSHAFT; AIR CMPR 1-19171-031-0 01 1 9112-
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9002-
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 9002-
8 HEAD ASM; CYL,AIR CMPR 1-19110-031-1 01 1 9002-9111
8 HEAD ASM; CYL,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19110-049-0 01 1 9112-9307
8 HEAD ASM; CYL,AIR CMPR 1-19110-049-3 01 1 9308-
8 HEAD ASM; CYL,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19110-048-0 01 1 9307-9307
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-009-0 01 1 9002-9111
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-018-0 01 1 9112-9306
9 VALVE ASM; UNLOADER,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19120-018-0 01 1 9307-9307
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-018-1 01 1 9308-
9 VALVE ASM; UNLOADER,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19120-017-0 01 1 9307-9307
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9002-
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9002-9306
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9002-9306
13 GASKET; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) (A) 		1-19139-007-0 01 1 9307-9307
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9308-
13 GASKET; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) (B) 		1-19139-009-0 01 1 9307-9307
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9308-
13 GASKET; AIR CMPR
AUTO ENG SHUTOFF(KB6) (C) ID=14.5 		1-19139-003-0 01 1 9307-9307
13 GASKET; AIR CMPR
AUTO ENG SHUTOFF(KB6) (D) T=0.8 		1-19139-004-0 02 1 9307-9307
14 PLATE; AIR CMPR 1-19111-017-1 01 1 9002-9306
14 PLATE; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19111-017-1 01 1 9307-9307
14 PLATE; AIR CMPR 1-19111-017-3 01 1 9308-
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9002-9306
15 CYLINDER; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19151-236-0 01 1 9307-9307
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9308-
15 CYLINDER; AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19151-219-0 01 1 9307-9307
20 RING KIT; PISTON,AIR CMPR 1-19163-029-0 01 1 9002-9306
20 RING KIT; PISTON,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19163-029-0 01 1 9307-9307
20 RING KIT; PISTON,AIR CMPR 1-19163-029-0 01 1 9308-9405
20 RING KIT; PISTON,AIR CMPR 1-19163-055-0 01 1 9406-
20 RING KIT; PISTON,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19163-021-0 01 1 9307-9307
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9002-9306
21 PISTON; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19161-014-0 01 1 9307-9307
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9308-
21 PISTON; AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19161-009-0 01 1 9307-9307
23 RING; SNAP,PISTON,AIR CMPR 9-19168-005-0 02 1 9002-9306
23 RING; SNAP,PISTON,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		9-19168-005-0 02 1 9307-9307
23 RING; SNAP,PISTON,AIR CMPR 9-19168-005-0 02 1 9308-
23 RING; SNAP,PISTON,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		9-19168-008-0 02 1 9307-9307
24 ROD ASM; CONN,AIR CMPR 1-19173-012-0 01 1 9002-9306
24 ROD ASM; CONN,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19173-012-0 01 1 9307-9307
24 ROD ASM; CONN,AIR CMPR 1-19173-012-0 01 1 9308-
24 ROD ASM; CONN,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19173-010-0 01 1 9307-9307
25 PIN; PISTON,AIR CMPR 9-19167-007-0 01 1 9002-9306
25 PIN; PISTON,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		9-19167-007-0 01 1 9307-9307
25 PIN; PISTON,AIR CMPR 9-19167-007-0 01 1 9308-
25 PIN; PISTON,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		9-19167-003-0 01 1 9307-9307
27 BOLT; HD
(A) 		1-19119-013-0 04 1 9002-9306
27 BOLT; HD
(B) 		1-19119-014-0 02 1 9002-9306
27 BOLT; HD
EXC. AUTO ENG SHUTOFF(KB6) (A) 		1-19119-013-0 04 1 9307-9307
27 BOLT; HD
(A) 		1-19119-013-0 04 1 9308-
27 BOLT; HD
EXC. AUTO ENG SHUTOFF(KB6) (B) 		1-19119-014-0 02 1 9307-9307
27 BOLT; HD
(B) 		1-19119-014-0 02 1 9308-9309
27 BOLT; HD
(B) 		1-19119-014-0 02 1 9310-
27 BOLT; HD
AUTO ENG SHUTOFF(KB6) (A) M10X45 		9-01066-045-0 02 1 9307-9307
27 BOLT; HD
AUTO ENG SHUTOFF(KB6) (B) M10X60 		9-01066-060-0 02 1 9307-9307
30 BOLT; CYL TO CRANKCASE 1-19159-007-0 04 1 9002-9306
30 BOLT; CYL TO CRANKCASE
EXC. AUTO ENG SHUTOFF(KB6) 		1-19159-007-0 04 1 9307-9307
30 BOLT; CYL TO CRANKCASE 1-19159-007-0 04 1 9308-
30 BOLT; CYL TO CRANKCASE
AUTO ENG SHUTOFF(KB6) M10X25 		9-02051-025-0 04 1 9307-9307
38 BOLT; COVER FIX 1-19179-011-0 04 1 9002-
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9002-
41 SCREW; PLATE TO HD,AIR CMPR 1-09100-018-0 02 1 9002-9306
41 SCREW; PLATE TO HD,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-09100-018-0 02 1 9307-9307
41 SCREW; PLATE TO HD,AIR CMPR 1-09100-018-0 02 1 9308-
42 GASKET; PLATE TO HD,AIR CMPR 1-09623-402-0 02 1 9002-9306
42 GASKET; PLATE TO HD,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-09623-402-0 02 1 9307-9307
42 GASKET; PLATE TO HD,AIR CMPR 1-09623-402-0 02 1 9308-
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9002-
44 STUD; CYL HD,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19119-002-0 02 1 9002-9307
44 STUD; CYL HD,AIR CMPR 1-19119-002-0 02 1 9308-

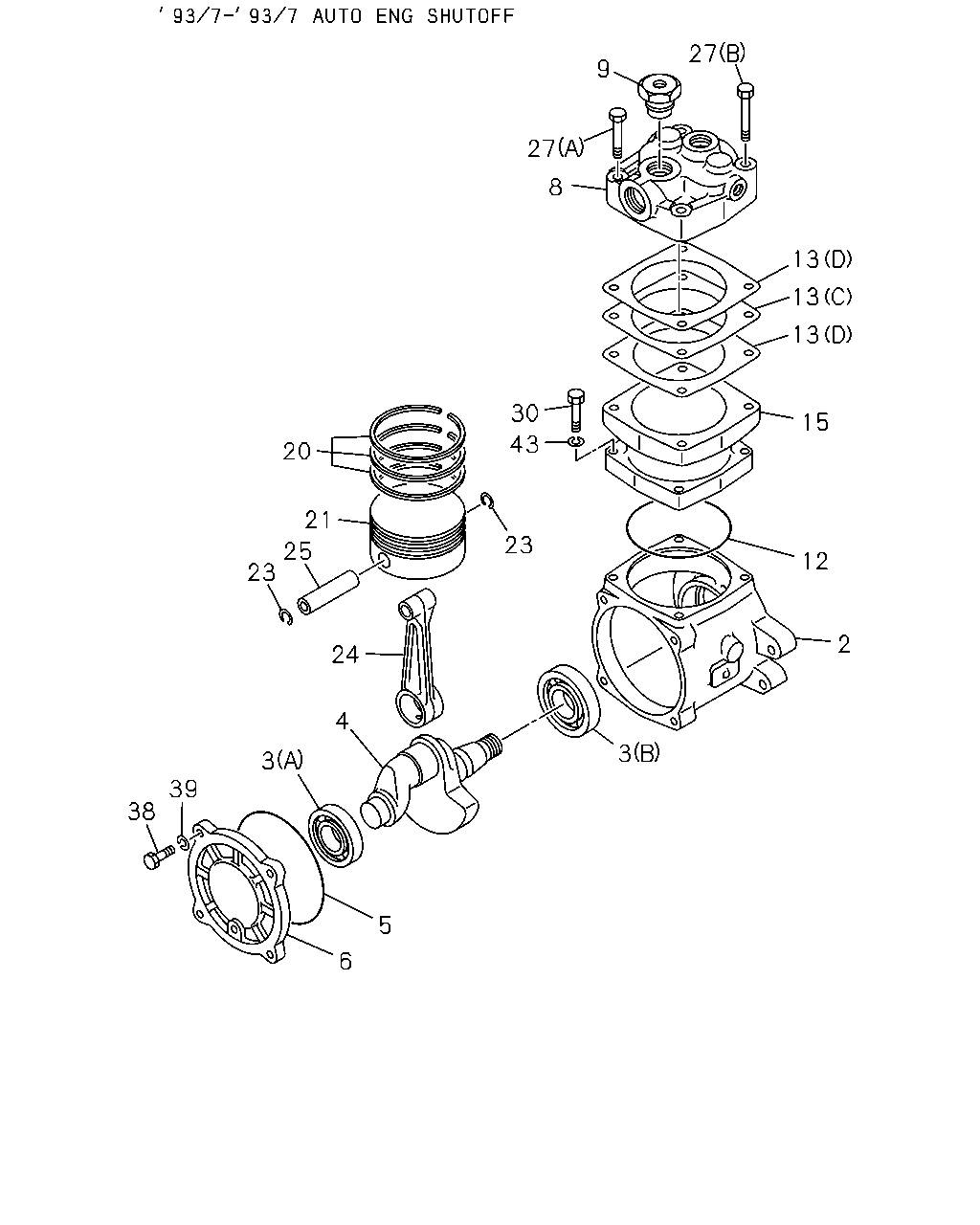

çizim 93790
27 9 27 8 13 13 13 30 15 43 20 21 23 25 23 12 2 24 4 3 3 39 38 5 6
BalonParca AdiParca NoAdetTipApplied Date
2 CRANKCASE; AIR CMPR 1-19151-238-0 01 1 9002-9306
2 CRANKCASE; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19151-238-0 01 1 9307-9307
2 CRANKCASE; AIR CMPR 1-19151-238-0 01 1 9308-
2 CRANKCASE; AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19151-220-0 01 1 9307-9307
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 9002-
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 9002-
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 9002-9111
4 CRANKSHAFT; AIR CMPR 1-19171-031-0 01 1 9112-
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9002-
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 9002-
8 HEAD ASM; CYL,AIR CMPR 1-19110-031-1 01 1 9002-9111
8 HEAD ASM; CYL,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19110-049-0 01 1 9112-9307
8 HEAD ASM; CYL,AIR CMPR 1-19110-049-3 01 1 9308-
8 HEAD ASM; CYL,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19110-048-0 01 1 9307-9307
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-009-0 01 1 9002-9111
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-018-0 01 1 9112-9306
9 VALVE ASM; UNLOADER,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19120-018-0 01 1 9307-9307
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-018-1 01 1 9308-
9 VALVE ASM; UNLOADER,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19120-017-0 01 1 9307-9307
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9002-
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9002-9306
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9002-9306
13 GASKET; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) (A) 		1-19139-007-0 01 1 9307-9307
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9308-
13 GASKET; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) (B) 		1-19139-009-0 01 1 9307-9307
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9308-
13 GASKET; AIR CMPR
AUTO ENG SHUTOFF(KB6) (C) ID=14.5 		1-19139-003-0 01 1 9307-9307
13 GASKET; AIR CMPR
AUTO ENG SHUTOFF(KB6) (D) T=0.8 		1-19139-004-0 02 1 9307-9307
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9002-9306
15 CYLINDER; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19151-236-0 01 1 9307-9307
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9308-
15 CYLINDER; AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19151-219-0 01 1 9307-9307
20 RING KIT; PISTON,AIR CMPR 1-19163-029-0 01 1 9002-9306
20 RING KIT; PISTON,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19163-029-0 01 1 9307-9307
20 RING KIT; PISTON,AIR CMPR 1-19163-029-0 01 1 9308-9405
20 RING KIT; PISTON,AIR CMPR 1-19163-055-0 01 1 9406-
20 RING KIT; PISTON,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19163-021-0 01 1 9307-9307
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9002-9306
21 PISTON; AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19161-014-0 01 1 9307-9307
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9308-
21 PISTON; AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19161-009-0 01 1 9307-9307
23 RING; SNAP,PISTON,AIR CMPR 9-19168-005-0 02 1 9002-9306
23 RING; SNAP,PISTON,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		9-19168-005-0 02 1 9307-9307
23 RING; SNAP,PISTON,AIR CMPR 9-19168-005-0 02 1 9308-
23 RING; SNAP,PISTON,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		9-19168-008-0 02 1 9307-9307
24 ROD ASM; CONN,AIR CMPR 1-19173-012-0 01 1 9002-9306
24 ROD ASM; CONN,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		1-19173-012-0 01 1 9307-9307
24 ROD ASM; CONN,AIR CMPR 1-19173-012-0 01 1 9308-
24 ROD ASM; CONN,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		1-19173-010-0 01 1 9307-9307
25 PIN; PISTON,AIR CMPR 9-19167-007-0 01 1 9002-9306
25 PIN; PISTON,AIR CMPR
EXC. AUTO ENG SHUTOFF(KB6) 		9-19167-007-0 01 1 9307-9307
25 PIN; PISTON,AIR CMPR 9-19167-007-0 01 1 9308-
25 PIN; PISTON,AIR CMPR
AUTO ENG SHUTOFF(KB6) 		9-19167-003-0 01 1 9307-9307
27 BOLT; HD
(A) 		1-19119-013-0 04 1 9002-9306
27 BOLT; HD
(B) 		1-19119-014-0 02 1 9002-9306
27 BOLT; HD
EXC. AUTO ENG SHUTOFF(KB6) (A) 		1-19119-013-0 04 1 9307-9307
27 BOLT; HD
(A) 		1-19119-013-0 04 1 9308-
27 BOLT; HD
EXC. AUTO ENG SHUTOFF(KB6) (B) 		1-19119-014-0 02 1 9307-9307
27 BOLT; HD
(B) 		1-19119-014-0 02 1 9308-9309
27 BOLT; HD
(B) 		1-19119-014-0 02 1 9310-
27 BOLT; HD
AUTO ENG SHUTOFF(KB6) (A) M10X45 		9-01066-045-0 02 1 9307-9307
27 BOLT; HD
AUTO ENG SHUTOFF(KB6) (B) M10X60 		9-01066-060-0 02 1 9307-9307
30 BOLT; CYL TO CRANKCASE 1-19159-007-0 04 1 9002-9306
30 BOLT; CYL TO CRANKCASE
EXC. AUTO ENG SHUTOFF(KB6) 		1-19159-007-0 04 1 9307-9307
30 BOLT; CYL TO CRANKCASE 1-19159-007-0 04 1 9308-
30 BOLT; CYL TO CRANKCASE
AUTO ENG SHUTOFF(KB6) M10X25 		9-02051-025-0 04 1 9307-9307
38 BOLT; COVER FIX 1-19179-011-0 04 1 9002-
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9002-
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9002-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
