0-52 — OIL AND VACUUM PIPING; ENGINE (#24010) — 142 parça

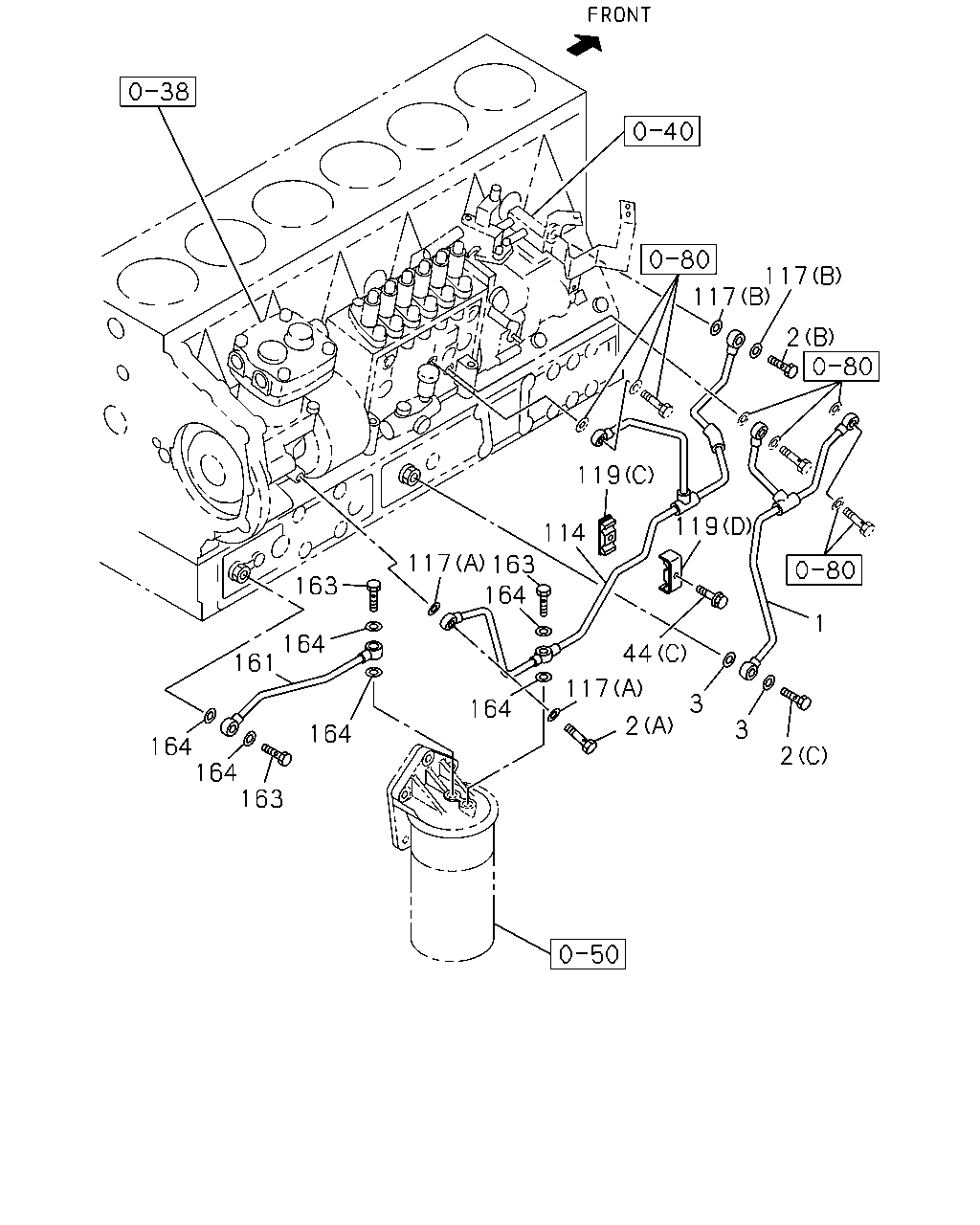

117 117 2 119 119 114 163 117 164 1 164 44 161 117 3 164 2 3 164 164 164 163 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-691-0	01	1	0407-	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-972-0	01	1	0407-		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0407-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0407-0805	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0407-0805	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	8-98037-826-0	01	1	0806-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-		●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0407-0512	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0407-	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	02	1	0407-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	02	1	0601-		●
114	PIPE ASM; OIL,BODY	1-13313-710-1	01	1	0407-	●
114	PIPE ASM; OIL,BODY	1-13313-985-0	01	1	0407-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA	1-09630-083-0	02	1	0407-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0407-	●	●
119	CLIP; OIL PIPE,BODY TO CMPR (A) WO/NUT	1-09700-079-0	01	1	0407-	●
119	CLIP; OIL PIPE,BODY TO CMPR (B) W/NUT	1-09700-080-0	01	1	0407-	●
119	CLIP; OIL PIPE,BODY TO CMPR (C)	1-09701-180-0	01	1	0407-		●
119	CLIP; OIL PIPE,BODY TO CMPR (D) ID=10 & 10 L=25	8-94393-280-3	01	1	0407-		●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	0407-	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-961-0	01	1	0407-		●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0407-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	03	1	0407-		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0407-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	06	1	0407-		●

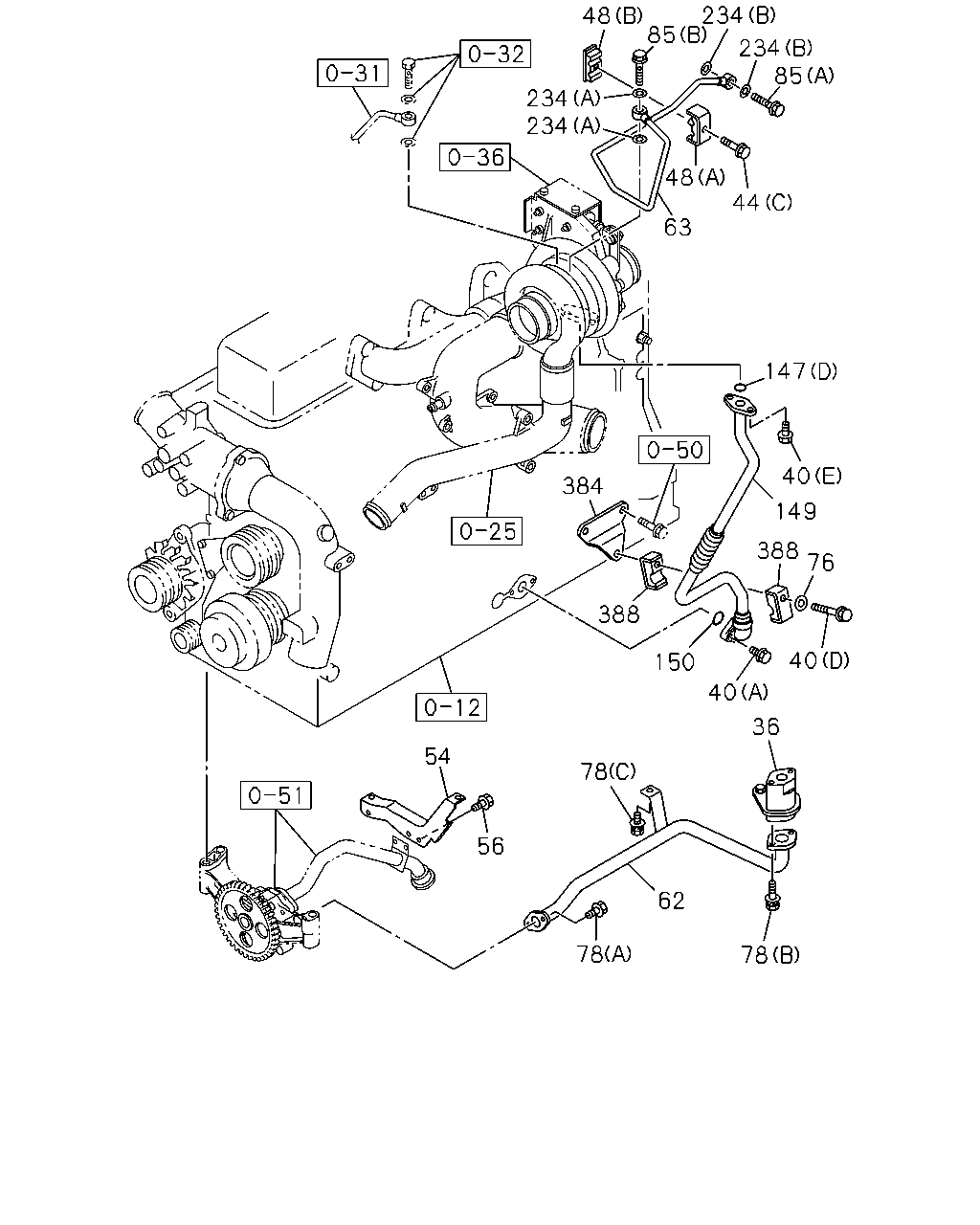

48 234 85 234 85 234 234 48 44 63 147 40 384 149 388 76 388 40 150 40 36 54 78 56 62 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	SPACER; DRAIN BACK	1-13260-108-0	01	1	0407-	●	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0407-0512	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE THA	0-28050-830-0	02	1	0601-	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0407-	●
40	BOLT; OIL PIPE (D) M6X50 FLANGE	0-28080-650-0	01	1	0407-0512		●
40	BOLT; OIL PIPE (D) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
40	BOLT; OIL PIPE (E) M10X30 FLANGE	0-28781-030-0	02	1	0407-0512		●
40	BOLT; OIL PIPE (E) M10X30 FLANGE	0-28751-030-0	02	1	0601-		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	0407-0512	●	●
40	BOLT; OIL PIPE (A) M8X25 FLANGE THA	0-28050-825-0	02	1	0601-	●	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0407-0512	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0407-	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	02	1	0407-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	02	1	0601-		●
48	CLIP; OIL PIPE (A)	1-09701-228-2	03	1	0407-	●
48	CLIP; OIL PIPE (B)	1-09701-229-1	03	1	0407-	●
48	CLIP; OIL PIPE (A)	1-09701-228-2	01	1	0407-		●
48	CLIP; OIL PIPE (B)	1-09701-229-1	01	1	0407-		●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0407-	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0407-0512	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0407-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	0407-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-958-0	01	1	0407-		●
76	WASHER; CLIP ID=6.4 OD=18	9-09160-706-0	01	1	0407-0605		●
76	WASHER; CLIP ID=6.4 OD=18	0-91610-706-0	01	1	0606-		●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0407-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0407-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0407-0512	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-	●	●
85	BOLT; EYE,OIL PIPE FIX (A) M14X27 FLANGE	1-09675-086-0	01	1	0407-		●
85	BOLT; EYE,OIL PIPE FIX (B) M10X24	9-09906-205-1	01	1	0407-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-297-0	01	1	0407-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0407-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09637-058-2	01	1	0407-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22.1	8-94399-399-0	01	1	0407-		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-725-0	01	1	0407-	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-959-0	01	1	0407-		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	0407-		●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 THA	1-09630-083-0	02	1	0407-		●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-19199-315-0	02	1	0407-		●
388	CLIP; TURBOCHARGER RETURN PIPE	1-09701-281-1	02	1	0407-		●

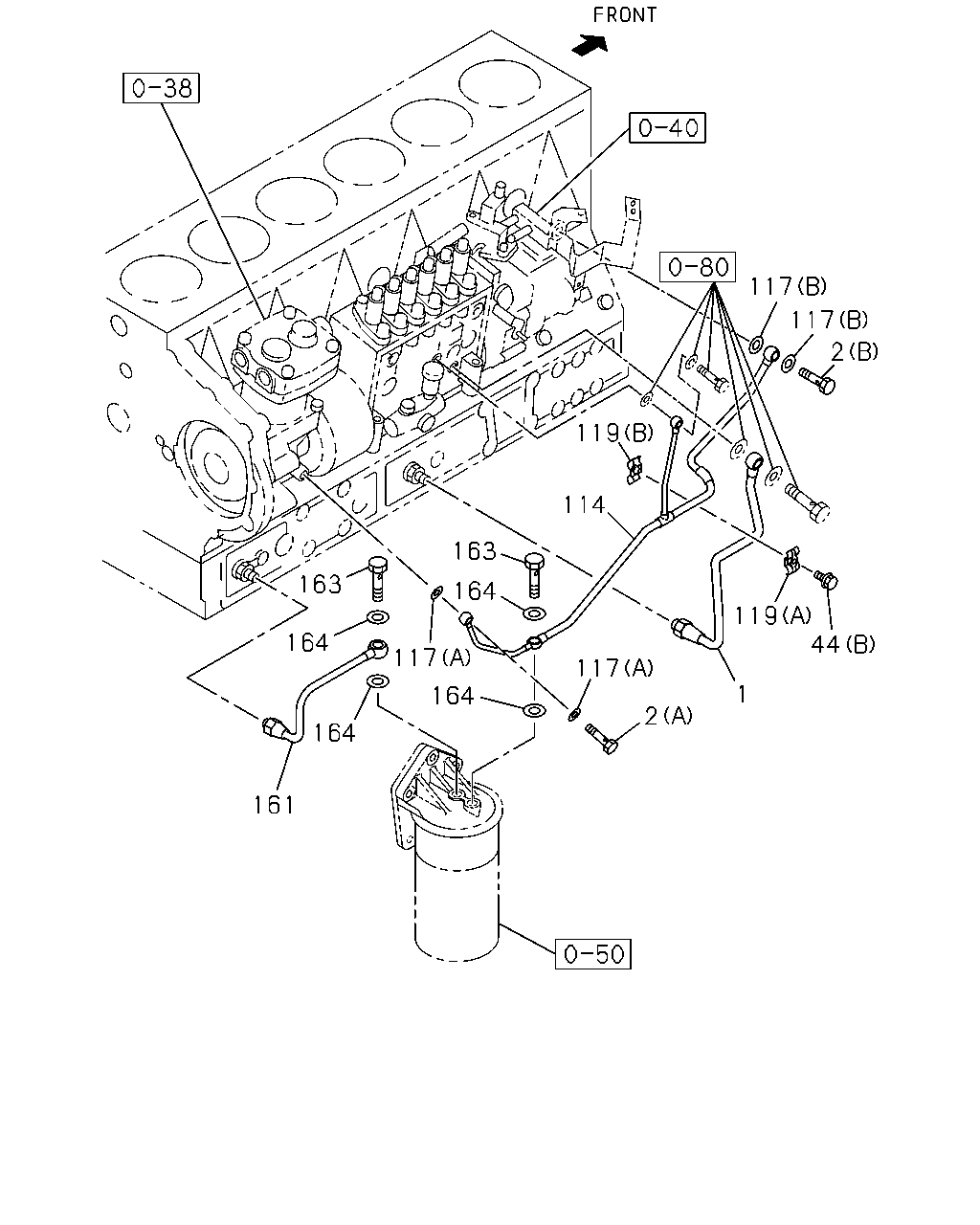

117 117 2 119 114 163 163 164 119 44 164 117 117 1 164 2 164 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-691-0	01	1	0407-	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-972-0	01	1	0407-		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0407-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0407-0805	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0407-0805	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	8-98037-826-0	01	1	0806-	●	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0407-0512	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0407-	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	02	1	0407-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	02	1	0601-		●
114	PIPE ASM; OIL,BODY	1-13313-710-1	01	1	0407-	●
114	PIPE ASM; OIL,BODY	1-13313-985-0	01	1	0407-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA	1-09630-083-0	02	1	0407-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0407-	●	●
119	CLIP; OIL PIPE,BODY TO CMPR (A) WO/NUT	1-09700-079-0	01	1	0407-	●
119	CLIP; OIL PIPE,BODY TO CMPR (B) W/NUT	1-09700-080-0	01	1	0407-	●
119	CLIP; OIL PIPE,BODY TO CMPR (C)	1-09701-180-0	01	1	0407-		●
119	CLIP; OIL PIPE,BODY TO CMPR (D) ID=10 & 10 L=25	8-94393-280-3	01	1	0407-		●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	0407-	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-961-0	01	1	0407-		●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0407-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	03	1	0407-		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0407-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	06	1	0407-		●

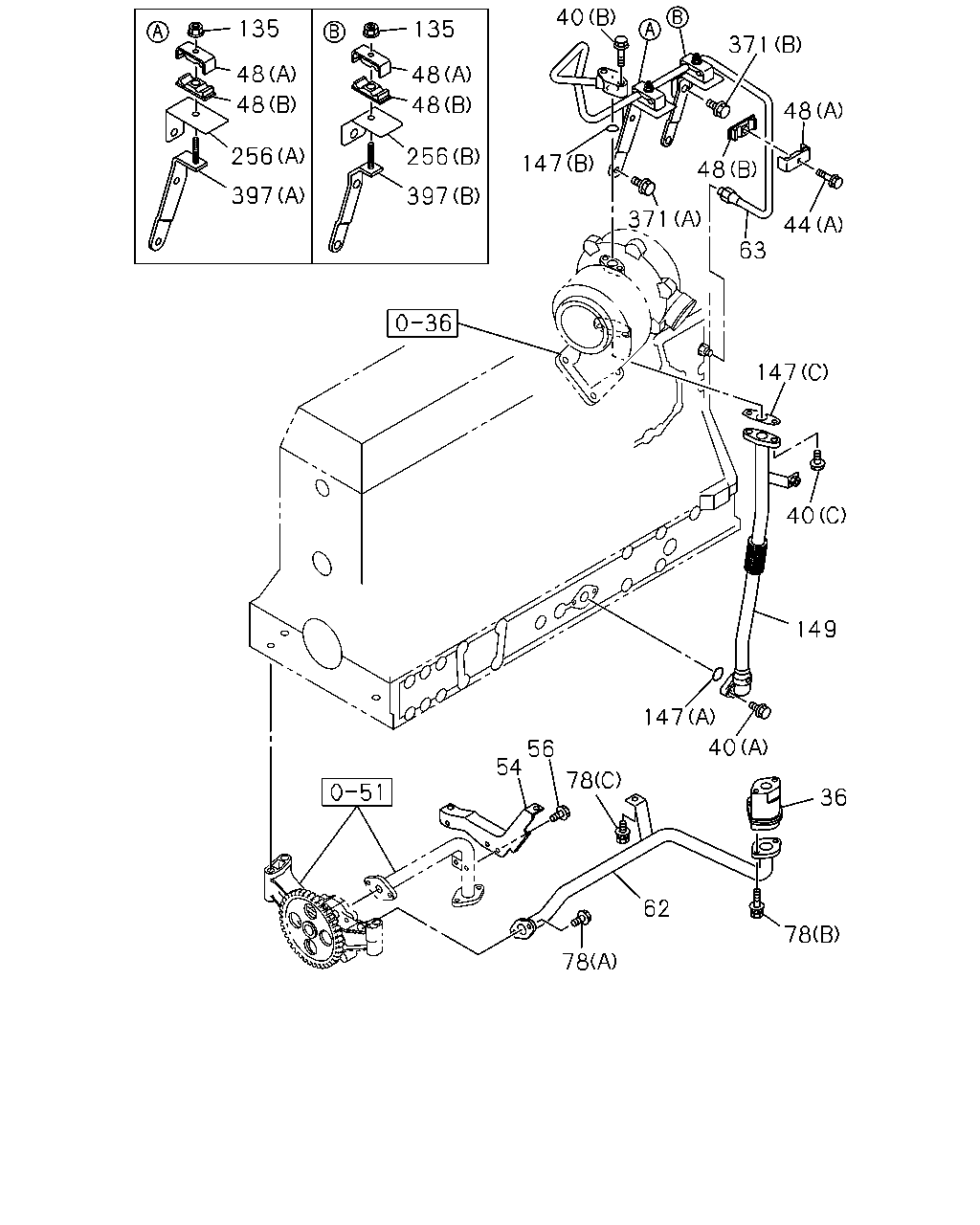

40 135 135 371 48 48 48 48 48 256 256 147 48 397 397 371 44 63 147 40 149 147 40 56 54 78 36 62 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	SPACER; DRAIN BACK	1-13260-108-0	01	1	0407-	●	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0407-0512	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE THA	0-28050-830-0	02	1	0601-	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0407-	●
40	BOLT; OIL PIPE (D) M6X50 FLANGE	0-28080-650-0	01	1	0407-0512		●
40	BOLT; OIL PIPE (D) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
40	BOLT; OIL PIPE (E) M10X30 FLANGE	0-28781-030-0	02	1	0407-0512		●
40	BOLT; OIL PIPE (E) M10X30 FLANGE	0-28751-030-0	02	1	0601-		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	0407-0512	●	●
40	BOLT; OIL PIPE (A) M8X25 FLANGE THA	0-28050-825-0	02	1	0601-	●	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0407-0512	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0407-	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	02	1	0407-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	02	1	0601-		●
48	CLIP; OIL PIPE (A)	1-09701-228-2	03	1	0407-	●
48	CLIP; OIL PIPE (B)	1-09701-229-1	03	1	0407-	●
48	CLIP; OIL PIPE (A)	1-09701-228-2	01	1	0407-		●
48	CLIP; OIL PIPE (B)	1-09701-229-1	01	1	0407-		●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0407-	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0407-0512	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0407-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	0407-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-958-0	01	1	0407-		●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0407-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0407-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0407-0512	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-	●	●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	0407-0602	●
135	NUT; CLIP M6 FLANGE THA	0-91180-106-0	02	1	0603-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-297-0	01	1	0407-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0407-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09637-058-2	01	1	0407-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22.1	8-94399-399-0	01	1	0407-		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-725-0	01	1	0407-	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-959-0	01	1	0407-		●
256	PROTECTOR; HEAT,PIPE (A)	1-14181-293-0	01	1	0407-	●
256	PROTECTOR; HEAT,PIPE (B)	1-14181-294-0	01	1	0407-	●
371	BOLT; STAY (A) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512	●
371	BOLT; STAY (A) M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●
371	BOLT; STAY (B) M10X16 FLANGE	0-28181-016-0	02	1	0407-0512	●
371	BOLT; STAY (B) M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
397	STAY; OIL PIPE (A)	1-13319-038-0	01	1	0407-	●
397	STAY; OIL PIPE (B)	1-13319-039-0	01	1	0407-	●
