0-39A — AIR COMPRESSOR; BRAKE (#2401) — 80 parça

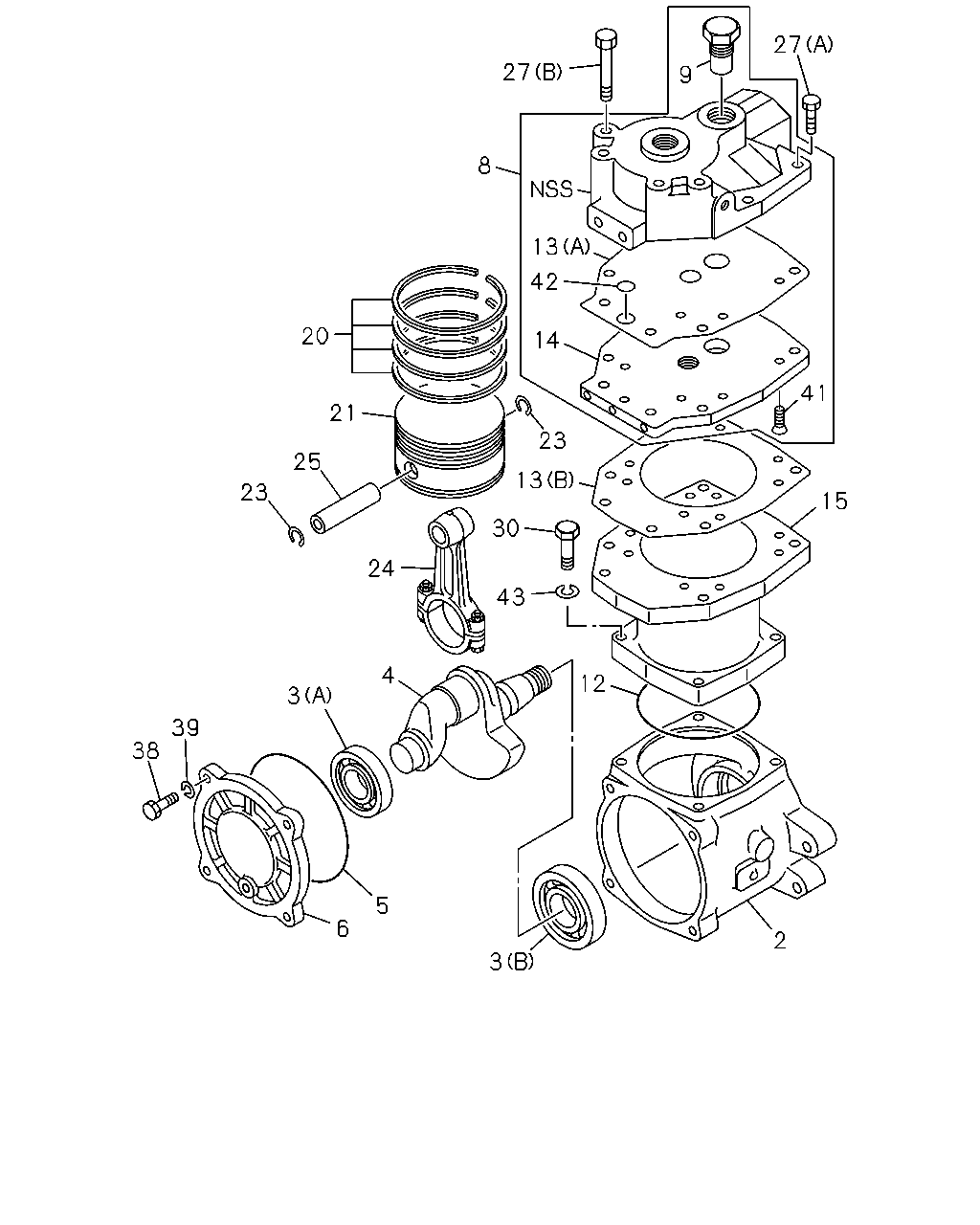

çizim 95365
27 27 9 8 13 42 20 14 41 21 23 25 13 23 15 30 24 43 4 12 3 39 38 5 6 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CRANKCASE; AIR CMPR 1-19151-238-0 01 1 9002-9306 ● ● ●
2 CRANKCASE; AIR CMPR 1-19151-238-0 01 1 9307-9307 ● ●
2 CRANKCASE; AIR CMPR 1-19151-238-0 01 1 9308- ● ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 9002- ● ● ●
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 9002- ● ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 9002-9111 ● ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-031-0 01 1 9112- ● ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9002- ● ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 9002- ● ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19111-035-1 01 1 9002-9111 ● ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-050-3 01 1 9112- ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-009-0 01 1 9002-9111 ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-018-0 01 1 9112-9306 ● ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-018-0 01 1 9307-9307 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-018-1 01 1 9308- ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9002- ● ● ●
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9002-9306 ● ● ●
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9002-9306 ● ● ●
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9307-9307 ● ●
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9308- ● ●
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9307-9307 ● ●
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9308- ● ●
14 PLATE; AIR CMPR 1-19111-017-1 01 1 9002-9306 ● ● ●
14 PLATE; AIR CMPR 1-19111-017-1 01 1 9307-9307 ● ●
14 PLATE; AIR CMPR 1-19111-017-3 01 1 9308- ● ●
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9002-9306 ● ● ●
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9307-9307 ● ●
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9308- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-029-0 01 1 9002-9306 ● ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-029-0 01 1 9307-9307 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-029-0 01 1 9308-9405 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-055-0 01 1 9406- ● ●
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9002-9306 ● ● ●
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9307-9307 ● ●
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9308- ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-005-0 02 1 9002-9306 ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-005-0 02 1 9307-9307 ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-005-0 02 1 9308- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-012-0 01 1 9002-9306 ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-012-0 01 1 9307-9307 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-012-0 01 1 9308- ● ●
25 PIN; PISTON,AIR CMPR 9-19167-007-0 01 1 9002-9306 ● ● ●
25 PIN; PISTON,AIR CMPR 9-19167-007-0 01 1 9307-9307 ● ●
25 PIN; PISTON,AIR CMPR 9-19167-007-0 01 1 9308- ● ●
27 BOLT; HD
(A) 		1-19119-013-0 04 1 9002-9306 ● ● ●
27 BOLT; HD
(B) 		1-19119-014-0 02 1 9002-9306 ● ● ●
27 BOLT; HD
(A) 		1-19119-013-0 04 1 9307-9307 ● ●
27 BOLT; HD
(A) 		1-19119-013-0 04 1 9308- ● ●
27 BOLT; HD
(B) 		1-19119-014-0 02 1 9307-9307 ● ●
27 BOLT; HD
(B) 		1-19119-014-0 02 1 9308-9309 ● ●
27 BOLT; HD
(B) 		1-19119-014-0 04 1 9310- ● ●
30 BOLT; CYL TO CRANKCASE 1-19159-007-0 04 1 9002-9306 ● ● ●
30 BOLT; CYL TO CRANKCASE 1-19159-007-0 04 1 9307-9307 ● ●
30 BOLT; CYL TO CRANKCASE 1-19159-007-0 04 1 9308- ● ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 9002- ● ● ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9002- ● ● ●
41 SCREW; PLATE TO HD,AIR CMPR 1-09100-018-0 02 1 9002-9306 ● ● ●
41 SCREW; PLATE TO HD,AIR CMPR 1-09100-018-0 02 1 9307-9307 ● ●
41 SCREW; PLATE TO HD,AIR CMPR 1-09100-018-0 02 1 9308- ● ●
42 GASKET; PLATE TO HD,AIR CMPR 1-09623-402-0 02 1 9002-9306 ● ● ●
42 GASKET; PLATE TO HD,AIR CMPR 1-09623-402-0 02 1 9307-9307 ● ●
42 GASKET; PLATE TO HD,AIR CMPR 1-09623-402-0 02 1 9308- ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9002- ● ● ●

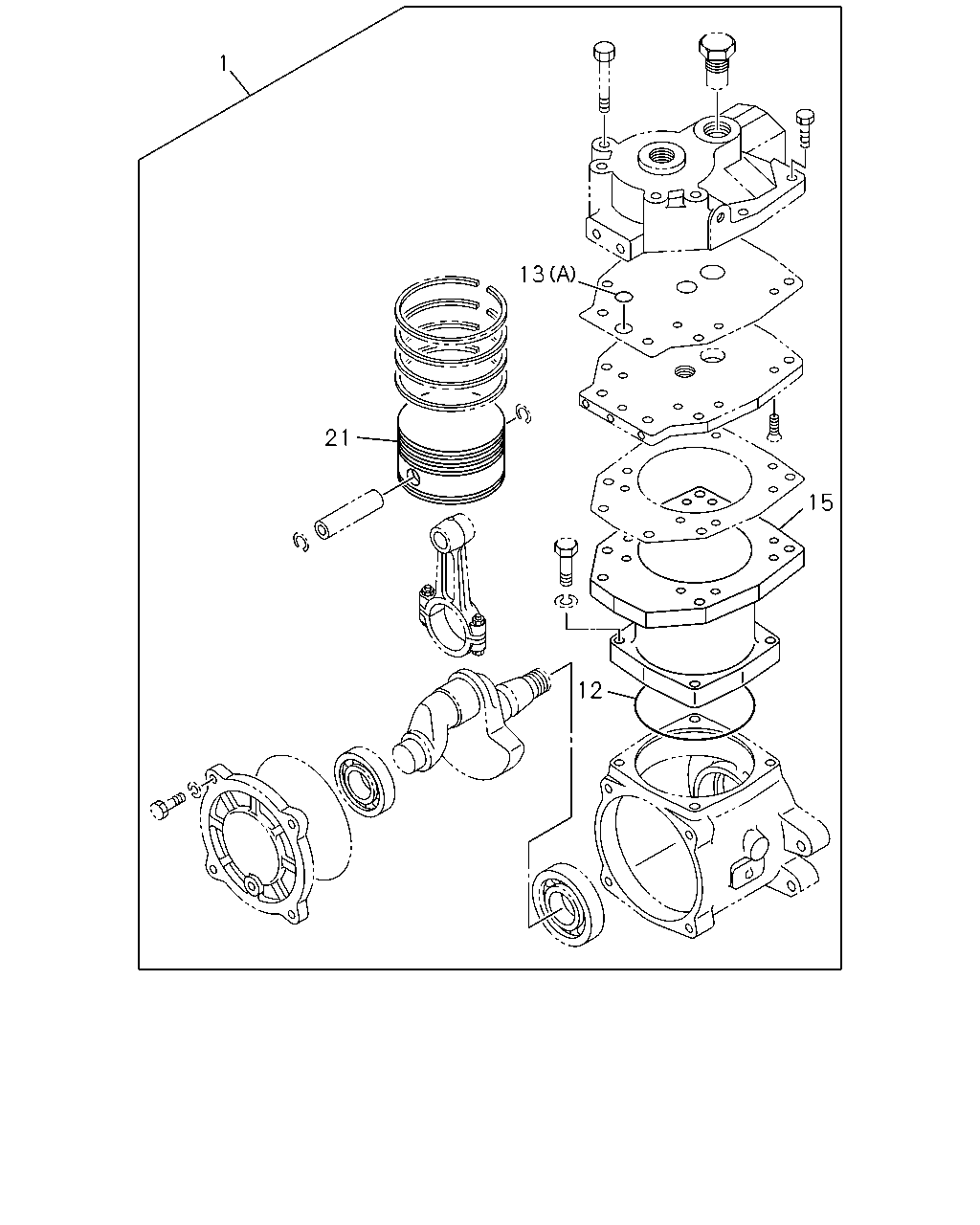

çizim 96422
1 13 21 15 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINER KIT; CYL,AIR CMPR 1-19163-032-0 01 1 9002-9306 ● ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-032-0 01 1 9307-9307 ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-032-0 01 1 9308-9405 ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-056-0 01 1 9406- ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9002- ● ● ●
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9002-9306 ● ● ●
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9002-9306 ● ● ●
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9307-9307 ● ●
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9308- ● ●
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9307-9307 ● ●
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9308- ● ●
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9002-9306 ● ● ●
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9307-9307 ● ●
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9308- ● ●
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9002-9306 ● ● ●
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9307-9307 ● ●
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9308- ● ●
