0-40 — FUEL INJECTION SYSTEM (#24005) — 157 parça
çizim 24572
31 32 34 36 36 140 44 43 47 45 138 140 43 272 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 NOZZLE ASM; INJ 1-15300-369-0 06 1 0407- ●
31 NOZZLE ASM; INJ 1-15300-424-0 06 1 0407- ●
32 HOLDER ASM; NOZZLE 1-15330-119-0 06 1 0407- ●
32 HOLDER ASM; NOZZLE 1-15330-134-0 06 1 0407- ●
34 BOLT; EYE,NOZZLE HOLDER
M8X18 EYE BOLT 		1-09675-037-1 06 1 0407- ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-111-0 06 1 0407- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-134-0 06 1 0407- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 12 1 0407- ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) 		1-15342-002-0 06 1 0407- ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) 		1-15342-003-0 06 1 0407- ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-005-0 06 1 0407- ● ●
45 ROD; PUSH,NOZZLE HOLDER 1-15349-129-0 06 1 0407- ● ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 1-15349-128-0 06 1 0407- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 1-15349-157-0 06 1 0407- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-006-0 06 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.40 		1-15349-112-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.50 		1-15349-113-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.52 		1-15349-114-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.54 		1-15349-115-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.56 		1-15349-116-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.58 		1-15349-117-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.60 		1-15349-118-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.70 		1-15349-119-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.40 		1-15349-120-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.50 		1-15349-121-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.52 		1-15349-122-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.54 		1-15349-123-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.56 		1-15349-124-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.58 		1-15349-125-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.60 		1-15349-126-0 AR 1 0407- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.70 		1-15349-127-0 AR 1 0407- ● ●
272 NOZZLE KIT; INJ 1-15319-005-0 12 1 0407- ●
272 NOZZLE KIT; INJ 1-15319-032-0 06 1 0407- ●

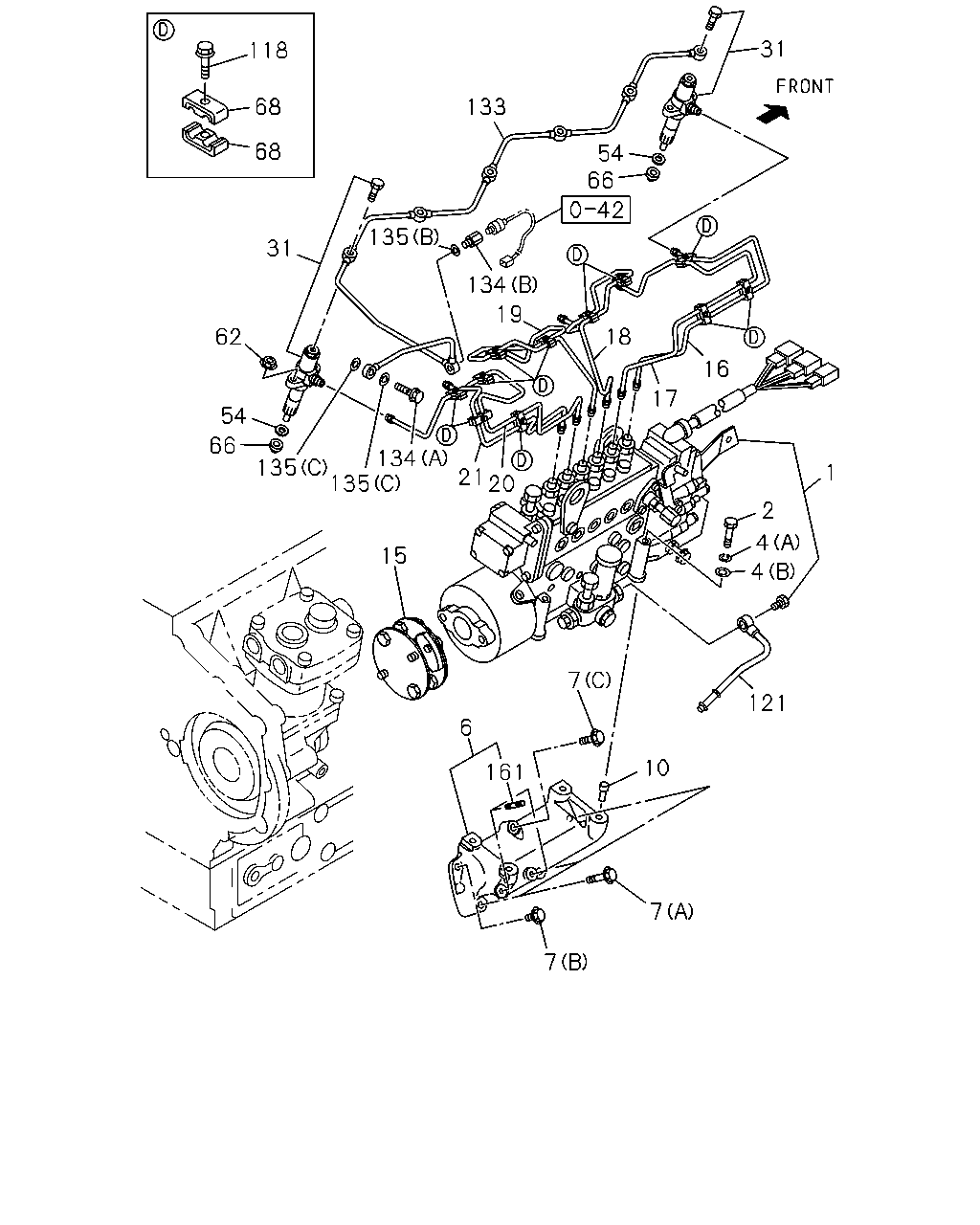

çizim 25806
31 118 68 133 68 54 66 135 31 134 19 18 62 16 17 54 66 134 135 135 21 20 1 2 4 15 4 7 121 6 10 161 7 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15603-276-4 01 1 0407- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15603-377-2 01 1 0407-0505 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97609-726-0 01 1 0506-0508 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97610-929-0 01 1 0509- ●
2 BOLT; INJ PUMP
M10X90 		0-16806-090-0 04 1 0407-0512 ● ●
2 BOLT; INJ PUMP
M10X90 		0-16856-090-0 04 1 0601- ● ●
4 WASHER; INJ PUMP
(A) ID=10.2 		9-09150-510-0 04 1 0407-0603 ● ●
4 WASHER; INJ PUMP
(A) ID=10.2 		0-91510-510-0 04 1 0604- ● ●
4 WASHER; INJ PUMP
(B) ID=10.5 OD=18 		9-09160-510-0 04 1 0407-0605 ● ●
4 WASHER; INJ PUMP
(B) ID=10.5 		0-91610-510-0 04 1 0606- ● ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-168-0 01 1 0407-0502 ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97608-455-0 01 1 0503- ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X60 FLANGE 		0-28181-060-0 03 1 0407-0512 ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X60 FLANGE 		0-28151-060-0 03 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X25 FLANGE 		0-28781-025-0 01 1 0407-0512 ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(C) M10X40 FLANGE 		0-28781-040-0 01 1 0407-0512 ● ●
7 BOLT; INJ PUMP BRKT
(C) M10X40 FLANGE 		0-28751-040-0 01 1 0601- ● ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 0407- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-202-1 01 1 0407- ● ●
16 PIPE; INJ NO.1 1-15416-021-0 01 1 0407- ●
16 PIPE; INJ NO.1 1-15416-631-0 01 1 0407- ●
17 PIPE; INJ NO.2 1-15416-022-0 01 1 0407- ●
17 PIPE; INJ NO.2 1-15416-632-0 01 1 0407- ●
18 PIPE; INJ NO.3 1-15416-023-0 01 1 0407- ●
18 PIPE; INJ NO.3 1-15416-633-0 01 1 0407- ●
19 PIPE; INJ NO.4 1-15416-024-0 01 1 0407- ●
19 PIPE; INJ NO.4 1-15416-634-0 01 1 0407- ●
20 PIPE; INJ NO.5 1-15416-025-0 01 1 0407- ●
20 PIPE; INJ NO.5 1-15416-635-0 01 1 0407- ●
21 PIPE; INJ NO.6 1-15416-026-0 01 1 0407- ●
21 PIPE; INJ NO.6 1-15416-636-0 01 1 0407- ●
31 NOZZLE ASM; INJ 1-15300-369-0 06 1 0407- ●
31 NOZZLE ASM; INJ 1-15300-424-0 06 1 0407- ●
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 0407- ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 0407-0602 ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE THA 		0-91180-108-0 12 1 0603- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 0407- ● ●
68 CLIP; INJ PIPE 1-09701-132-1 22 1 0407- ●
118 BOLT; CLIP,INJ PIPE
M6X35 FLANGE 		0-28680-635-0 11 1 0407-0512 ●
118 BOLT; CLIP,INJ PIPE
M6X35 FLANGE 		0-28650-635-0 11 1 0601- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15415-778-0 01 1 0407- ● ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15416-027-0 01 1 0407- ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15416-768-0 01 1 0407- ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) 		1-09675-156-1 01 1 0407- ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE BOLT 		1-09675-037-1 01 1 0407- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0407- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0407- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-94395-214-0 01 1 0407- ●
161 STUD; INJ PUMP
M8X20 L=32 		9-04110-820-0 02 1 0407- ● ●
çizim 81814
99 110 113 113 99 18 113 17 16 17 113 16 113 113 120 112
BalonParca AdiParca NoAdetTipApplied Date A B
16 PIPE; INJ NO.1 1-15416-021-0 01 1 0407- ●
16 PIPE; INJ NO.1 1-15416-631-0 01 1 0407- ●
17 PIPE; INJ NO.2 1-15416-022-0 01 1 0407- ●
17 PIPE; INJ NO.2 1-15416-632-0 01 1 0407- ●
18 PIPE; INJ NO.3 1-15416-023-0 01 1 0407- ●
18 PIPE; INJ NO.3 1-15416-633-0 01 1 0407- ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28080-635-0 02 1 0407-0512 ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 02 1 0601- ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 05 1 0407-0602 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 05 1 0603- ●
112 NUT; BRKT,INJ PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0407-0602 ●
112 NUT; BRKT,INJ PIPE CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 0603- ●
113 CLIP; INJ PIPE 1-09701-132-1 14 1 0407- ●
120 BRACKET; INJ PIPE 1-15419-430-0 01 1 0407- ●

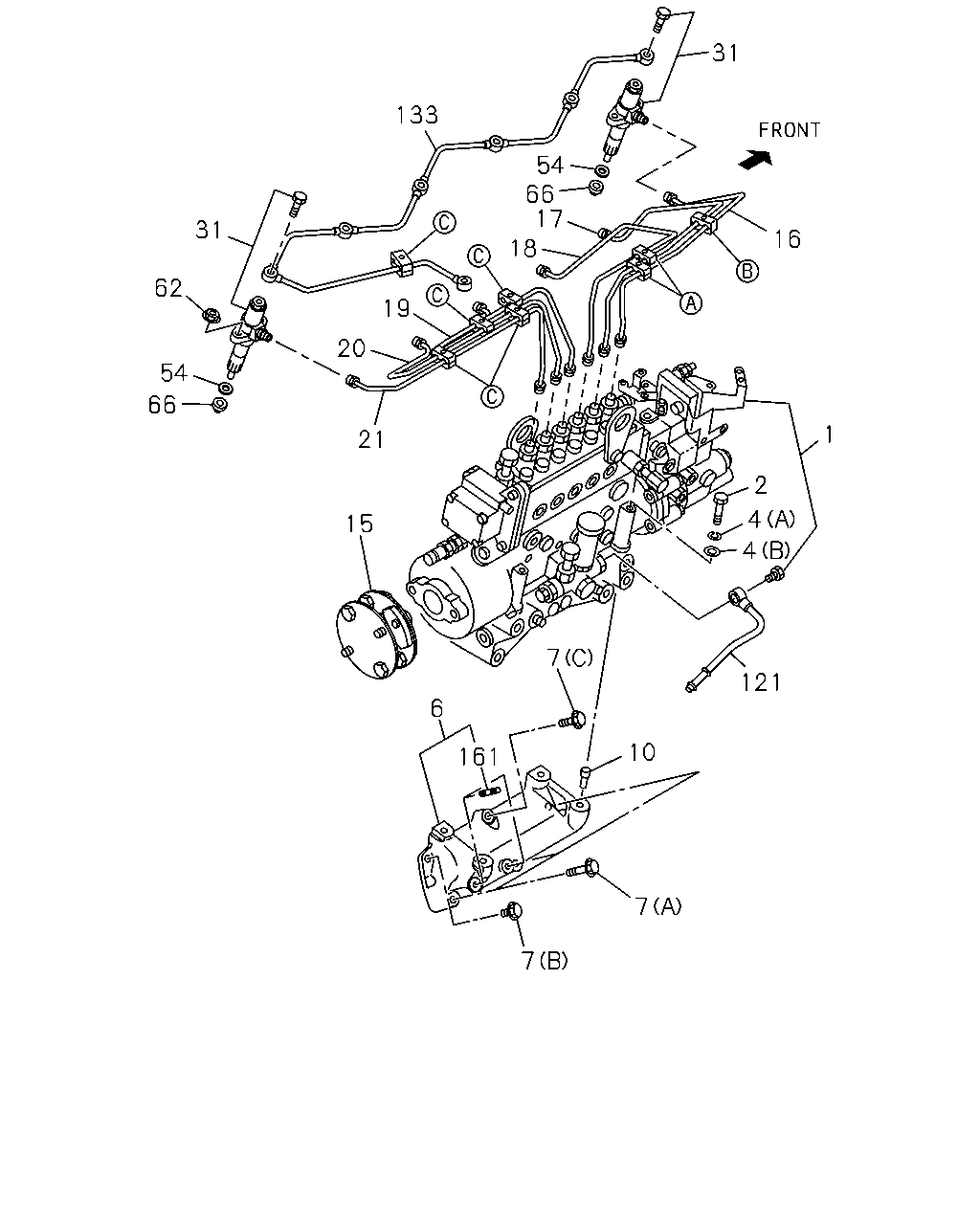

çizim 82107
31 133 54 66 17 18 31 16 62 19 20 54 66 1 21 2 4 15 4 7 121 6 10 161 7 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15603-276-4 01 1 0407- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15603-377-2 01 1 0407-0505 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97609-726-0 01 1 0506-0508 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97610-929-0 01 1 0509- ●
2 BOLT; INJ PUMP
M10X90 		0-16806-090-0 04 1 0407-0512 ● ●
2 BOLT; INJ PUMP
M10X90 		0-16856-090-0 04 1 0601- ● ●
4 WASHER; INJ PUMP
(A) ID=10.2 		9-09150-510-0 04 1 0407-0603 ● ●
4 WASHER; INJ PUMP
(A) ID=10.2 		0-91510-510-0 04 1 0604- ● ●
4 WASHER; INJ PUMP
(B) ID=10.5 OD=18 		9-09160-510-0 04 1 0407-0605 ● ●
4 WASHER; INJ PUMP
(B) ID=10.5 		0-91610-510-0 04 1 0606- ● ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-168-0 01 1 0407-0502 ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97608-455-0 01 1 0503- ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X60 FLANGE 		0-28181-060-0 03 1 0407-0512 ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X60 FLANGE 		0-28151-060-0 03 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X25 FLANGE 		0-28781-025-0 01 1 0407-0512 ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(C) M10X40 FLANGE 		0-28781-040-0 01 1 0407-0512 ● ●
7 BOLT; INJ PUMP BRKT
(C) M10X40 FLANGE 		0-28751-040-0 01 1 0601- ● ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 0407- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-202-1 01 1 0407- ● ●
16 PIPE; INJ NO.1 1-15416-021-0 01 1 0407- ●
16 PIPE; INJ NO.1 1-15416-631-0 01 1 0407- ●
17 PIPE; INJ NO.2 1-15416-022-0 01 1 0407- ●
17 PIPE; INJ NO.2 1-15416-632-0 01 1 0407- ●
18 PIPE; INJ NO.3 1-15416-023-0 01 1 0407- ●
18 PIPE; INJ NO.3 1-15416-633-0 01 1 0407- ●
19 PIPE; INJ NO.4 1-15416-024-0 01 1 0407- ●
19 PIPE; INJ NO.4 1-15416-634-0 01 1 0407- ●
20 PIPE; INJ NO.5 1-15416-025-0 01 1 0407- ●
20 PIPE; INJ NO.5 1-15416-635-0 01 1 0407- ●
21 PIPE; INJ NO.6 1-15416-026-0 01 1 0407- ●
21 PIPE; INJ NO.6 1-15416-636-0 01 1 0407- ●
31 NOZZLE ASM; INJ 1-15300-369-0 06 1 0407- ●
31 NOZZLE ASM; INJ 1-15300-424-0 06 1 0407- ●
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 0407- ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 0407-0602 ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE THA 		0-91180-108-0 12 1 0603- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 0407- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15415-778-0 01 1 0407- ● ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15416-027-0 01 1 0407- ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15416-768-0 01 1 0407- ●
161 STUD; INJ PUMP
M8X20 L=32 		9-04110-820-0 02 1 0407- ● ●

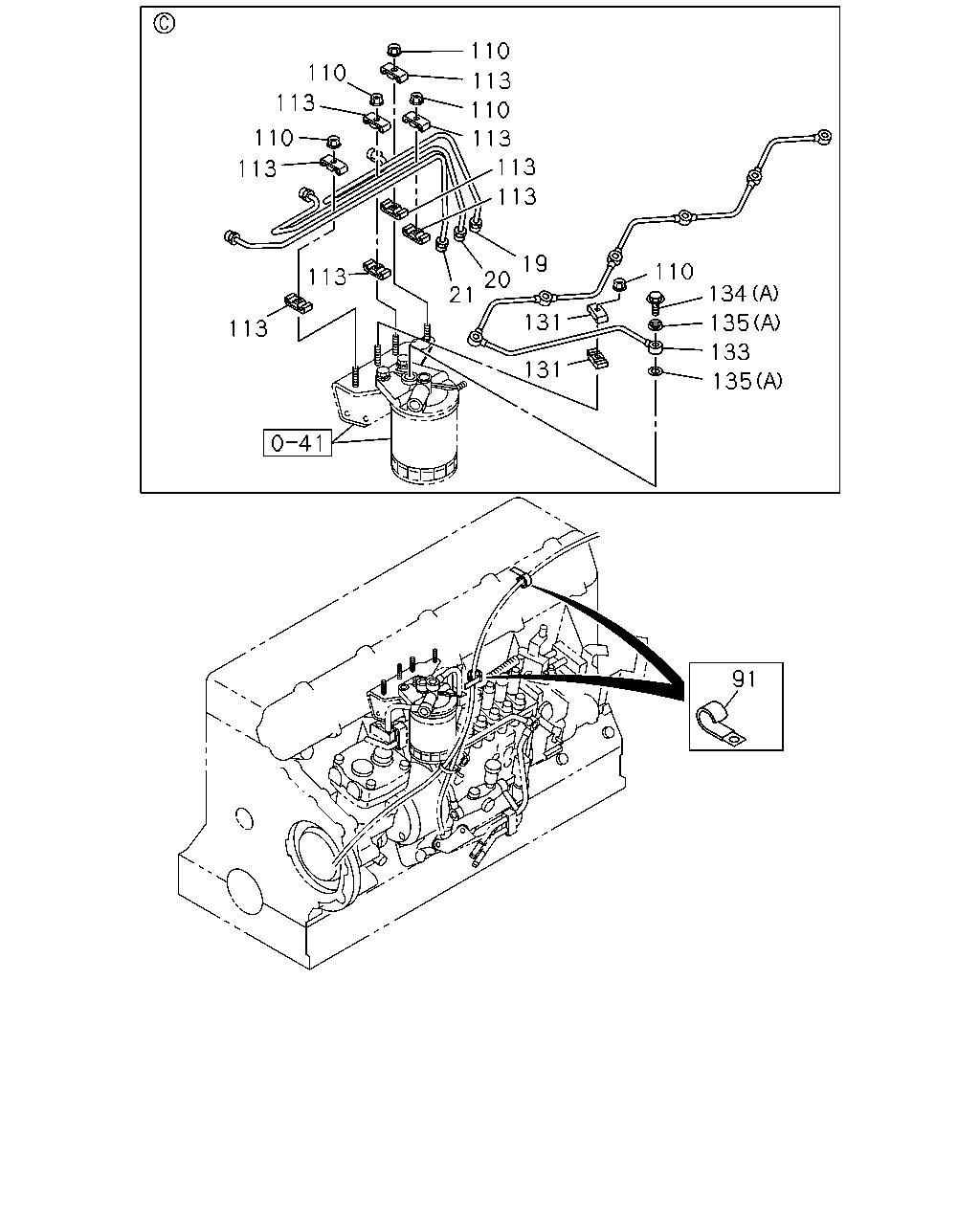

çizim 84129
110 110 113 113 110 110 113 113 113 113 19 110 113 20 134 21 131 135 113 133 131 135 91
BalonParca AdiParca NoAdetTipApplied Date A B
19 PIPE; INJ NO.4 1-15416-024-0 01 1 0407- ●
19 PIPE; INJ NO.4 1-15416-634-0 01 1 0407- ●
20 PIPE; INJ NO.5 1-15416-025-0 01 1 0407- ●
20 PIPE; INJ NO.5 1-15416-635-0 01 1 0407- ●
21 PIPE; INJ NO.6 1-15416-026-0 01 1 0407- ●
21 PIPE; INJ NO.6 1-15416-636-0 01 1 0407- ●
91 CLIP; HARNESS,INJ PUMP
L=110 		8-94149-419-0 02 1 0407- ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 05 1 0407-0602 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 05 1 0603- ●
113 CLIP; INJ PIPE 1-09701-132-1 14 1 0407- ●
131 CLIP; OVERFLOW LEAK OFF 1-09701-132-1 02 1 0407- ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15416-027-0 01 1 0407- ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15416-768-0 01 1 0407- ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) 		1-09675-156-1 01 1 0407- ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE BOLT 		1-09675-037-1 01 1 0407- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0407- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0407- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6 		8-94395-214-0 01 1 0407- ●
