0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#24003) — 133 parça

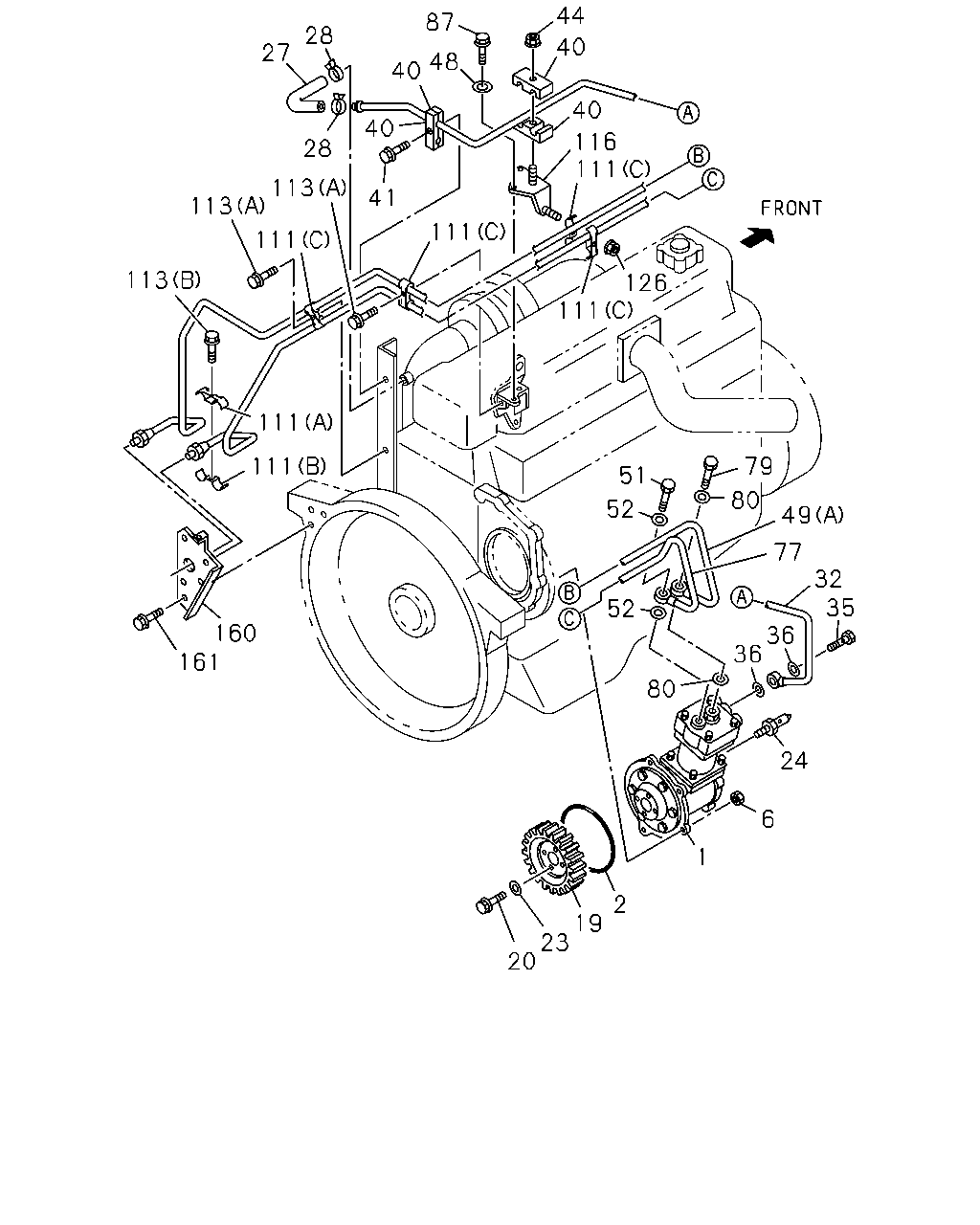

44 87 28 40 27 48 40 40 40 116 111 28 113 41 113 111 111 113 126 111 111 111 79 51 80 52 49 77 32 35 52 160 161 36 36 80 24 6 1 2 19 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-2	01	1	0407-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0407-	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	0407-0602	●
6	NUT; AIR CMPR M12 FLANGE THA	0-91180-112-0	04	1	0603-	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	02	1	0407-0602		●
6	NUT; AIR CMPR M12 FLANGE THA	0-91180-112-0	02	1	0603-		●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0407-	●	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0407-	●	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0407-	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0407-	●	●
27	HOSE; AIR CMPR,SUCTION	1-09360-916-0	01	1	0407-	●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	0407-		●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0407-	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0407-		●
32	PIPE; AIR,AIR CMPR	1-19192-892-0	01	1	0407-	●
32	PIPE; AIR,AIR CMPR	1-19193-356-0	01	1	0407-		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	0407-	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0407-	●	●
40	CLIP; AIR PIPE	1-09701-210-0	04	1	0407-	●
40	CLIP; AIR PIPE	1-09701-281-1	08	1	0407-		●
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0407-0512	●
41	BOLT; CLIP M6X50 FLANGE	0-28050-650-0	01	1	0601-	●
41	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	04	1	0407-0512		●
41	BOLT; CLIP M8X50 FLANGE THA	0-28050-850-0	04	1	0601-		●
44	NUT M6 FLANGE	0-91150-106-0	01	1	0407-0602	●
44	NUT M6 FLANGE THA	0-91180-106-0	01	1	0603-	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0407-0605	●
48	WASHER; PL,BRKT ID=10.5	0-91610-510-0	02	1	0606-	●
49	PIPE; AIR,CHARGE (A)	1-19192-963-0	01	1	0407-	●
49	PIPE; AIR,CHARGE (B)	1-19193-350-0	01	1	0407-		●
49	PIPE; AIR,CHARGE (C)	1-19193-357-0	01	1	0407-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0407-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0407-	●	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	0407-	●
77	PIPE; AIR,GOV	1-19193-351-0	01	1	0407-		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0407-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0407-0512	●
87	BOLT; BRKT FIX M10X20 FLANGE THA	0-28051-020-0	02	1	0601-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0407-	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0407-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0407-	●
113	BOLT; CLIP,AIR PIPE (B) M6X25 FLANGE	0-28080-625-0	02	1	0407-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X25 FLANGE	0-28050-625-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	02	1	0407-0512	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	0407-	●
116	BRACKET; AIR PIPE	1-14119-469-0	02	1	0407-		●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	0407-0602	●
126	NUT; CLIP FIX M6 FLANGE THA	0-91180-106-0	01	1	0603-	●
160	BRACKET; AIR PIPE	1-19199-251-1	01	1	0407-	●
160	BRACKET; AIR PIPE	1-19199-378-0	01	1	0407-		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	03	1	0407-0512	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE THA	0-28050-816-0	03	1	0601-	●	●

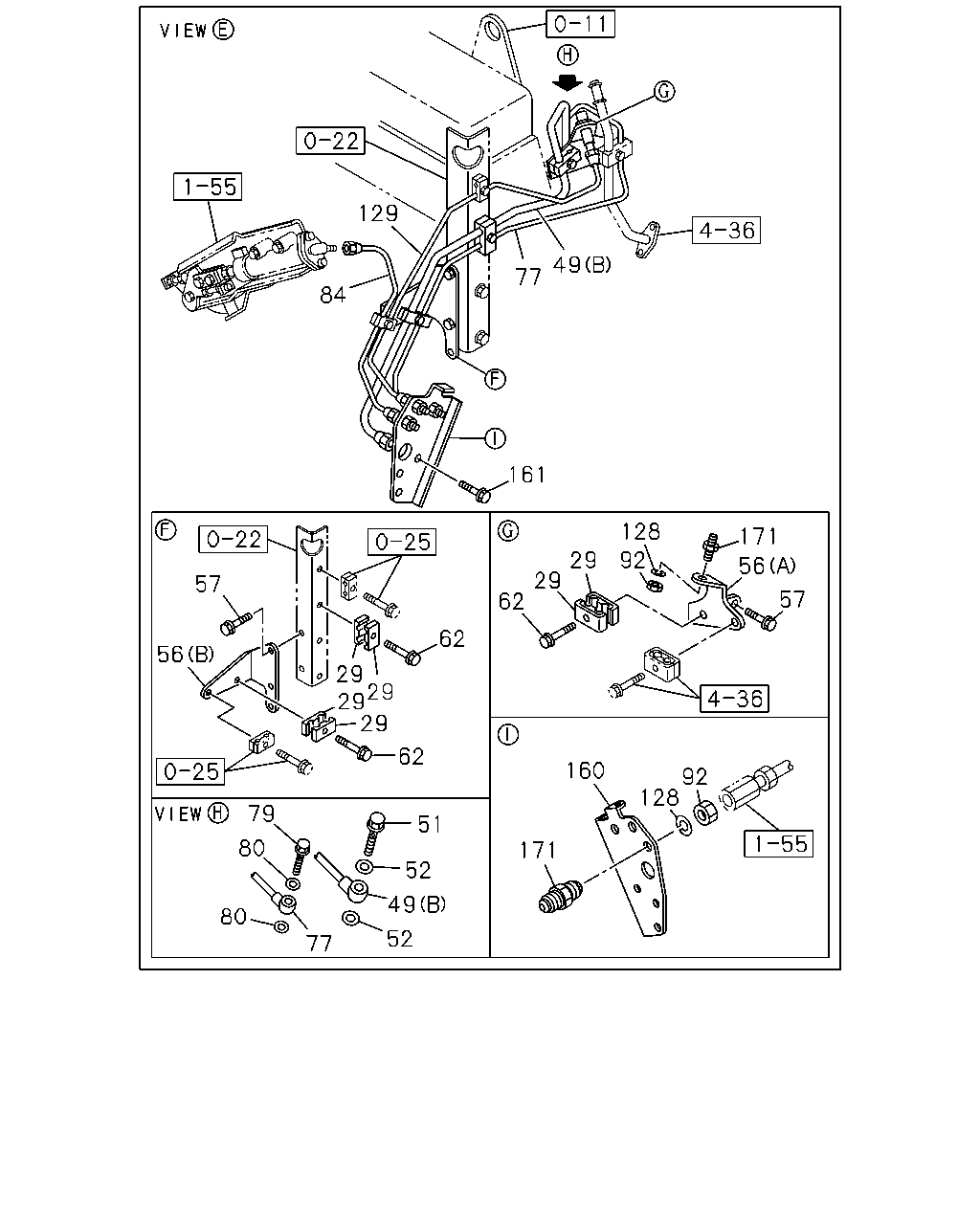

129 49 77 84 161 128 171 29 29 62 92 56 57 57 62 56 29 29 29 29 62 160 92 128 79 51 80 171 52 49 80 52 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	CLIP; AIR PIPE	1-09701-208-0	06	1	0407-		●
49	PIPE; AIR,CHARGE (A)	1-19192-963-0	01	1	0407-	●
49	PIPE; AIR,CHARGE (B)	1-19193-350-0	01	1	0407-		●
49	PIPE; AIR,CHARGE (C)	1-19193-357-0	01	1	0407-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0407-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0407-	●	●
56	BRACKET; AIR PIPE FIX (A)	1-19193-353-0	01	1	0407-		●
56	BRACKET; AIR PIPE FIX (B)	1-19199-379-0	01	1	0407-		●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0407-0512		●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE THA	0-28050-816-0	02	1	0601-		●
57	BOLT; BRKT,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	0407-0512		●
57	BOLT; BRKT,AIR PIPE M8X20 FLANGE THA	0-28650-820-0	02	1	0601-		●
62	BOLT; CLIP M6X40 FLANGE	0-28680-640-0	03	1	0407-0512		●
62	BOLT; CLIP M6X40 FLANGE	0-28650-640-0	03	1	0601-		●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	0407-	●
77	PIPE; AIR,GOV	1-19193-351-0	01	1	0407-		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0407-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-	●	●
84	PIPE; AIR	1-19192-964-0	01	1	0407-	●
84	PIPE; AIR	1-19193-354-0	01	1	0407-		●
92	NUT; UNION M12	9-09840-280-0	04	1	0407-		●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	04	1	0407-0603		●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	04	1	0604-		●
129	PIPE; AIR,VGS	1-19193-355-0	01	1	0407-		●
160	BRACKET; AIR PIPE	1-19199-251-1	01	1	0407-	●
160	BRACKET; AIR PIPE	1-19199-378-0	01	1	0407-		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	03	1	0407-0512	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE THA	0-28050-816-0	03	1	0601-	●	●
171	UNION M12 L=66.5	9-09223-306-1	04	1	0407-0607		●
171	UNION M12 L=66.5	0-92113-306-0	04	1	0608-		●

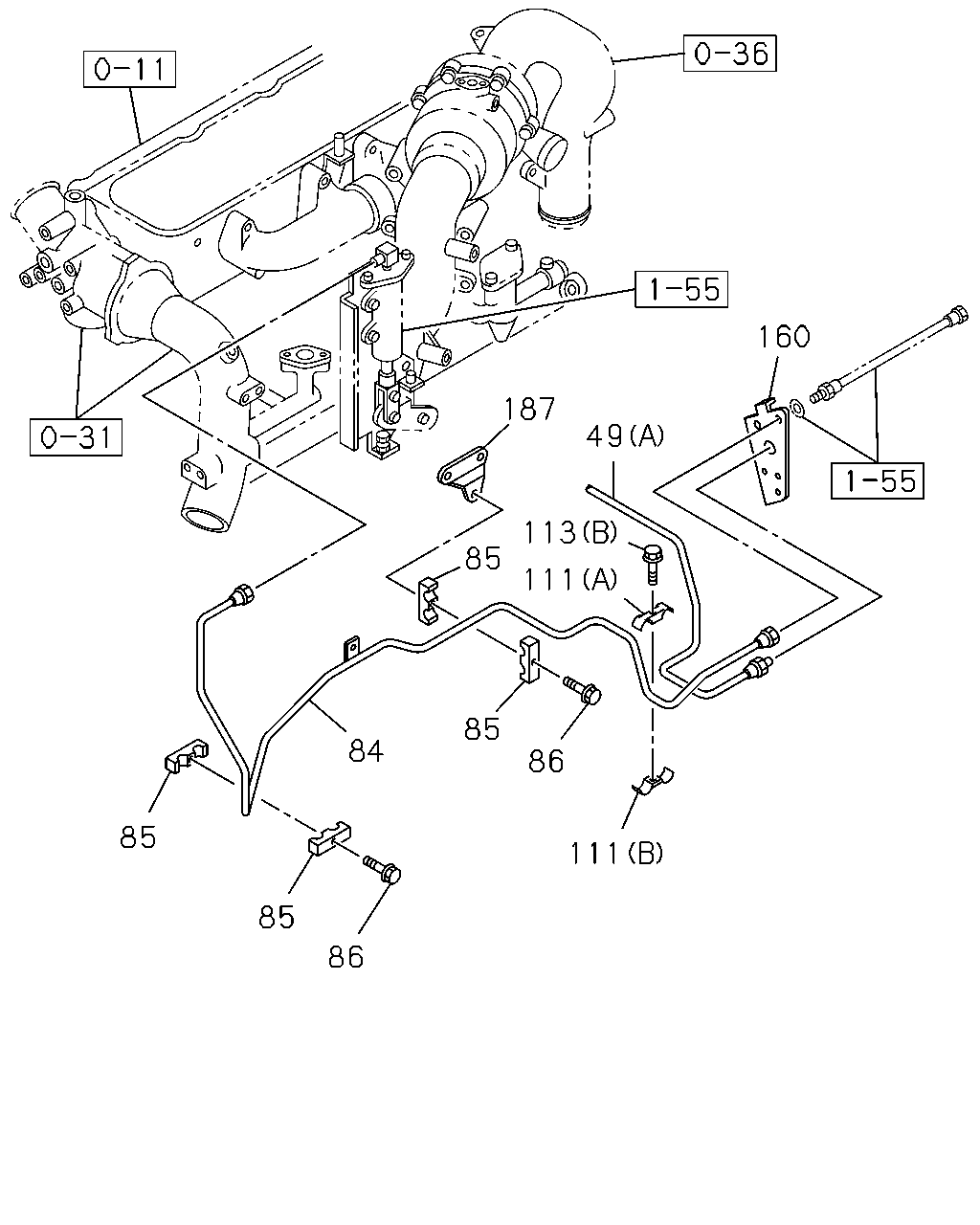

160 187 49 113 85 111 85 84 86 85 111 85 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; AIR,CHARGE (A)	1-19192-963-0	01	1	0407-	●
49	PIPE; AIR,CHARGE (B)	1-19193-350-0	01	1	0407-		●
49	PIPE; AIR,CHARGE (C)	1-19193-357-0	01	1	0407-		●
84	PIPE; AIR	1-19192-964-0	01	1	0407-	●
84	PIPE; AIR	1-19193-354-0	01	1	0407-		●
85	CLIP; PIPE	1-09701-240-0	04	1	0407-	●
86	BOLT; CLIP M6X35 FLANGE	0-28080-635-0	02	1	0407-0512	●
86	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	02	1	0601-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0407-	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0407-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0407-	●
113	BOLT; CLIP,AIR PIPE (B) M6X25 FLANGE	0-28080-625-0	02	1	0407-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X25 FLANGE	0-28050-625-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	02	1	0407-0512	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●
160	BRACKET; AIR PIPE	1-19199-251-1	01	1	0407-	●
160	BRACKET; AIR PIPE	1-19199-378-0	01	1	0407-		●
187	BRACKET; AIR PIPE	1-19199-261-0	01	1	0407-	●

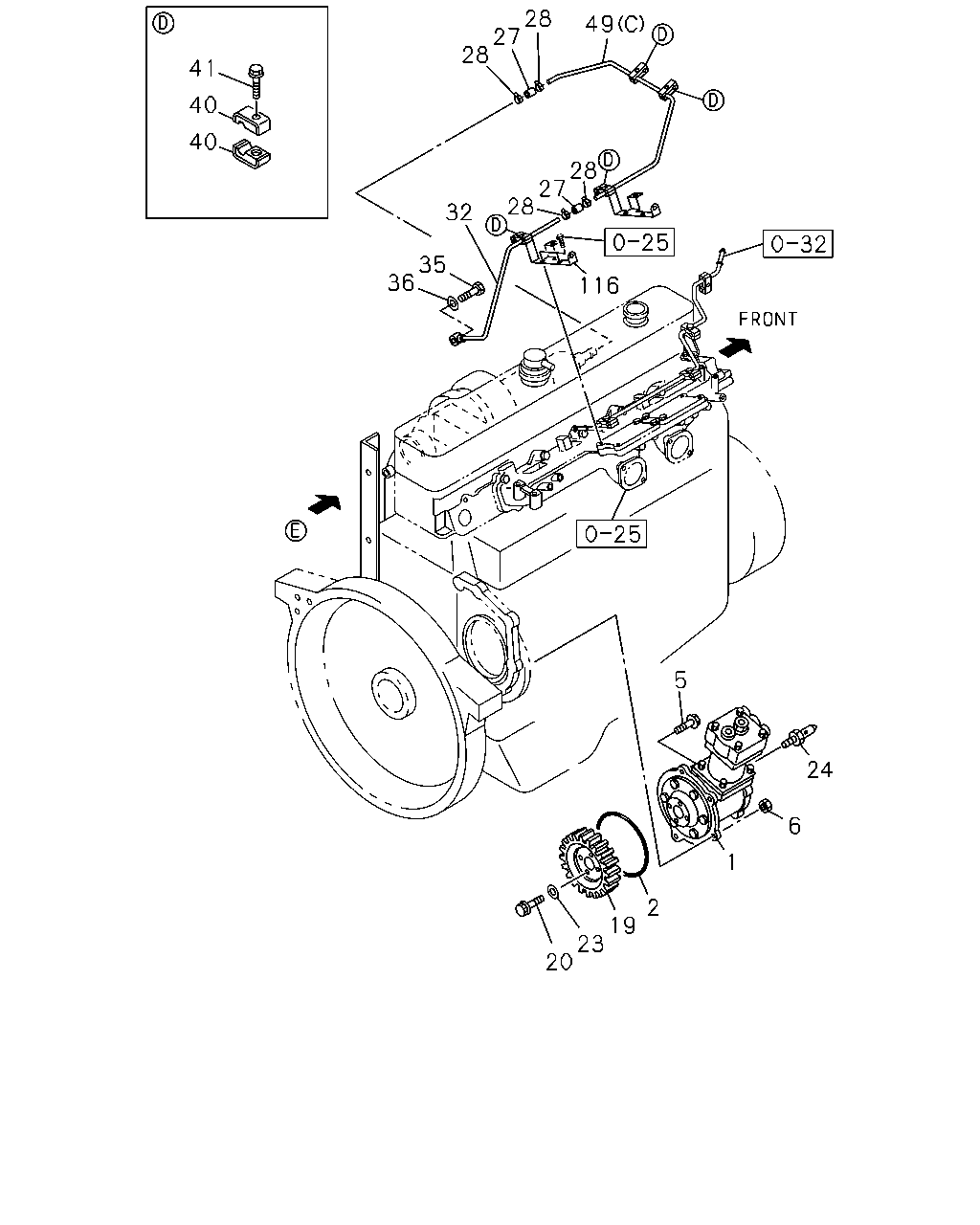

28 27 28 49 41 40 40 28 27 28 32 35 36 116 5 24 6 1 2 19 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-2	01	1	0407-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0407-	●	●
5	BOLT; AIR CMPR FIX M12X100 FLANGE	0-28181-200-0	02	1	0407-0512		●
5	BOLT; AIR CMPR FIX M12X100 FLANGE	0-28151-200-0	02	1	0601-		●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	0407-0602	●
6	NUT; AIR CMPR M12 FLANGE THA	0-91180-112-0	04	1	0603-	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	02	1	0407-0602		●
6	NUT; AIR CMPR M12 FLANGE THA	0-91180-112-0	02	1	0603-		●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0407-	●	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0407-	●	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0407-	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0407-	●	●
27	HOSE; AIR CMPR,SUCTION	1-09360-916-0	01	1	0407-	●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	0407-		●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0407-	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0407-		●
32	PIPE; AIR,AIR CMPR	1-19192-892-0	01	1	0407-	●
32	PIPE; AIR,AIR CMPR	1-19193-356-0	01	1	0407-		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	0407-	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0407-	●	●
40	CLIP; AIR PIPE	1-09701-210-0	04	1	0407-	●
40	CLIP; AIR PIPE	1-09701-281-1	08	1	0407-		●
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0407-0512	●
41	BOLT; CLIP M6X50 FLANGE	0-28050-650-0	01	1	0601-	●
41	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	04	1	0407-0512		●
41	BOLT; CLIP M8X50 FLANGE THA	0-28050-850-0	04	1	0601-		●
49	PIPE; AIR,CHARGE (A)	1-19192-963-0	01	1	0407-	●
49	PIPE; AIR,CHARGE (B)	1-19193-350-0	01	1	0407-		●
49	PIPE; AIR,CHARGE (C)	1-19193-357-0	01	1	0407-		●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	0407-	●
116	BRACKET; AIR PIPE	1-14119-469-0	02	1	0407-		●
