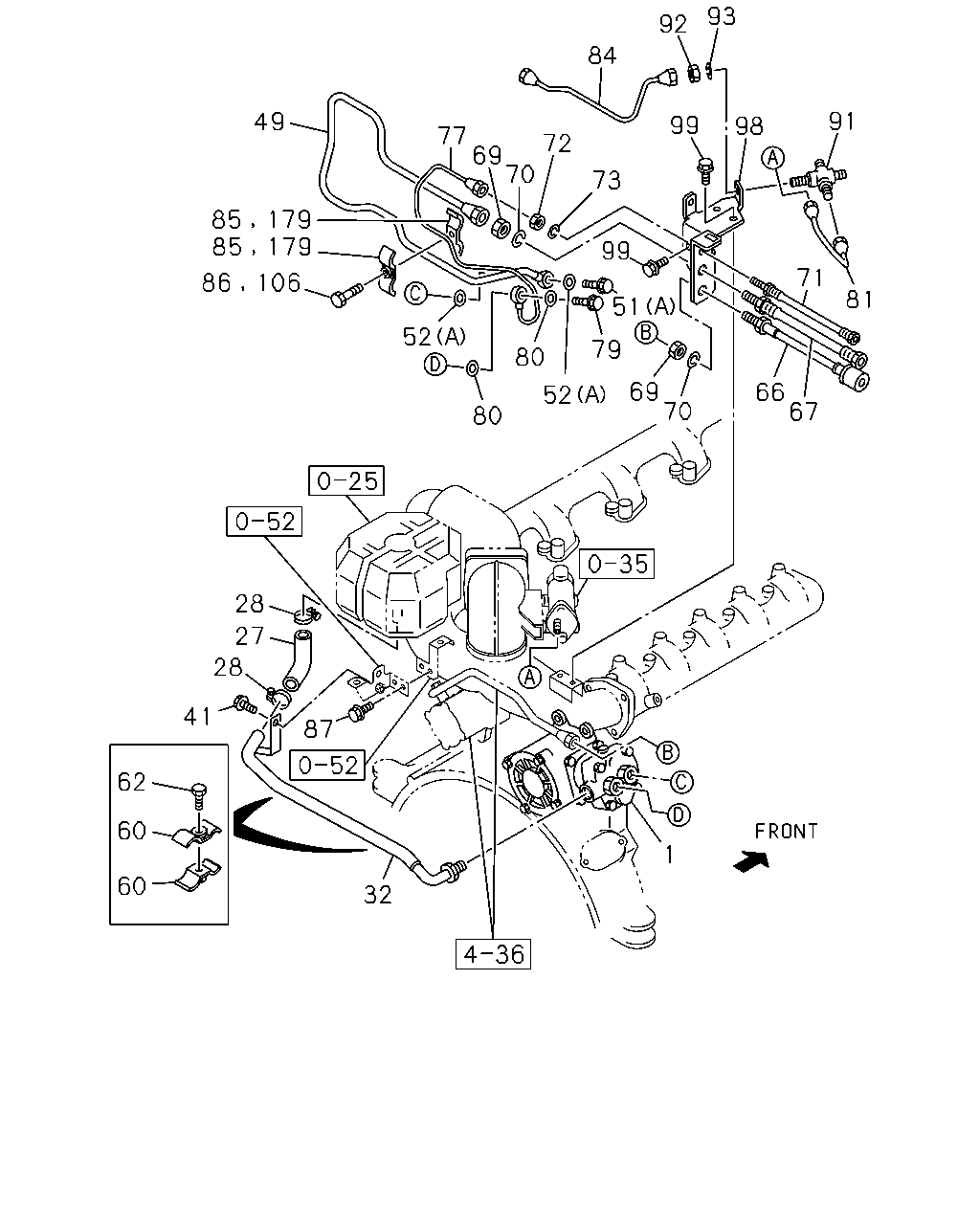

0-38B — AIR COMPRESSOR PIPING; ENGINE SIDE (#2400) — 86 parça

93 92 84 91 49 99 98 77 69 70 72 73 85 85 179 179 99 71 86 106 81 51 52 79 80 69 70 66 67 52 80 28 27 28 41 87 62 60 1 60 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AUTO ENG SHUTOFF(KB6)	1-19100-177-4	01	1	9307-9307
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AUTO ENG SHUTOFF(KB6)	1-19100-212-2	01	1	9002-9307
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-212-6	01	1	9308-
27	HOSE; AIR CMPR,SUCTION	1-09360-858-0	01	1	9002-9011
27	HOSE; AIR CMPR,SUCTION	1-09360-896-0	01	1	9012-
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	02	1	9002-
32	PIPE; AIR,AIR CMPR	1-19192-461-0	01	1	9002-9011
32	PIPE; AIR,AIR CMPR EXC. AUTO ENG SHUTOFF(KB6)	1-19192-551-0	01	1	9012-9307
32	PIPE; AIR,AIR CMPR	1-19192-551-1	01	1	9308-
32	PIPE; AIR,AIR CMPR AUTO ENG SHUTOFF(KB6)	1-19192-548-0	01	1	9307-9307
41	BOLT; CLIP M6X12	0-28020-612-0	01	1	9002-9005
41	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	01	1	9006-
49	PIPE; AIR,CHARGE	1-19192-284-1	01	1	9002-9212
49	PIPE; AIR,CHARGE EXC. AUTO ENG SHUTOFF(KB6)	1-19192-759-0	01	1	9301-9307
49	PIPE; AIR,CHARGE	1-19192-759-0	01	1	9308-
49	PIPE; AIR,CHARGE AUTO ENG SHUTOFF(KB6)	1-19192-760-0	01	1	9307-9307
51	BOLT; EYE,AIR PIPE TO CMPR (A) M24X39	1-09675-175-1	01	1	9002-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32	9-09571-424-0	02	1	9002-9306
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32	9-09571-424-0	02	1	9307-
60	CLIP; AIR PIPE WO/NUT	1-09700-985-0	02	1	9002-
60	CLIP; AIR PIPE ID=12 & 21 L=30 W/NUT	1-09700-986-0	02	1	9002-
62	BOLT; CLIP M6X30	0-28020-630-0	02	1	9002-9005
62	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	02	1	9006-
66	HOSE; FLEX,POWER STRG L=360	0-09538-360-0	01	1	9002-
67	HOSE; FLEX,AIR CHARGE AUTO ENG SHUTOFF(KB6) L=420	0-07806-420-1	01	1	9307-9307
67	HOSE; FLEX,AIR CHARGE EXC. AUTO ENG SHUTOFF(KB6) L=480	0-07806-480-1	01	1	9002-9307
67	HOSE; FLEX,AIR CHARGE L=480	0-07806-480-1	01	1	9308-
69	NUT; FLEX HOSE M20	9-99111-420-0	02	1	9002-
70	WASHER; LK ID=20.2	9-09150-520-0	02	1	9002-
71	HOSE; FLEX,AIR GOV L=320	0-07120-320-0	01	1	9002-
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9002-
73	WASHER; LK,GOV HOSE ID=12.2	9-09150-512-0	01	1	9002-
77	PIPE; AIR,GOV AUTO ENG SHUTOFF(KB6)	1-19191-806-0	01	1	9307-9307
77	PIPE; AIR,GOV EXC. AUTO ENG SHUTOFF(KB6)	1-19192-285-0	01	1	9002-9307
77	PIPE; AIR,GOV	1-19192-285-0	01	1	9308-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9002-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-
81	PIPE; AIR,INT SHUTTER	1-19192-059-0	01	1	9002-
84	PIPE; AIR	1-19192-442-0	01	1	9002-
85	CLIP; PIPE ID=8 & 12	9-09917-471-0	01	1	9002-9401
85	CLIP; PIPE WO/NUT	1-09700-547-0	01	1	9402-
85	CLIP; PIPE W/NUT	9-09917-472-0	01	1	9002-9401
85	CLIP; PIPE W/NUT	1-09700-550-0	01	1	9402-
86	BOLT; CLIP M6X25	0-28020-625-0	01	1	9002-9005
86	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9006-
87	BOLT; BRKT FIX M8X14	0-28020-814-0	02	1	9002-9005
87	BOLT; BRKT FIX M8X14 FLANGE	0-28080-814-0	02	1	9006-9411
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	9412-
91	UNION; 4 WAY	9-09229-106-1	01	1	9002-
92	NUT; UNION M12	9-09840-280-0	01	1	9002-
93	WASHER; LK ID=12.2	9-09150-512-0	01	1	9002-
98	BRACKET; AIR & OIL PIPE	1-22518-121-0	01	1	9002-
99	BOLT; BRKT AIR PIPE M8X14	0-28020-814-0	04	1	9002-9005
99	BOLT; BRKT AIR PIPE M8X14 FLANGE	0-28080-814-0	04	1	9006-9411
99	BOLT; BRKT AIR PIPE M8X16 FLANGE	0-28080-816-0	04	1	9412-
106	BOLT; CLIP M6X25	0-28020-625-0	01	1	9002-9005
106	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9006-
179	CLIP; PIPE ID=8 & 12	9-09917-471-0	01	1	9002-9401
179	CLIP; PIPE	1-09700-547-0	01	1	9402-
179	CLIP; PIPE W/NUT	9-09917-472-0	01	1	9002-9401
179	CLIP; PIPE	1-09700-550-0	01	1	9402-

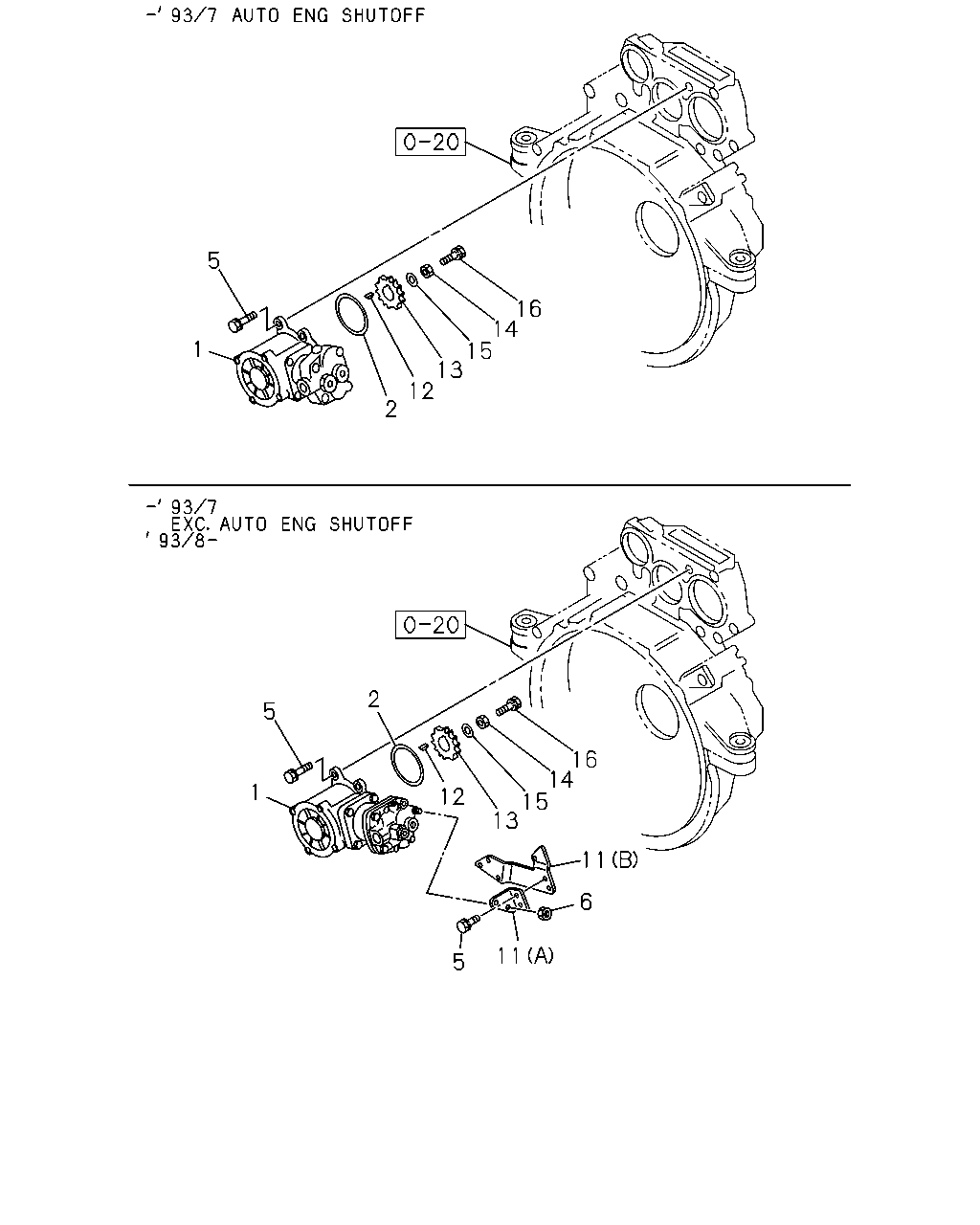

5 16 14 15 13 12 1 2 2 5 16 14 15 13 1 12 11 6 11 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AUTO ENG SHUTOFF(KB6)	1-19100-177-4	01	1	9307-9307
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AUTO ENG SHUTOFF(KB6)	1-19100-212-2	01	1	9002-9307
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-212-6	01	1	9308-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	9002-
5	BOLT; AIR CMPR FIX M10X20	0-28021-020-0	02	1	9002-9002
5	BOLT; AIR CMPR FIX M10X20 FLANGE	0-28081-020-0	02	1	9003-9306
5	BOLT; AIR CMPR FIX M10X18	8-94399-729-1	03	1	9002-9104
5	BOLT; AIR CMPR FIX M10X18 FLANGE	0-28181-018-0	03	1	9105-9306
5	BOLT; AIR CMPR FIX M12X40	9-01991-240-0	04	1	9002-9005
5	BOLT; AIR CMPR FIX M12X40 W/LK&PL WASHER	0-50151-240-0	04	1	9006-
5	BOLT; AIR CMPR FIX EXC. AUTO ENG SHUTOFF(KB6) M10X18 FLANGE	0-28181-018-0	03	1	9307-9307
5	BOLT; AIR CMPR FIX M10X18 FLANGE	0-28181-018-0	03	1	9308-
5	BOLT; AIR CMPR FIX EXC. AUTO ENG SHUTOFF(KB6) M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9307-9307
5	BOLT; AIR CMPR FIX M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9308-
6	NUT; AIR CMPR EXC. AUTO ENG SHUTOFF(KB6) M10 FLANGE	0-91150-210-0	02	1	9002-9307
6	NUT; AIR CMPR M10 FLANGE	0-91150-210-0	02	1	9308-
11	BRACKET; AIR CMPR EXC. AUTO ENG SHUTOFF(KB6) (A)	1-19187-018-0	01	1	9002-9307
11	BRACKET; AIR CMPR (A)	1-19187-018-0	01	1	9308-
11	BRACKET; AIR CMPR EXC. AUTO ENG SHUTOFF(KB6) (B)	1-19187-023-0	01	1	9002-9307
11	BRACKET; AIR CMPR (B)	1-19187-023-1	01	1	9308-
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9002-
13	GEAR; AIR CMPR DRIVE Z=26	1-12524-044-1	01	1	9002-
14	NUT; GEAR M20	9-99111-520-0	01	1	9002-
15	WASHER; GEAR ID=21	9-09164-520-0	01	1	9002-
16	ADAPTER	1-12539-010-0	01	1	9002-
