◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10625 - FSR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#240) — 44 parça

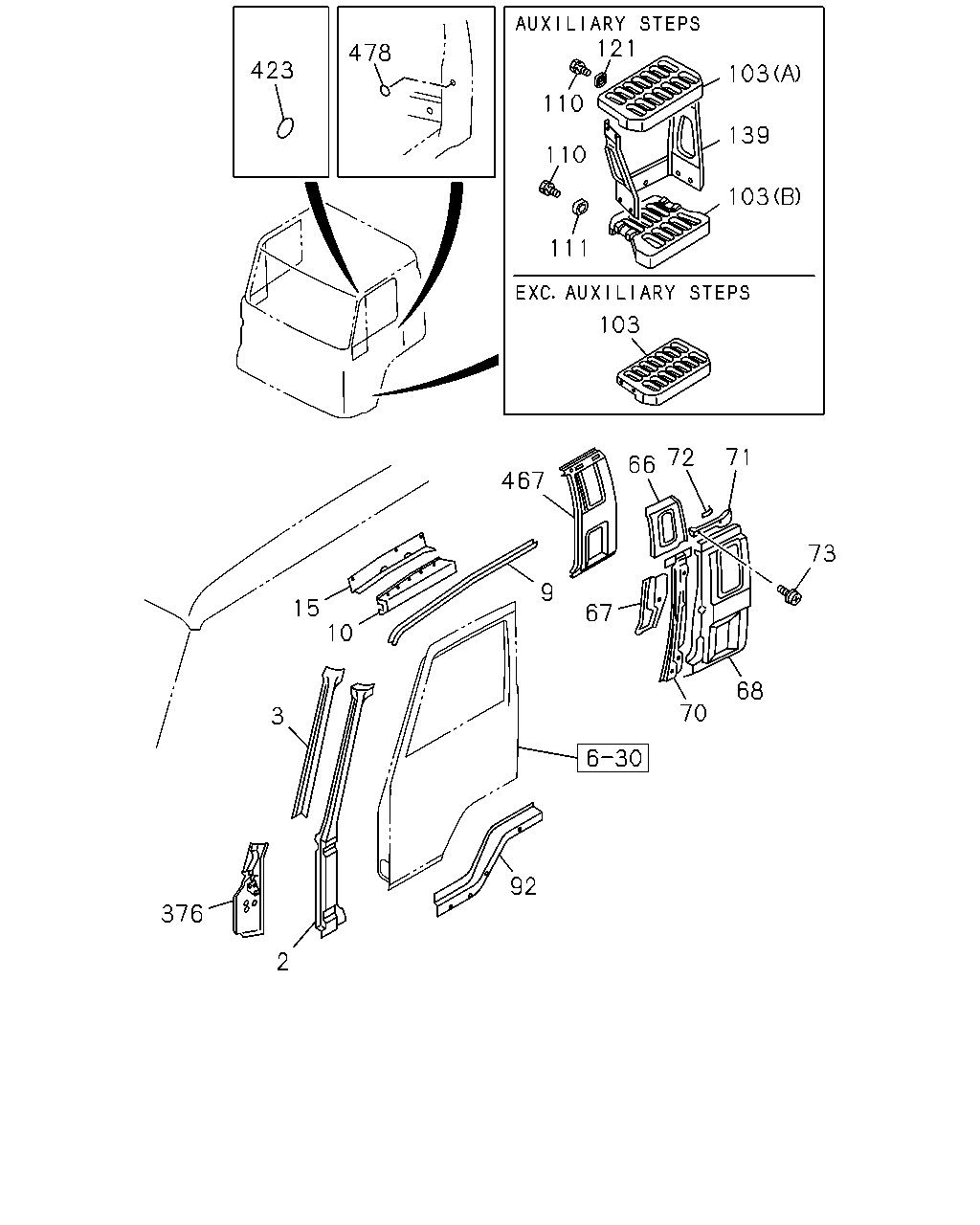

çizim 94099
423 478 121 110 110 111 103 139 103 103 467 66 72 71 73 68 70 67 9 10 15 3 376 2 92
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61270-648-2 01 1 9212-
2 PILLAR; FRT
MIRROR O/S UNDER VIEW<RR9> 		1-61281-021-0 01 1 9212-
2 PILLAR; FRT
EXC. MIRROR O/S UNDER VIEW<RR9> 		1-61280-672-0 01 1 9212-
3 PANEL; CLOSING,FRT PILLAR 1-61280-549-2 01 1 9212-
3 PANEL; CLOSING,FRT PILLAR 1-61280-548-2 01 1 9212-
9 MOLDING; DRIP,CAB SIDE 1-61270-537-6 01 1 9212-
9 MOLDING; DRIP,CAB SIDE 1-61270-536-6 01 1 9212-
10 CLOSING; ROOF SIDE 1-61270-517-2 01 1 9212-
10 CLOSING; ROOF SIDE 1-61270-516-2 01 1 9212-
15 PANEL; CANT RAIL SIDE
DELUXE CAB(W14) 		1-61280-830-4 01 1 9212-
15 PANEL; CANT RAIL SIDE
DELUXE CAB(W14) 		1-61280-562-4 01 1 9212-
15 PANEL; CANT RAIL SIDE
EXC. DELUXE CAB(W14) 		1-61280-831-2 01 1 9212-
15 PANEL; CANT RAIL SIDE
EXC. DELUXE CAB(W14) 		1-61280-739-0 01 1 9212-
66 PANEL; BACK SIDE INNER
DELUXE CAB(W14) 		1-61280-601-3 01 1 9212-
66 PANEL; BACK SIDE INNER
DELUXE CAB(W14) 		1-61280-600-3 01 1 9212-
66 PANEL; BACK SIDE INNER
EXC. DELUXE CAB(W14) 		1-61280-905-1 01 1 9212-
66 PANEL; BACK SIDE INNER
EXC. DELUXE CAB(W14) 		1-61280-904-1 01 1 9212-
67 PANEL; INNER,RR PILLAR LWR 1-61281-139-0 01 1 9212-
67 PANEL; INNER,RR PILLAR LWR 1-61281-050-0 01 1 9212-
68 PANEL; BACK SIDE OUTER
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61280-911-1 01 1 9212-9507
68 PANEL; BACK SIDE OUTER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61280-911-1 01 1 9508-
68 PANEL; BACK SIDE OUTER
EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) W/DOOR SW HOLE 		1-61280-474-5 01 1 9212-9507
68 PANEL; BACK SIDE OUTER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) W/DOOR SW HOLE 		1-61280-474-5 01 1 9508-
70 REINFORCEMENT; BACK INNER PANEL 1-61270-746-0 01 1 9212-
70 REINFORCEMENT; BACK INNER PANEL 1-61281-077-0 01 1 9212-
71 COVER; SIDE PANEL UPR
WHITE 		1-65471-051-0 01 1 9212-
71 COVER; SIDE PANEL UPR
WHITE 		1-65471-050-0 01 1 9212-
72 CUSHION; COVER,SIDE PANEL UPR 1-65470-726-1 02 1 9212-
73 SCREW; SIDE PANEL COVER 1-09981-385-0 04 1 9212-
92 PANEL; SIDE SILL,CAB 1-61270-519-5 01 1 9212-
92 PANEL; SIDE SILL,CAB 1-61270-518-5 01 1 9212-
103 PLATE; STEP
AUXILIARY STEPS<E29> (A) 		1-53414-033-0 02 1 9212-
103 PLATE; STEP
AUXILIARY STEPS<E29> (B) 		1-71998-312-2 02 1 9212-
103 PLATE; STEP
EXC. AUXILIARY STEPS<E29> 		1-53414-033-0 02 1 9212-
110 BOLT; 1ST STEP PLATE
AUXILIARY STEPS<E29> M8X20 W/LK&PL WASHER 		1-09980-496-0 18 1 9212-
111 COVER; 1ST STEP
AUXILIARY STEPS<E29> 		1-71998-153-0 10 1 9212-
121 COVER; STEP PLATE 1-71998-153-0 08 1 9212-
139 CLOSING; 1ST STEP
AUXILIARY STEPS<E29> 		1-65680-552-2 01 1 9212-
139 CLOSING; 1ST STEP
AUXILIARY STEPS<E29> 		1-65680-551-2 01 1 9212-
376 PANEL ASM; FRT SIDE INNER 1-61470-587-4 01 1 9212-
376 PANEL ASM; FRT SIDE INNER 1-61470-583-4 01 1 9212-
423 SEAL; CANTRAIL SIDE
OD=36 WHITE 		1-76778-007-0 01 1 9501-
467 PANEL; OUTER,BACK CORNER 1-61280-473-4 01 1 9212-
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 03 1 9212-
