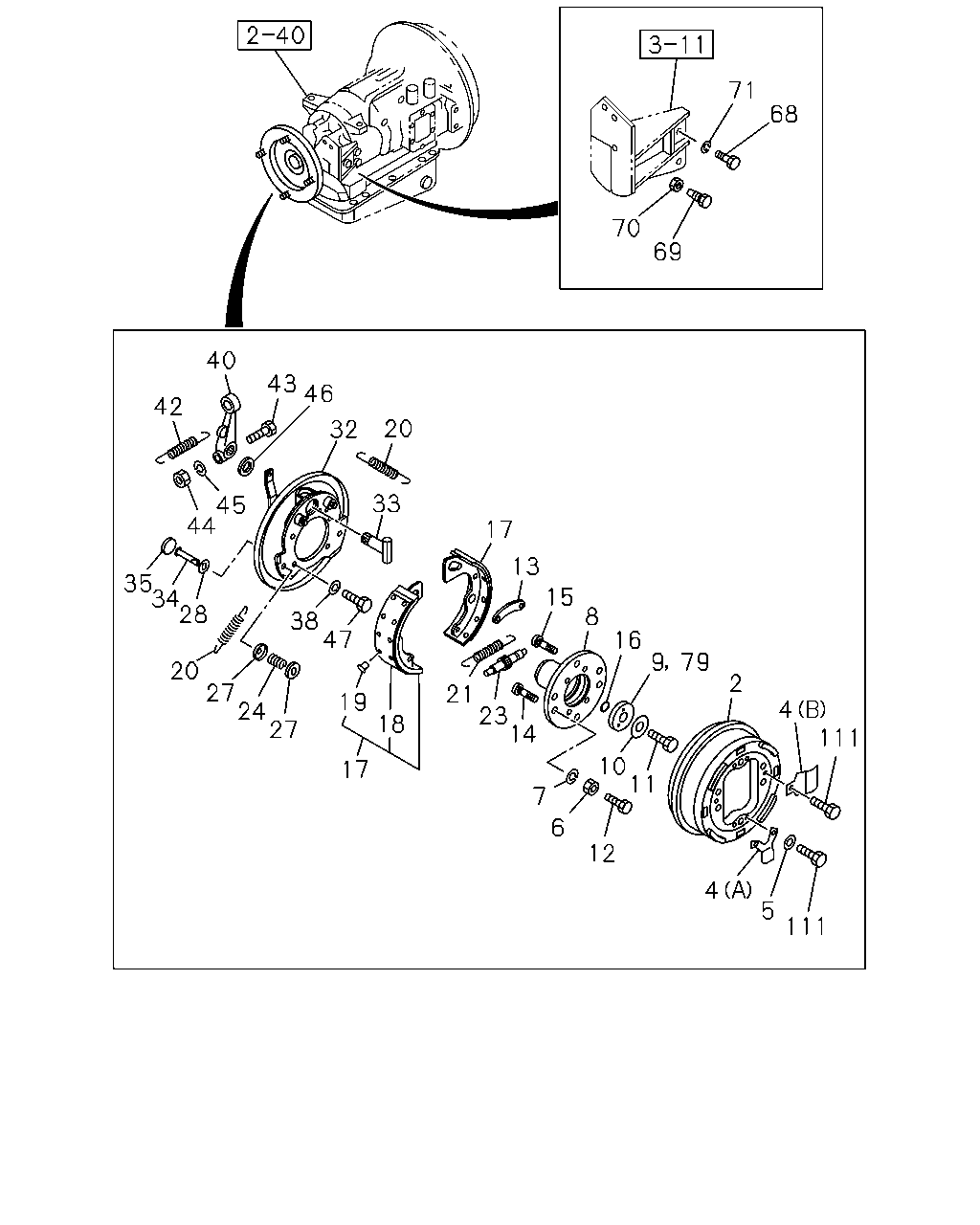

3-08B — PARKING BRAKE (#24) — 51 parça

71 68 70 69 40 43 46 42 20 32 33 45 44 17 13 35 34 28 15 8 38 47 16 9 79 20 27 24 27 2 21 23 14 19 4 111 18 10 11 17 7 6 12 4 5 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46211-051-0	01	1	9202-	●	●
4	COVER; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	9-46219-023-0	02	1	9202-9205	●	●
4	COVER; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-46219-085-0	02	1	9206-	●	●
4	COVER; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	9-46219-024-0	02	1	9202-	●	●
5	WASHER; LK,COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	9-09150-508-0	06	1	9202-	●	●
6	NUT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	06	1	9202-	●	●
7	WASHER; LK,FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	06	1	9202-	●	●
8	FLANGE; PARKING BRK P30 PROP SHAFT(B2F) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37245-042-2	01	1	9202-		●
8	FLANGE; PARKING BRK P30 PROP SHAFT(B2F) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) WO/BOLT	1-37243-042-2	01	1	9202-		●
8	FLANGE; PARKING BRK P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-095-0	01	1	9202-	●	●
8	FLANGE; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z)	1-37245-095-0	01	1	9202-	●	●
9	WASHER; FLANGE FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.5 OD=56.426	1-09503-078-0	01	1	9202-	●	●
10	PLATE; LOCK	1-37249-021-0	01	1	9202-	●	●
11	BOLT; FLANGE FIX M14X44.5	1-09087-014-0	01	1	9202-	●	●
12	BOLT; FIX M6X14 W/LK WASHER	0-50040-614-0	01	1	9202-	●	●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-002-0	01	1	9202-	●	●
14	BOLT; DRUM TO FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X46	9-46219-012-0	06	1	9202-	●	●
15	BOLT; FLANGE P30 PROP SHAFT(B2F) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X39	1-09046-001-1	04	1	9202-		●
15	BOLT; FLANGE P46 PROP SHAFT(C4Z) M14X46	9-46219-012-0	04	1	9202-	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09921-103-0	01	1	9202-	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-004-0	02	1	9202-9410	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-025-0	02	1	9411-	●	●
18	LINING; BRK,PARKING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46225-004-0	02	1	9202-9410	●	●
18	LINING; BRK,PARKING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46225-018-0	02	1	9411-	●	●
19	RIVET; LINING,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09871-033-0	24	1	9202-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-434-0	02	1	9202-	●	●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-516-0	01	1	9202-	●	●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46240-003-0	01	1	9202-	●	●
24	SPRING; BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09941-186-0	02	1	9202-	●	●
27	SEAT; BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-005-1	04	1	9202-	●	●
28	WASHER; BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-006-1	02	1	9202-	●	●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-006-1	01	1	9202-	●	●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46251-069-0	01	1	9202-	●	●
34	PIN; BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-004-1	02	1	9202-	●	●
35	GROMMET; BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-007-0	02	1	9202-	●	●
38	WASHER; LK,SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09500-002-0	04	1	9202-	●	●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46259-005-0	01	1	9202-	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-041-0	01	1	9202-	●	●
43	BOLT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-01041-040-0	01	1	9202-9204	●	●
43	BOLT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	0-10811-040-0	01	1	9205-	●	●
44	NUT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09110-410-0	01	1	9202-	●	●
45	WASHER; LK,LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-010-0	01	1	9202-	●	●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-362-0	01	1	9202-	●	●
47	BOLT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09087-001-1	04	1	9202-	●	●
68	BOLT; BRKT,PARKING BRK CONT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09087-005-1	02	1	9202-	●	●
69	BOLT; GASKET BRK SUPPORT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09009-039-0	01	1	9202-	●	●
70	NUT; LK,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99110-512-0	01	1	9202-	●	●
71	WASHER; LK,BRKT FIX,PARKING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-512-0	02	1	9202-	●	●
79	WASHER; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.5 OD=56.426	1-09503-078-0	01	1	9202-	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X12	9-02040-812-0	06	1	9202-9204	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X12	0-20800-812-0	06	1	9205-	●	●
