◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 10945 - GXZ(THAI)EURO2 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#23998) — 50 parça
çizim 25251
99 102 102 102 63 102 33
BalonParca AdiParca NoAdetTipApplied Date A B
33 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0512 ●
33 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 04 1 0601- ●
33 BOLT; BRKT
(B) M6X40 FLANGE 		0-28680-640-0 03 1 0407-0512 ●
33 BOLT; BRKT
(B) M6X40 FLANGE 		0-28650-640-0 03 1 0601- ●
63 BRACKET; WATER PIPE
(A) 		1-13319-057-0 01 1 0407- ●
63 BRACKET; WATER PIPE
(B) 		1-13729-089-0 01 1 0407- ●
99 PIPE; WATER,OVERFLOW 1-13721-629-0 01 1 0407- ●
99 PIPE; WATER,OVERFLOW 1-13711-843-0 01 1 0407- ●
102 CLIP; WATER HOSE
(A) 		1-09701-172-3 04 1 0407- ●
102 CLIP; WATER HOSE
(B) 		1-09701-173-2 04 1 0407- ●

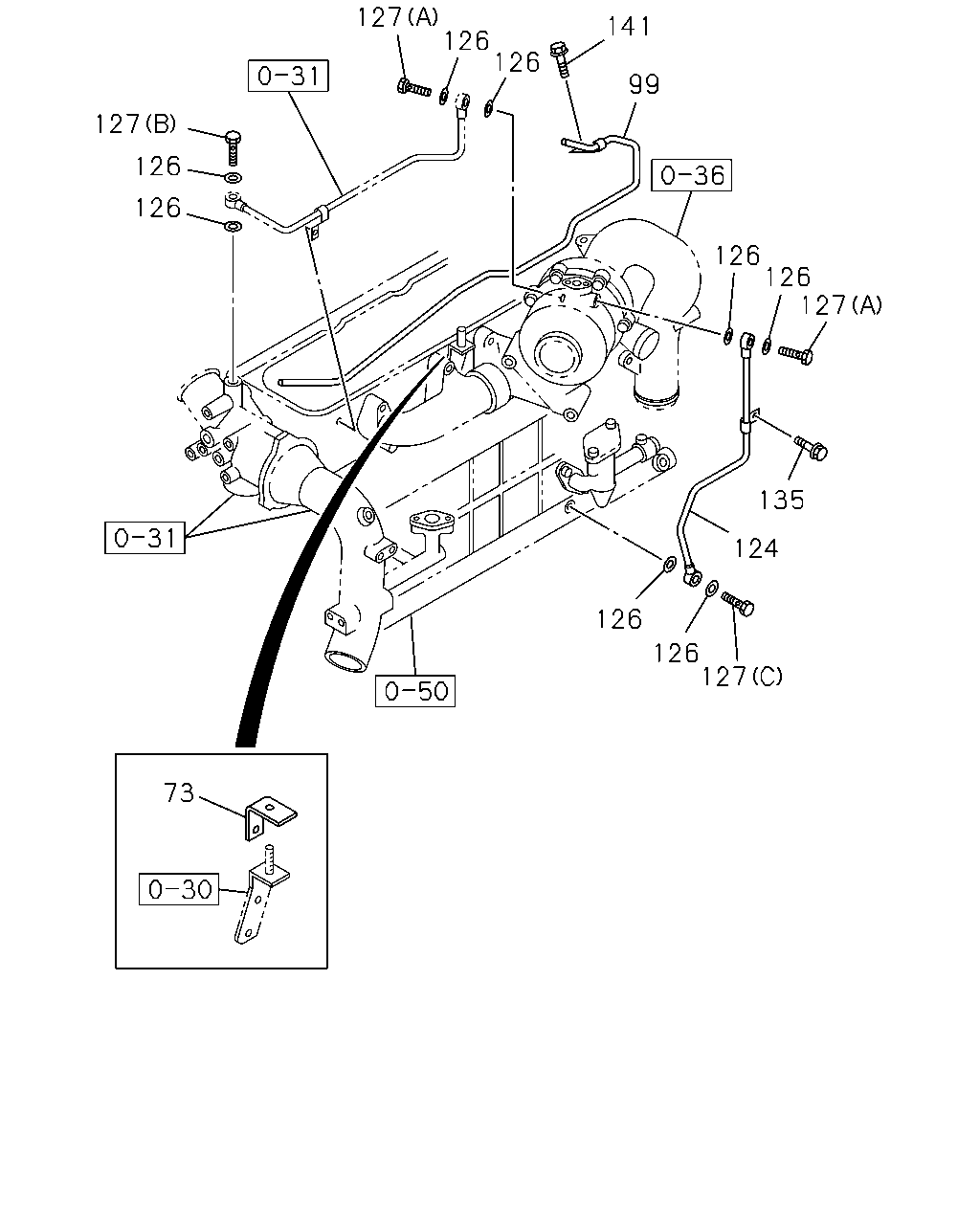

çizim 82568
127 126 126 141 99 127 126 126 126 126 127 135 124 126 126 127 73
BalonParca AdiParca NoAdetTipApplied Date A B
73 PROTECTOR; HEAT,WATER PIPE 1-14181-293-0 01 1 0407- ●
73 PROTECTOR; HEAT,WATER PIPE 1-14181-325-0 01 1 0407- ●
99 PIPE; WATER,OVERFLOW 1-13721-629-0 01 1 0407- ●
99 PIPE; WATER,OVERFLOW 1-13711-843-0 01 1 0407- ●
124 PIPE; WATER,C/BL TO THERMOSTAT HSG 1-13721-738-1 01 1 0407- ●
124 PIPE; WATER,C/BL TO THERMOSTAT HSG 1-13721-948-0 01 1 0407- ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 08 1 0407- ● ●
127 BOLT; EYE
(A) M14X31 		1-09675-191-0 02 1 0407- ●
127 BOLT; EYE
(C) M14X27 EYE-BOLT 		1-09675-193-0 01 1 0407- ●
127 BOLT; EYE
(C) M14X27 EYE-BOLT 		1-09675-193-0 03 1 0407- ●
127 BOLT; EYE
(B) M14X27 FLANGE 		1-09675-192-0 01 1 0407- ● ●
135 BOLT; STAY,THERMOSTAT HSG
M8X25 FLANGE 		0-28080-825-0 01 1 0407-0512 ● ●
135 BOLT; STAY,THERMOSTAT HSG
M8X25 FLANGE THA 		0-28050-825-0 01 1 0601- ● ●
141 BOLT; WATER PIPE
M8X12 FLANGE 		0-28080-812-0 01 1 0407-0512 ●
141 BOLT; WATER PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0601- ●

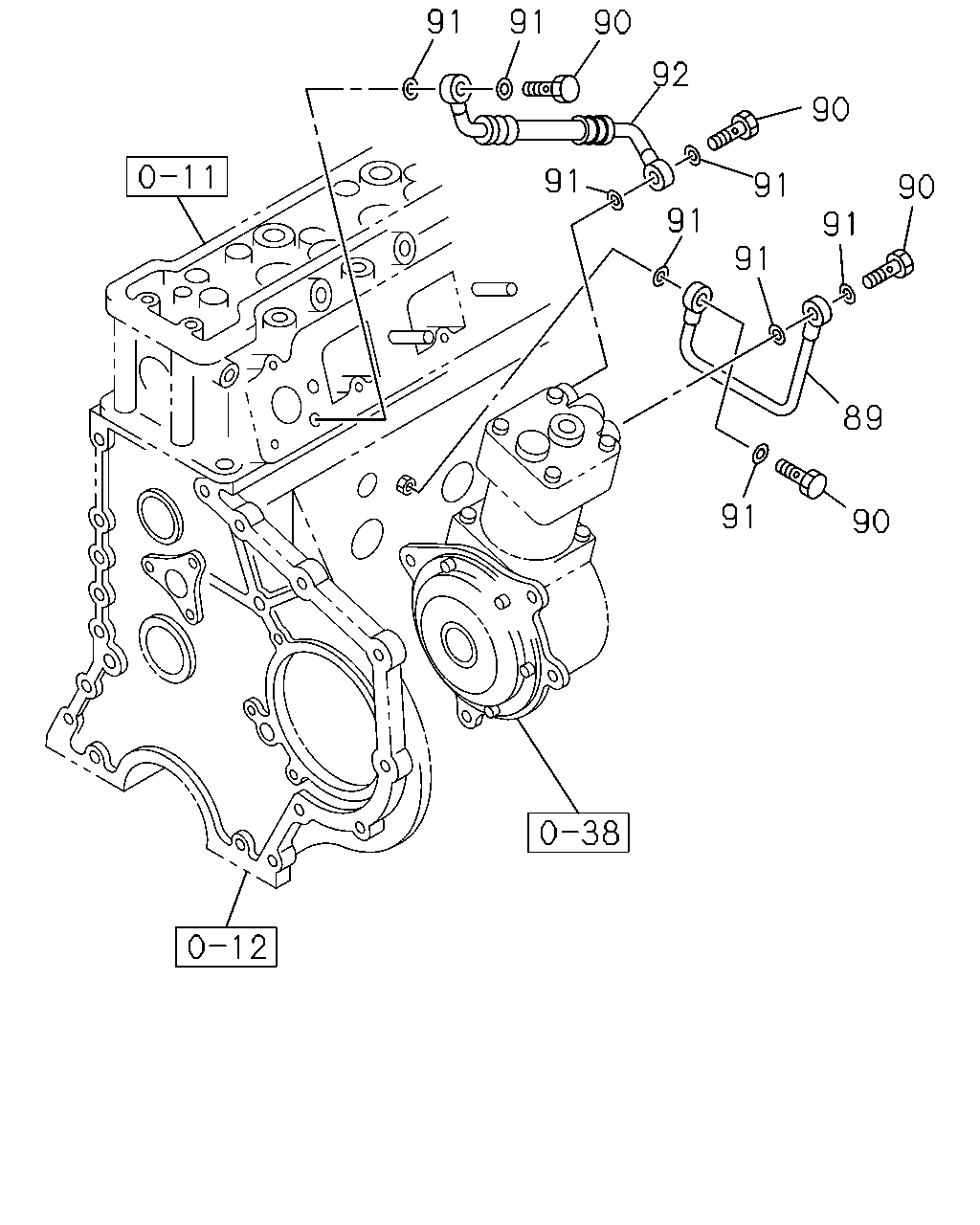

çizim 83964
91 91 90 92 90 91 91 90 91 91 91 89 91 90
BalonParca AdiParca NoAdetTipApplied Date A B
89 PIPE; WATER,AIR CMPR,IN 1-13721-409-0 01 1 0407- ●
89 PIPE; WATER,AIR CMPR,IN 1-13721-903-0 01 1 0407- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 04 1 0407- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 08 1 0407- ● ●
92 PIPE; WATER,AIR CMPR,OUT 1-13721-201-0 01 1 0407- ● ●

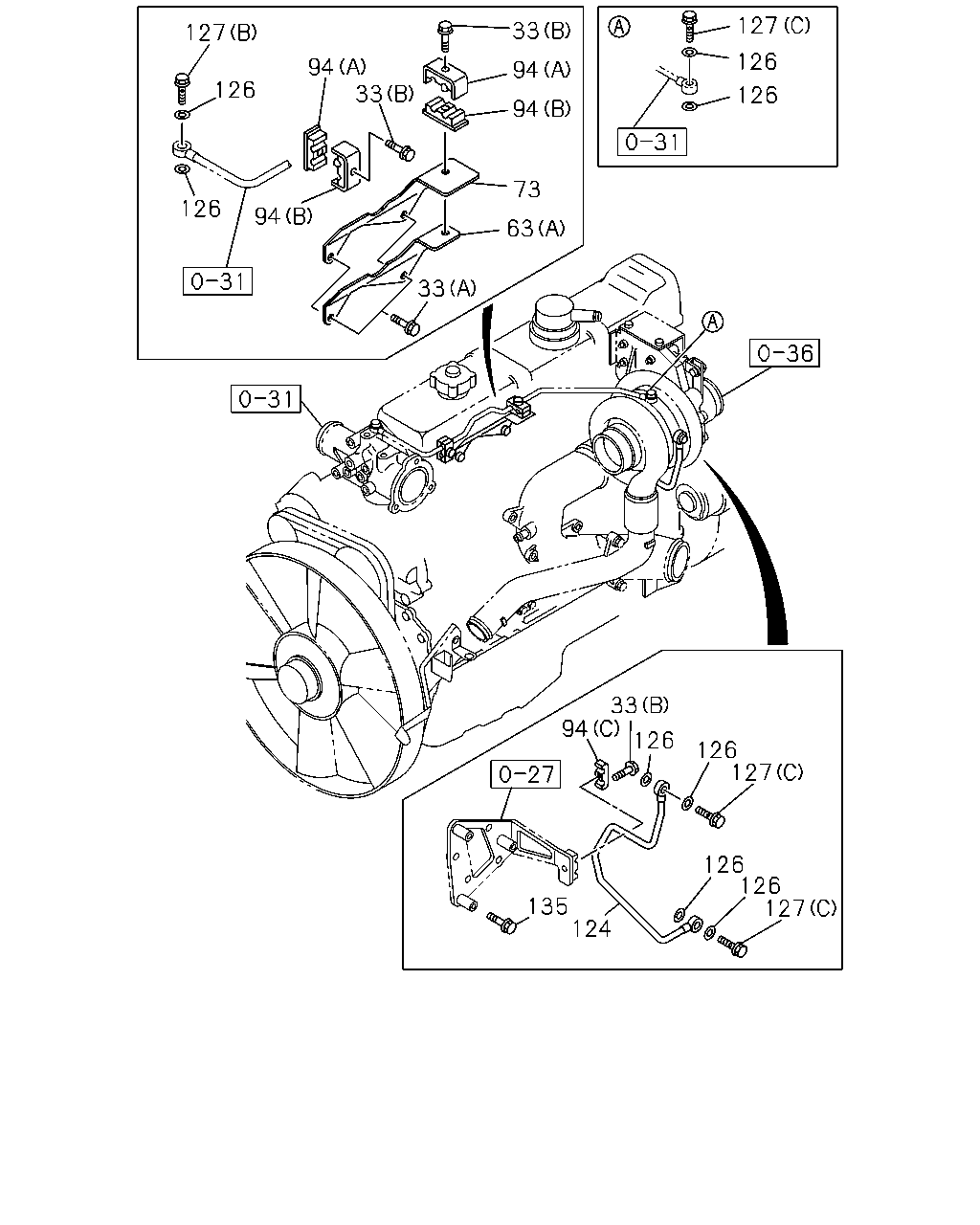

çizim 84123
127 33 127 126 94 33 94 126 126 94 73 126 94 63 33 33 94 126 126 127 126 126 127 135 124
BalonParca AdiParca NoAdetTipApplied Date A B
33 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0512 ●
33 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 04 1 0601- ●
33 BOLT; BRKT
(B) M6X40 FLANGE 		0-28680-640-0 03 1 0407-0512 ●
33 BOLT; BRKT
(B) M6X40 FLANGE 		0-28650-640-0 03 1 0601- ●
63 BRACKET; WATER PIPE
(A) 		1-13319-057-0 01 1 0407- ●
63 BRACKET; WATER PIPE
(B) 		1-13729-089-0 01 1 0407- ●
73 PROTECTOR; HEAT,WATER PIPE 1-14181-293-0 01 1 0407- ●
73 PROTECTOR; HEAT,WATER PIPE 1-14181-325-0 01 1 0407- ●
94 CLIP; WATER PIPE
(A) 		1-09701-230-1 02 1 0407- ●
94 CLIP; WATER PIPE
(B) 		1-09701-231-1 02 1 0407- ●
94 CLIP; WATER PIPE
(C) 		1-09701-265-1 01 1 0407- ●
124 PIPE; WATER,C/BL TO THERMOSTAT HSG 1-13721-738-1 01 1 0407- ●
124 PIPE; WATER,C/BL TO THERMOSTAT HSG 1-13721-948-0 01 1 0407- ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 08 1 0407- ● ●
127 BOLT; EYE
(A) M14X31 		1-09675-191-0 02 1 0407- ●
127 BOLT; EYE
(C) M14X27 EYE-BOLT 		1-09675-193-0 01 1 0407- ●
127 BOLT; EYE
(C) M14X27 EYE-BOLT 		1-09675-193-0 03 1 0407- ●
127 BOLT; EYE
(B) M14X27 FLANGE 		1-09675-192-0 01 1 0407- ● ●
135 BOLT; STAY,THERMOSTAT HSG
M8X25 FLANGE 		0-28080-825-0 01 1 0407-0512 ● ●
135 BOLT; STAY,THERMOSTAT HSG
M8X25 FLANGE THA 		0-28050-825-0 01 1 0601- ● ●
