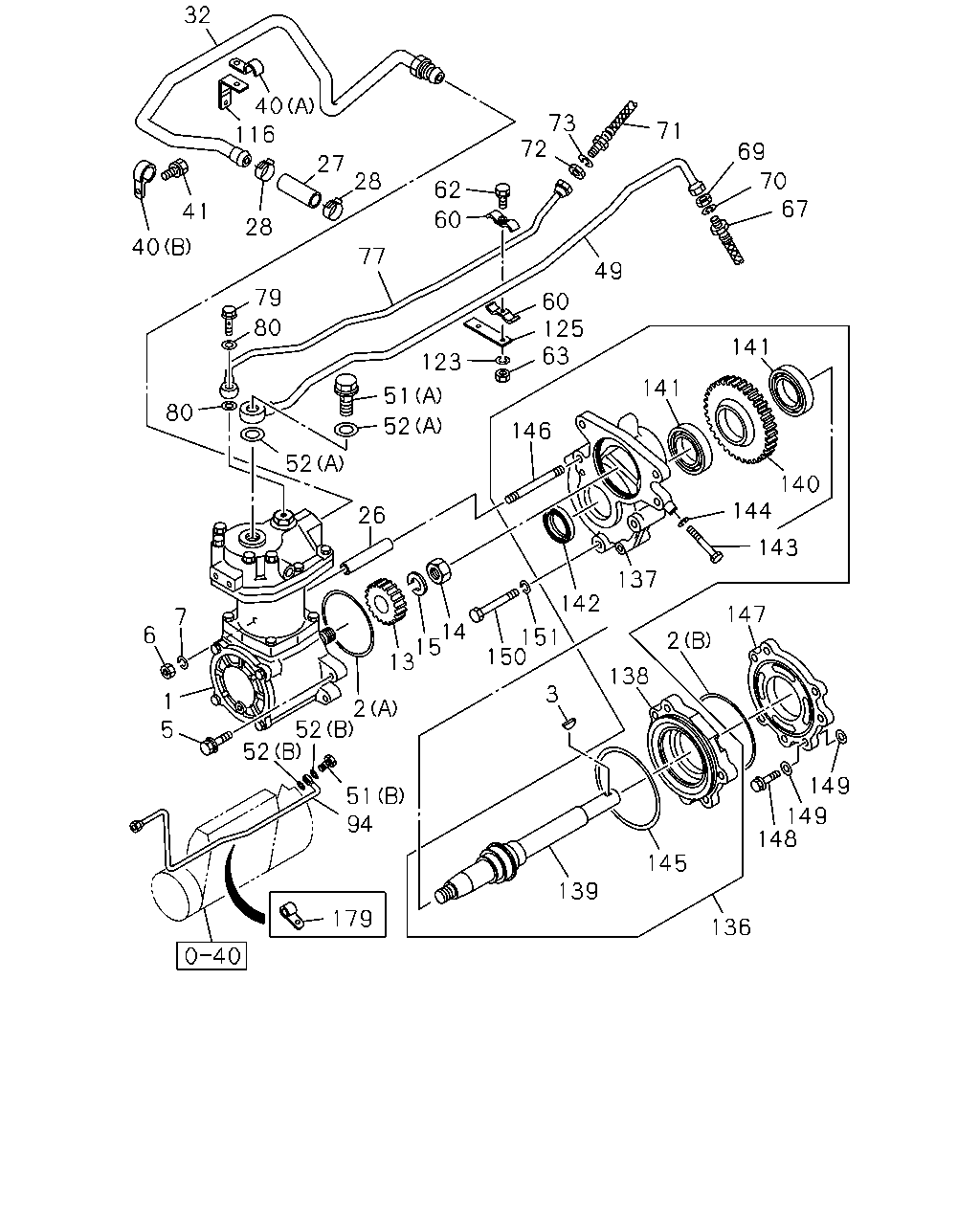

0-38A — AIR COMPRESSOR PIPING; ENGINE SIDE (#2399) — 78 parça

32 40 116 73 72 71 69 27 28 70 67 62 41 60 28 40 77 49 79 60 125 63 80 141 123 141 51 80 52 146 52 140 144 26 143 137 142 147 7 14 15 13 6 151 150 2 138 3 1 5 2 52 52 149 51 94 149 148 145 139 179 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-218-5	01	1	9002-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=105.6	1-09623-247-0	01	1	9002-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=124.6	1-09623-468-0	02	1	9002-	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9002-		●	●
3	KEY; COUPLING,INJ PUMP	9-08055-516-0	01	1	9002-	●
5	BOLT; AIR CMPR FIX M12X45	9-01991-245-0	03	1	9002-9005	●	●
5	BOLT; AIR CMPR FIX M12X45	0-50151-245-0	03	1	9006-	●	●	●
6	NUT; AIR CMPR M12	9-99110-512-0	01	1	9002-	●	●	●
7	WASHER; LK,AIR CMPR ID=12.2	9-09150-512-0	01	1	9002-	●	●	●
13	GEAR; AIR CMPR DRIVE	1-19372-007-0	01	1	9002-	●	●	●
14	NUT; GEAR M20	9-99111-520-0	01	1	9002-	●	●	●
15	WASHER; GEAR ID=21	9-09164-520-0	01	1	9002-	●	●	●
26	COLLAR; DIST,AIR CMPR	1-19189-003-1	01	1	9002-	●	●	●
27	HOSE; AIR CMPR,SUCTION ID=17 OD=23 ELBOW	1-09360-128-2	01	1	9002-9205		●
27	HOSE; AIR CMPR,SUCTION ID=17 OD=25 ELBOW	1-09360-916-0	01	1	9206-9306		●
27	HOSE; AIR CMPR,SUCTION ID=20.5 OD=30 ELBOW	1-09360-826-0	01	1	9002-		●	●
27	HOSE; AIR CMPR,SUCTION ID=18 OD=30 L=65 STRAIGHT	9-09919-309-0	01	1	9002-	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	02	1	9002-		●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9002-	●
32	PIPE; AIR,AIR CMPR	1-19192-332-0	01	1	9002-		●	●
32	PIPE; AIR,AIR CMPR	1-19192-300-0	01	1	9002-	●
40	CLIP; AIR PIPE (A)	1-09701-048-0	03	1	9002-		●	●
40	CLIP; AIR PIPE (B) ID=24.5 L=27	1-09701-049-0	01	1	9002-		●	●
40	CLIP; AIR PIPE (B) ID=19 L=28	9-09525-856-0	01	1	9002-	●
41	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9204		●	●
41	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-		●	●
49	PIPE; AIR,CHARGE	1-19192-296-0	01	1	9002-9212	●	●	●
49	PIPE; AIR,CHARGE	1-19192-725-0	01	1	9301-	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M24X39	1-09675-175-1	01	1	9002-	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR HONG KONG EQUIPMENT(PQ1) (B) M10X21 FLANGE	1-09675-077-0	01	1	9105-			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32	9-09571-424-0	02	1	9002-9306	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32	9-09571-424-0	04	1	9307-	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1) (B) ID=12.2	1-09630-084-0	02	1	9105-9306			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EXH HEAT WARNING<W50> (B) ID=12.2	1-09630-084-0	02	1	9307-			●
60	CLIP; AIR PIPE WO/NUT	1-09700-547-0	06	1	9002-	●	●	●
60	CLIP; AIR PIPE W/NUT	1-09700-550-0	02	1	9002-	●	●	●
62	BOLT; CLIP M6X25	9-01910-625-0	03	1	9002-9005		●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	03	1	9006-9306		●
62	BOLT; CLIP M6X30	9-01910-630-0	01	1	9002-9005	●
62	BOLT; CLIP M6X30 W/LK WASHER	0-50040-630-0	01	1	9006-	●		●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	02	1	9012-			●
63	NUT; CLIP M6	9-09110-406-0	01	1	9002-9306		●
63	NUT; CLIP M6	9-09110-406-0	03	1	9002-	●		●
67	HOSE; FLEX,AIR CHARGE L=560	0-07806-560-1	01	1	9002-	●	●	●
69	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9002-	●	●	●
70	WASHER; LK ID=20.2	9-09150-520-0	01	1	9002-	●	●	●
71	HOSE; FLEX,AIR GOV L=450	0-07120-450-0	01	1	9002-	●	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9002-	●	●	●
73	WASHER; LK,GOV HOSE ID=12.2	9-09150-512-0	01	1	9002-	●	●	●
77	PIPE; AIR,GOV	1-19192-298-0	01	1	9002-	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●	●
94	PIPE; AIR,BOOST HONG KONG EQUIPMENT(PQ1)	1-19192-313-0	01	1	9105-			●
116	BRACKET; AIR PIPE	1-19199-160-1	02	1	9307-		●	●
123	WASHER; LK,CLIP ID=6.1	9-09150-506-0	01	1	9002-	●	●	●
125	CLIP; AIR PIPE	1-19199-074-0	01	1	9002-9306		●
136	BOX ASM; GEAR,AIR CMPR	1-19371-021-0	01	1	9002-		●	●
136	BOX ASM; GEAR,AIR CMPR	1-19371-020-0	01	1	9002-	●
137	BODY; GEAR BOX	1-19371-010-0	01	1	9002-	●	●	●
138	BODY; GEAR BOX	1-19371-011-0	01	1	9002-	●	●	●
139	SHAFT; GEAR BOX	1-19373-004-1	01	1	9002-		●	●
139	SHAFT; GEAR BOX	1-19373-001-2	01	1	9002-	●
140	GEAR; GEAR BOX	1-19372-008-0	01	1	9002-	●	●	●
141	BEARING; BALL,GEAR BOX	9-00090-071-0	02	1	9002-	●	●	●
142	SEAL; OIL,GEAR BOX	1-09625-347-0	01	1	9002-	●	●	●
143	BOLT; BODY M8X60	9-01055-860-0	02	1	9002-9005	●	●	●
143	BOLT; BODY M8X60	0-10805-860-0	02	1	9006-	●	●	●
144	WASHER; LK,BODY ID=8.2	9-09150-508-0	02	1	9002-	●	●	●
145	GASKET; BODY	1-09623-472-0	01	1	9002-	●	●	●
146	STUD; AIR CMPR	1-09302-097-1	01	1	9002-	●	●	●
147	SPACER; GEAR BOX	1-19371-009-0	01	1	9002-	●	●	●
148	BOLT; SPACER	8-94257-289-0	04	1	9002-	●	●	●
149	GASKET; SPACER ID=11	1-09623-469-0	08	1	9002-	●		●
150	BOLT; GEAR BOX M12X85	9-01666-285-0	03	1	9002-	●	●	●
150	BOLT; GEAR BOX M12X35	9-02361-235-0	02	1	9002-	●	●	●
151	WASHER; PL,GEAR BOX ID=12.2	1-09503-008-0	05	1	9002-	●	●	●
179	CLIP; PIPE HONG KONG EQUIPMENT(PQ1) ID=7 L=32	9-09524-665-0	01	1	9105-9306			●
179	CLIP; PIPE EXC. EXH HEAT WARNING<W50> ID=7 L=32	9-09524-665-0	01	1	9307-			●
