1 |

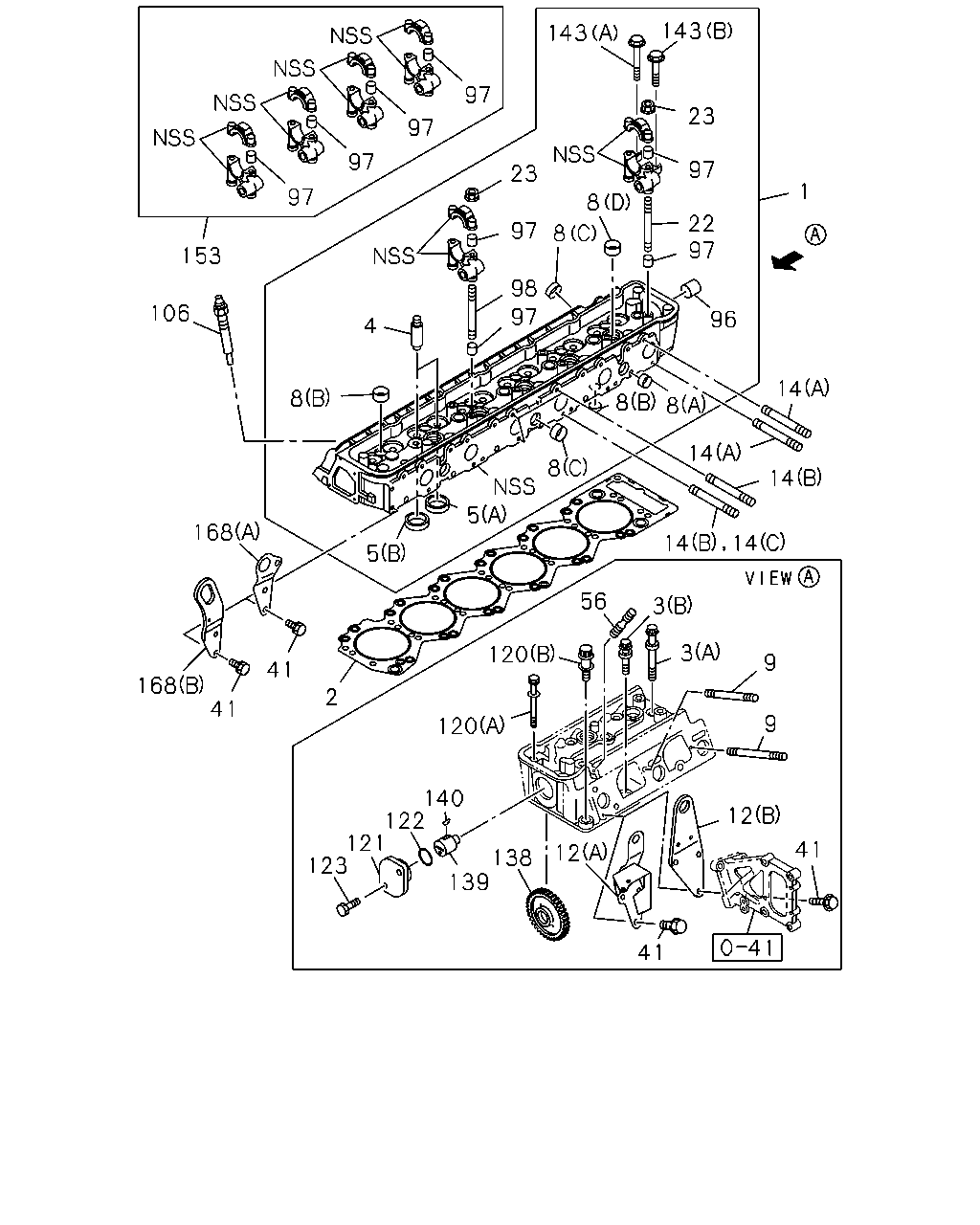

HEAD ASM; CYL
|
1-11110-856-2 |
01 |
1 |
0407- |
● |
|
| |
1 |
HEAD ASM; CYL
|
1-11110-924-4 |
01 |
1 |
0407- |
|
● |
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-11141-216-4 |
01 |
1 |
0407- |
● |
|
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-11141-278-2 |
01 |
1 |
0407- |
|
● |
| |
3 |
BOLT; CYL HD TO BLOCK
(A)
M14X125 FLANGE W/PL WASHER
|
1-09070-043-1 |
20 |
1 |
0407- |
● |
|
| |
3 |
BOLT; CYL HD TO BLOCK
(B)
M14X67 FLANGE W/PL WASHER
|
1-09070-044-1 |
06 |
1 |
0407- |
● |
|
| |
3 |
BOLT; CYL HD TO BLOCK
(A)
M14X125 FLANGE W/PL WASHER
|
1-09070-143-0 |
20 |
1 |
0407- |
|
● |
| |
3 |
BOLT; CYL HD TO BLOCK
(B)
M14X67 FLANGE W/PL WASHER
|
1-09070-144-0 |
06 |
1 |
0407- |
|
● |
| |
4 |
GUIDE; VLV
|
1-11721-008-0 |
12 |
1 |
0407- |
● |
● |
| |
5 |
SEAT; VLV INSERT
(A)
|
1-11711-051-0 |
06 |
1 |
0407- |
● |
|
| |
5 |
SEAT; VLV INSERT
(B)
|
1-11715-122-0 |
06 |
1 |
0407- |
● |
|
| |
5 |
SEAT; VLV INSERT
(A)
|
1-11711-085-0 |
06 |
1 |
0407- |
|
● |
| |
5 |
SEAT; VLV INSERT
(B)
|
1-11715-118-0 |
06 |
1 |
0407- |
|
● |
| |
8 |
CUP; SEALING,WATER JACKET
(A)
OD=12
|
1-09600-010-1 |
06 |
1 |
0407-0502 |
|
● |
| |
8 |
CUP; SEALING,WATER JACKET
(C)
OD=32
|
1-09600-012-1 |
09 |
1 |
0407-0502 |
|
● |
| |
8 |
CUP; SEALING,WATER JACKET
(A)
OD=12
|
1-09600-010-1 |
06 |
1 |
0407-0407 |
● |
● |
| |
8 |
CUP; SEALING,WATER JACKET
(A)
OD=12
|
1-09600-010-1 |
06 |
1 |
0407-0502 |
● |
|
| |
8 |
CUP; SEALING,WATER JACKET
(A)
OD=12
|
1-09600-010-2 |
06 |
1 |
0503- |
● |
● |
| |
8 |
CUP; SEALING,WATER JACKET
(B)
OD=22
|
1-09600-011-2 |
11 |
1 |
0407- |
● |
● |
| |
8 |
CUP; SEALING,WATER JACKET
(C)
OD=32
|
1-09600-012-1 |
09 |
1 |
0407-0407 |
● |
● |
| |
8 |
CUP; SEALING,WATER JACKET
(C)
OD=32
|
1-09600-012-1 |
09 |
1 |
0407-0502 |
● |
|
| |
8 |
CUP; SEALING,WATER JACKET
(C)
OD=32
|
1-09600-012-2 |
09 |
1 |
0503- |
● |
● |
| |
8 |
CUP; SEALING,WATER JACKET
(D)
OD=30
|
8-94241-638-0 |
05 |
1 |
0407- |
● |
● |
| |
9 |
STUD; INL MANIF
M8X86 L=99
|
9-09630-026-0 |
04 |
1 |
0407- |
● |
|
| |
9 |
STUD; INL MANIF
M8X12,M8X17 L=96
|
1-09309-020-1 |
12 |
1 |
0407- |
|
● |
| |
12 |
HANGER; ENG,RR
(A)
|
1-11777-099-0 |
01 |
1 |
0407- |
● |
|
| |
12 |
HANGER; ENG,RR
(B)
|
1-11777-222-0 |
01 |
1 |
0407- |
|
● |
| |
14 |
STUD; EXH MANIF
(A)
M10X104 L=119
|
1-09302-104-1 |
08 |
1 |
0407- |
● |
|
| |
14 |
STUD; EXH MANIF
(B)
M10X130 L=145
|
1-09302-107-0 |
04 |
1 |
0407- |
● |
|
| |
14 |
STUD; EXH MANIF
(B)
M10X95 L=110
|
1-09302-063-0 |
03 |
1 |
0407- |
|
● |
| |
14 |
STUD; EXH MANIF
(A)
M10X135 L=150
|
1-09302-159-0 |
08 |
1 |
0407- |
|
● |
| |
14 |
STUD; EXH MANIF
(C)
M10X45 L=65
|
9-04321-045-0 |
01 |
1 |
0407-0604 |
|
● |
| |
14 |
STUD; EXH MANIF
(C)
M10X45 L=65
|
0-43211-045-0 |
01 |
1 |
0605- |
|
● |
| |
22 |
STUD; CAM BRKT
M8X124 L=142
|
1-09300-033-1 |
02 |
1 |
0407- |
● |
● |
| |
23 |
NUT; CAM BRKT
M8 FLANGE
|
9-09844-190-0 |
08 |
1 |
0407- |
● |
● |
| |
41 |
BOLT; ENG HANGER
M10X20 W/LK WASHER
|
0-50051-020-0 |
05 |
1 |
0407-0512 |
● |
|
| |
41 |
BOLT; ENG HANGER
M10X20 W/LK WASHER
|
0-50551-020-0 |
05 |
1 |
0601- |
● |
|
| |
41 |
BOLT; ENG HANGER
M10X25 FLANGE
|
0-28781-025-0 |
02 |
1 |
0407-0512 |
|
● |
| |
41 |
BOLT; ENG HANGER
M10X25 FLANGE
|
0-28751-025-0 |
02 |
1 |
0601- |
|
● |
| |
41 |
BOLT; ENG HANGER
M10X40 FLANGE
|
0-28791-040-0 |
03 |
1 |
0407-0512 |
|
● |
| |
41 |
BOLT; ENG HANGER
M10X40 FLANGE
|
0-28761-040-0 |
03 |
1 |
0601- |
|
● |
| |
56 |
STUD; NOZZLE HOLDER
M8X40 L=58
|
1-09300-018-0 |
12 |
1 |
0407- |
● |
● |
| |
96 |
BUSHING; IDLE SHAFT
|
1-12528-007-0 |
01 |
1 |
0407- |
● |
● |
| |
97 |
DOWEL; CAM BRKT SET
|
1-11229-012-1 |
16 |
1 |
0407- |
● |
● |
| |
98 |
STUD; CAM BRKT
M8X114 L=132
|
1-09300-028-1 |
06 |
1 |
0407- |
● |
● |
| |
106 |
PLUG; GLOW PLUG HOLE
|
1-11119-018-0 |
06 |
1 |
0407- |
● |
● |
| |
120 |
BOLT; CYL HD TO HSG
(B)
M10X34 FLANGE W/PL WASHER
|
1-09070-059-0 |
01 |
1 |
0407- |
● |
● |
| |
120 |
BOLT; CYL HD TO HSG
(A)
M10X122 FLANGE W/PL WASHER
|
1-09070-060-0 |
02 |
1 |
0407- |
● |
● |
| |
121 |
COVER; IDLE GEAR,CYL HD
|
1-11321-100-0 |
01 |
1 |
0407- |
● |
● |
| |
122 |
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-09623-208-0 |
01 |
1 |
0407- |
● |
● |
| |
123 |
BOLT; COVER
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0407-0512 |
● |
● |
| |
123 |
BOLT; COVER
M8X16 FLANGE
THA
|
0-28050-816-0 |
02 |
1 |
0601- |
● |
● |
| |
138 |
GEAR; IDLE
Z=48
|
1-12523-246-1 |
01 |
1 |
0407- |
● |
● |
| |
139 |
SHAFT; IDLE GEAR
|
1-12531-098-0 |
01 |
1 |
0407- |
● |
● |
| |
140 |
KEY; IDLE GEAR
|
9-08055-522-0 |
01 |
1 |
0407- |
● |
● |
| |
143 |
BOLT; FIX
(A)
M8X100 FLANGE
|
0-28080-800-0 |
01 |
1 |
0407-0512 |
● |
● |
| |
143 |
BOLT; FIX
(A)
M8X100 FLANGE
|
0-28050-800-0 |
01 |
1 |
0601- |
● |
● |
| |
143 |
BOLT; FIX
(B)
M8X60 FLANGE
|
0-28090-860-0 |
01 |
1 |
0407-0512 |
● |
● |
| |
143 |
BOLT; FIX
(B)
M8X60 FLANGE
|
0-28060-860-0 |
01 |
1 |
0601- |
● |
● |
| |
153 |
BRACKET KIT; CAM,CYL HD
|
1-12516-180-0 |
AR |
1 |
0407- |
● |
● |
| |
168 |
HANGER; ENG,FRT
(A)
|
1-11777-207-0 |
01 |
1 |
0407- |
● |
|
| |
168 |
HANGER; ENG,FRT
(B)
|
1-11777-247-0 |
01 |
1 |
0407- |
|
● |
