Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10944 - FVZ(THAI)EURO2
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

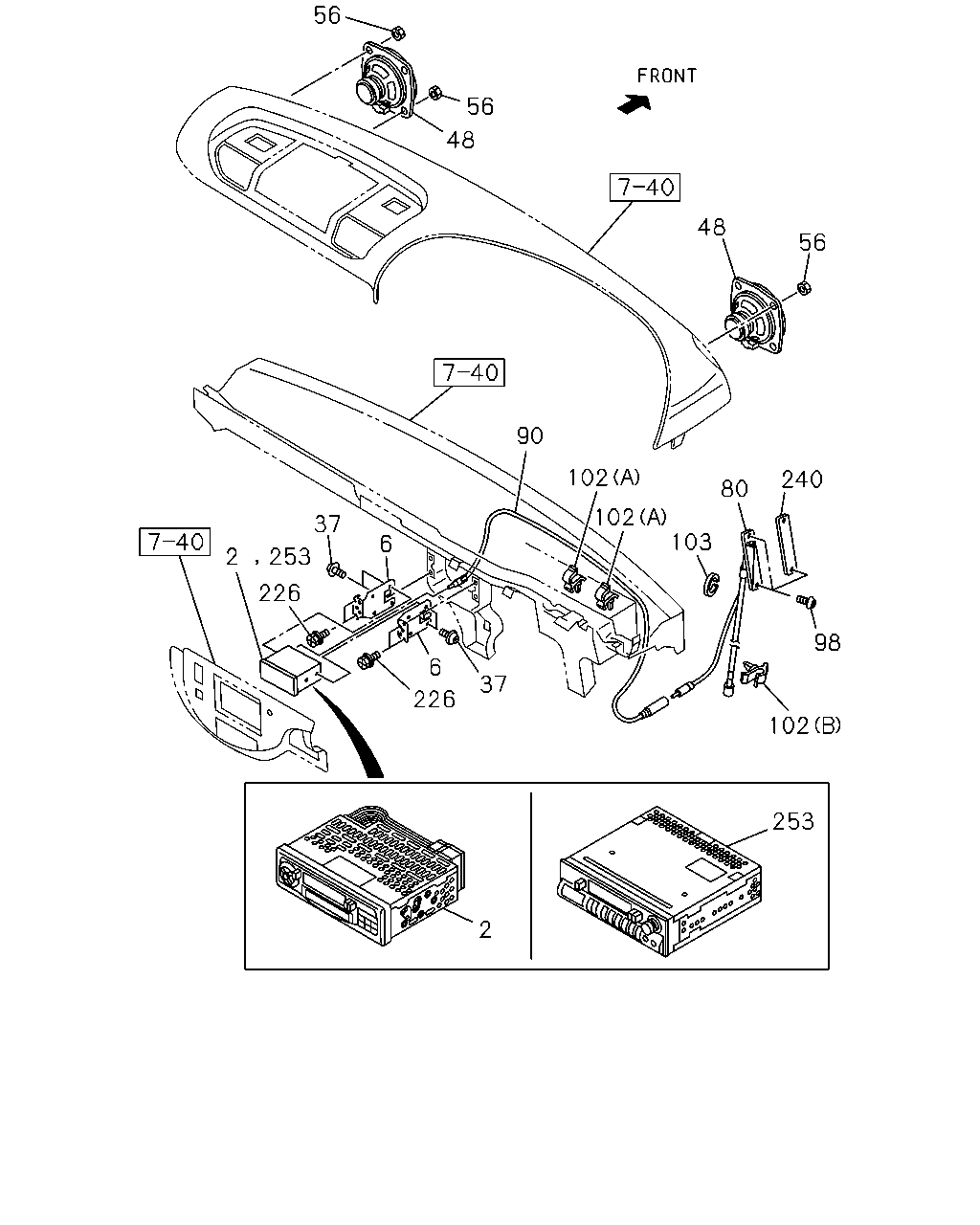

8-90 — RADIO AND TV
(#23982) — 15 parça
56
56
48
48
56
90
102
240
80
102
103
37
6
2
253
226
98
6
37
226
102
253
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
RADIO & CASSETTE DECK ASM
RADIO AM/FM STEREO & TAPE PLAYER<UN3> THA
8-97917-414-0
01
1
0407-0610
6
BRACKET; RADIO TO PANEL
1-65671-551-4
02
1
0407-0612
6
BRACKET; RADIO TO PANEL
1-65671-822-1
02
1
0701-
37
SCREW; CASSETTE & RADIO
RADIO AM/FM STEREO & TAPE PLAYER<UN3> M5X10 W/LK+PL WASHER
9-03920-510-0
04
1
0407-
48
SPEAKER; AUDIO
THA
8-97917-853-0
02
1
0407-
56
NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> THA
8-97917-854-0
04
1
0407-
80
ANTENNA
THA
8-97917-855-1
01
1
0407-
90
CABLE; ANTENNA,FEEDER
THA
8-97917-857-0
01
1
0407-
98
SCREW; TAP,ANTENNA
M5X11
1-09981-536-1
02
1
0407-
102
CLIP; CABLE
ANTENNA RADIO<U73> (B) ID=4.8 THA
1-73907-618-0
05
1
0407-
102
CLIP; CABLE
ANTENNA RADIO<U73> (A) ID=4.8
8-94128-483-0
02
1
0407-
103
GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> THA
8-97917-338-0
01
1
0407-
226
BOLT; BRKT
M6X19.5 W/LK&PL WASHER THA
8-94279-201-0
04
1
0407-
240
COVER; ANTENNA
EXC. ANTENNA RADIO<U73>
1-79996-296-0
01
1
0407-
253
DECK ASM; RADIO & CD
RADIO AM/FM STEREO & TAPE PLAYER<UN3> CLARION THA
1-84122-032-3
01
1
0611-
