Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10944 - FVZ(THAI)EURO2
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#23973) — 14 parça
◀

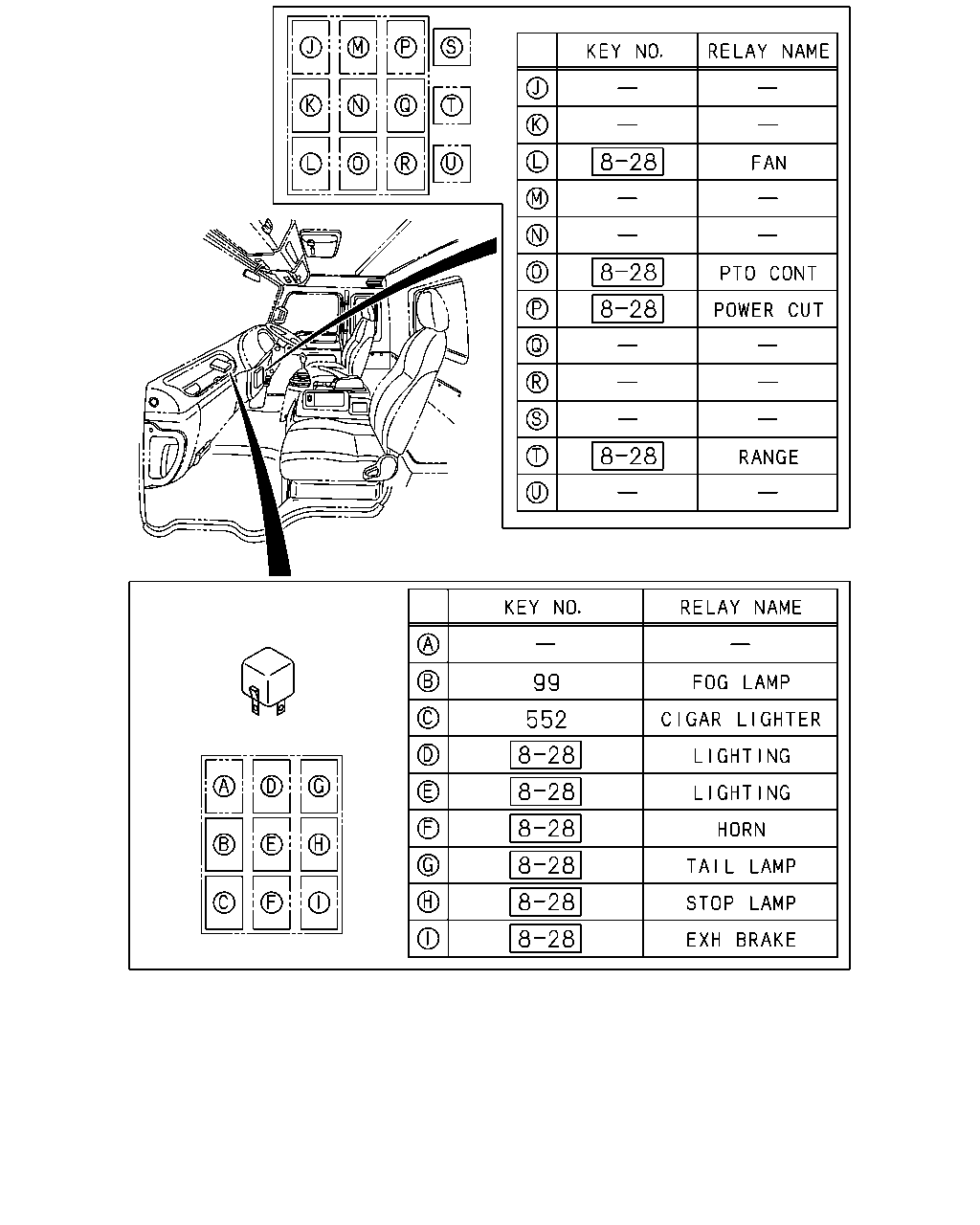

[825A] RELAY BOX;INST PANEL (2 parça)
[825A] COMB SWITCH AND HOLE COVER (8 parça)
[825A] SWITCH;METER CLUSTER (4 parça)
▶
99
552
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
99
RELAY; FOG LAMP
24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0407-
552
RELAY; CIGAR LIGHTER
24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0407-
1
10
257
3
10
257
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-715-0
01
1
0407-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0407-0604
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0407-0604
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0605-
21
SWITCH; CLU
1-82380-114-3
01
1
0407-
257
COVER; HOLE,SW
1-82389-011-2
01
1
0407-
257
COVER; HOLE,SW
1-82389-012-2
01
1
0407-
77
360
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
01
1
0407-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
0407-
77
SWITCH; PTO
1-82340-403-0
01
1
0407-
360
SWITCH ASM; DIFF LK
1-82340-404-0
01
1
0407-
