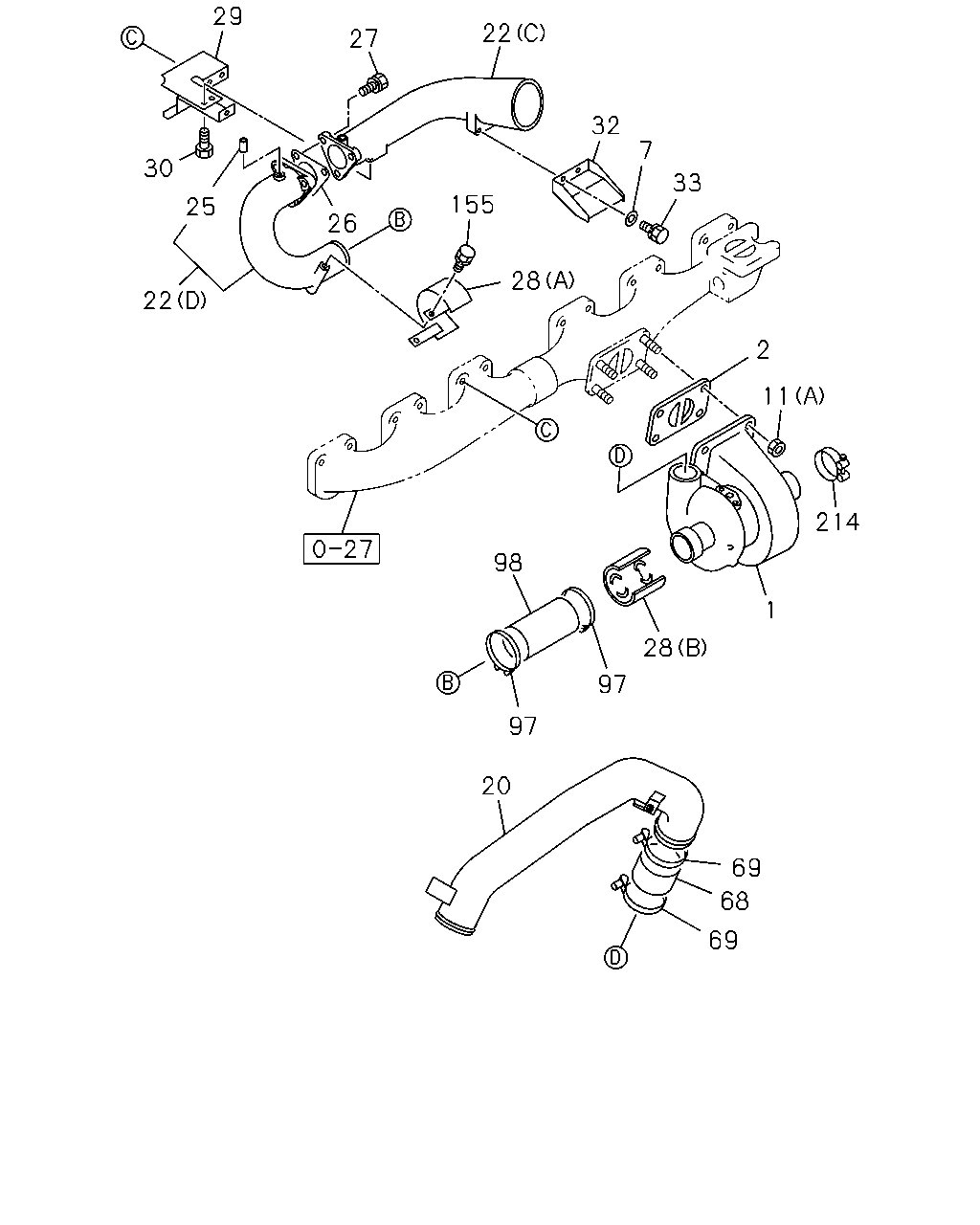

0-36A — TURBOCHARGER SYSTEM (#2397) — 138 parça

29 22 27 32 7 30 33 155 25 26 28 22 2 11 214 98 1 28 97 97 20 69 68 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-180-0	01	1	9002-9306	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-170-0	01	1	9012-9401		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXH HEAT WARNING<W50>	1-14400-170-0	01	1	9402-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EXH HEAT WARNING<W50>	1-14400-174-3	01	1	9402-9410		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EXH HEAT WARNING<W50>	1-14400-337-0	01	1	9411-		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-103-0	01	1	9002-	●	●
7	WASHER; PL,BRKT EXC. EXH HEAT WARNING<W50> ID=8.4 OD=22	9-09164-708-0	02	1	9402-		●
11	NUT; TURBOCHARGER (B)	1-09400-027-0	06	1	9002-9401	●	●
11	NUT; TURBOCHARGER EXH HEAT WARNING<W50> (B)	1-09400-027-0	06	1	9402-		●
11	NUT; TURBOCHARGER (A)	9-09844-575-0	04	1	9002-	●	●
20	PIPE; INL,TURBOCHARGER OUT	1-14112-334-0	01	1	9002-9101	●
20	PIPE; INL,TURBOCHARGER OUT	1-14112-448-3	01	1	9102-9401	●	●
20	PIPE; INL,TURBOCHARGER OUT EXH HEAT WARNING<W50>	1-14112-448-3	01	1	9402-		●
20	PIPE; INL,TURBOCHARGER OUT	1-14112-228-0	01	1	9012-9101		●
20	PIPE; INL,TURBOCHARGER OUT EXC. EXH HEAT WARNING<W50>	1-14112-143-5	01	1	9402-9404		●
20	PIPE; INL,TURBOCHARGER OUT EXC. EXH HEAT WARNING<W50>	1-14112-574-0	01	1	9405-9407		●
20	PIPE; INL,TURBOCHARGER OUT EXC. EXH HEAT WARNING<W50>	1-14112-594-0	01	1	9408-		●
22	DUCT; INL,ACL TO TURBOCHARGER (A)	1-14114-826-0	01	1	9002-9401	●	●
22	DUCT; INL,ACL TO TURBOCHARGER EXH HEAT WARNING<W50> (A)	1-14114-826-0	01	1	9402-		●
22	DUCT; INL,ACL TO TURBOCHARGER (B)	1-14114-995-0	01	1	9002-9401	●	●
22	DUCT; INL,ACL TO TURBOCHARGER EXH HEAT WARNING<W50> (B)	1-14114-995-0	01	1	9402-		●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EXH HEAT WARNING<W50> (C)	1-14114-786-0	01	1	9402-		●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EXH HEAT WARNING<W50> (D)	1-14114-935-0	01	1	9402-		●
25	PIPE; AIR SUCTION	8-94129-650-0	01	1	9002-	●	●
26	GASKET; DUCT	1-14117-022-0	01	1	9002-	●	●
27	BOLT; DUCT,ACL TO TURBOCHARGER M10X35 W/LK WASHER	9-01991-035-0	03	1	9002-9002	●
27	BOLT; DUCT,ACL TO TURBOCHARGER M10X35 W/LK&PL WASHER	0-50151-035-0	03	1	9003-	●	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-190-0	01	1	9002-	●	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	1-14181-191-1	01	1	9002-9401	●	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXH HEAT WARNING<W50> (B)	1-14181-191-1	01	1	9402-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EXH HEAT WARNING<W50> (B)	1-14181-119-1	01	1	9402-		●
29	BRACKET; INL PIPE,ACL TO TURBOCHARGER	1-14119-165-1	01	1	9002-9401	●	●
29	BRACKET; INL PIPE,ACL TO TURBOCHARGER EXH HEAT WARNING<W50>	1-14119-165-1	01	1	9402-		●
29	BRACKET; INL PIPE,ACL TO TURBOCHARGER EXC. EXH HEAT WARNING<W50>	1-14119-165-1	02	1	9402-		●
30	BOLT; PIPE TO BRKT M10X25	9-01911-025-0	02	1	9002-9002	●
30	BOLT; PIPE TO BRKT M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-9401	●	●
30	BOLT; PIPE TO BRKT EXH HEAT WARNING<W50> M10X25 W/LK WASHER	0-50041-025-0	02	1	9402-		●
30	BOLT; PIPE TO BRKT EXC. EXH HEAT WARNING<W50> M10X25 W/LK WASHER	0-50041-025-0	04	1	9402-		●
32	PROTECTOR; HEAT,TURBOCHARGER	1-14181-196-0	01	1	9006-9401	●	●
32	PROTECTOR; HEAT,TURBOCHARGER EXH HEAT WARNING<W50>	1-14181-196-0	01	1	9402-		●
32	PROTECTOR; HEAT,TURBOCHARGER EXC. EXH HEAT WARNING<W50>	1-14181-194-1	01	1	9402-		●
33	BOLT; HEAT PROTECTOR M10X22 W/LK&PL WASHER	0-50141-022-0	06	1	9006-9401	●	●
33	BOLT; HEAT PROTECTOR EXH HEAT WARNING<W50> M10X22 W/LK&PL WASHER	0-50141-022-0	06	1	9402-		●
33	BOLT; HEAT PROTECTOR EXC. EXH HEAT WARNING<W50> M8X20 W/LK WASHER	0-50040-820-0	02	1	9402-		●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER	1-09360-618-1	01	1	9002-9401	●	●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER EXH HEAT WARNING<W50>	1-09360-618-1	01	1	9402-		●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER EXC. EXH HEAT WARNING<W50>	1-09360-917-0	01	1	9402-		●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=58-79	8-94126-771-0	02	1	9002-9401	●	●
69	CLIP; RUBBER HOSE,TURBOCHARGER EXH HEAT WARNING<W50> ID=58-79	8-94126-771-0	02	1	9402-		●
69	CLIP; RUBBER HOSE,TURBOCHARGER EXC. EXH HEAT WARNING<W50> ID=77-95	1-09707-114-0	02	1	9402-		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=96	9-09915-597-0	01	1	9002-9401	●	●
97	CLIP; HOSE,TURBOCHARGER,INL EXH HEAT WARNING<W50> ID=96	9-09915-597-0	01	1	9402-		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104	9-09915-601-0	01	1	9002-9401	●	●
97	CLIP; HOSE,TURBOCHARGER,INL EXH HEAT WARNING<W50> ID=104	9-09915-601-0	01	1	9402-		●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EXH HEAT WARNING<W50> ID=104	9-09915-601-0	02	1	9402-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-723-1	01	1	9002-9401	●	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXH HEAT WARNING<W50>	1-09360-723-1	01	1	9402-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EXH HEAT WARNING<W50>	1-09360-713-0	01	1	9402-		●
155	BOLT; HEAT PROTECTOR M8X20	9-01970-820-0	02	1	9002-9005	●
155	BOLT; HEAT PROTECTOR M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9006-9401	●	●
155	BOLT; HEAT PROTECTOR EXH HEAT WARNING<W50> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9402-		●
155	BOLT; HEAT PROTECTOR EXC. EXH HEAT WARNING<W50> M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9402-		●
214	BAND; "V",TURBOCHARGER TO EXH PIPE EXC. EXH HEAT WARNING<W50>	1-09709-094-1	01	1	9402-		●

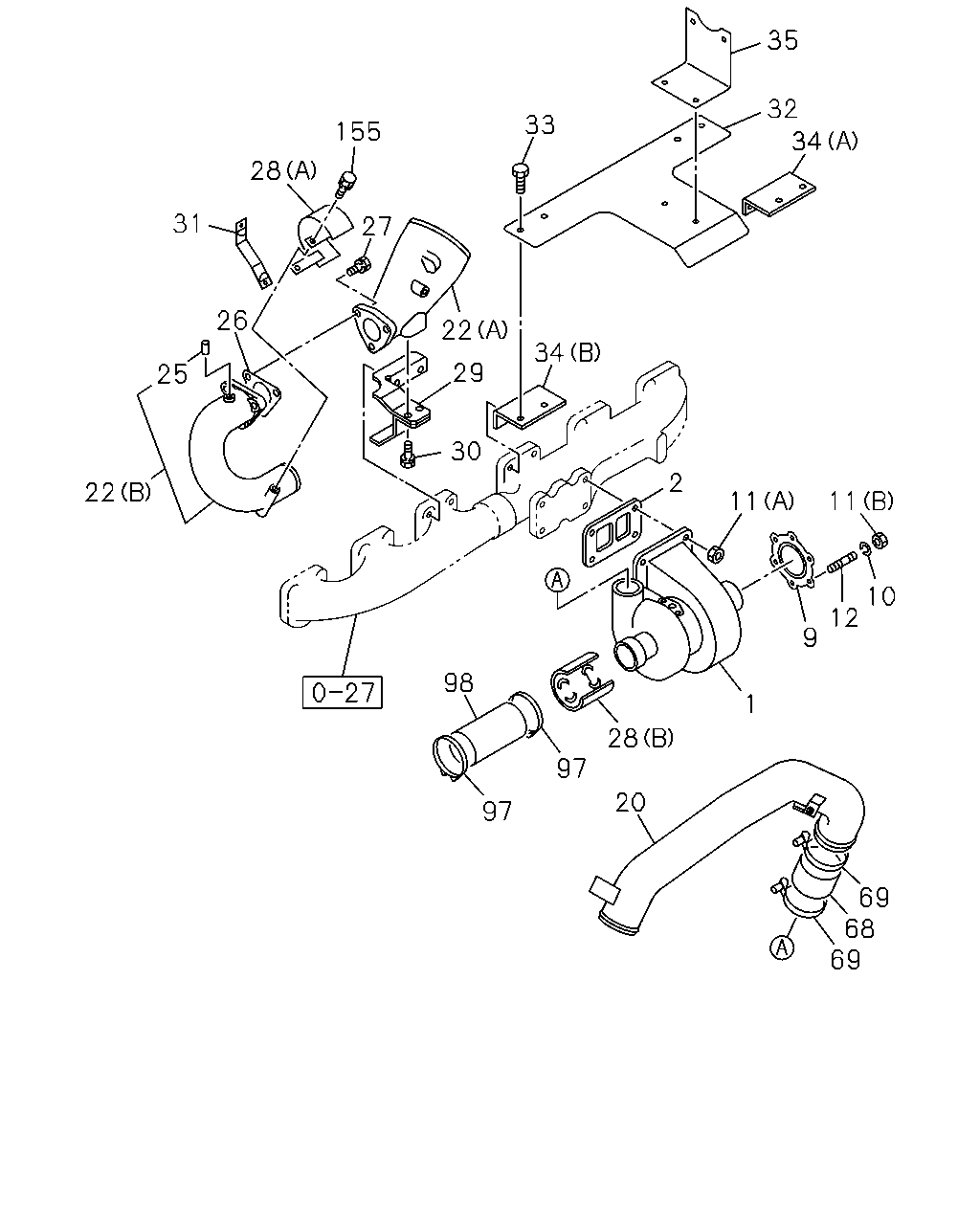

35 32 33 155 34 28 31 27 26 22 34 29 25 30 2 22 11 11 10 12 9 98 1 28 97 20 97 69 68 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-180-0	01	1	9002-9306	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-170-0	01	1	9012-9401		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXH HEAT WARNING<W50>	1-14400-170-0	01	1	9402-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EXH HEAT WARNING<W50>	1-14400-174-3	01	1	9402-9410		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EXH HEAT WARNING<W50>	1-14400-337-0	01	1	9411-		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-103-0	01	1	9002-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-122-0	01	1	9002-9401	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXH HEAT WARNING<W50>	1-14145-122-0	01	1	9402-		●
10	WASHER; LK,TURBOCHARGER	1-09500-007-0	06	1	9002-9401	●	●
10	WASHER; LK,TURBOCHARGER EXH HEAT WARNING<W50>	1-09500-007-0	06	1	9402-		●
11	NUT; TURBOCHARGER (B)	1-09400-027-0	06	1	9002-9401	●	●
11	NUT; TURBOCHARGER EXH HEAT WARNING<W50> (B)	1-09400-027-0	06	1	9402-		●
11	NUT; TURBOCHARGER (A)	9-09844-575-0	04	1	9002-	●	●
12	STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	06	1	9002-9401	●	●
12	STUD; TURBOCHARGER EXH HEAT WARNING<W50> M10X30 L=45	1-09302-106-0	06	1	9402-		●
20	PIPE; INL,TURBOCHARGER OUT	1-14112-334-0	01	1	9002-9101	●
20	PIPE; INL,TURBOCHARGER OUT	1-14112-448-3	01	1	9102-9401	●	●
20	PIPE; INL,TURBOCHARGER OUT EXH HEAT WARNING<W50>	1-14112-448-3	01	1	9402-		●
20	PIPE; INL,TURBOCHARGER OUT	1-14112-228-0	01	1	9012-9101		●
20	PIPE; INL,TURBOCHARGER OUT EXC. EXH HEAT WARNING<W50>	1-14112-143-5	01	1	9402-9404		●
20	PIPE; INL,TURBOCHARGER OUT EXC. EXH HEAT WARNING<W50>	1-14112-574-0	01	1	9405-9407		●
20	PIPE; INL,TURBOCHARGER OUT EXC. EXH HEAT WARNING<W50>	1-14112-594-0	01	1	9408-		●
22	DUCT; INL,ACL TO TURBOCHARGER (A)	1-14114-826-0	01	1	9002-9401	●	●
22	DUCT; INL,ACL TO TURBOCHARGER EXH HEAT WARNING<W50> (A)	1-14114-826-0	01	1	9402-		●
22	DUCT; INL,ACL TO TURBOCHARGER (B)	1-14114-995-0	01	1	9002-9401	●	●
22	DUCT; INL,ACL TO TURBOCHARGER EXH HEAT WARNING<W50> (B)	1-14114-995-0	01	1	9402-		●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EXH HEAT WARNING<W50> (C)	1-14114-786-0	01	1	9402-		●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EXH HEAT WARNING<W50> (D)	1-14114-935-0	01	1	9402-		●
25	PIPE; AIR SUCTION	8-94129-650-0	01	1	9002-	●	●
26	GASKET; DUCT	1-14117-022-0	01	1	9002-	●	●
27	BOLT; DUCT,ACL TO TURBOCHARGER M10X35 W/LK WASHER	9-01991-035-0	03	1	9002-9002	●
27	BOLT; DUCT,ACL TO TURBOCHARGER M10X35 W/LK&PL WASHER	0-50151-035-0	03	1	9003-	●	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-190-0	01	1	9002-	●	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	1-14181-191-1	01	1	9002-9401	●	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXH HEAT WARNING<W50> (B)	1-14181-191-1	01	1	9402-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EXH HEAT WARNING<W50> (B)	1-14181-119-1	01	1	9402-		●
29	BRACKET; INL PIPE,ACL TO TURBOCHARGER	1-14119-165-1	01	1	9002-9401	●	●
29	BRACKET; INL PIPE,ACL TO TURBOCHARGER EXH HEAT WARNING<W50>	1-14119-165-1	01	1	9402-		●
29	BRACKET; INL PIPE,ACL TO TURBOCHARGER EXC. EXH HEAT WARNING<W50>	1-14119-165-1	02	1	9402-		●
30	BOLT; PIPE TO BRKT M10X25	9-01911-025-0	02	1	9002-9002	●
30	BOLT; PIPE TO BRKT M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-9401	●	●
30	BOLT; PIPE TO BRKT EXH HEAT WARNING<W50> M10X25 W/LK WASHER	0-50041-025-0	02	1	9402-		●
30	BOLT; PIPE TO BRKT EXC. EXH HEAT WARNING<W50> M10X25 W/LK WASHER	0-50041-025-0	04	1	9402-		●
31	BRACKET; INL DUCT,HEAT PROTECTOR	1-14119-231-0	01	1	9002-9401	●	●
31	BRACKET; INL DUCT,HEAT PROTECTOR EXH HEAT WARNING<W50>	1-14119-231-0	01	1	9402-		●
32	PROTECTOR; HEAT,TURBOCHARGER	1-14181-196-0	01	1	9006-9401	●	●
32	PROTECTOR; HEAT,TURBOCHARGER EXH HEAT WARNING<W50>	1-14181-196-0	01	1	9402-		●
32	PROTECTOR; HEAT,TURBOCHARGER EXC. EXH HEAT WARNING<W50>	1-14181-194-1	01	1	9402-		●
33	BOLT; HEAT PROTECTOR M10X22 W/LK&PL WASHER	0-50141-022-0	06	1	9006-9401	●	●
33	BOLT; HEAT PROTECTOR EXH HEAT WARNING<W50> M10X22 W/LK&PL WASHER	0-50141-022-0	06	1	9402-		●
33	BOLT; HEAT PROTECTOR EXC. EXH HEAT WARNING<W50> M8X20 W/LK WASHER	0-50040-820-0	02	1	9402-		●
34	BRACKET; HEAT PROTECTOR (A)	1-14189-080-0	01	1	9006-9401	●	●
34	BRACKET; HEAT PROTECTOR EXH HEAT WARNING<W50> (A)	1-14189-080-0	01	1	9402-		●
34	BRACKET; HEAT PROTECTOR (B)	1-14189-082-0	01	1	9006-9401	●	●
34	BRACKET; HEAT PROTECTOR EXH HEAT WARNING<W50> (B)	1-14189-082-0	01	1	9402-		●
35	STAY; HEAT PROTECTOR,TURBOCHARGER	1-14189-081-0	01	1	9006-9401	●	●
35	STAY; HEAT PROTECTOR,TURBOCHARGER EXH HEAT WARNING<W50>	1-14189-081-0	01	1	9402-		●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER	1-09360-618-1	01	1	9002-9401	●	●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER EXH HEAT WARNING<W50>	1-09360-618-1	01	1	9402-		●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER EXC. EXH HEAT WARNING<W50>	1-09360-917-0	01	1	9402-		●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=58-79	8-94126-771-0	02	1	9002-9401	●	●
69	CLIP; RUBBER HOSE,TURBOCHARGER EXH HEAT WARNING<W50> ID=58-79	8-94126-771-0	02	1	9402-		●
69	CLIP; RUBBER HOSE,TURBOCHARGER EXC. EXH HEAT WARNING<W50> ID=77-95	1-09707-114-0	02	1	9402-		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=96	9-09915-597-0	01	1	9002-9401	●	●
97	CLIP; HOSE,TURBOCHARGER,INL EXH HEAT WARNING<W50> ID=96	9-09915-597-0	01	1	9402-		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104	9-09915-601-0	01	1	9002-9401	●	●
97	CLIP; HOSE,TURBOCHARGER,INL EXH HEAT WARNING<W50> ID=104	9-09915-601-0	01	1	9402-		●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EXH HEAT WARNING<W50> ID=104	9-09915-601-0	02	1	9402-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-723-1	01	1	9002-9401	●	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXH HEAT WARNING<W50>	1-09360-723-1	01	1	9402-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EXH HEAT WARNING<W50>	1-09360-713-0	01	1	9402-		●
155	BOLT; HEAT PROTECTOR M8X20	9-01970-820-0	02	1	9002-9005	●
155	BOLT; HEAT PROTECTOR M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9006-9401	●	●
155	BOLT; HEAT PROTECTOR EXH HEAT WARNING<W50> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9402-		●
155	BOLT; HEAT PROTECTOR EXC. EXH HEAT WARNING<W50> M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9402-		●
