4-50 — FRONT SUSPENSION (#23955) — 32 parça

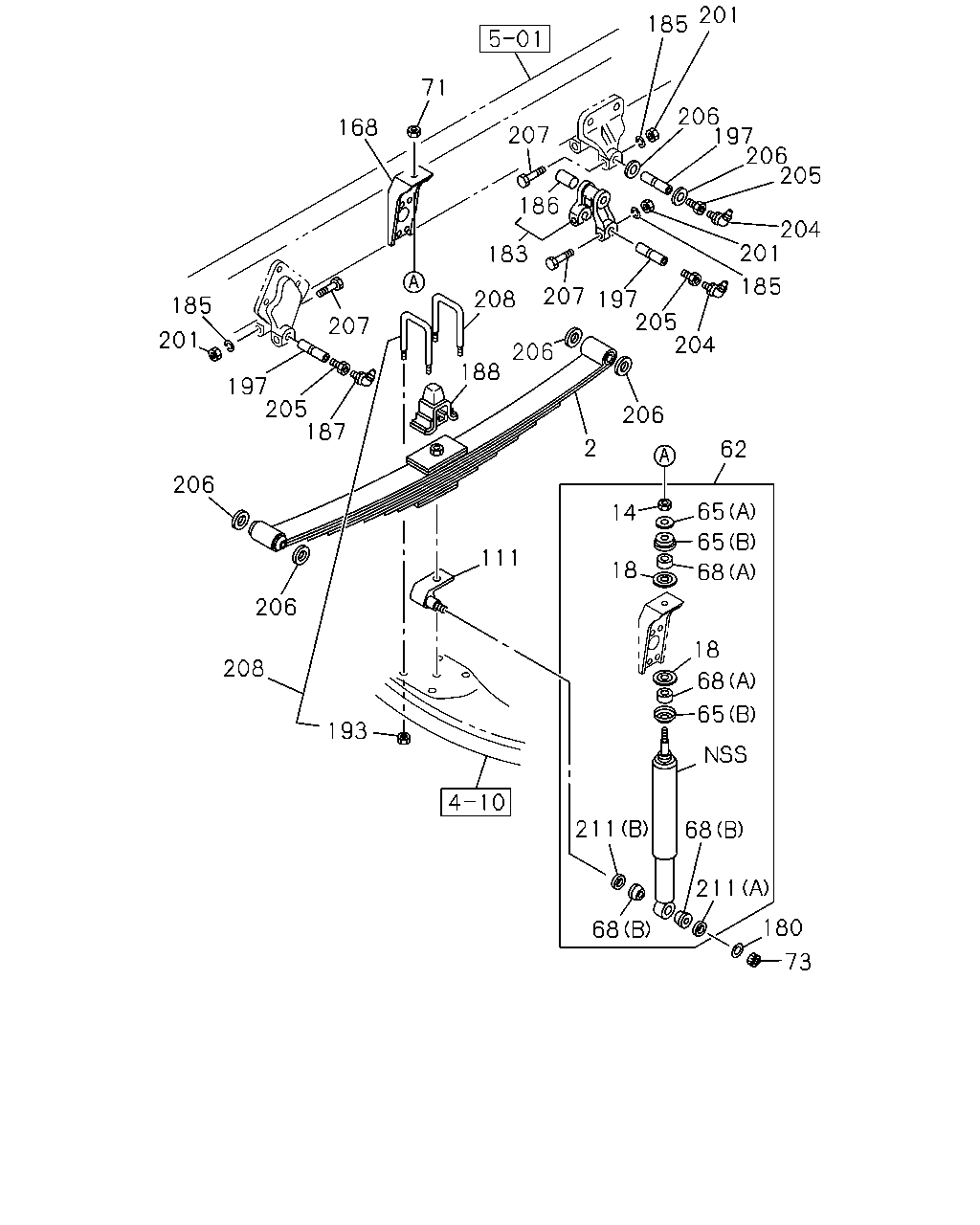

çizim 25906
201 185 71 206 197 206 205 207 168 186 204 201 183 185 207 208 197 205 204 185 207 201 206 188 197 205 187 206 2 62 206 65 14 65 111 18 68 206 18 208 68 65 193 211 68 211 180 68 73
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-97913-796-0 04 1 0210-0312 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-97913-796-0 03 1 0401- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-97922-659-0 01 1 0401- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0210- ● ●
18 WASHER; CENTERING,S/ABS
THA 		8-97914-928-0 04 1 0210- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97914-855-1 02 1 0210- ● ●
65 WASHER; S/ABS
(B) THA 		8-97914-926-0 04 1 0210- ● ●
65 WASHER; S/ABS
(A) THA 		8-97914-929-0 02 1 0210- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 THA 		1-51631-069-0 04 1 0210- ● ●
68 BUSHING; S/ABS
(B) THA 		8-97914-923-0 04 1 0210- ● ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 0210- ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 0210-0311 ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0312- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-723-1 01 1 0210- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-722-1 01 1 0210- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0210- ● ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0210- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 0210- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0210- ● ●
186 BUSHING; SHACKLE
OD=38 THA 		1-51351-009-0 02 1 0210- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0210- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		8-97916-008-0 02 1 0210- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0210- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 0210- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0210- ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 04 1 0210- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0210- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0210- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0210- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 0210- ● ●
211 WASHER; BRKT,SHOCK
(B) THA 		8-97914-924-0 02 1 0210- ● ●
211 WASHER; BRKT,SHOCK
(A) THA 		8-97914-925-0 02 1 0210- ● ●
