◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10907 - FXZ(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#23951) — 37 parça

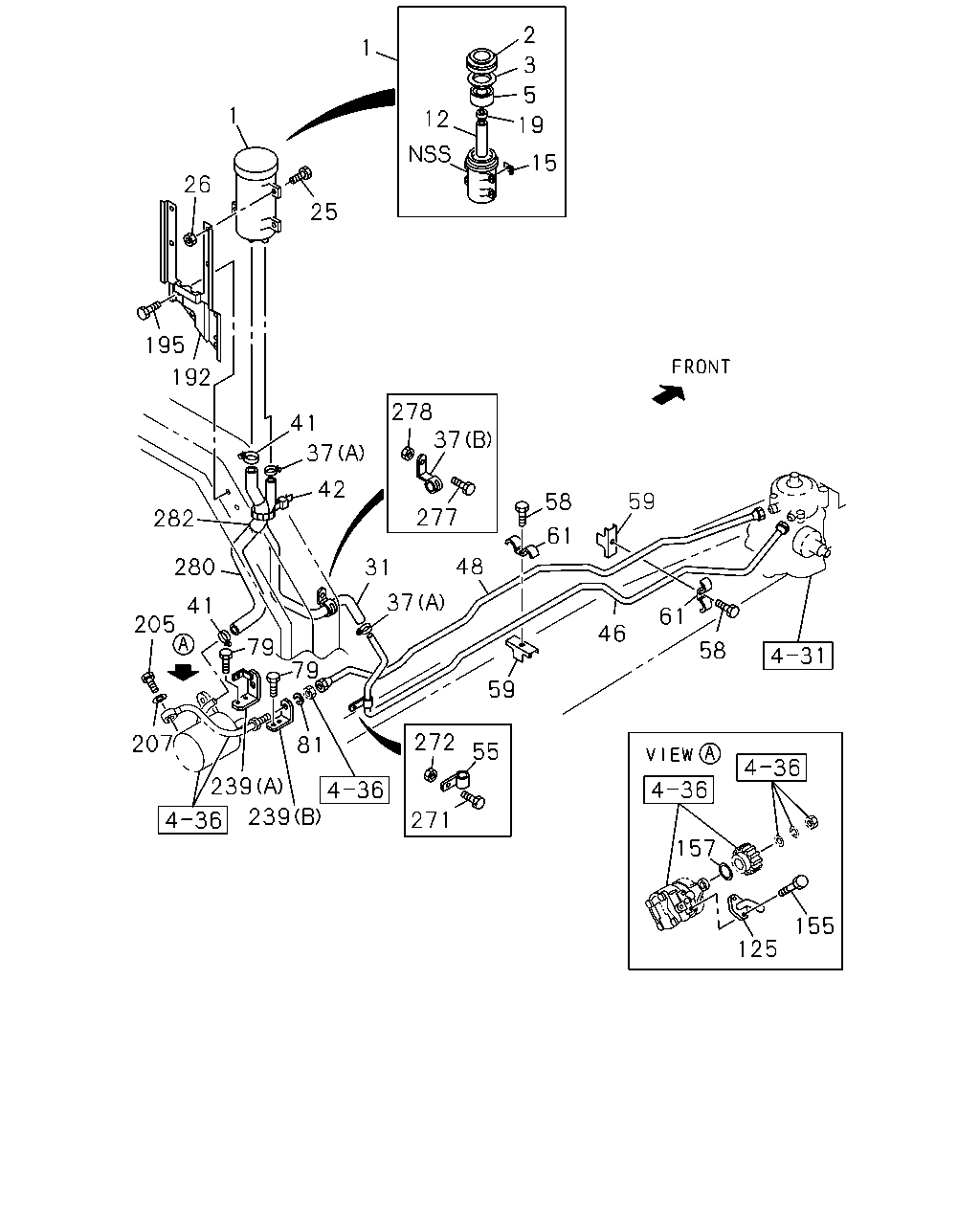

çizim 24672
2 1 3 5 1 12 19 15 26 25 195 192 278 37 41 37 42 59 58 277 282 61 48 280 31 37 41 61 205 46 79 58 79 59 207 272 81 55 239 239 271 157 155 125
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 1-21210-152-6 01 1 0210- ● ●
2 CAP; OIL TANK,P/S 1-21241-004-3 01 1 0210- ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0210- ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0210- ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-004-1 01 1 0210- ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 04 1 0210- ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 0210- ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0210- ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 0210- ● ●
31 HOSE; P/S OIL TANK,INL 1-21115-465-2 01 1 0210- ● ●
37 CLIP; HOSE,P/S
(B) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 0210- ● ●
37 CLIP; HOSE,P/S
(A) ID=26 THA 		1-09704-082-0 02 1 0210- ● ●
41 CLIP; HOSE,P/S
ID=32 THA 		1-09704-085-0 02 1 0210- ● ●
42 CLIP; HOSE,P/S
L=250 		1-09707-126-0 01 1 0210- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21115-464-0 01 1 0210- ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 1-21115-340-0 01 1 0210- ● ●
55 CLIP; P/S RUBBER HOSE
ID=16 L=40 		9-09525-576-0 01 1 0210- ● ●
58 BOLT; CLIP
M8X45 FLANGE 		0-28080-845-0 02 1 0210- ● ●
59 BRACKET; CLIP,OIL PIPE 1-47475-427-1 02 1 0210- ● ●
61 CLIP; OIL PIPE
ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 0210- ● ●
79 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0210- ● ●
81 WASHER; LK,FLEX HOSE
ID=20.2 		9-09150-520-0 01 1 0210- ● ●
125 CONNECTOR; P/S PUMP 1-21122-019-2 01 1 0210- ● ●
155 BOLT; CONNECTOR
M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 0210- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=77 		1-09623-143-0 01 1 0210- ● ●
192 BRACKET; P/S OIL TANK 1-21219-093-2 01 1 0210- ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 03 1 0210- ● ●
205 BOLT; EYE,FLEX HOSE,P/S
M18X36 		1-09675-205-0 01 1 0210- ● ●
207 GASKET; FLEX HOSE,P/S PUMP
ID=18 		9-09571-418-0 02 1 0210- ● ●
239 BRACKET; FLEX HOSE
(A) 		1-47477-639-0 01 1 0210- ●
239 BRACKET; FLEX HOSE
(B) 		1-47475-805-1 01 1 0210- ●
271 BOLT; P/S OIL PIPE FIX
M8X25 FLANGE 		0-28680-825-0 01 1 0210- ● ●
272 NUT; P/S OIL PIPE FIX
M8 FLANGE 		0-91150-108-0 01 1 0210- ● ●
277 BOLT; HOSE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0210- ● ●
278 NUT; HOSE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0210- ● ●
280 HOSE; P/S OIL PUMP,INL 1-21115-048-1 01 1 0210- ● ●
282 SLEEVE; RUBBER,PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 0210- ● ●
