0-35A — ENGINE CONTROL VALVE AND LEVER (#2395) — 82 parça

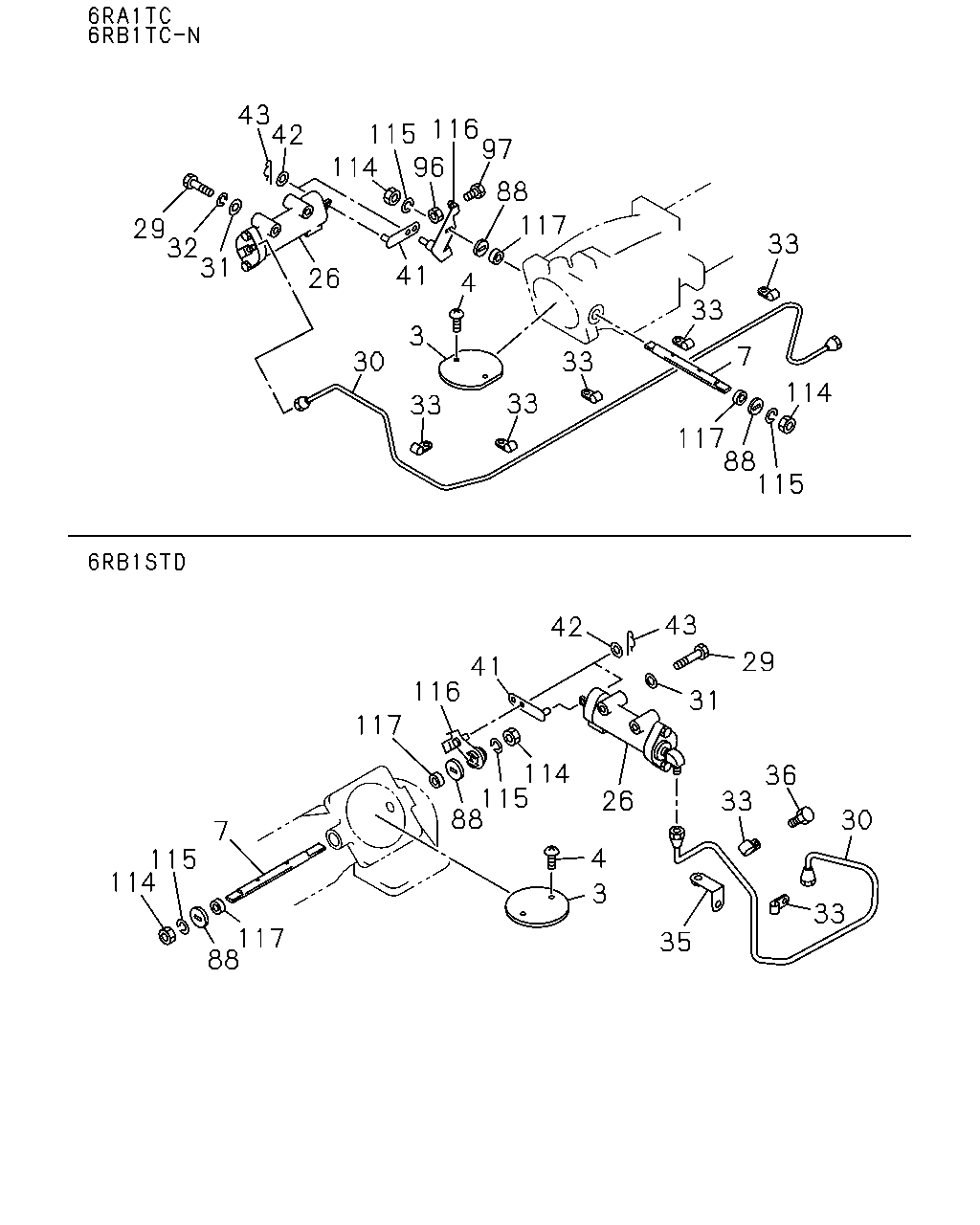

43 42 116 97 115 88 117 29 32 31 33 41 26 4 33 3 7 30 33 114 33 33 117 88 115 43 42 29 41 116 31 117 114 115 88 36 26 33 30 7 4 115 114 3 33 117 88 35 114 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	VALVE; INT SHUTTER	1-14312-033-0	01	1	9002-	●	●
3	VALVE; INT SHUTTER	1-14312-012-0	01	1	9002-			●
4	SCREW; VLV FIX	1-09102-002-0	02	1	9002-	●	●	●
7	SHAFT ASM; INT SHUTTER OD=12	1-14313-045-1	01	1	9002-	●	●
7	SHAFT ASM; INT SHUTTER	9-14313-129-0	01	1	9002-			●
26	CYLINDER ASM; CONT	1-22190-520-1	01	1	9002-	●	●
26	CYLINDER ASM; CONT	1-22190-302-1	01	1	9002-			●
29	BOLT; CONT CYL M10X55	9-01056-055-0	02	1	9002-9004	●		●
29	BOLT; CONT CYL M10X55	0-10806-055-0	02	1	9005-	●	●	●
30	PIPE ASM; AIR CONT CYL	1-19192-001-1	01	1	9002-9401	●	●
30	PIPE ASM; AIR CONT CYL EXH HEAT WARNING<W50>	1-19192-001-1	01	1	9402-		●
30	PIPE ASM; AIR CONT CYL	1-19192-126-0	01	1	9002-			●
30	PIPE ASM; AIR CONT CYL EXC. EXH HEAT WARNING<W50>	1-19191-978-1	01	1	9402-		●
31	WASHER; PL,CONT CYL ID=10.5 OD=18	9-09160-510-0	02	1	9002-	●	●	●
32	WASHER; LK,CONT CYL ID=10.2	9-09150-510-0	02	1	9002-	●	●
33	CLIP; AIR PIPE	1-09700-955-0	06	1	9002-9401	●	●
33	CLIP; AIR PIPE EXH HEAT WARNING<W50>	1-09700-955-0	06	1	9402-		●
33	CLIP; AIR PIPE	1-09700-955-0	02	1	9002-			●
33	CLIP; AIR PIPE EXC. EXH HEAT WARNING<W50>	1-09700-955-0	05	1	9402-		●
35	BRACKET; AIR PIPE CLIP	1-13719-027-0	01	1	9002-			●
36	BOLT; CLIP M10X20 W/LK WASHER	9-01911-020-0	01	1	9002-9002			●
36	BOLT; CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-			●
41	LINK; INT SHUTTER	1-14319-004-2	01	1	9002-	●	●	●
42	WASHER; LK,ROD LOCK ID=10.5 OD=18	9-09160-510-0	02	1	9002-	●	●	●
42	WASHER; LK,ROD LOCK ID=6.4	9-09160-506-0	02	1	9002-			●
43	PIN; SNAP ROD LK L=21.2	1-09747-003-0	02	1	9002-	●	●	●
88	WASHER; SHAFT	9-09855-383-0	02	1	9002-	●	●	●
96	NUT; ADJ SCREW M5	9-99110-405-0	02	1	9002-	●	●
97	SCREW; ADJ	9-14319-229-0	02	1	9002-	●	●
114	NUT M12	9-09111-412-0	02	1	9002-9206	●	●
114	NUT M12	9-99111-412-0	02	1	9002-9206			●
114	NUT M12	9-99111-412-0	02	1	9207-	●	●	●
115	WASHER; LK ID=12.2	9-09150-512-0	02	1	9002-	●	●	●
116	LEVER	1-14314-121-0	01	1	9002-	●	●
116	LEVER	1-22196-129-1	01	1	9002-			●
117	COVER; VLV	9-14319-316-0	02	1	9002-	●	●	●

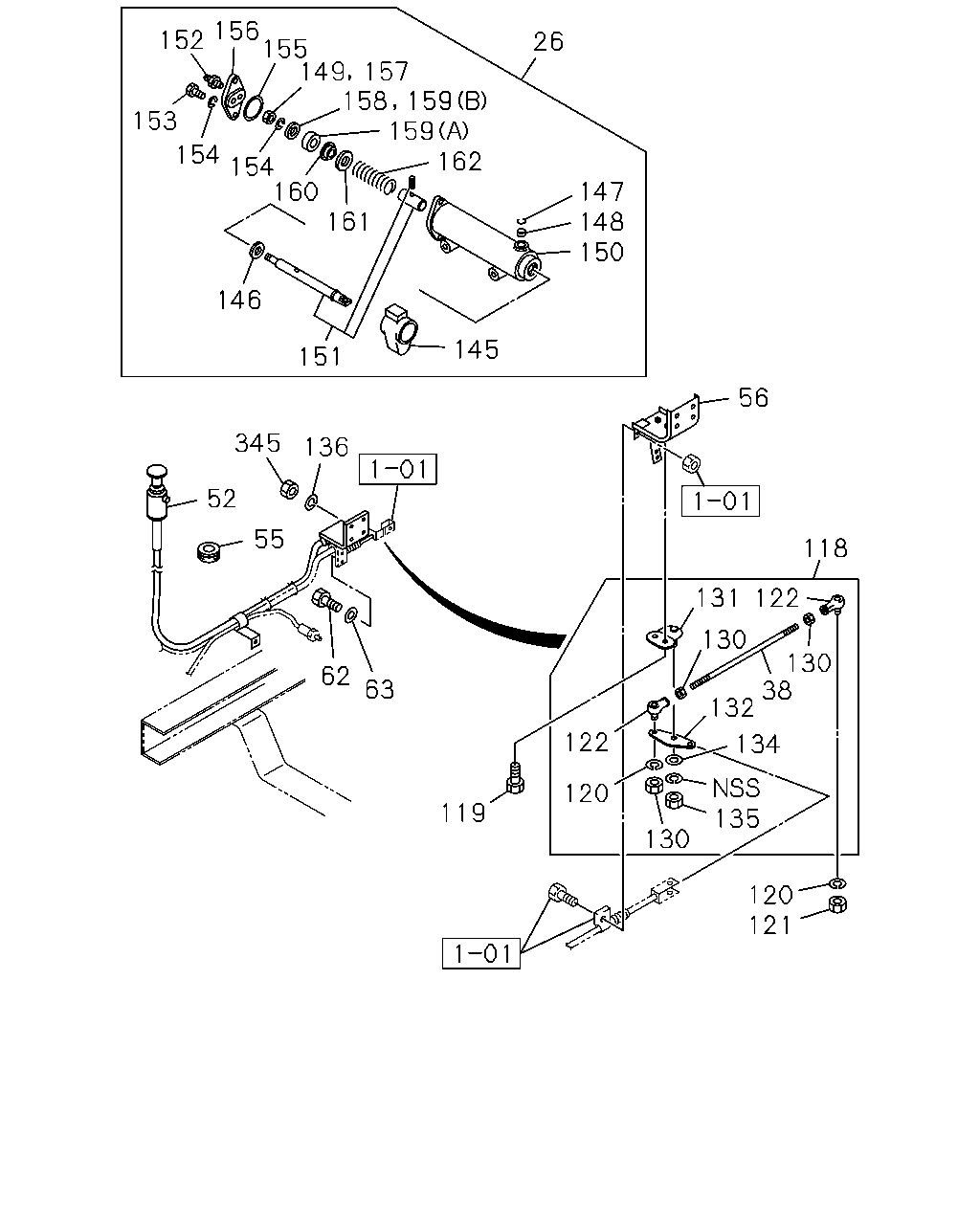

156 155 159 162 152 26 153 154 154 160 161 147 148 150 146 145 151 56 345 136 52 55 118 131 122 130 130 38 132 62 63 122 134 135 120 119 130 120 121 149 157 158 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	CYLINDER ASM; CONT	1-22190-520-1	01	1	9002-	●	●
26	CYLINDER ASM; CONT	1-22190-302-1	01	1	9002-			●
38	ROD; LINK SHAFT TO LEVER	9-08400-532-0	01	1	9002-	●	●	●
52	CABLE; FUEL CUT L=2120	1-23210-739-4	01	1	9002-9306	●	●	●
52	CABLE; FUEL CUT EXC. AUTO ENG SHUTOFF(KB6) L=2070	1-79997-363-0	01	1	9307-		●	●
55	GROMMET; FUEL CUT CABLE AUTO ENG SHUTOFF(KB6) OD=35	1-09983-066-1	01	1	9307-	●	●	●
56	BRACKET; FUEL CUT LINK	1-23335-261-1	01	1	9002-	●	●	●
62	BOLT; CABLE END M6X16 W/LK WASHER	9-01910-616-0	02	1	9002-9005	●	●	●
62	BOLT; CABLE END M6X16 W/LK WASHER	0-50040-616-0	02	1	9006-9302	●	●	●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●	●	●
63	WASHER; PL,FUEL CUT CABLE	1-09985-157-0	01	1	9002-9301	●	●	●
118	ROD ASM; LINK FUEL CUT	1-23310-465-0	01	1	9002-	●	●	●
119	BOLT; LINK ROD M8X18 W/LK WASHER	9-01910-818-0	02	1	9002-9005	●		●
119	BOLT; LINK ROD M8X18 W/LK WASHER	0-50040-818-0	02	1	9006-	●	●	●
120	WASHER; LK,BALL JOINT ID=5.1	9-09150-505-0	02	1	9002-	●	●	●
121	NUT; BALL JOINT M5	9-99110-405-0	01	1	9002-	●	●	●
122	BALL ASM; JOINT RH THREAD	1-09760-002-0	02	1	9002-	●	●	●
130	NUT; BALL JOINT M5	9-99110-405-0	03	1	9002-	●	●	●
131	BRACKET	1-23335-226-0	01	1	9002-	●	●	●
132	LEVER; W/BUSHING	1-23311-267-0	01	1	9002-	●	●	●
134	WASHER; LK,LEVER ID=10.5 OD=22	9-09164-610-0	01	1	9002-	●	●	●
135	NUT; LEVER M10	9-09110-410-0	01	1	9002-	●	●	●
136	WASHER; LK,BRKT ID=10.2	9-09150-510-0	04	1	9002-	●	●	●
145	COVER; BREATHER	1-22199-009-0	01	1	9002-	●	●	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9002-	●	●	●
147	RING; RET	9-88510-331-0	01	1	9002-	●	●	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9002-	●	●	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9002-	●	●
150	CYLINDER; CONT	9-88510-329-0	01	1	9002-9306	●	●	●
151	SHAFT; CONT CYL	1-22199-083-0	01	1	9002-	●	●	●
152	CONNECTOR PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-	●	●	●
153	BOLT; CONT CYL M8X16	9-02050-816-0	02	1	9002-	●	●
153	BOLT; CONT CYL	9-88510-267-0	02	1	9002-9306			●
153	BOLT; CONT CYL	9-88510-267-0	02	1	9307-			●
154	WASHER; LK,CYL ID=8.2	9-09150-508-0	03	1	9002-9306	●	●	●
154	WASHER; LK,CYL ID=8.2	9-09150-508-0	03	1	9307-	●	●	●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9002-	●	●	●
156	COVER; CONT CYL	9-88510-375-0	01	1	9002-	●	●	●
157	NUT; CONT CYL	9-83315-085-0	01	1	9002-9306			●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9002-			●
159	GASKET; CONT CYL (A)	9-88510-373-0	01	1	9002-	●	●	●
159	GASKET; CONT CYL (B)	9-88510-324-0	01	1	9002-	●	●
160	PLATE	1-22199-001-0	01	1	9002-	●	●	●
161	RING; WEAR	1-22199-002-0	01	1	9002-	●	●	●
162	SPRING; CONT CYL	9-88510-374-0	01	1	9002-	●	●	●
345	NUT; BRKT M10	9-09110-410-0	04	1	9002-	●	●	●
