◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10907 - FXZ(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#23946) — 38 parça

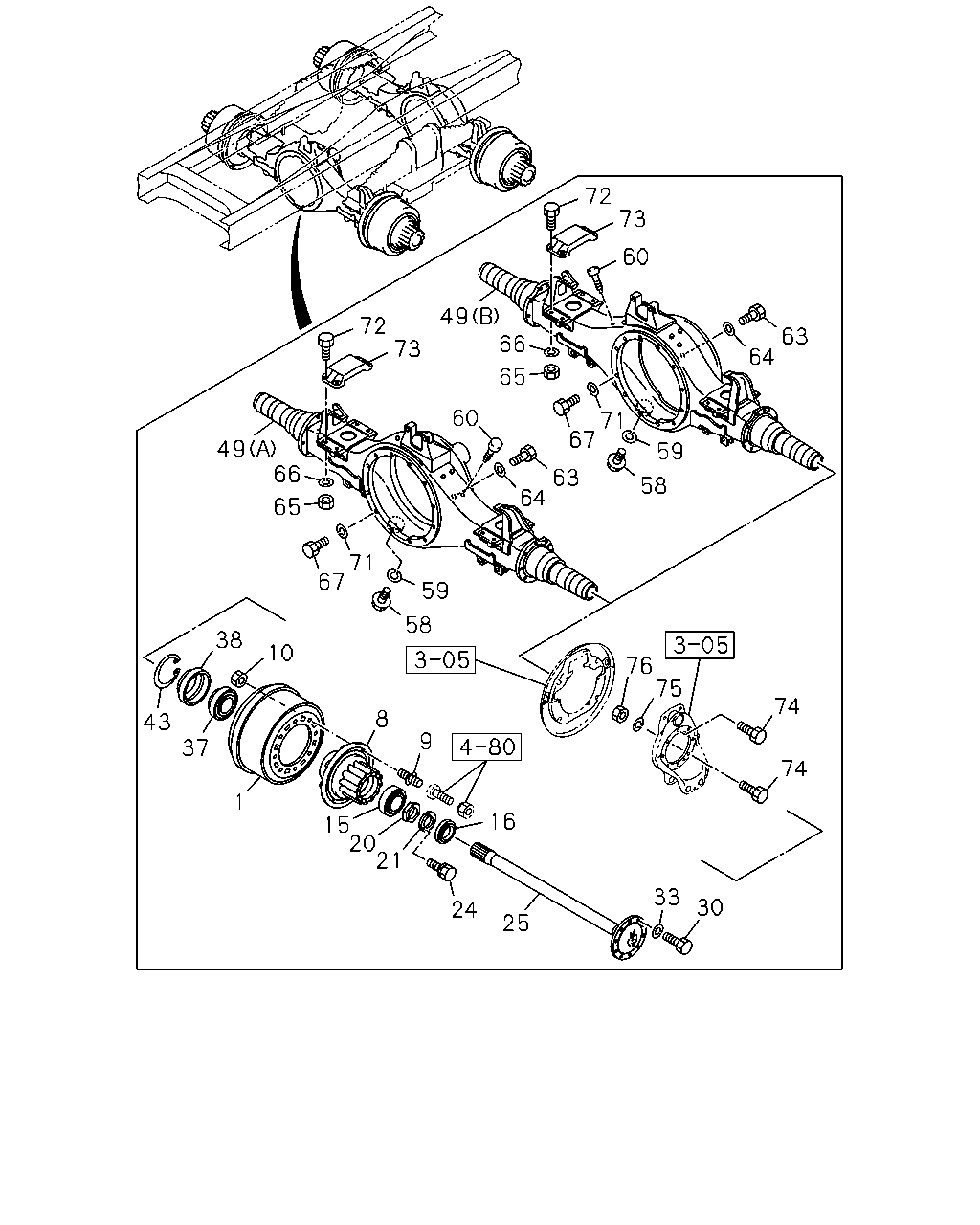

çizim 25902
72 73 60 49 66 72 73 63 64 65 71 67 60 49 66 59 63 64 58 65 71 67 59 58 38 10 75 74 8 43 9 37 74 1 16 15 20 21 33 30 24 25 76
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR
THA 		8-97917-300-0 02 1 0210- ● ●
1 DRUM; BRK,RR
THA 		8-97917-301-0 02 1 0210- ● ●
8 HUB; RR AXLE 1-42311-104-0 04 1 0210- ● ●
9 PIN; WHEEL,RR AXLE
M20X34.0,M22X51.5 RH THREAD THA 		8-97916-071-0 16 1 0210- ● ●
9 PIN; WHEEL,RR AXLE
M20X34.0 LH THREAD,M22X51.5 RH THREAD THA 		8-97916-073-0 16 1 0210- ● ●
10 NUT; WHEEL PIN,RR AXLE
M22 FLANGE THA 		8-97914-195-0 32 1 0210- ● ●
15 BEARING; HUB OUTER,RR AXLE
KOYO 		1-09812-232-0 04 1 0210- ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 04 1 0210- ● ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 04 1 0210- ● ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 04 1 0210- ● ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 12 1 0210- ● ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH L=976 		1-42171-356-0 02 1 0210- ● ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH L=1106 		1-42171-357-0 02 1 0210- ● ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 40 1 0210- ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 40 1 0210- ● ●
37 BEARING; HUB INNER,RR AXLE
KOYO 		1-09812-233-0 04 1 0210- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 04 1 0210- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 04 1 0210- ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 04 1 0210- ● ●
49 CASE; RR AXLE
(A) 		1-42160-408-1 01 1 0210- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"<W3X>,FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> (A) 		1-42160-408-1 01 1 0210- ●
49 CASE; RR AXLE
(B) 		1-42160-409-1 01 1 0210- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"<W3X>,FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 41/8 17.5"<W4A> (B) 		1-42160-409-1 01 1 0210- ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 02 1 0210- ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 02 1 0210- ● ●
60 BREATHER; RR AXLE CASE 9-36122-015-1 02 1 0210- ● ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 02 1 0210- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 02 1 0210- ● ●
65 NUT
M14 		9-99110-514-0 16 1 0210- ● ●
66 WASHER; LK
ID=14.2 		9-09150-814-0 16 1 0210- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 08 1 0210- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 15 1 0210- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 24 1 0210- ● ●
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 16 1 0210- ● ●
73 PAD; RR SPR CONTACT 1-42124-101-0 04 1 0210- ● ●
74 BOLT; RR BRK ASM SETTING
M14X50 THA 		1-09040-066-0 28 1 0210- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 32 1 0210- ● ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 32 1 0210- ● ●
