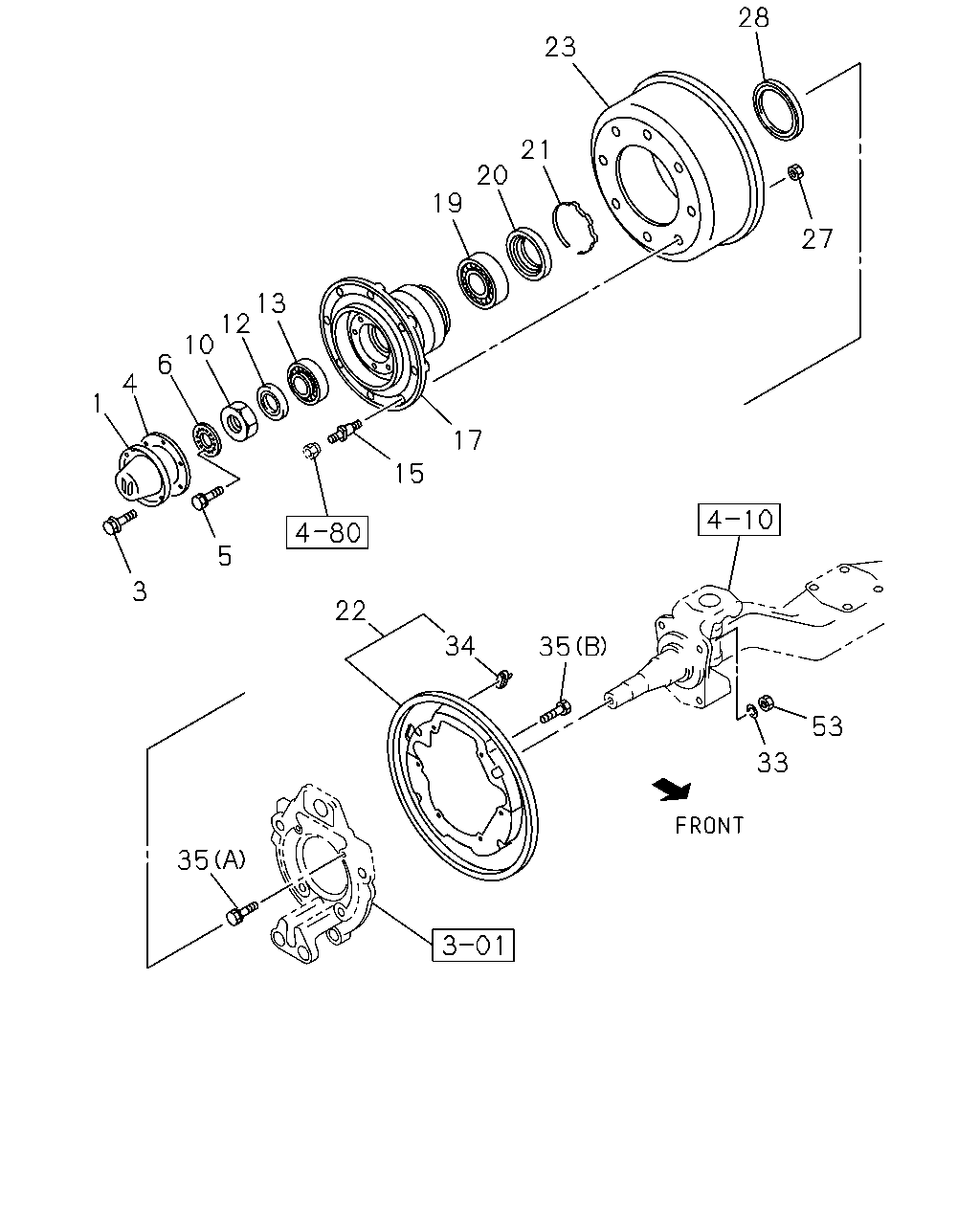

4-11 — FRONT HUB AND DRUM OR ROTOR (#23945) — 24 parça

28 23 21 20 19 27 13 12 10 6 4 1 17 15 5 3 22 34 35 53 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE THA	8-97913-543-1	02	1	0210-	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28080-812-0	12	1	0210-	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-42319-185-1	02	1	0210-	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0210-	●	●
6	WASHER; LK,FRT HUB ID=48 THA	1-09533-012-1	02	1	0210-	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	0210-	●	●
12	WASHER; LK,FRT HUB BRG ID=48 THA	1-09533-016-0	02	1	0210-	●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO THA	1-09812-234-0	02	1	0210-	●	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X57.5 RH THREAD THA	1-42332-109-0	08	1	0210-	●	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X57.5 RH THREAD THA	1-42331-109-0	08	1	0210-	●	●
17	HUB; FRT AXLE	1-42312-128-2	02	1	0210-	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO THA	1-09812-231-0	02	1	0210-	●	●
20	COVER; HUB BRG INNER THA	1-42319-039-0	02	1	0210-	●	●
21	RING; SNAP,HUB THA	1-09587-017-0	02	1	0210-	●	●
22	COVER SET; FRT BRK DRUM THA	1-47151-458-1	02	1	0210-	●	●
23	DRUM; BRK,FRT THA	1-42315-336-1	02	1	0210-0308	●	●
23	DRUM; BRK,FRT	1-42315-355-0	02	1	0309-	●	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE THA	1-09440-065-0	16	1	0210-	●	●
28	SEAL; OIL,FRT HUB OD=140 THA	1-09625-041-0	02	1	0210-	●	●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	0210-	●	●
34	COVER; CHECK HOLE,DRUM COVER THA	1-09333-151-0	04	1	0210-	●	●
35	BOLT; DRUM COVER (B) M10X16 W/LK WASHER	0-50041-016-0	12	1	0210-	●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	04	1	0210-	●	●
53	NUT; DRUM COVER M16	9-99110-416-0	04	1	0210-	●	●
