3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#23939) — 13 parça
Tümü
A - FXZ5MC
B - FXZ5MF
◀
[375A] CAB SIDE (5 parça)

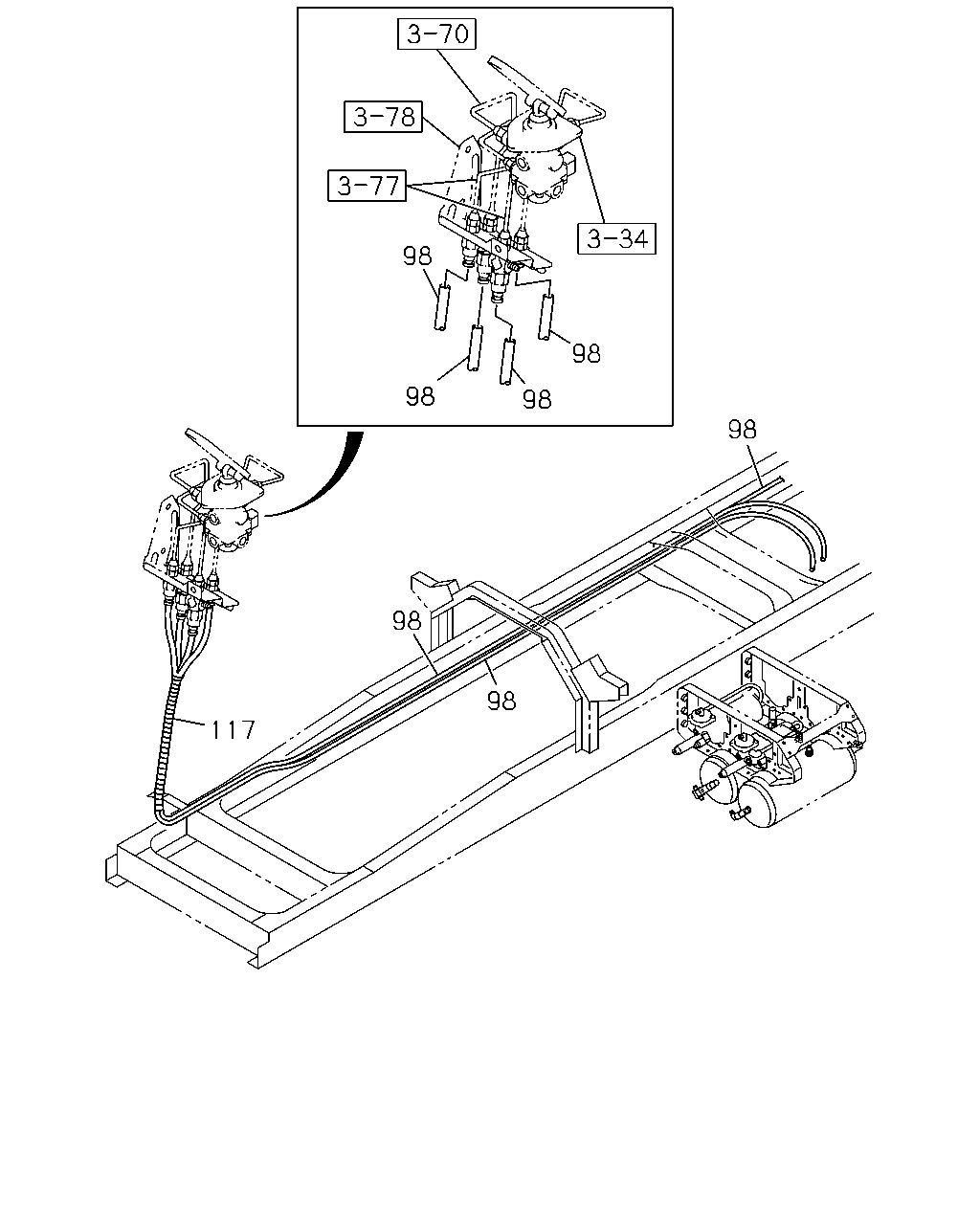

[375A] FRAME SIDE (8 parça)
▶
118
115
116
138
115
116
138
114
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
114
UNION; NYLON TUBE
1-09660-807-2
02
1
0210-
●
●
115
NUT; TUBE UNION
M16
9-99111-416-0
02
1
0210-
●
●
116
WASHER; LK,TUBE UNION
ID=16.2
9-09150-516-0
02
1
0210-
●
●
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=419
1-49115-942-3
01
1
0210-
●
●
138
WASHER; PL,UNION
ID=17
9-09160-516-0
02
1
0210-
●
●
98
98
98
98
98
98
98
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
98
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87410-072-0
AR
1
0210-
●
●
98
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0210-
●
●
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
AR
1
0210-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87410-088-0
AR
1
0210-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
AR
1
0210-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87410-094-0
AR
1
0210-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87410-098-0
AR
1
0210-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87410-104-0
AR
1
0210-
●
●
