3-70 — BRAKE PIPING; AIR,AIR MASTER (#23938) — 95 parça

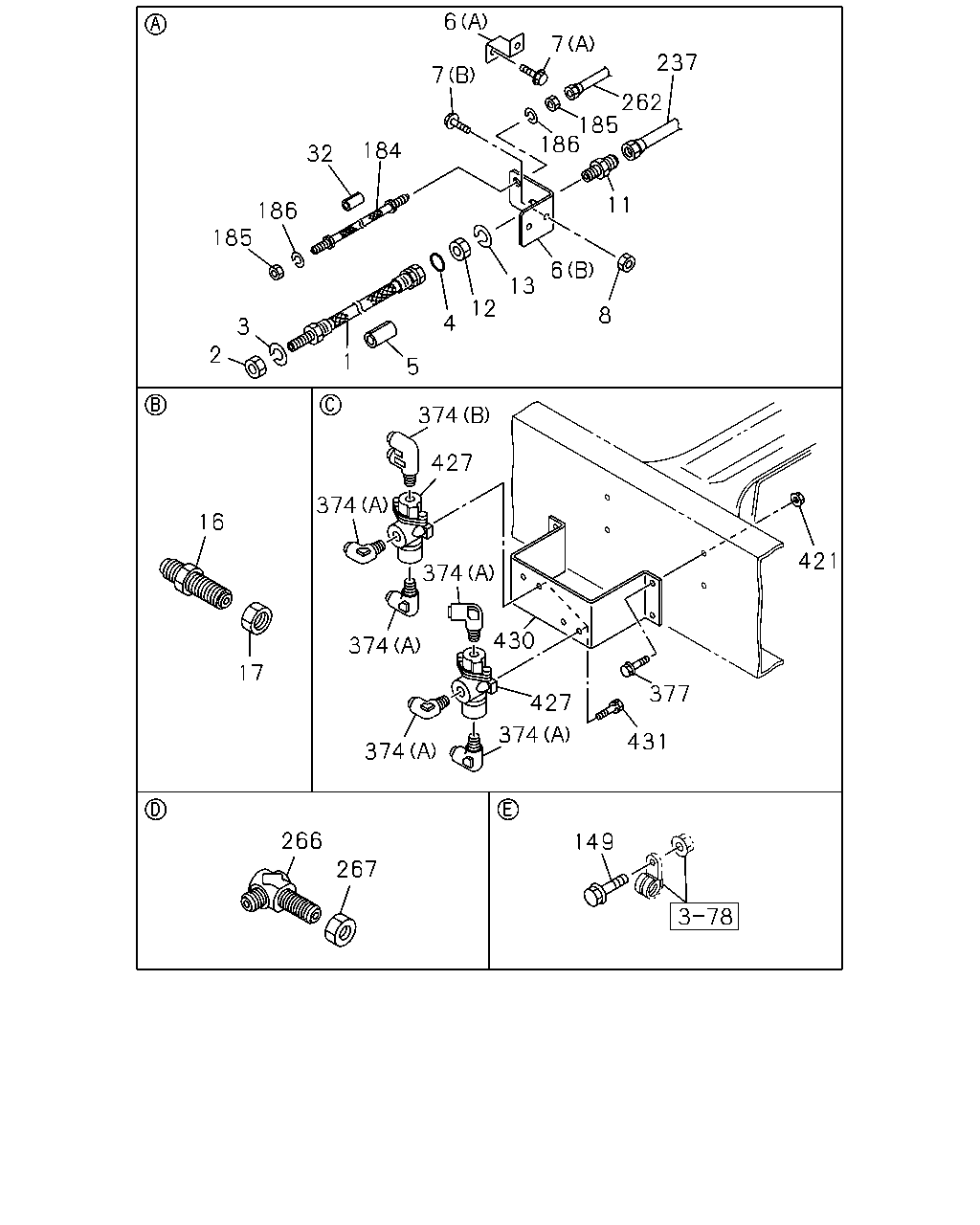

çizim 25961
6 7 237 7 262 185 186 184 32 11 186 185 6 13 12 8 4 3 2 1 5 374 427 374 16 421 374 430 374 17 377 427 374 431 374 266 149 267
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=560 		0-07806-560-1 01 1 0210- ● ●
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 01 1 0210- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 01 1 0210- ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 0210- ● ●
5 SLEEVE; FLEX HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 0210- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47475-689-0 01 1 0210- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47477-304-0 01 1 0210- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0210- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0210- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 0210- ● ●
11 UNION; AIR PIPE
M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0210- ● ●
12 NUT; UNION
M20 		9-99111-420-0 01 1 0210- ● ●
13 WASHER; LK,UNION
ID=20.2 		9-09150-520-0 01 1 0210- ● ●
16 UNION; AIR PIPE
M22 		9-09235-215-1 01 1 0210- ● ●
17 NUT; UNION
M22 		9-09111-422-0 01 1 0210- ● ●
32 SLEEVE; RUBBER,AIR PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0210- ● ●
149 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28680-835-0 01 1 0210- ●
184 HOSE; FLEX,AIR GOV 1-09363-721-0 01 1 0210- ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 02 1 0210- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 02 1 0210- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION 1-49117-983-0 01 1 0210- ● ●
262 PIPE; AIR,UNION TO FLEX 1-49118-004-0 01 1 0210- ● ●
266 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0210- ● ●
267 NUT; UNION
M12 		9-09840-280-0 01 1 0210- ● ●
374 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 0210- ●
374 CONNECTOR
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0210- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28680-825-0 04 1 0210- ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0210- ●
427 VALVE; DOUBLE CHECK 1-48410-531-0 02 1 0210- ●
430 BRACKET; VALVE 1-47478-114-0 01 1 0210- ●
431 BOLT; DOUBLE CHECK VALVE
M8X12 W/LK WASHER 		0-50040-812-0 04 1 0210- ●

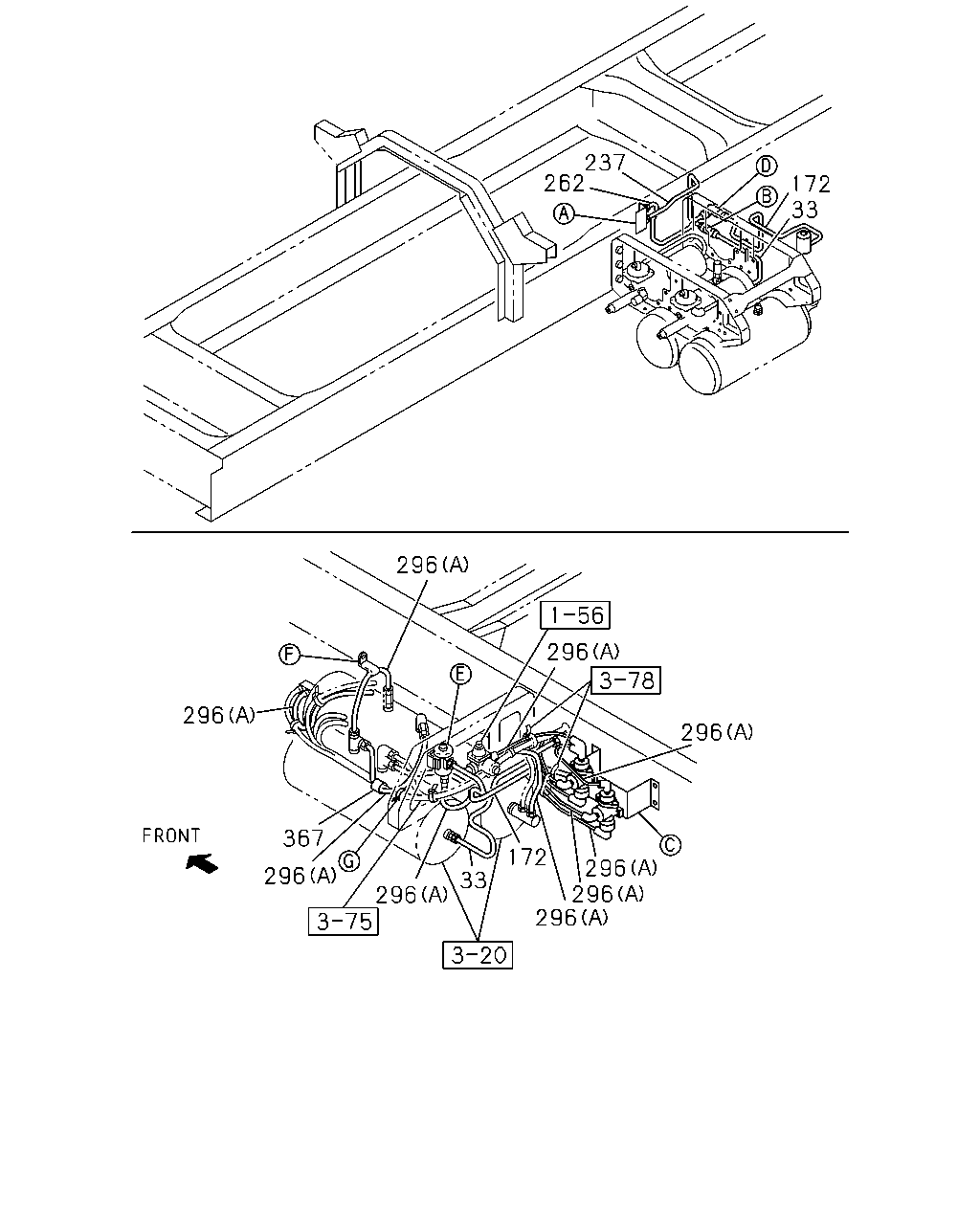

çizim 80930
237 262 172 33 296 296 296 296 367 296 296 296 172 296 33 296
BalonParca AdiParca NoAdetTipApplied Date A B
33 PIPE; AIR,UNION TO AIR TANK 1-49119-064-0 01 1 0210- ● ●
172 PIPE; AIR,GOV TO UNION 1-49121-211-0 01 1 0210- ● ●
237 PIPE; AIR,FLEX HOSE TO UNION 1-49117-983-0 01 1 0210- ● ●
262 PIPE; AIR,UNION TO FLEX 1-49118-004-0 01 1 0210- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0210- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0210- ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0210- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0210- ● ●

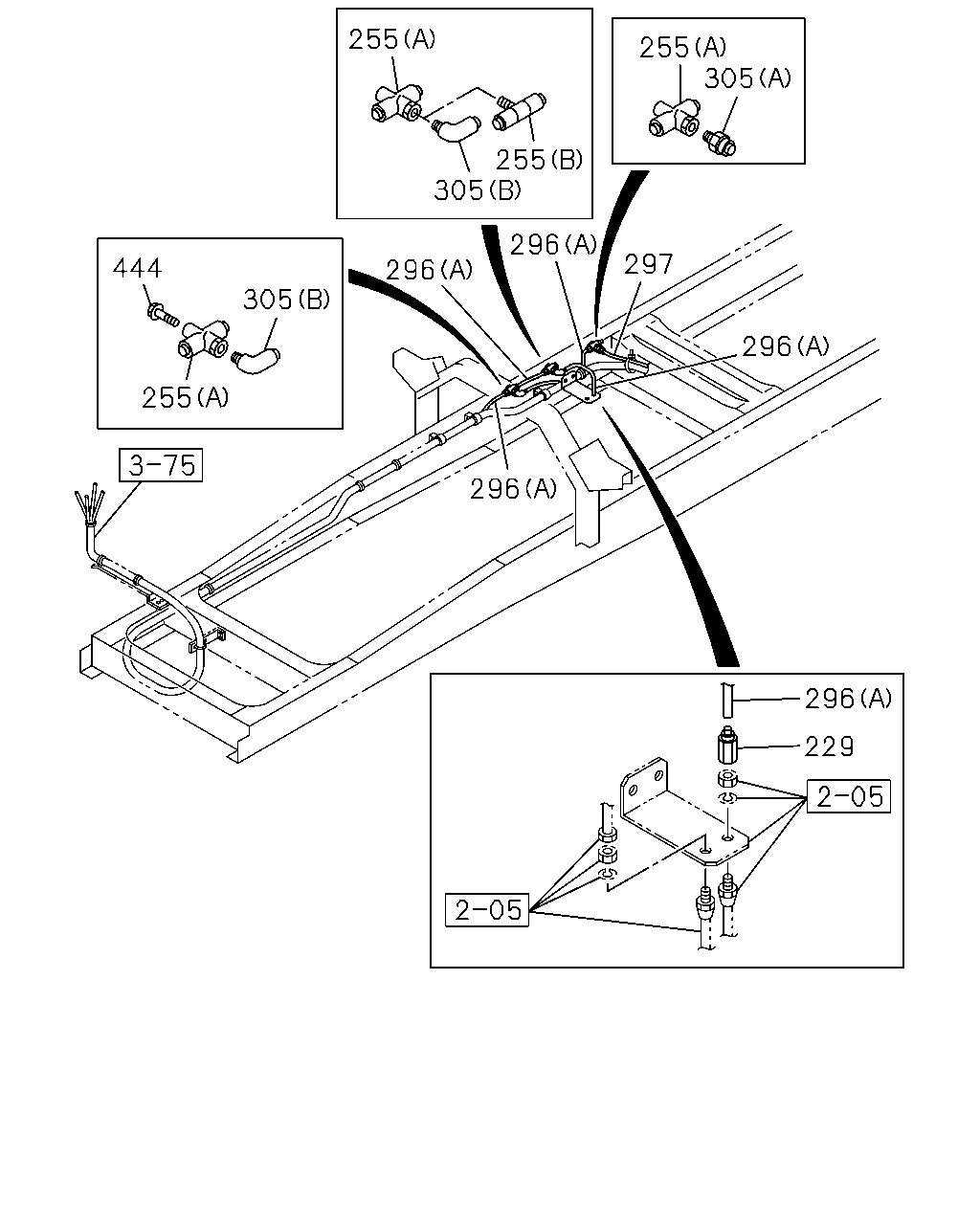

çizim 82955
255 255 305 255 305 296 297 444 296 305 296 255 296 296 229
BalonParca AdiParca NoAdetTipApplied Date A B
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0210- ● ●
255 UNION; NYLON TUBE
(A) DIN8 RC1/4 & M8 		1-09660-735-1 03 1 0210- ● ●
255 UNION; NYLON TUBE
(B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0210- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0210- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0210- ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0210- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0212-0212 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0210-0211 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0212-0212 ●
305 UNION ASM; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0210- ●
305 UNION ASM; NYLON TUBE
(A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0210- ● ●
305 UNION ASM; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0210- ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 03 1 0210- ● ●

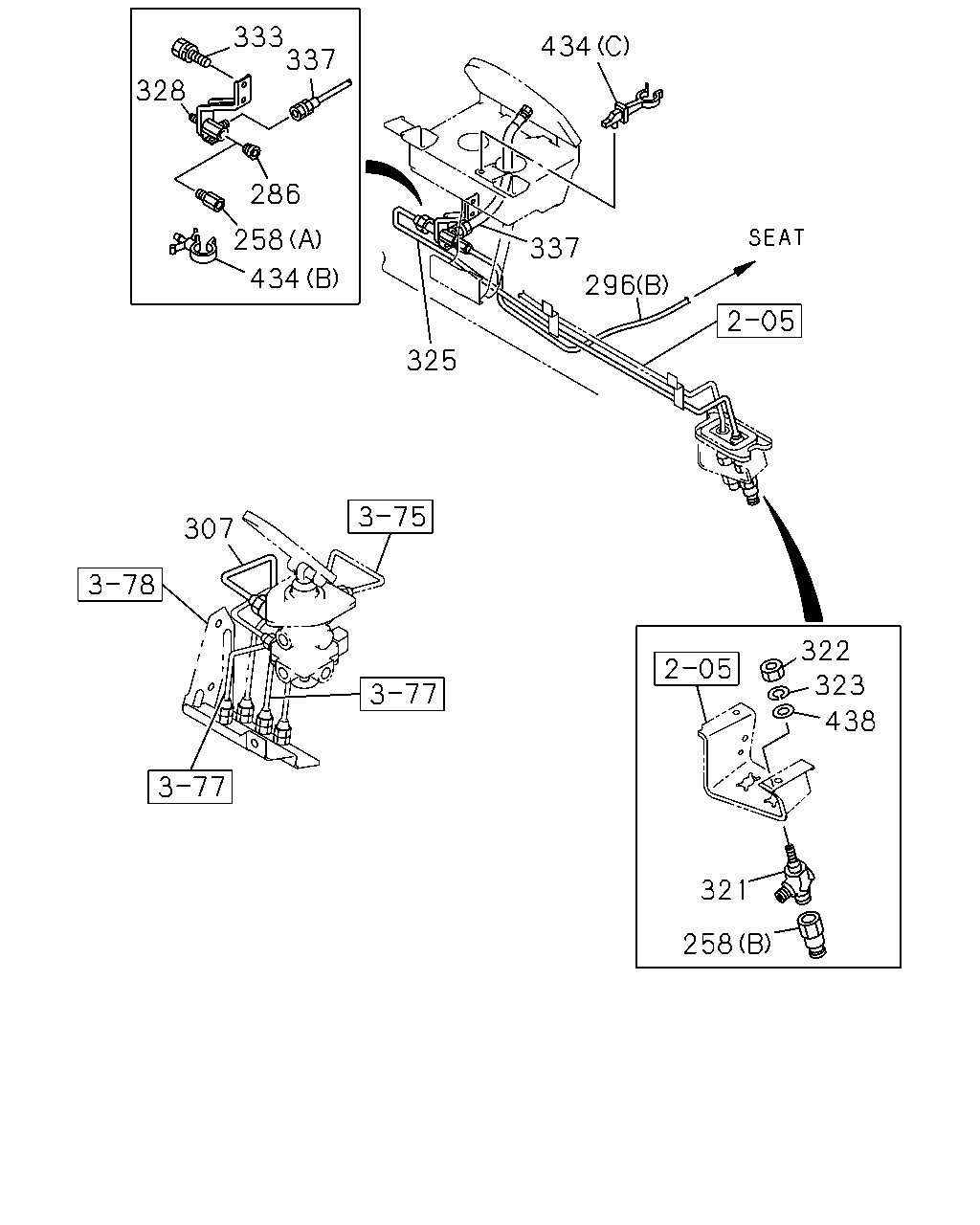

çizim 83488
333 337 434 328 286 258 337 434 296 325 307 322 323 438 321 258
BalonParca AdiParca NoAdetTipApplied Date A B
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0210- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0210-0302 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> 		9-09204-510-0 01 1 0210- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0210- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0210- ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0210- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0210- ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0210- ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0210- ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0210- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0210- ● ●
328 UNION; AIR PIPE 1-47470-362-2 01 1 0210- ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0210- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 0210- ● ●
434 CLIP
(A) L=250 		1-09707-126-0 02 1 0210- ● ●
434 CLIP
(C) ID=17 THA 		1-09987-105-1 01 1 0210- ● ●
434 CLIP
(B) THA 		8-94297-486-0 02 1 0210- ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0210- ● ●
çizim 83565
90 155 172 89 203 202 296 450 434 200 341
BalonParca AdiParca NoAdetTipApplied Date A B
89 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0210- ● ●
90 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0210- ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 01 1 0210- ● ●
172 PIPE; AIR,GOV TO UNION 1-49121-211-0 01 1 0210- ● ●
200 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0210- ● ●
202 ADAPTER
DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0210- ● ●
203 GASKET; ADAPTER,GOV
ID=11 OD=18 		9-09572-510-0 01 1 0210- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0210- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0210- ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6 		1-09366-256-1 01 1 0210- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0210- ● ●
434 CLIP
(A) L=250 		1-09707-126-0 02 1 0210- ● ●
434 CLIP
(C) ID=17 THA 		1-09987-105-1 01 1 0210- ● ●
434 CLIP
(B) THA 		8-94297-486-0 02 1 0210- ● ●
450 BRACKET; CLIP
L=100 		1-47477-645-2 02 1 0210- ● ●
