3-11 — PARKING BRAKE CONTROL
(#23929) — 42 parça
Tümü
A - FXZ5MC
B - FXZ5MF
◀
[311A] FLOOR SIDE FIXING (6 parça)

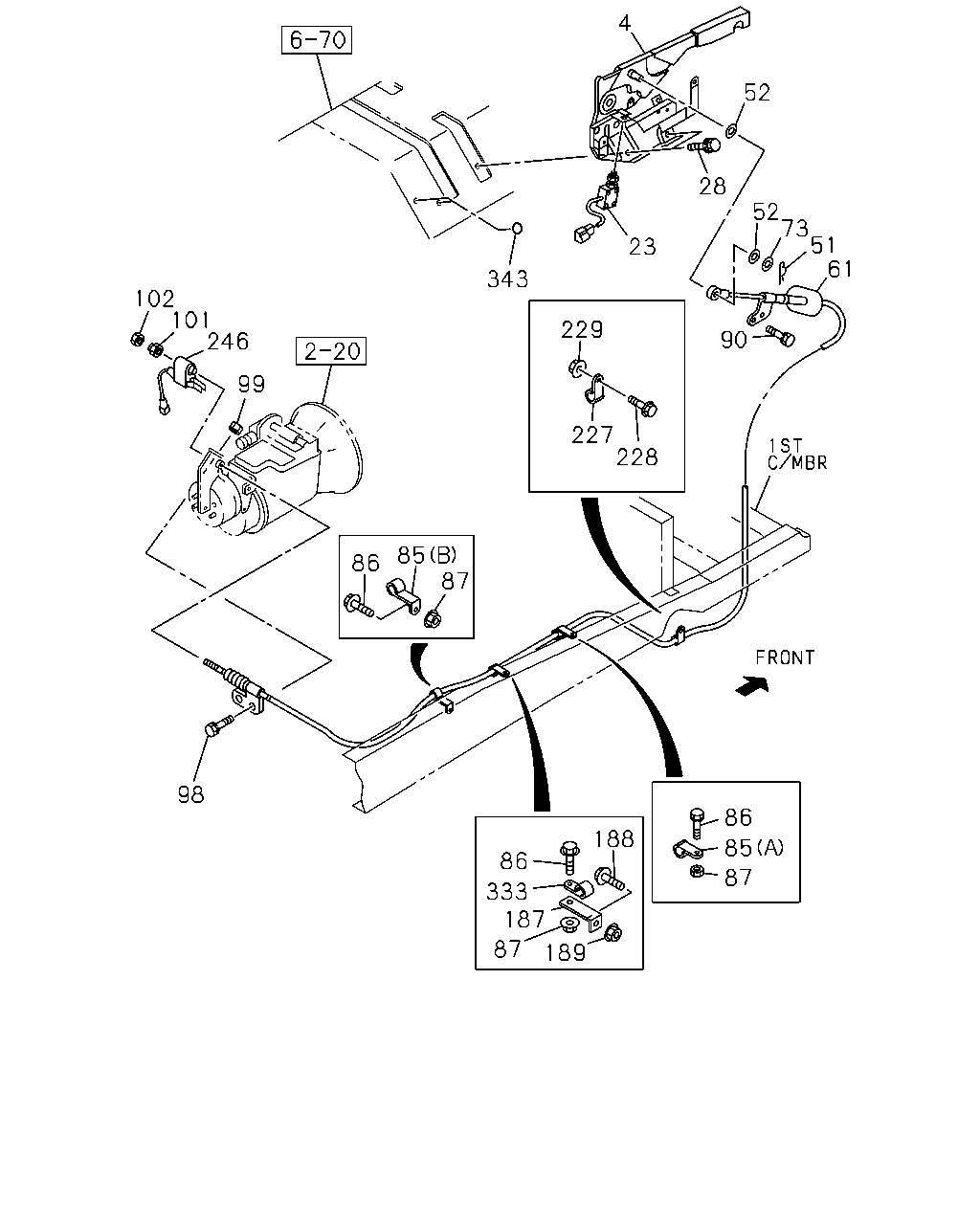

[311A] LEVER AND CABLE FIXING (36 parça)
▶
61
324
218
46
45
46
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
45
BOLT; CABLE TO FLOOR
M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0210-
●
●
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
9-09525-535-0
03
1
0210-
●
●
61
CABLE; PARKING BRK
L=5189 THA
8-97917-706-0
01
1
0210-
●
61
CABLE; PARKING BRK
L=5094 THA
8-97917-705-0
01
1
0210-
●
218
NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE
1-09985-340-0
02
1
0210-
●
●
324
BRACKET
1-79998-750-3
01
1
0210-
●
●
4
52
28
52
73
51
61
23
343
102
101
246
90
229
99
227
228
85
87
86
98
86
188
85
86
87
333
187
87
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
STEM; PARKING BRK
1-79996-568-0
01
1
0210-
●
●
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
0210-
●
●
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
0210-
●
●
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
0210-
●
●
52
WASHER; CURVED RELAY LEVER
ID=19
8-94206-429-1
02
1
0210-
●
●
61
CABLE; PARKING BRK
L=5189 THA
8-97917-706-0
01
1
0210-
●
61
CABLE; PARKING BRK
L=5094 THA
8-97917-705-0
01
1
0210-
●
73
WASHER; PL,CABLE
ID=17
9-09160-516-0
01
1
0210-
●
●
85
CLIP; BRKT
(A) ID=18 L=28
1-09701-067-0
01
1
0210-
●
●
85
CLIP; BRKT
(B) ID=16 H=25 L=25
1-09701-162-0
01
1
0210-
●
●
86
BOLT
M8X30 FLANGE
0-28650-830-0
01
1
0307-
●
●
86
BOLT
M8X16 FLANGE
0-28080-816-0
01
1
0210-
●
●
86
BOLT
M8X16 FLANGE
0-28080-816-0
01
1
0210-
●
●
86
BOLT
M8X30 FLANGE
0-28680-830-0
01
1
0210-
●
●
86
BOLT
M8X25 FLANGE
0-28680-825-0
02
1
0305-
●
●
87
NUT
M8 FLANGE
0-91150-108-0
01
1
0210-0304
●
●
87
NUT
M8 FLANGE
0-91150-108-0
01
1
0210-0304
●
●
87
NUT
M8 FLANGE
0-91150-108-0
01
1
0210-0304
●
●
87
NUT
M8 FLANGE
0-91150-108-0
01
1
0305-
●
●
87
NUT
M8 FLANGE
0-91150-108-0
03
1
0305-
●
●
90
BOLT; CABLE TO BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0210-
●
●
98
BOLT; RR COVER
M10X30 FLANGE
0-28681-030-0
02
1
0210-
●
●
99
NUT; CONT CABLE
M10 FLANGE
0-91150-210-0
02
1
0210-
●
●
101
NUT; CABLE TO LEVER
M8 FLANGE
0-91150-108-0
01
1
0210-
●
101
NUT; CABLE TO LEVER
1-46259-007-0
01
1
0210-
●
102
NUT; LK,CABLE TO LEVER
M8 FLANGE
0-91150-108-0
01
1
0210-
●
●
187
BRACKET; HAND BRK
1-47477-741-0
01
1
0210-0304
●
●
188
BOLT; BRKT SET
M8X30 FLANGE
0-28680-830-0
01
1
0210-0304
●
●
189
NUT; BRKT SET
M8 FLANGE
0-91150-108-0
01
1
0210-0304
●
●
227
CLIP; RAD
ID=13 L=20
9-09525-235-0
01
1
0210-
●
●
228
BOLT; CLIP RAD MTG
M8X16 FLANGE
0-28080-816-0
01
1
0210-
●
●
229
NUT; CLIP RAD MTG
M8 FLANGE
0-91150-108-0
01
1
0210-
●
●
246
SENSOR; BRK LOCK
1-46360-123-1
01
1
0210-
●
333
CLIP; CABLE
ID=14.5 L=20
1-09701-012-0
01
1
0210-
●
●
333
CLIP; CABLE
ID=14.5 L=40 THA
1-09701-014-0
01
1
0305-
●
●
343
SEAL
OD=25 BLACK THA
1-76798-019-0
02
1
0210-
●
●
