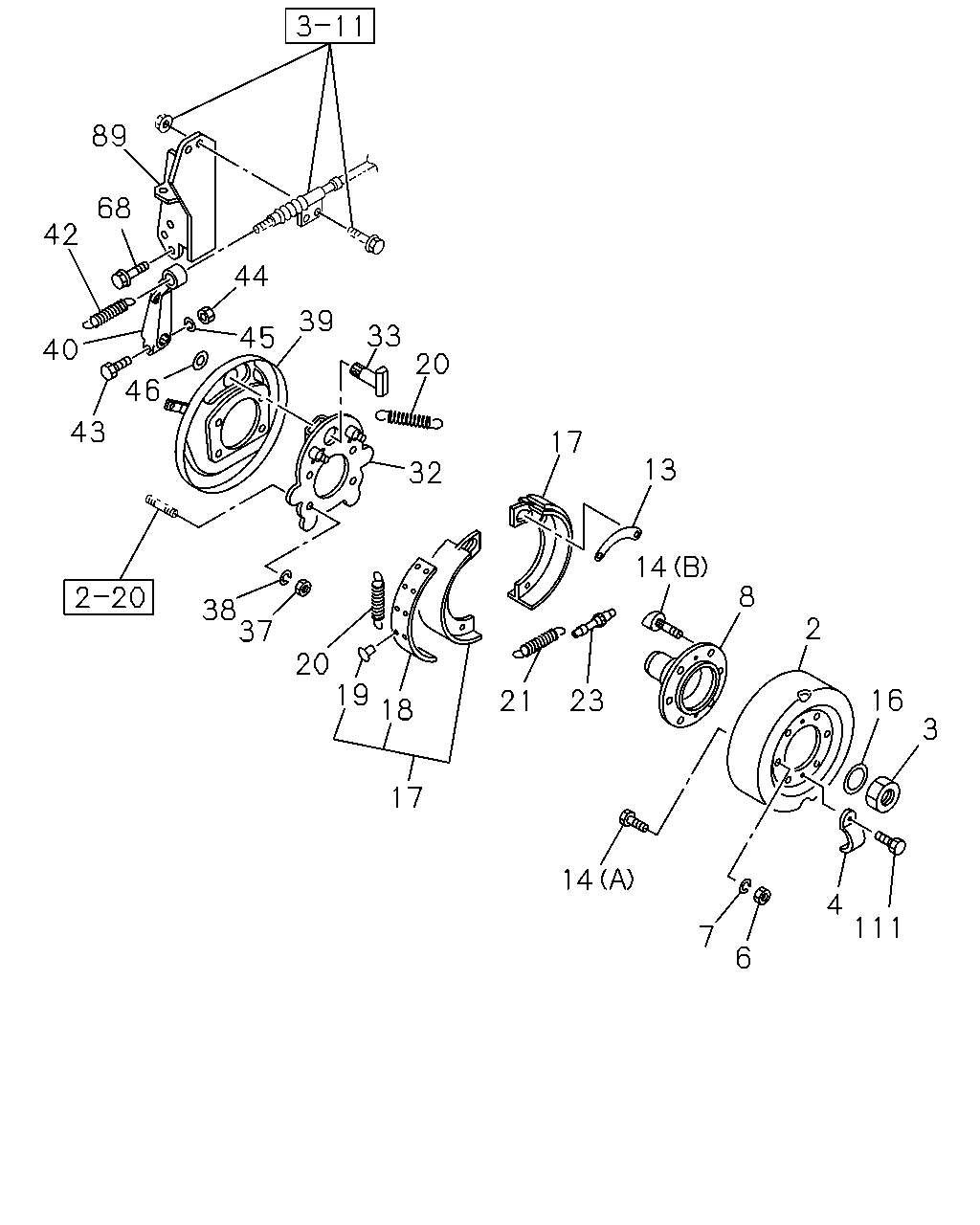

3-08A — PARKING BRAKE
(#23926) — 30 parça
89
68
42
44
39
33
45
40
20
46
43
17
13
32
14
8
38
37
2
20
19
16
23
21
18
3
17
14
4
111
7
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-026-1
01
1
0210-
3
NUT; LK
M44
1-09449-076-0
01
1
0210-
4
COVER; ADJ HOLE
1-46219-019-0
02
1
0210-
6
NUT; FLANGE
M16
9-99110-516-0
02
1
0210-
7
WASHER; LK,FLANGE
ID=16.2
9-09150-516-0
02
1
0210-
8
FLANGE; PARKING BRK
1-37243-213-0
01
1
0210-
13
BRACE; PARKING BRK
9-46239-002-0
01
1
0210-
14
BOLT; DRUM TO FLANGE
(A) M16X38
1-46219-010-0
02
1
0210-
14
BOLT; DRUM TO FLANGE
(B) M16X55
1-46219-039-0
04
1
0210-
16
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T).
9-09920-607-0
01
1
0210-
17
SHOE; PARKING BRK
1-46220-022-0
02
1
0210-
18
LINING; BRK,PARKING
1-46225-023-0
02
1
0210-
19
RIVET; LINING,PARKING BRK
1-09732-012-0
32
1
0210-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-434-0
02
1
0210-
21
SPRING; RETURN,PARKING BRK SHOE
9-09942-516-0
01
1
0210-
23
SCREW; ADJ,PARKING BRK SHOE
1-46240-003-0
01
1
0210-
32
PLATE; SUPPORT,PARKING BRK
1-46213-096-0
01
1
0210-
33
SHAFT; CAM,PARKING BRK
1-46251-006-0
01
1
0210-
37
NUT; SUPPORT PLATE
M16
9-99110-516-0
04
1
0210-
38
WASHER; LK,SUPPORT PLATE
ID=16.2
9-09150-516-0
04
1
0210-
39
COVER; DUST,PARKING BRK
1-46213-093-0
01
1
0210-
40
LEVER; CM/SHF,PARKING BRK
1-46252-013-0
01
1
0210-
42
SPRING; RETURN,LEVER
1-09583-104-0
01
1
0210-
43
BOLT; LEVER TO CM/SHF
0-10811-040-0
01
1
0210-
44
NUT; LEVER TO CM/SHF
M10
9-09111-410-0
01
1
0210-
45
WASHER; LK,LEVER TO CM/SHF
ID=10.2
9-09150-510-0
01
1
0210-
46
WASHER; LEVER
9-09855-362-0
01
1
0210-
68
BOLT; BRKT,PARKING BRK CONT
M10X22 FLANGE
0-28181-022-0
04
1
0210-
89
BRACKET; PARKING BRK CONT
1-46147-262-1
01
1
0210-
111
BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER
0-50040-820-0
02
1
0210-
