Isuzu WW
▶
TRUCKS
▶
EXR
▶
10658 - EXR RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-33B - FAN AND FAN BELT
▶

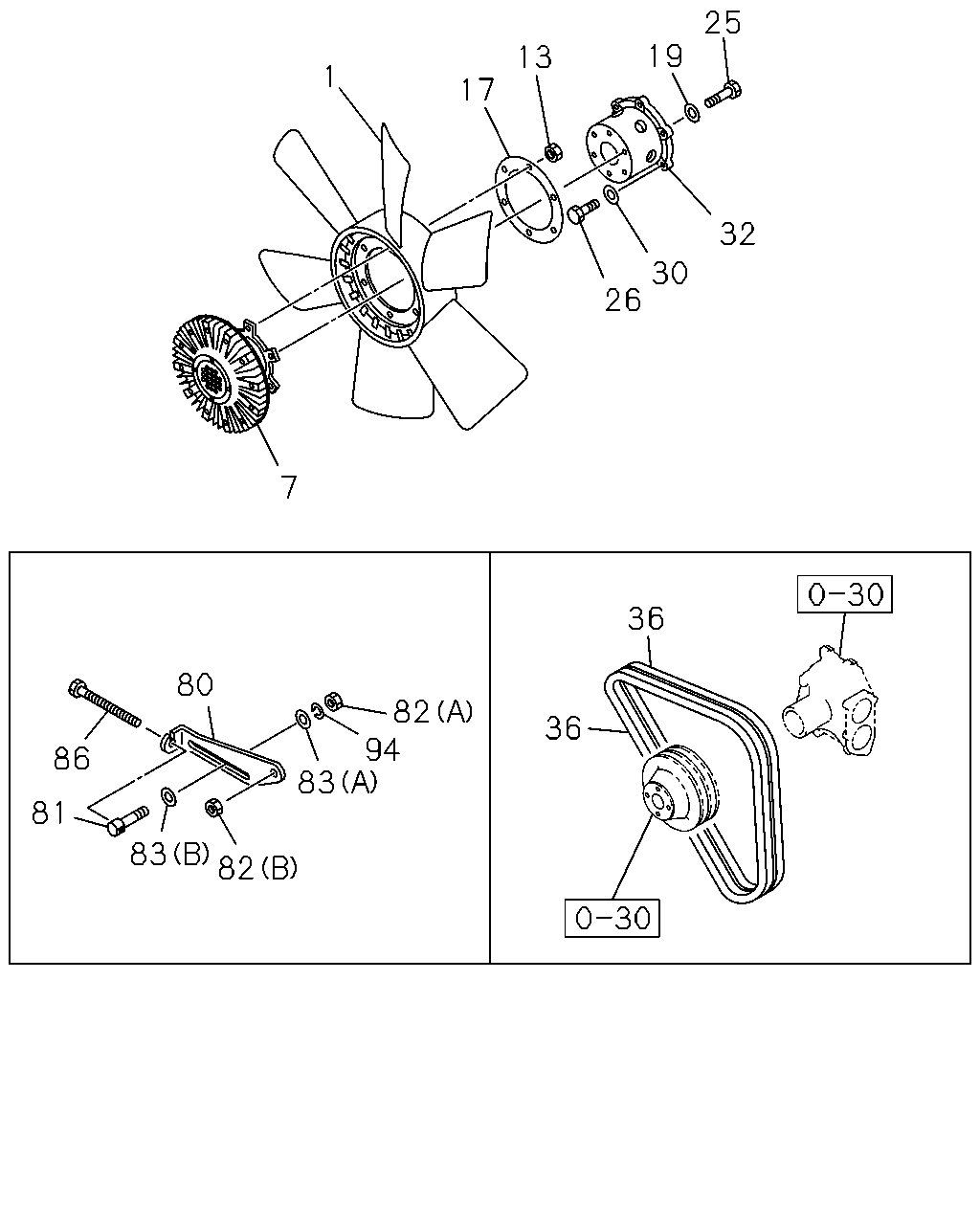

0-33B — FAN AND FAN BELT
(#2392) — 23 parça
25
19
13
1
17
32
30
26
7
36
80
82
94
36
86
83
81
83
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
1-13660-224-0
01
1
9002-
7
COUPLING; FAN
1-21650-129-0
01
1
9002-9410
7
COUPLING; FAN
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>
1-21650-129-0
01
1
9411-
7
COUPLING; FAN
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>
1-21650-124-1
01
1
9411-
13
NUT; COOLING FAN
M8 FLANGE
0-91150-108-0
06
1
9002-
17
WASHER; LK,FAN TO COUPLING
1-13669-107-0
01
1
9002-
19
WASHER; PL,FAN DRIVE
ID=10
1-09503-033-1
06
1
9002-
25
BOLT; ADAPTER
M10X110
9-09801-316-1
06
1
9002-
26
BOLT; FAN TO CLU
M10X30
0-28121-030-0
06
1
9002-9002
26
BOLT; FAN TO CLU
M10X30 FLANGE
0-28181-030-0
06
1
9003-
30
WASHER; PL,ADAPTER
ID=10
1-09503-033-1
06
1
9002-
32
ADAPTER; FAN TO PULLEY
1-13669-085-2
01
1
9002-9105
32
ADAPTER; FAN TO PULLEY
1-13669-156-0
01
1
9106-
36
BELT; COOLING FAN
1 SET=2 PIECE(1136710940) BANDO
1-13671-095-0
01
1
9002-
36
BELT; COOLING FAN
1 SET=2 PIECE(1136711470) MITSUBOSHI
1-13671-146-0
01
1
9002-
80
PLATE; ADJ
1-13674-105-0
01
1
9002-
81
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
9002-
82
NUT; ADJ PLATE
(B) M12 FLANGE
0-91150-112-0
01
1
9002-
82
NUT; ADJ PLATE
(A) M12
9-99110-412-0
01
1
9002-
83
WASHER; PL
(A) ID=12.5
9-09160-512-0
01
1
9002-
83
WASHER; PL
(B) ID=12.5 OD=32
9-09160-712-0
01
1
9002-
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
9002-
94
WASHER; LK,ADJ PLATE
ID=12.2
9-09150-512-0
01
1
9002-
