6-05 — FRONT PANEL (#23906) — 141 parça

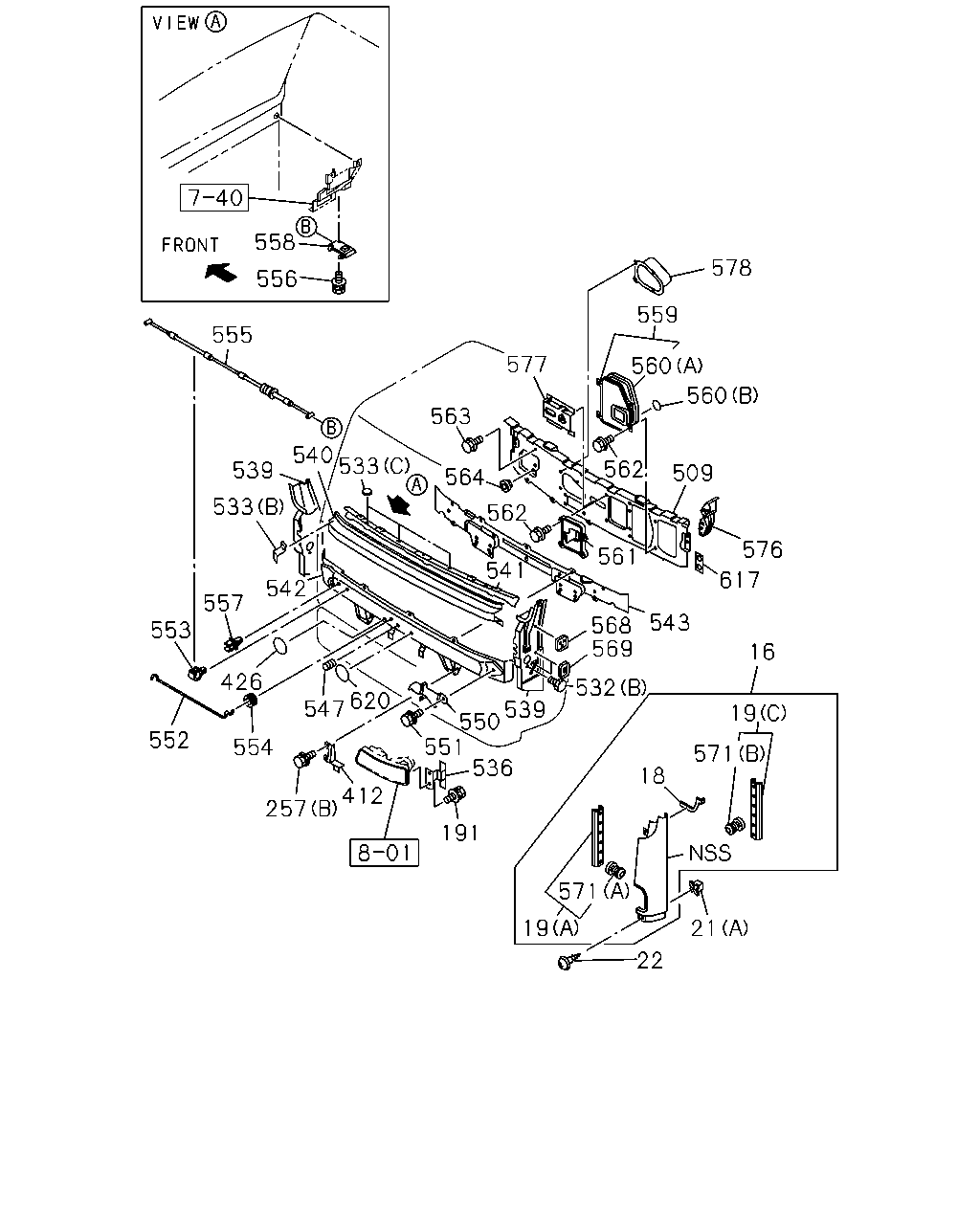

çizim 104880
558 578 556 559 555 577 560 560 563 540 533 562 539 509 564 533 562 561 541 576 617 542 557 543 568 569 553 16 426 532 620 547 539 550 551 19 552 554 571 536 18 412 257 191 571 19 21 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-3 01 1 0311-
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 0311-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0311-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0311-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0311-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0311-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0311-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0311-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0311-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0311-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 02 1 0311-
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0311-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING IDN 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0311-0708
191 BOLT; HINGE
M6X16 FLANGE 		0-28650-616-0 04 1 0709-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0311-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0311-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0311-
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0311-
426 GASKET
OD=25 BLACK 		1-76798-019-0 04 1 0311-
509 PANEL; DASH 1-62280-213-2 01 1 0311-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0311-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0311-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0311-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0311-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK IDN 		5-76777-035-0 13 1 0311-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0311-
536 HINGE 1-86830-003-5 01 1 0311-
536 HINGE 1-86830-004-5 01 1 0311-
539 CLOSING; PILLAR 1-61480-673-6 01 1 0311-
539 CLOSING; PILLAR 1-61480-674-6 01 1 0311-
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 0311-
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 0311-
542 RAIL; FRT MOUNTING 1-61480-773-9 01 1 0311-
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 0311-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0311-
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 0311-
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 0311-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0311-
552 STAY; FRT LID 1-71996-310-0 01 1 0311-0706
552 STAY; FRT LID 1-71996-352-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 0311-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0311-
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 0311-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0311-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0311-
558 LEVER; FRT LID 1-79338-007-0 01 1 0311-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0311-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0311-
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK IDN 		5-76777-035-0 03 1 0311-
561 COVER; HEATER CORE 1-71998-829-1 01 1 0311-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0311-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0311-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0311-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0311-
568 PATCH; INST REINF 1-61480-675-2 02 1 0311-
569 PATCH; LWR GRIP 1-61480-689-2 01 1 0311-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0311-
571 CLIP; SEAL
(A) 		1-09987-228-0 12 1 0311-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0311-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0311-
576 FRAME; INST SIDE 1-62280-176-6 01 1 0311-
576 FRAME; INST SIDE 1-62280-177-7 01 1 0311-
577 BRACKET; IDLER 1-62280-195-0 01 1 0311-
578 COVER; WIPER MOTOR
IDN 		1-62280-173-4 01 1 0311-
617 SEAL; DASH 1-61281-497-1 02 1 0311-
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 02 1 0311-

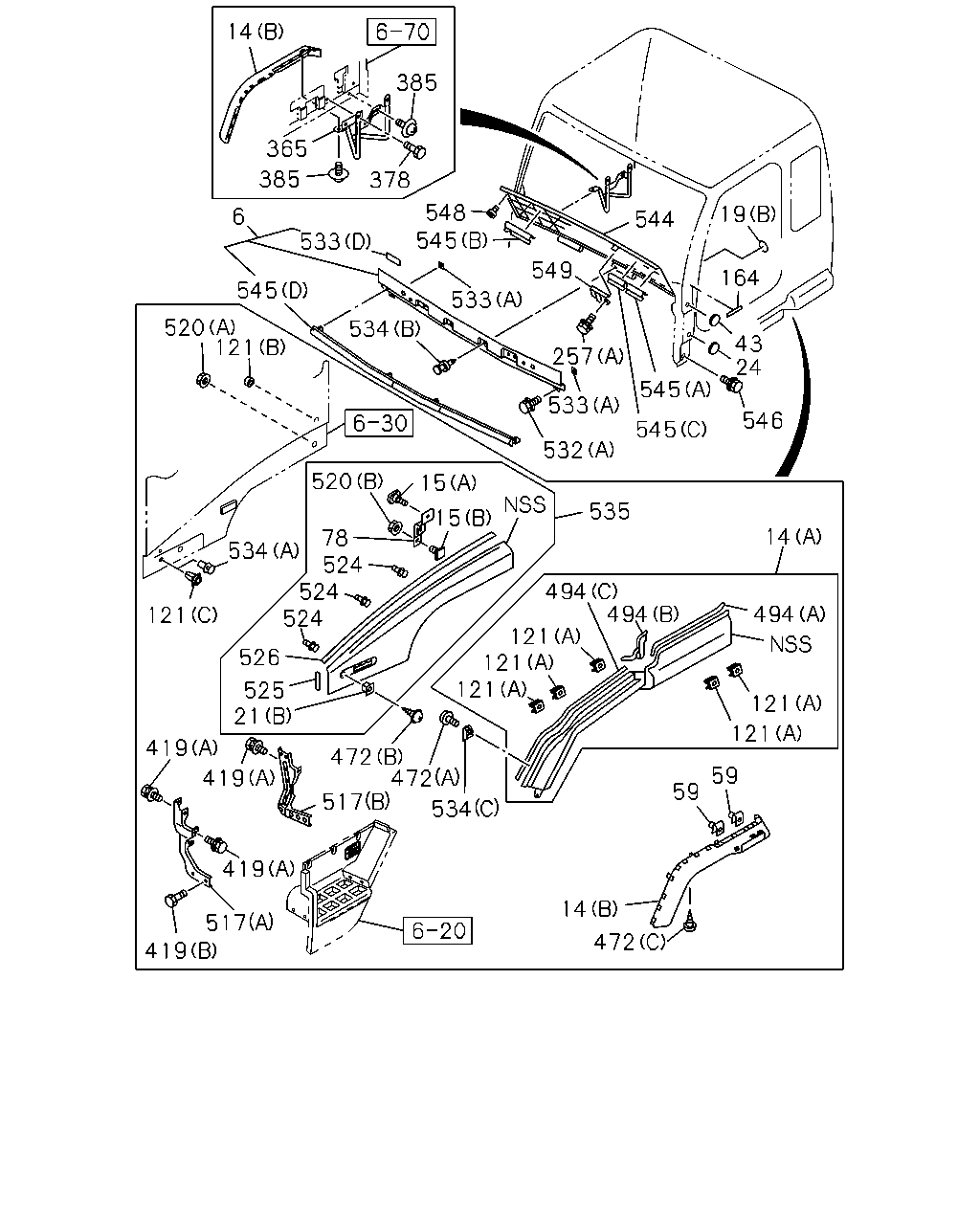

çizim 104995
14 385 365 385 378 548 545 19 6 544 533 549 164 545 533 520 121 534 43 24 257 545 533 546 545 532 520 15 535 15 14 78 524 524 524 534 494 494 494 121 121 121 121 526 525 21 121 121 419 472 472 517 59 419 59 534 419 14 517 419 472
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-744-2 01 1 0311-
14 FENDER; FRT
(A) WHITE 		1-65482-044-1 01 1 0311-
14 FENDER; FRT
(A) WHITE 		1-65482-045-1 01 1 0311-
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 0311-
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 0311-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0311-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0311-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0311-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0311-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0311-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0311-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0311-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0311-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 02 1 0311-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 08 1 0311-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0311-
59 GROMMET; SCREW 8-94279-723-0 02 1 0311-
78 BRACKET; FENDER 1-71268-322-0 01 1 0311-
78 BRACKET; FENDER 1-71268-323-0 01 1 0311-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 0311-1009
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL IDN 		8-94279-043-0 12 1 0311-
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0311-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0311-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0311-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0311-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
365 SUPPORT; FENDER 1-71996-147-1 01 1 0311-
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0311-
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 0311-
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0311-0904
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0311-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 0311-
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 0311-
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 0311-
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING IDN 		8-94279-123-0 02 1 0311-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0311-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0311-
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 0311-0610
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611-
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0311-
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0311-
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0311-
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 0311-
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 0311-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0311-
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0311-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0311-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0311-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER 1-71268-275-1 02 1 0311-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0311-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0311-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0311-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0311-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK IDN 		5-76777-035-0 13 1 0311-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0311-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0311-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(C) 		1-71996-035-1 24 1 0311-0609
534 FASTENER
(C) 		1-71996-035-1 26 1 0610-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0311-
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0311-
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0311-
544 LID; FRT
WHITE 		1-71108-118-1 01 1 0311-
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0311-
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0311-
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0311-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0311-
546 PLUG; DUMMY HOLE
OD=16 L=11 IDN 		1-76378-155-0 02 1 0311-
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 0311-
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0311-
