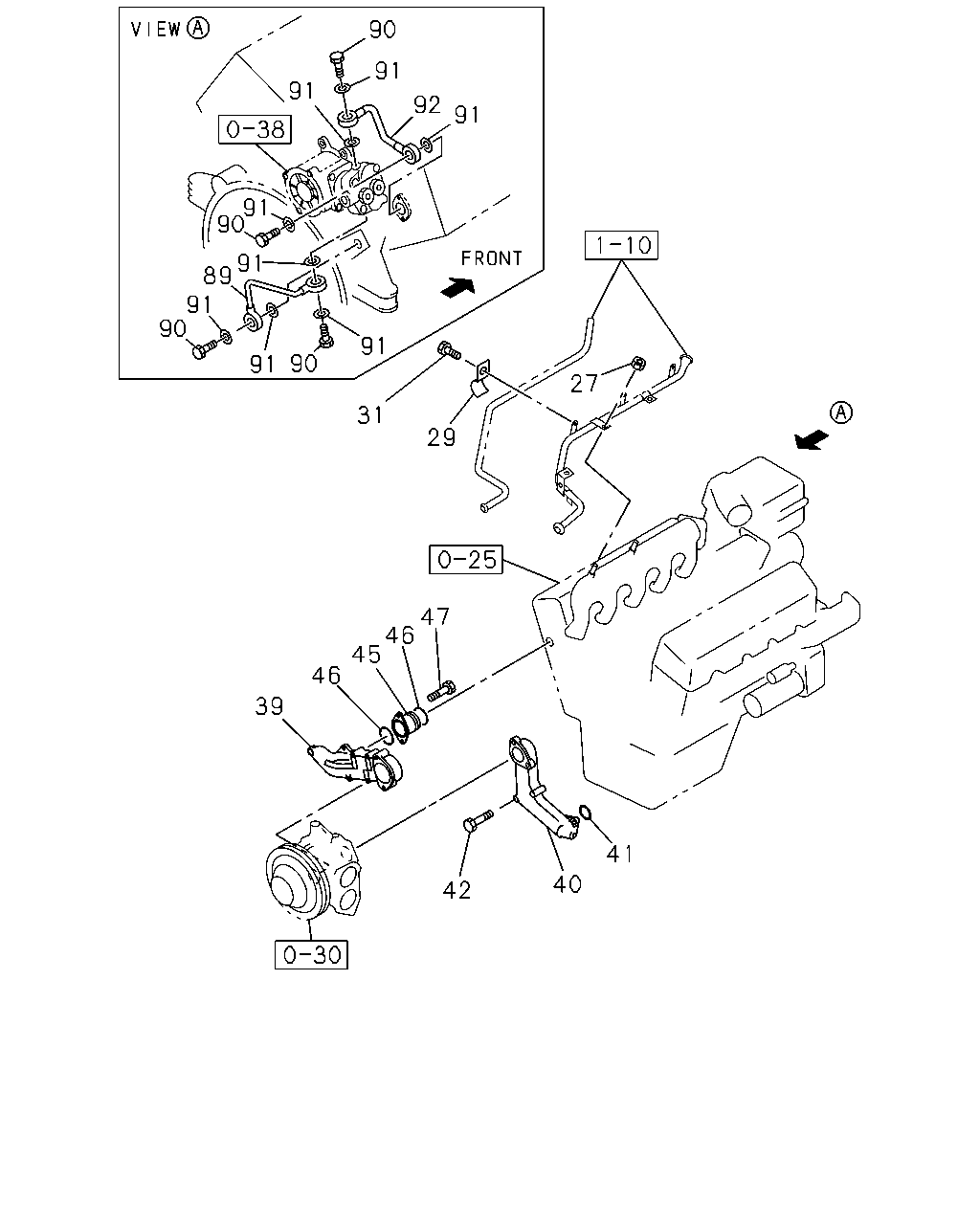

0-32B — WATER PIPING; ENGINE
(#2390) — 24 parça
90
91
91
92
91
91
90
91
89
91
90
91
90
91
27
31
29
47
46
45
46
39
41
40
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
NUT; PIPE FIX
M8 FLANGE
0-91150-108-0
02
1
9002-
29
CLIP; PIPE
ID=9.7 L=20
1-09700-878-1
04
1
9002-
31
BOLT; CLIP
M6X12
0-28020-612-0
04
1
9002-9005
31
BOLT; CLIP
M6X12 FLANGE
0-28080-612-0
04
1
9006-
39
DUCT ASM; WATER,PUMP OUT
1-13711-544-1
01
1
9002-
40
DUCT; WATER
1-13711-382-2
01
1
9002-
41
GASKET; WATER DUCT,PUMP OUT
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-425-0
01
1
9002-
42
BOLT; DUCT,PUMP OUT
M10X30
0-28121-030-0
04
1
9002-9002
42
BOLT; DUCT,PUMP OUT
M10X30 FLANGE
0-28181-030-0
04
1
9003-
45
DUCT; WATER,TO OIL COOLER
1-13711-334-1
01
1
9002-
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-425-0
02
1
9002-
47
BOLT; DUCT,TO OIL COOLER
M10X25
0-28021-025-0
02
1
9002-9002
47
BOLT; DUCT,TO OIL COOLER
M10X25 FLANGE
0-28081-025-0
02
1
9003-
89
PIPE; WATER,AIR CMPR,IN
1-13721-379-0
01
1
9002-9306
89
PIPE; WATER,AIR CMPR,IN
AUTO ENG SHUTOFF(KB6)
1-13721-223-0
01
1
9307-9307
89
PIPE; WATER,AIR CMPR,IN
EXC. AUTO ENG SHUTOFF(KB6)
1-13721-379-0
01
1
9307-9307
89
PIPE; WATER,AIR CMPR,IN
1-13721-379-0
01
1
9308-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
04
1
9002-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
9002-9306
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
9307-
92
PIPE; WATER,AIR CMPR,OUT
1-13721-376-0
01
1
9002-9306
92
PIPE; WATER,AIR CMPR,OUT
AUTO ENG SHUTOFF(KB6)
1-13721-345-0
01
1
9307-9307
92
PIPE; WATER,AIR CMPR,OUT
EXC. AUTO ENG SHUTOFF(KB6)
1-13721-376-0
01
1
9307-9307
92
PIPE; WATER,AIR CMPR,OUT
1-13721-376-0
01
1
9308-
