Isuzu WW
▶
TRUCKS
▶
FVM
▶
10937 - FVM(INDONESIA)WB6300
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

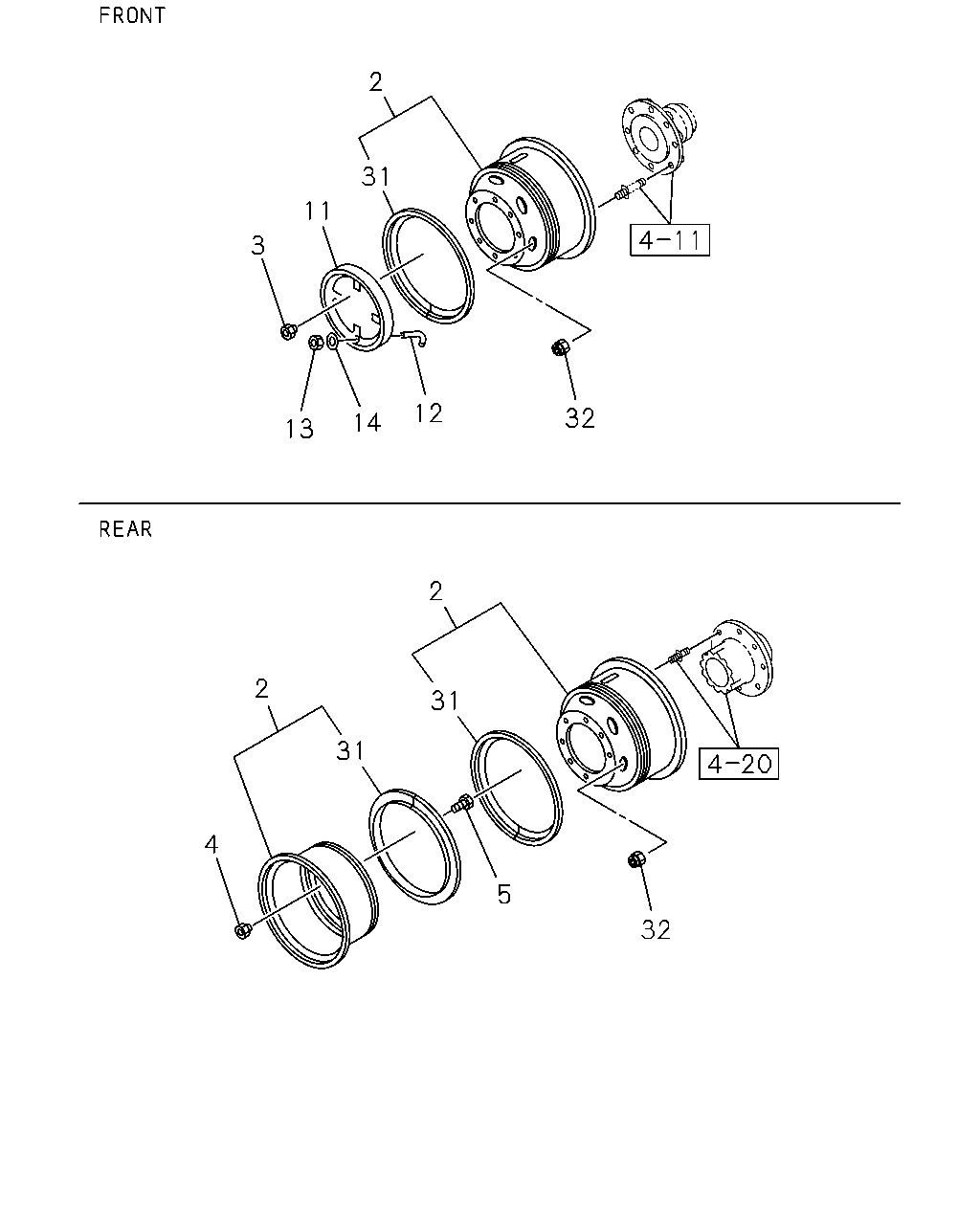

4-80 — ROAD WHEEL
(#23898) — 24 parça
2
31
11
3
12
32
14
13
2
2
31
31
4
5
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR(R46) SPARE IDN
8-97520-099-0
01
1
0311-
2
WHEEL; DISC
FRONT IDN
8-97520-099-0
02
1
0311-
2
WHEEL; DISC
REAR IDN
8-97520-099-0
08
1
0311-
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
08
1
0311-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
08
1
0311-
4
NUT; WHEEL,RR AXLE
M30
1-42333-023-0
16
1
0311-0610
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
16
1
0611-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
1-42334-023-0
16
1
0311-0610
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
16
1
0611-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
1-42335-005-1
16
1
0311-0610
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD IDN
8-97359-805-0
16
1
0611-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
1-42336-005-1
16
1
0311-0610
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD IDN
8-97359-806-0
16
1
0611-
11
STEP; DISC WHEEL SIDE
1-43139-028-0
02
1
0311-
12
U-BOLT; STEP DISC
L=44
9-43139-023-1
06
1
0311-
13
NUT; STEP DISC
M10
9-09110-510-0
06
1
0311-0512
13
NUT; STEP DISC
M10
0-91110-510-0
06
1
0601-
14
WASHER; LK,STEP DISC
ID=10.2
9-09150-510-0
06
1
0311-0603
14
WASHER; LK,STEP DISC
ID=10.2
0-91510-510-0
06
1
0604-
31
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR(R46) SPARE IDN
8-97520-156-0
01
1
0311-
31
RING; SIDE,DISC WHEEL
FRONT IDN
8-97520-156-0
02
1
0311-
31
RING; SIDE,DISC WHEEL
REAR IDN
8-97520-156-0
08
1
0311-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL REAR(R46) IDN
8-97520-205-0
11
1
0311-
32
CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL REAR(R46) IDN
8-97520-205-0
10
1
0311-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
