◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10937 - FVM(INDONESIA)WB6300 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#23897) — 27 parça

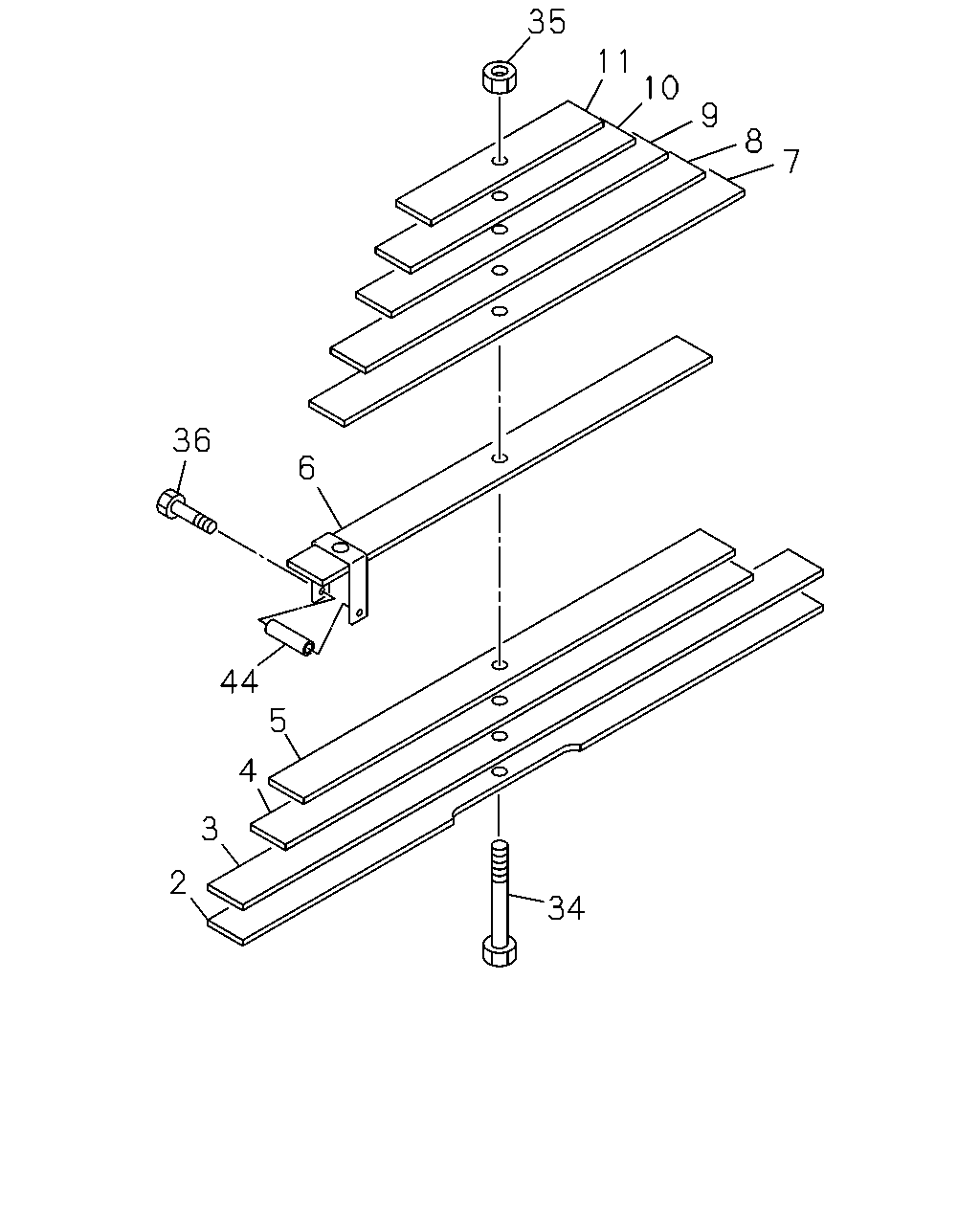

çizim 85851
35 11 10 9 8 7 36 6 44 5 4 3 2 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
PT.INDOSPRING, IDN ASM PART: B = 8-97520-181-0 		8-97520-419-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-039-0 		8-97520-553-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
PT.INDOSPRING, IDN ASM PART: B = 8-97520-181-0 		8-97520-420-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-039-0 		8-97520-554-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
PT.INDOSPRING, IDN ASM PART: B = 8-97520-181-0 		8-97520-421-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-039-0 		8-97520-555-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
PT.INDOSPRING, IDN ASM PART: B = 8-97520-181-0 		8-97520-422-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-039-0 		8-97520-556-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
PT.INDOSPRING, IDN ASM PART: B = 8-97520-181-0 		8-97520-423-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-039-0 		8-97520-557-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
PT.INDOSPRING, IDN ASM PART: B = 8-97520-181-0 		8-97520-424-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-039-0 		8-97520-558-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
PT.INDOSPRING, IDN ASM PART: B = 8-97520-181-0 		8-97520-425-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-039-0 		8-97520-559-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
PT.INDOSPRING, IDN ASM PART: B = 8-97520-181-0 		8-97520-426-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-039-0 		8-97520-560-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
PT.INDOSPRING, IDN ASM PART: B = 8-97520-181-0 		8-97520-427-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-039-0 		8-97520-561-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
PT.INDOSPRING, IDN ASM PART: B = 8-97520-181-0 		8-97520-428-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-039-0 		8-97520-562-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
PT.MUARATEWE SPRING, L=200 ASM PART: A = 8-97520-039-0 		1-51356-270-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
PT.INDOSPRING, L=200 ASM PART: B = 8-97520-181-0 		8-97520-433-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
PT.MUARATEWE SPRING, M16 ASM PART: A = 8-97520-039-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
PT.INDOSPRING, M16 ASM PART: B = 8-97520-181-0 		8-97520-386-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
PT.MUARATEWE SPRING ASM PART: A = 8-97520-039-0 		1-09000-326-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
PT.INDOSPRING, IDN ASM PART: B = 8-97520-181-0 		8-97520-430-0 01 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
PT.INDOSPRING, IDN ASM PART: B = 8-97520-181-0 		8-97520-429-0 01 1 -
