4-55 — FRONT LEAF SPRING (#23895) — 33 parça

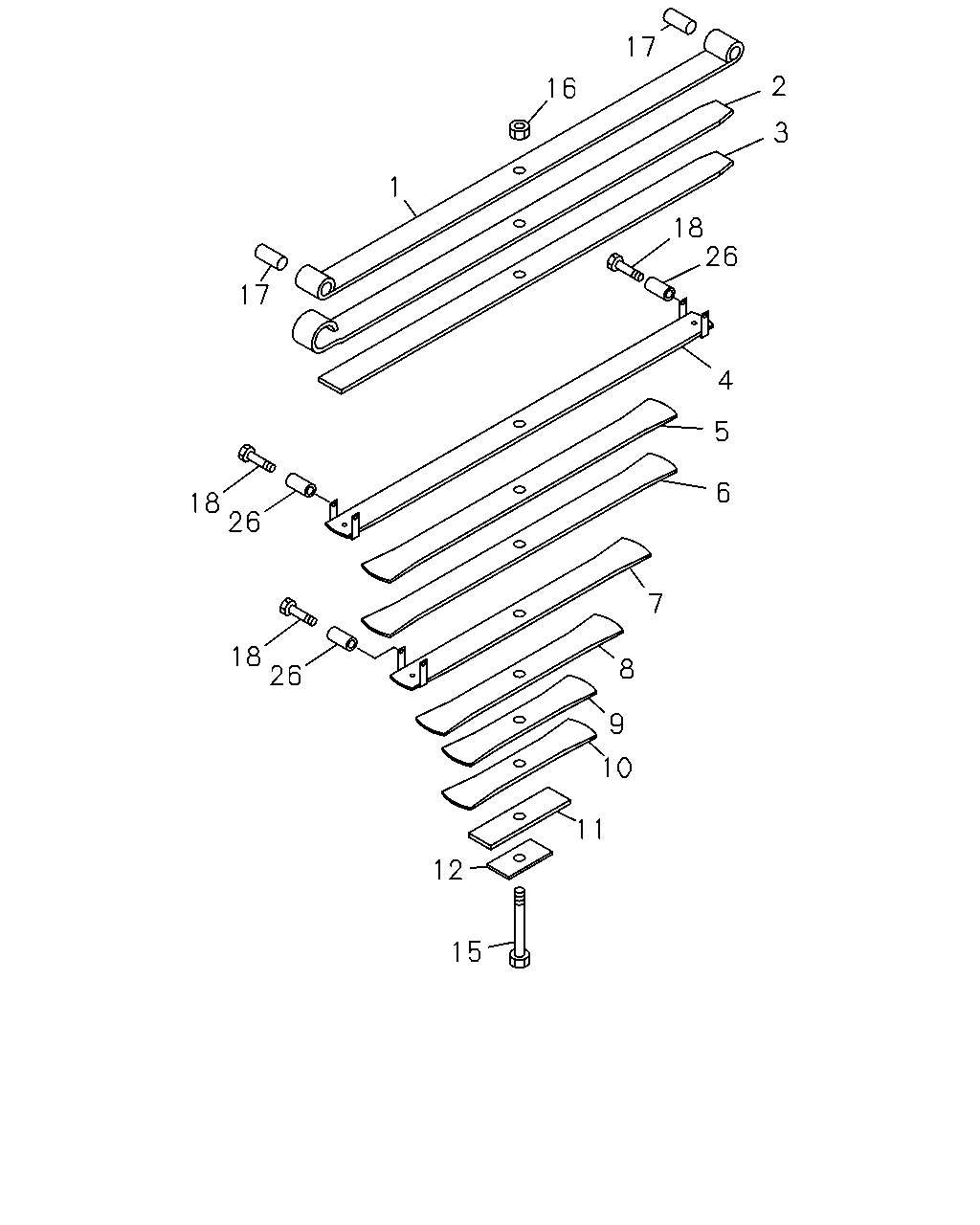

çizim 85902
17 2 16 3 1 18 26 17 4 5 6 18 26 7 18 26 8 9 10 11 12 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-372-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-026-0 		8-97520-518-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-373-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-026-0 		8-97520-519-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-374-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-026-0 		8-97520-520-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-375-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-026-0 		8-97520-521-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-376-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-026-0 		8-97520-522-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-377-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-026-0 		8-97520-523-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-378-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-026-0 		8-97520-524-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-379-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-026-0 		8-97520-525-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-380-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-026-0 		8-97520-526-0 01 1 -
10 SPRING; LEAF,NO 10,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-381-0 01 1 -
10 SPRING; LEAF,NO 10,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-026-0 		8-97520-527-0 01 1 -
11 SPRING; LEAF,NO 11,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-382-0 01 1 -
11 SPRING; LEAF,NO 11,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-026-0 		8-97520-528-0 01 1 -
12 SPRING; LEAF,NO 12,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-383-0 01 1 -
12 SPRING; LEAF,NO 12,FRT
PT.MUARATEWE SPRING, IDN ASM PART: A = 8-97520-026-0 		8-97520-529-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
PT.MUARATEWE SPRING, L=160 ASM PART: A = 8-97520-026-0 		1-51156-296-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
PT.INDOSPRING, L=155 ASM PART: B = 8-97520-263-0 		8-97520-393-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
PT.MUARATEWE SPRING, M16 ASM PART: A = 8-97520-026-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
PT.INDOSPRING, M16 ASM PART: B = 8-97520-263-0 		8-97520-386-0 01 1 -
17 BUSHING; LEAF SPR,FRT
PT.MUARATEWE SPRING, OD=38 ASM PART: A = 8-97520-026-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-384-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
PT.MUARATEWE SPRING, M10X99 ASM PART: A = 8-97520-026-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-397-0 03 1 -
26 PIPE; CLIP,LEAF SPR,FRT
PT.INDOSPRING, IDN ASM PART: B = 8-97520-263-0 		8-97520-391-0 03 1 -
