3-55 — BRAKE PIPING; OIL,REAR (#23876) — 52 parça

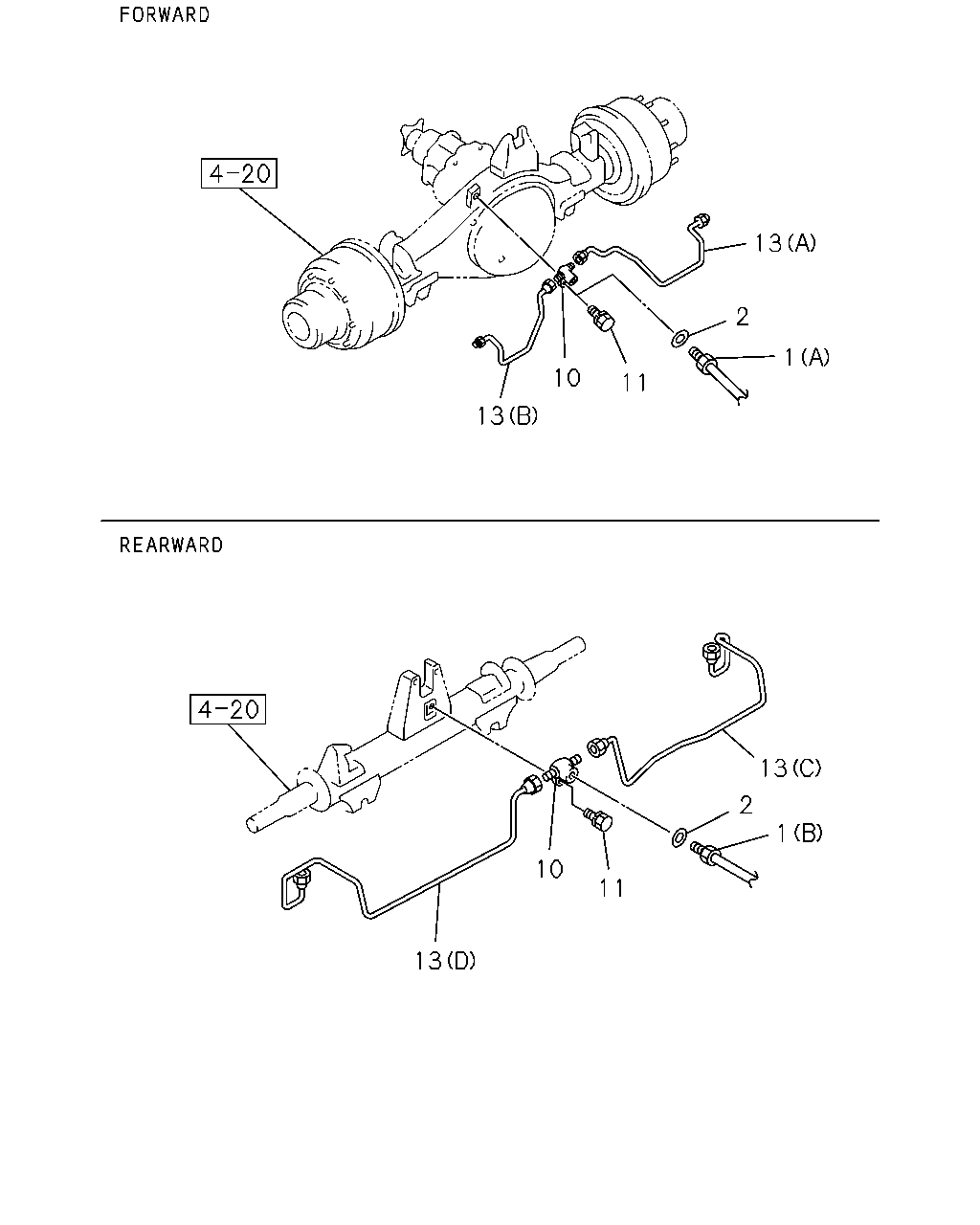

13 2 1 10 11 13 13 2 1 10 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK (A) L=450	1-09364-188-0	01	1	0311-
1	HOSE; FLEX,RR BRK (B) L=675	1-09364-201-0	01	1	0311-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0311-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0311-
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0311-
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0311-
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0311-0512
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0311-0512
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50541-025-0	01	1	0601-
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50541-025-0	01	1	0601-
13	PIPE; BRK,RR AXLE (A) FORWARD	1-47427-895-0	01	1	0311-
13	PIPE; BRK,RR AXLE (B) FORWARD	1-47427-896-0	01	1	0311-
13	PIPE; BRK,RR AXLE (C) REARWARD	1-47429-813-0	01	1	0311-
13	PIPE; BRK,RR AXLE (D) REARWARD	1-47429-814-0	01	1	0311-

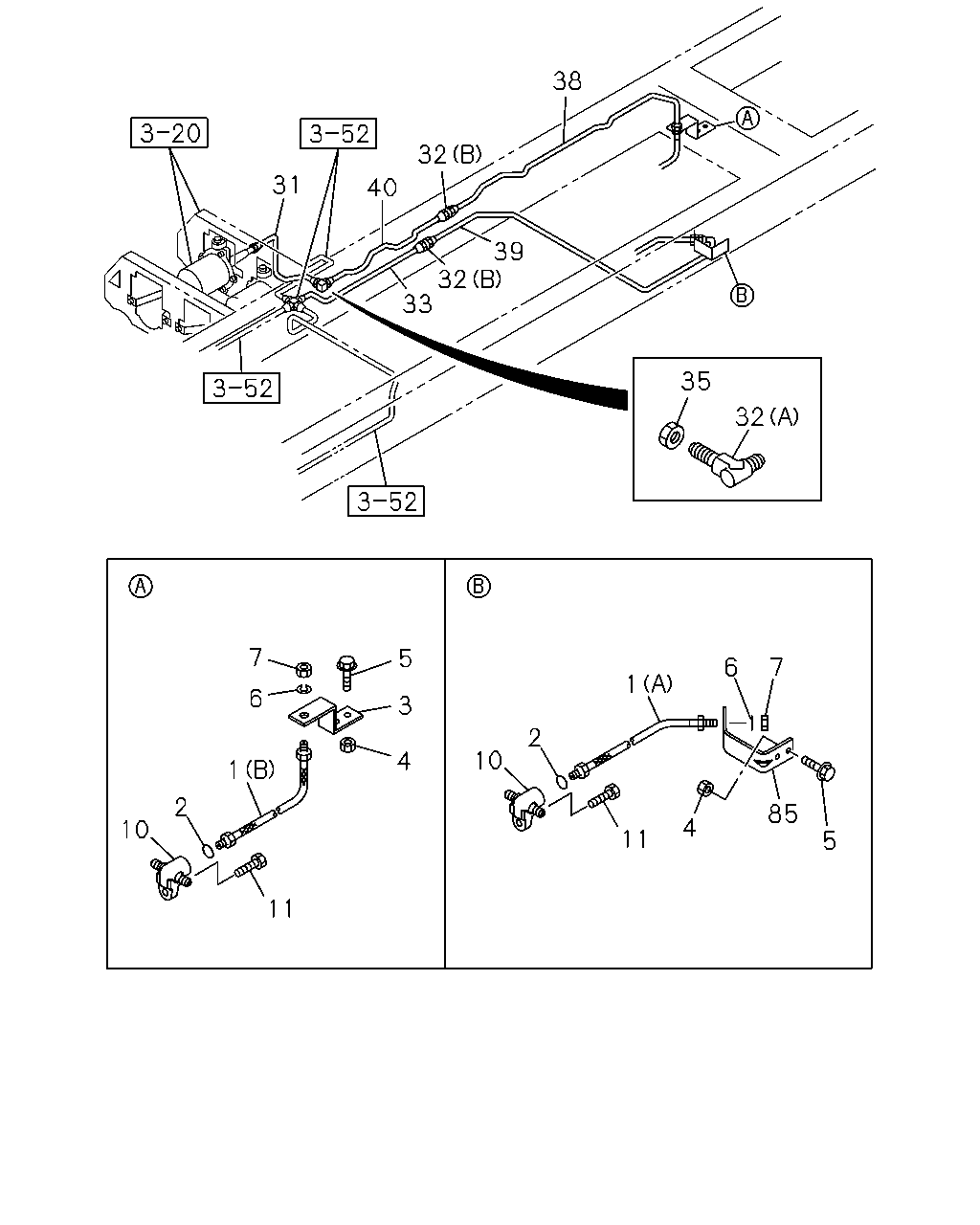

38 32 31 40 39 32 33 35 32 7 5 6 7 1 6 3 2 10 4 1 2 85 4 10 11 5 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK (A) L=450	1-09364-188-0	01	1	0311-
1	HOSE; FLEX,RR BRK (B) L=675	1-09364-201-0	01	1	0311-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0311-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0311-
3	BRACKET; FLEX HOSE,RR BRK	1-47465-608-0	01	1	0311-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0311-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0311-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0603-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0603-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28680-830-0	02	1	0311-0512
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28680-830-0	02	1	0311-0512
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0601-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0601-
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0311-0603
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0311-0603
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0311-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0311-
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0311-
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0311-
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0311-0512
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0311-0512
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50541-025-0	01	1	0601-
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50541-025-0	01	1	0601-
31	PIPE; OIL,AIR MASTER TO UNION L=574	1-49161-389-0	01	1	0311-
32	UNION; OIL PIPE (A) M12 ELBOW	9-09225-206-1	01	1	0311-0607
32	UNION; OIL PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0608-
32	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	01	1	0311-0607
32	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	01	1	0311-0607
32	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0608-
32	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0608-
33	PIPE; OIL,UNION TO UNION L=1358 SERVICED BY L=1370	1-47426-354-0	01	1	0311-
35	NUT; UNION M12	9-09840-280-0	01	1	0311-
38	PIPE; OIL,UNION TO FLEX HOSE	1-47428-943-0	01	1	0311-
39	PIPE; OIL,UNION TO RR FLEX HOSE L=2314 SERVICED BY L=2350	1-47426-361-0	01	1	0311-
40	PIPE; BRK,UNION TO UNION	1-49166-686-0	01	1	0311-
85	BRACKET; FLEX HOSE,FWD RR	1-47475-357-2	01	1	0311-
