Isuzu WW
▶
TRUCKS
▶
FVM
▶
10937 - FVM(INDONESIA)WB6300
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#23870) — 44 parça
◀
[311A] FLOOR SIDE FIXING (6 parça)

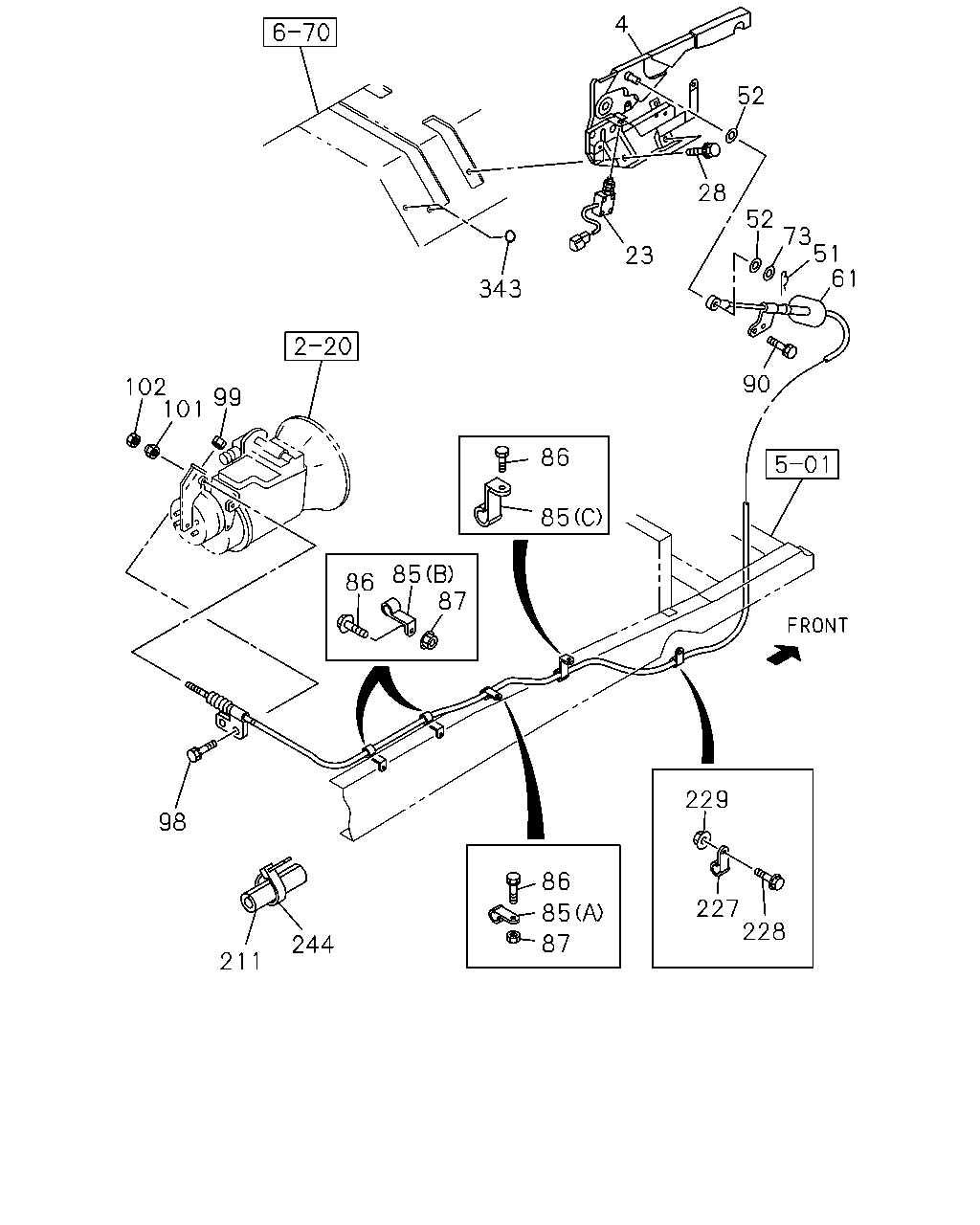

[311A] STEM AND CABLE (38 parça)
▶
61
324
218
46
45
46
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
BOLT; CABLE TO FLOOR
M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0311-
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
9-09525-535-0
03
1
0311-0606
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
0-95235-535-0
03
1
0607-
61
CABLE; PARKING BRK
L=4594
1-79996-248-6
01
1
0311-
218
NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE
1-09985-340-0
02
1
0311-
324
BRACKET
1-79998-750-3
01
1
0311-
4
52
28
52
73
51
61
23
343
90
102
101
99
86
85
85
87
86
229
98
86
227
228
85
87
244
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
1-79996-568-0
01
1
0311-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
0311-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
0311-0904
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
0905-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
0311-
52
WASHER; CURVED RELAY LEVER
ID=19
8-94206-429-1
02
1
0311-
61
CABLE; PARKING BRK
L=4594
1-79996-248-6
01
1
0311-
73
WASHER; PL,CABLE
ID=17
9-09160-516-0
01
1
0311-0605
73
WASHER; PL,CABLE
ID=17 OD=30
0-91610-516-0
01
1
0606-
85
CLIP; BRKT
(B) ID=13 H=40 L=25
1-09700-620-0
01
1
0311-
85
CLIP; BRKT
(B) ID=13 H=18 L=20 IDN
1-09700-813-0
01
1
0311-
85
CLIP; BRKT
(C) ID=16 H=30 L=30
1-09701-080-0
01
1
0311-
85
CLIP; BRKT
(A) ID=13 L=20
9-09525-235-0
01
1
0311-0606
85
CLIP; BRKT
(A) ID=13 L=20
0-95235-235-0
01
1
0607-
86
BOLT
M8X16 FLANGE
0-28080-816-0
01
1
0311-0512
86
BOLT
M8X16 FLANGE
0-28050-816-0
01
1
0601-
86
BOLT
M8X30 FLANGE
0-28680-830-0
03
1
0311-0512
86
BOLT
M8X30 FLANGE
0-28650-830-0
03
1
0601-
87
NUT
M8 FLANGE
0-91150-108-0
03
1
0311-0602
87
NUT
M8 FLANGE
0-91180-108-0
03
1
0603-
90
BOLT; CABLE TO BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0311-0904
90
BOLT; CABLE TO BRKT
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
98
BOLT; RR COVER
M10X30 FLANGE
0-28681-030-0
02
1
0311-0512
98
BOLT; RR COVER
M10X30 FLANGE
0-28651-030-0
02
1
0601-
99
NUT; CONT CABLE
M10 FLANGE
0-91150-210-0
02
1
0311-0602
99
NUT; CONT CABLE
M10 FLANGE
0-91180-210-0
02
1
0603-
101
NUT; CABLE TO LEVER
1-46259-007-0
01
1
0311-
102
NUT; LK,CABLE TO LEVER
M8 FLANGE
0-91150-108-0
01
1
0311-0602
102
NUT; LK,CABLE TO LEVER
M8 FLANGE
0-91180-108-0
01
1
0603-
211
SLEEVE; RUBBER
L=150 SERVICED BY L=1300
1-09360-677-1
01
1
0311-
227
CLIP; RAD
ID=13 L=20
9-09525-235-0
01
1
0311-0606
227
CLIP; RAD
ID=13 L=20
0-95235-235-0
01
1
0607-
228
BOLT; CLIP RAD MTG
M8X16 FLANGE
0-28080-816-0
01
1
0311-0512
228
BOLT; CLIP RAD MTG
M8X16 FLANGE
0-28050-816-0
01
1
0601-
229
NUT; CLIP RAD MTG
M8 FLANGE
0-91150-108-0
01
1
0311-0602
229
NUT; CLIP RAD MTG
M8 FLANGE
0-91180-108-0
01
1
0603-
244
CLIP; BAND
L=250 IDN
5-09707-030-1
01
1
0311-
343
SEAL
OD=25 BLACK
1-76798-019-0
02
1
0311-
