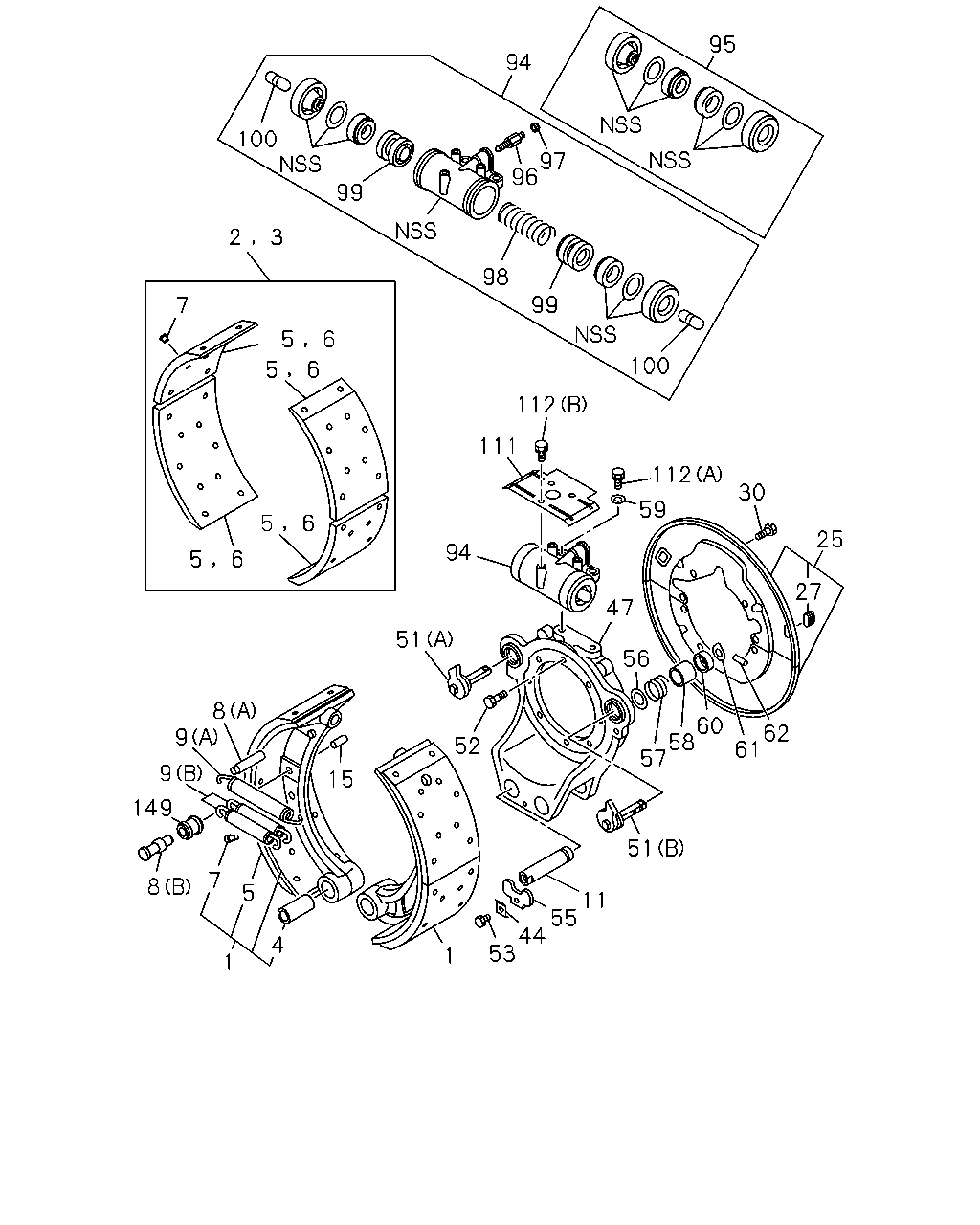

3-05 — REAR WHEEL BRAKE (#23867) — 92 parça
çizim 104664
95 94 100 97 96 99 2 3 98 99 7 5 6 100 5 6 112 111 112 30 59 5 6 25 94 5 6 27 47 51 56 8 60 58 57 62 61 9 52 9 15 149 51 7 8 5 11 55 44 53 4 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR 1-47120-708-0 04 1 0311-
1 SHOE; BRK,RR 1-47120-708-0 04 1 0311-
2 LINING SET; RR BRK,STANDARD 1-88310-529-1 02 1 0311-
2 LINING SET; RR BRK,STANDARD 1-88310-529-1 02 1 0311-
3 LINING SET; RR BRK,OVER SIZE 1-88310-530-1 02 1 0311-
3 LINING SET; RR BRK,OVER SIZE 1-88310-530-1 02 1 0311-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0311-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0311-
5 LINING; RR BRK SHOE,STANDARD 1-47125-813-0 08 1 0311-
5 LINING; RR BRK SHOE,STANDARD 1-47125-813-0 08 1 0311-
6 LINING; RR BRK SHOE,OVER SIZE 1-47125-814-0 08 1 0311-
6 LINING; RR BRK SHOE,OVER SIZE 1-47125-814-0 08 1 0311-
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 0311-
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 0311-
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-09744-051-0 04 1 0311-
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-09744-051-0 04 1 0311-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-025-0 04 1 0311-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-025-0 04 1 0311-
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-175-0 02 1 0311-
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-175-0 02 1 0311-
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-210-0 02 1 0311-
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-210-0 02 1 0311-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0311-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0311-
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-002-0 04 1 0311-
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-002-0 04 1 0311-
25 COVER SET; RR BRK DRUM 1-47151-461-1 02 1 0311-
25 COVER SET; RR BRK DRUM 1-47151-461-1 02 1 0311-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0311-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0311-
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0311-0906
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0311-0906
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-
44 WASHER; ADJ SCREW 1-47133-011-0 02 1 0311-
44 WASHER; ADJ SCREW 1-47133-011-0 02 1 0311-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 0311-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 0311-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) 		1-47165-058-1 02 1 0311-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) 		1-47165-058-1 02 1 0311-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) 		1-47165-059-1 02 1 0311-
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) 		1-47165-059-1 02 1 0311-
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0311-
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0311-
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0311-0512
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0311-0512
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0601-
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0601-
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0311-
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0311-
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 0311-
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 0311-
57 SPRING; ADJ CAM,RR WHEEL BRK 1-47169-046-0 04 1 0311-
57 SPRING; ADJ CAM,RR WHEEL BRK 1-47169-046-0 04 1 0311-
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-034-0 04 1 0311-
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-034-0 04 1 0311-
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		9-09150-514-0 04 1 0311-0603
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		9-09150-514-0 04 1 0311-0603
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		0-91510-514-0 04 1 0604-
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		0-91510-514-0 04 1 0604-
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 0311-
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 0311-
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 0311-
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 0311-
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 0311-
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 0311-
94 CYLINDER; WHEEL,RR BRK 1-47600-684-0 02 1 0311-
94 CYLINDER; WHEEL,RR BRK 1-47600-684-0 02 1 0311-
95 CUP SET; RR WHEEL CYL 1-87830-527-0 02 1 0311-
95 CUP SET; RR WHEEL CYL 1-87830-527-0 02 1 0311-
96 SCREW; BLEEDER,RR BRK 1-47615-002-0 02 1 0311-
96 SCREW; BLEEDER,RR BRK 1-47615-002-0 02 1 0311-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0311-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0311-
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 0311-
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 0311-
99 PISTON; RR WHEEL CYL 1-47624-302-0 04 1 0311-
99 PISTON; RR WHEEL CYL 1-47624-302-0 04 1 0311-
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 0311-
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 0311-
111 COVER; WHEEL CYL 1-47159-081-0 02 1 0311-
111 COVER; WHEEL CYL 1-47159-081-0 02 1 0311-
112 BOLT; WHEEL CYL SETTING
(A) M14X35 		0-20801-435-0 04 1 0311-0512
112 BOLT; WHEEL CYL SETTING
(A) M14X35 		0-20801-435-0 04 1 0311-0512
112 BOLT; WHEEL CYL SETTING
(A) M14X35 		0-20851-435-0 04 1 0601-
112 BOLT; WHEEL CYL SETTING
(A) M14X35 		0-20851-435-0 04 1 0601-
112 BOLT; WHEEL CYL SETTING
(B) M8X16 W/LK WASHER 		0-50040-816-0 06 1 0311-0512
112 BOLT; WHEEL CYL SETTING
(B) M8X16 W/LK WASHER 		0-50040-816-0 06 1 0311-0512
112 BOLT; WHEEL CYL SETTING
(B) M8X16 W/LK WASHER 		0-50540-816-0 06 1 0601-
112 BOLT; WHEEL CYL SETTING
(B) M8X16 W/LK WASHER 		0-50540-816-0 06 1 0601-
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 0311-
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 0311-
