Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#23854) — 189 parça

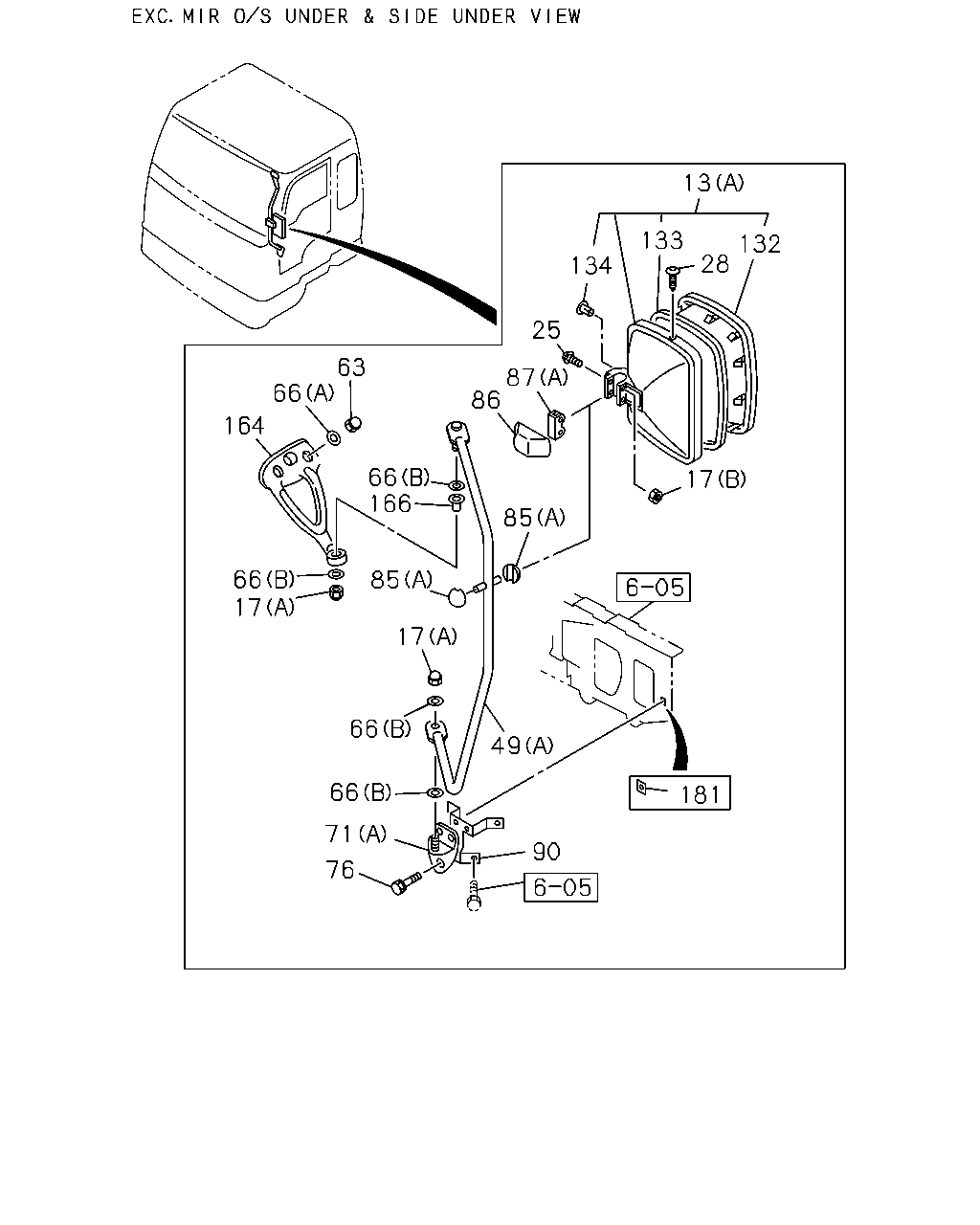

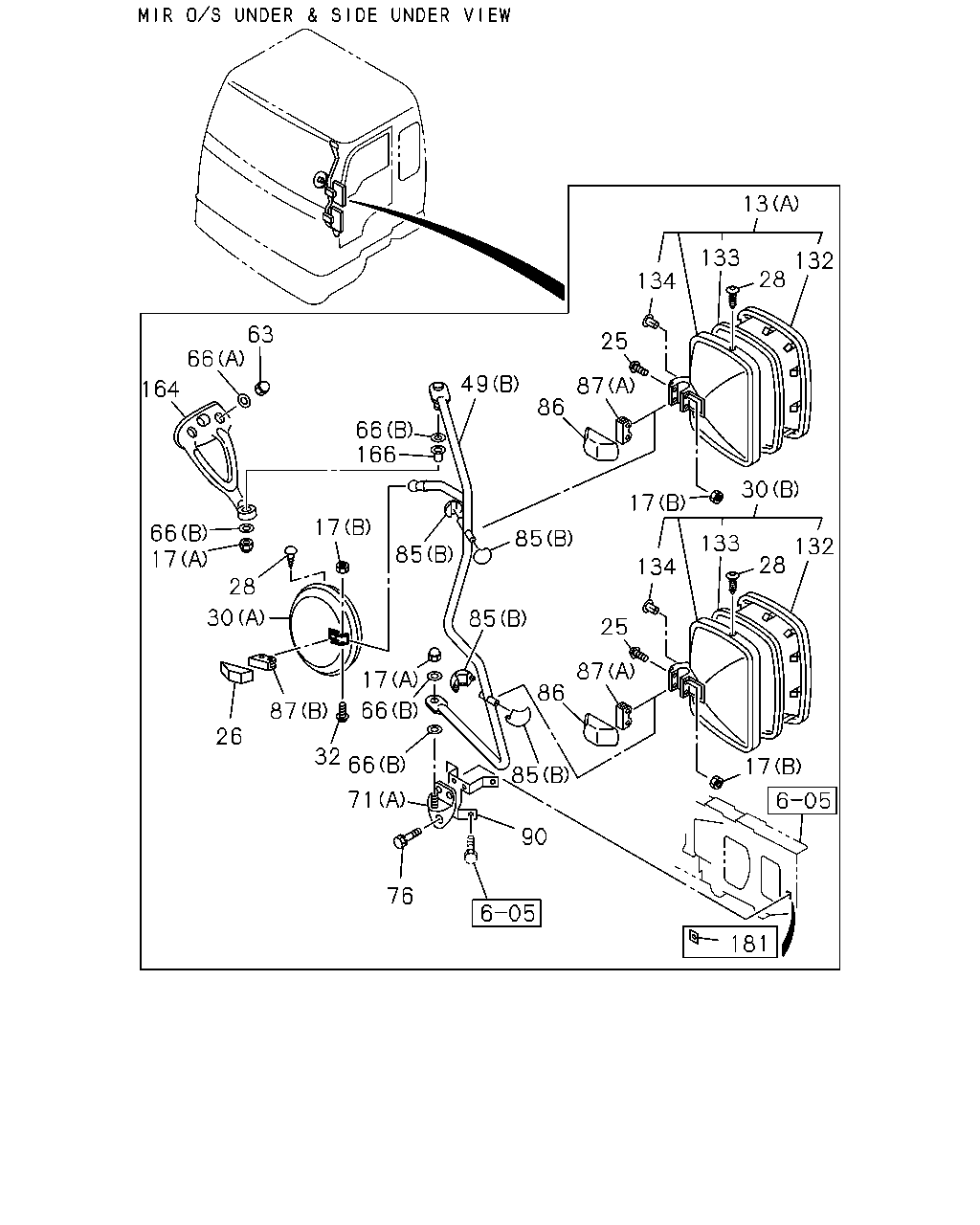

13 133 132 28 134 63 25 66 49 87 164 86 66 166 30 17 17 66 17 85 133 132 85 28 134 28 30 85 25 87 17 86 66 87 26 32 66 17 85 71 90 76 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A) THA	8-97917-731-0	01	1	0202-
13	MIRROR ASM; OUTSIDE RR VIEW (B) THA	8-97917-754-0	01	1	0202-
17	NUT; CAP,MIRROR STAY (A) CAP M10	1-09984-183-0	04	1	0202-0208
17	NUT; CAP,MIRROR STAY M10	1-09984-134-0	04	1	0209-
17	NUT; CAP,MIRROR STAY (B) THA	8-97917-761-0	02	1	0202-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	02	1	0202-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	06	1	0202-
25	SCREW; OUTSIDE MIRROR THA	8-97917-760-0	02	1	0202-
25	SCREW; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	02	1	0202-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	04	1	0202-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97922-108-0	01	1	0202-
28	GROMMET; UNDER MIRROR THA	8-97917-759-0	01	1	0202-
28	GROMMET; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	01	1	0202-
28	GROMMET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	02	1	0202-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97922-104-1	01	1	0202-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-116-0	01	1	0202-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97922-106-0	02	1	0202-
49	STAY; MIRROR SIDE (C) THA	8-97917-762-0	01	1	0202-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-105-2	01	1	0202-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-764-0	01	1	0202-
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> M10	1-09984-142-0	01	1	0401-
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97922-614-0	01	1	0311-
63	NUT; STAY CAP M8	1-09984-187-0	03	1	0202-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	0401-0401
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0401-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	0401-0402
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=10.5 OD=26 T=2.6	1-09985-184-0	13	1	0403-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0202-0402
66	WASHER; PL EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0403-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0202-
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-882-0	01	1	0401-
71	BRACKET; OUTSIDE MIRROR (A) THA	1-71798-581-3	01	1	0202-
71	BRACKET; OUTSIDE MIRROR (B) UPPER THA	1-71798-484-1	01	1	0202-0312
71	BRACKET; OUTSIDE MIRROR THA	1-71798-484-1	01	1	0401-
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	1-71798-484-1	01	1	0401-
71	BRACKET; OUTSIDE MIRROR (C) LOWER THA	1-71798-486-2	01	1	0202-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0202-
85	PIVOT; MAIN MIRROR (C) THA	8-97917-756-0	02	1	0202-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=25.4 THA	1-71737-627-2	04	1	0202-
85	PIVOT; MAIN MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-763-0	02	1	0202-
86	COVER; STAY,OUTSIDE MIRROR THA	8-97917-758-0	01	1	0202-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	01	1	0202-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	02	1	0202-
87	SPACER (A) THA	8-97917-757-0	01	1	0202-
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	01	1	0202-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	02	1	0202-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-107-0	01	1	0202-
89	SCREW; BRKT,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6X20	1-09981-494-0	02	1	0401-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0202-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0202-
132	RING; MIRROR THA	8-97917-752-0	01	1	0202-
132	RING; MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	01	1	0202-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	02	1	0202-
133	LENS; MIRROR,OUTSIDE THA	8-97917-753-0	01	1	0202-
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	01	1	0202-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	02	1	0202-
134	CLIP; MIRROR LENS THA	8-97917-755-0	01	1	0202-
134	CLIP; MIRROR LENS EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	01	1	0202-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	02	1	0202-
164	STAY; ROOF	1-71798-299-4	01	1	0202-
166	BUSHING; STAY	1-09983-175-1	01	1	0202-
181	SEAL; BRKT 25X25 THA	8-94272-533-0	02	1	0202-
307	STAY; MIRROR SUPPORT MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97922-546-0	01	1	0311-

2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM THA	8-97917-692-1	01	1	0202-
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0202-
89	SCREW; BRKT,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6X20	1-09981-494-0	02	1	0401-
307	STAY; MIRROR SUPPORT MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97922-546-0	01	1	0311-

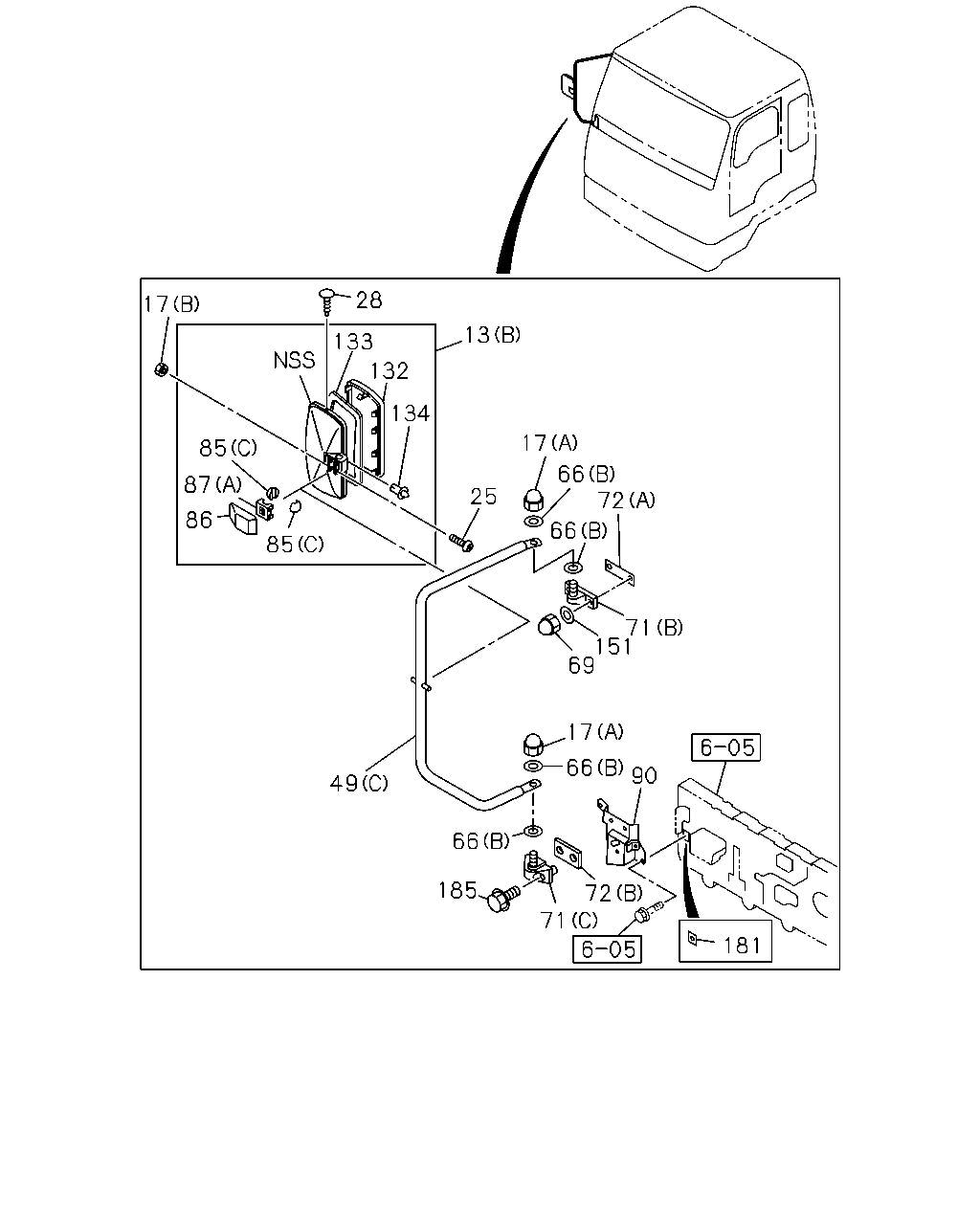

28 17 13 133 132 134 17 85 66 72 87 25 86 66 85 71 151 69 17 66 90 49 66 72 71 185 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A) THA	8-97917-731-0	01	1	0202-
13	MIRROR ASM; OUTSIDE RR VIEW (B) THA	8-97917-754-0	01	1	0202-
17	NUT; CAP,MIRROR STAY (A) CAP M10	1-09984-183-0	04	1	0202-0208
17	NUT; CAP,MIRROR STAY M10	1-09984-134-0	04	1	0209-
17	NUT; CAP,MIRROR STAY (B) THA	8-97917-761-0	02	1	0202-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	02	1	0202-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	06	1	0202-
25	SCREW; OUTSIDE MIRROR THA	8-97917-760-0	02	1	0202-
25	SCREW; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	02	1	0202-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	04	1	0202-
28	GROMMET; UNDER MIRROR THA	8-97917-759-0	01	1	0202-
28	GROMMET; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	01	1	0202-
28	GROMMET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	02	1	0202-
49	STAY; MIRROR SIDE (C) THA	8-97917-762-0	01	1	0202-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-105-2	01	1	0202-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-764-0	01	1	0202-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	0401-0401
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0401-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	0401-0402
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=10.5 OD=26 T=2.6	1-09985-184-0	13	1	0403-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0202-0402
66	WASHER; PL EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0403-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0202-
69	NUT; CAP MIR O/S UNDER & SIDE UNDER VIEW<TAF> M10	1-09984-134-0	02	1	0401-
69	NUT; CAP M8	1-09984-187-0	02	1	0202-0312
69	NUT; CAP M8	1-09984-187-0	02	1	0401-
69	NUT; CAP MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8	1-09984-187-0	02	1	0401-
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-882-0	01	1	0401-
71	BRACKET; OUTSIDE MIRROR (A) THA	1-71798-581-3	01	1	0202-
71	BRACKET; OUTSIDE MIRROR (B) UPPER THA	1-71798-484-1	01	1	0202-0312
71	BRACKET; OUTSIDE MIRROR THA	1-71798-484-1	01	1	0401-
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	1-71798-484-1	01	1	0401-
71	BRACKET; OUTSIDE MIRROR (C) LOWER THA	1-71798-486-2	01	1	0202-
72	SHEET MIR O/S UNDER & SIDE UNDER VIEW<TAF> D=8 2-HOLE	1-71737-444-0	01	1	0401-
72	SHEET (A) UPPER THA	1-71798-487-3	01	1	0202-0312
72	SHEET THA	1-71798-487-3	01	1	0401-
72	SHEET MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	1-71798-487-3	01	1	0401-
72	SHEET (B) LOWER THA	1-71798-488-1	01	1	0202-
85	PIVOT; MAIN MIRROR (C) THA	8-97917-756-0	02	1	0202-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=25.4 THA	1-71737-627-2	04	1	0202-
85	PIVOT; MAIN MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-763-0	02	1	0202-
86	COVER; STAY,OUTSIDE MIRROR THA	8-97917-758-0	01	1	0202-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	01	1	0202-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	02	1	0202-
87	SPACER (A) THA	8-97917-757-0	01	1	0202-
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	01	1	0202-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	02	1	0202-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-107-0	01	1	0202-
89	SCREW; BRKT,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6X20	1-09981-494-0	02	1	0401-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0202-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0202-
132	RING; MIRROR THA	8-97917-752-0	01	1	0202-
132	RING; MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	01	1	0202-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	02	1	0202-
133	LENS; MIRROR,OUTSIDE THA	8-97917-753-0	01	1	0202-
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	01	1	0202-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	02	1	0202-
134	CLIP; MIRROR LENS THA	8-97917-755-0	01	1	0202-
134	CLIP; MIRROR LENS EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	01	1	0202-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	02	1	0202-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0202-
181	SEAL; BRKT 25X25 THA	8-94272-533-0	02	1	0202-
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	02	1	0202-
307	STAY; MIRROR SUPPORT MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97922-546-0	01	1	0311-

13 133 132 28 134 25 63 87 86 66 164 66 166 17 85 66 17 85 17 66 49 66 71 90 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A) THA	8-97917-731-0	01	1	0202-
13	MIRROR ASM; OUTSIDE RR VIEW (B) THA	8-97917-754-0	01	1	0202-
17	NUT; CAP,MIRROR STAY (A) CAP M10	1-09984-183-0	04	1	0202-0208
17	NUT; CAP,MIRROR STAY M10	1-09984-134-0	04	1	0209-
17	NUT; CAP,MIRROR STAY (B) THA	8-97917-761-0	02	1	0202-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	02	1	0202-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97917-761-0	06	1	0202-
25	SCREW; OUTSIDE MIRROR THA	8-97917-760-0	02	1	0202-
25	SCREW; OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	02	1	0202-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-760-0	04	1	0202-
28	GROMMET; UNDER MIRROR THA	8-97917-759-0	01	1	0202-
28	GROMMET; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	01	1	0202-
28	GROMMET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-759-0	02	1	0202-
49	STAY; MIRROR SIDE (C) THA	8-97917-762-0	01	1	0202-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-105-2	01	1	0202-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-764-0	01	1	0202-
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> M10	1-09984-142-0	01	1	0401-
63	NUT; STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97922-614-0	01	1	0311-
63	NUT; STAY CAP M8	1-09984-187-0	03	1	0202-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	0401-0401
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0401-
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	0401-0402
66	WASHER; PL MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=10.5 OD=26 T=2.6	1-09985-184-0	13	1	0403-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0202-0402
66	WASHER; PL EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0403-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0202-
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71798-882-0	01	1	0401-
71	BRACKET; OUTSIDE MIRROR (A) THA	1-71798-581-3	01	1	0202-
71	BRACKET; OUTSIDE MIRROR (B) UPPER THA	1-71798-484-1	01	1	0202-0312
71	BRACKET; OUTSIDE MIRROR THA	1-71798-484-1	01	1	0401-
71	BRACKET; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	1-71798-484-1	01	1	0401-
71	BRACKET; OUTSIDE MIRROR (C) LOWER THA	1-71798-486-2	01	1	0202-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0202-
85	PIVOT; MAIN MIRROR (C) THA	8-97917-756-0	02	1	0202-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=25.4 THA	1-71737-627-2	04	1	0202-
85	PIVOT; MAIN MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-763-0	02	1	0202-
86	COVER; STAY,OUTSIDE MIRROR THA	8-97917-758-0	01	1	0202-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	01	1	0202-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-758-0	02	1	0202-
87	SPACER (A) THA	8-97917-757-0	01	1	0202-
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	01	1	0202-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) THA	8-97917-757-0	02	1	0202-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) THA	8-97922-107-0	01	1	0202-
89	SCREW; BRKT,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6X20	1-09981-494-0	02	1	0401-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0202-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0202-
132	RING; MIRROR THA	8-97917-752-0	01	1	0202-
132	RING; MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	01	1	0202-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-752-0	02	1	0202-
133	LENS; MIRROR,OUTSIDE THA	8-97917-753-0	01	1	0202-
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	01	1	0202-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-753-0	02	1	0202-
134	CLIP; MIRROR LENS THA	8-97917-755-0	01	1	0202-
134	CLIP; MIRROR LENS EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	01	1	0202-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97917-755-0	02	1	0202-
164	STAY; ROOF	1-71798-299-4	01	1	0202-
166	BUSHING; STAY	1-09983-175-1	01	1	0202-
307	STAY; MIRROR SUPPORT MIR O/S UNDER & SIDE UNDER VIEW<TAF> THA	8-97922-546-0	01	1	0311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
