Isuzu WW
▶
TRUCKS
▶
GXZ
▶
10899 - GXZ(THAI)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-01 - EMBLEM AND NAME PLATE
▶

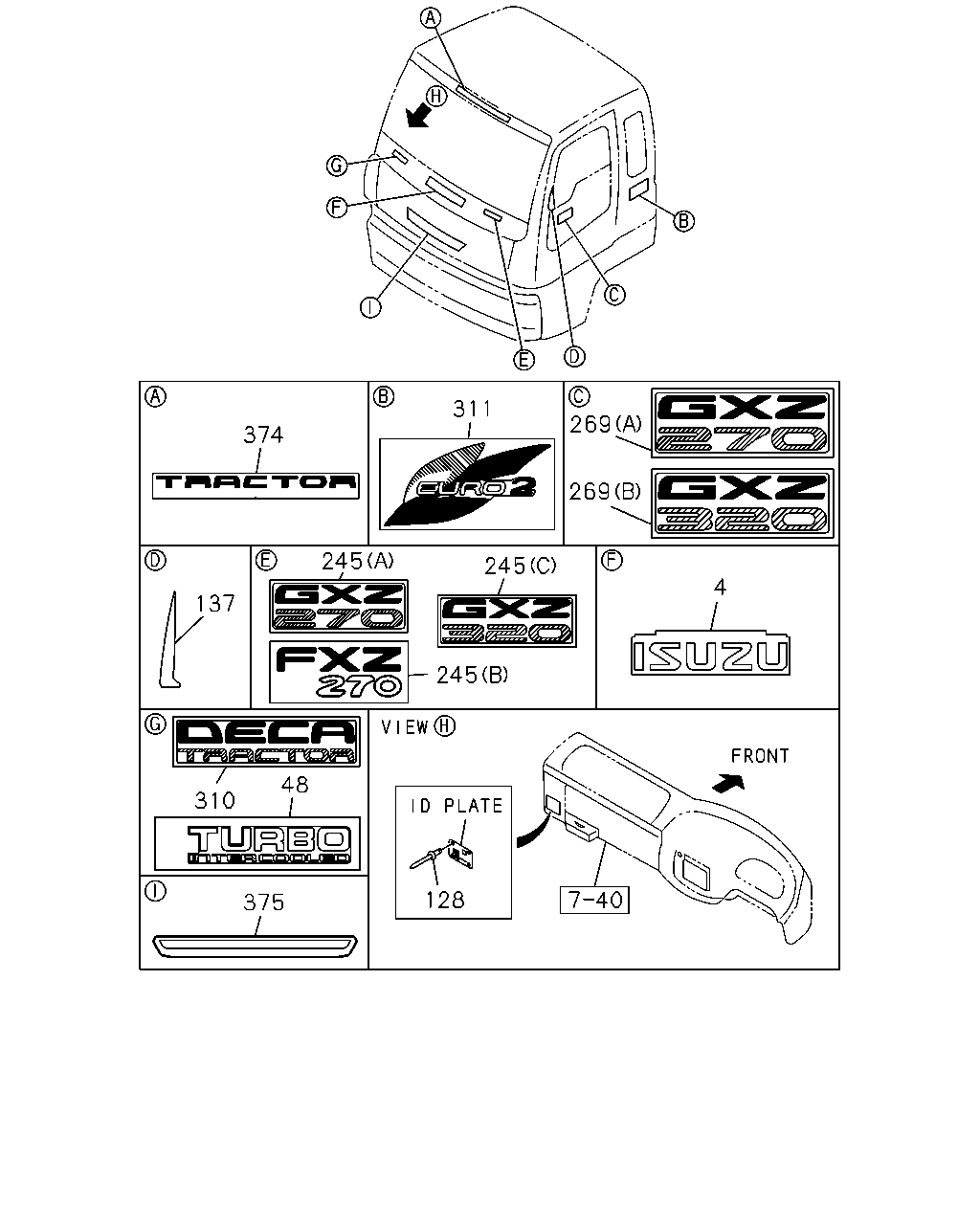

7-01 — EMBLEM AND NAME PLATE
(#23852) — 17 parça
◀
[701A] REAR BODY (1 parça)
[701A] CAB SIDE (16 parça)
▶
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
110
EMBLEM; "ISUZU",RR BODY
THA
1-76210-663-0
01
1
0202-
311
269
374
269
245
245
4
137
245
48
310
128
375
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
EMBLEM; RAD GRILLE
ISUZU
1-76210-668-3
01
1
0202-
48
DECAL; TURBOCHARGER
THA
1-76218-114-0
01
1
0202-
128
RIVET; POP,NAME PLATE
THA
8-97916-562-0
04
1
0202-
137
DECAL; DOOR
BLACK
1-74998-049-3
01
1
0202-
137
DECAL; DOOR
BLACK
1-74998-048-3
01
1
0202-
245
DECAL; MODEL
(B) FXZ 270 THA
8-97913-980-0
01
1
0202-
245
DECAL; MODEL
6SD1 TCN ENG<31L> (A) GXZ 270 THA
8-97922-188-0
01
1
0202-
245
DECAL; MODEL
6SD1 TCS ENG<83L> (C) GXZ 320 THA
8-97922-143-0
01
1
0208-
269
DECAL; SIDE DOOR
6SD1 TCN ENG<31L> (A) GXZ 270 THA
8-97922-188-0
02
1
0202-
269
DECAL; SIDE DOOR
6SD1 TCS ENG<83L> (B) GXZ 320 THA
8-97922-143-0
02
1
0208-
310
DECAL; "DECA"
THA
8-97922-189-0
01
1
0202-
311
DECAL; "EURO 2"
THA
8-97917-875-0
01
1
0202-
311
DECAL; "EURO 2"
THA
8-97917-876-0
01
1
0202-
374
DECAL; TRACTOR
THA
8-97922-191-0
01
1
0202-0308
374
DECAL; TRACTOR
FINAL GEAR 43/7 17.5"<W3Y>,FINAL GEAR 39/7 17.5"<W3Z> THA
8-97922-191-0
01
1
0309-
375
DECAL; CTR GRILLE
6SD1 TCS ENG<83L> THA
8-97922-192-0
01
1
0208-
